KitchenAid KSM150AGBCS Manuale utente
5 QT. STAND MIXER − TILT HEAD
ARCHITECT SERIES − GLASS BOWL
MODELS:
3−11 Litho in U.S.A. (skr) (psw) Part No. W10325324 Rev. B
KSM150AGBCA0 (Candy Apple)
KSM150AGBCS0 (Cocoa Silver)
KSM150AGBRI0 (Raspberry Ice)
KSM150AGBES0 (Espresso)

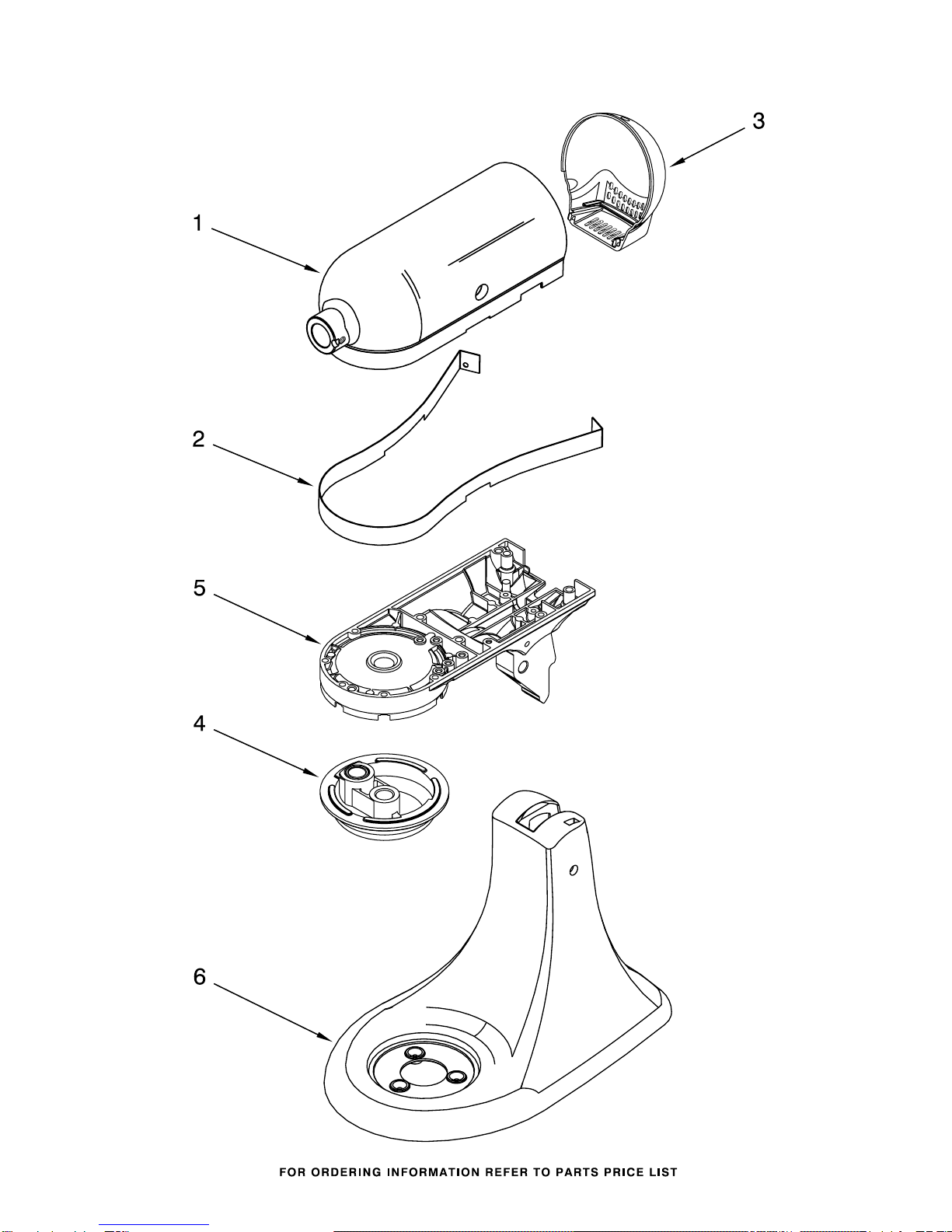

COLOR VARIATION PARTS
2
For Models: KSM150AGB__0
3−11 Litho in U.S.A. (skr) (psw) Part No. W10325324 Rev. B
COLOR VARIATION PARTS
3
For Models: KSM150AGB__0
W10325324
Illus. Part
No. No. DESCRIPTION
1 Motor Housing
W10239115
Candy Apple
W10171586
Cocoa Silver
W10384420
Raspberry Ice
W10383627
Espresso
2 Trim Band
W10171580
Dk. Platinum
3 End Cover
W10239110
Candy Apple
W10171581
Cocoa Silver
W10384429
Raspberry Ice
W10383633
Espresso
4 Planetary
W10239112
Candy Apple
W10171583
Cocoa Silver
W10384425
Raspberry Ice
W10383631
Espresso
5 Lower Gearcase
W10239118
Candy Apple
W10171589
Cocoa Silver
W10384415
Raspberry Ice
W10383623
Espresso
6 Pedestal w/Feet
W10239121
Candy Apple
W10171592
Cocoa Silver
W10392122
Raspberry Ice
W10403051
Espresso
Colors Subject To Change.
Any Color Not Listed is
No Longer Available.
If Additional Colors Are Added,
This Page Will Be Updated.
CASE, GEARING AND PLANETARY UNIT
4
For Models: KSM150AGB__0
W10325324
CASE, GEARING AND PLANETARY UNIT
5
For Models: KSM150AGB__0
W10325324
Illus. Part
No. No. DESCRIPTION
1 Gearcase Motor
Housing
2 Cap, Attachment
Hub
242765−2 Chrome
W10163146
Satin Chrome
3 Thumb Screw
9709194 Black
4Band, Trim
5
W10323373
Washer
6
W10112253
Gear, Worm
7 240308 Bracket, Worm Gear
and Bearing
8 9705444 Pin
9 240210−2 Shaft & Pinion
10 9705130 Gear, Attachment
Hub Level
11 9709627 Bevel Pinion
Center Gear
12 240026 Shaft, Vertical
Center
13 240018−1 Pin (Vertical
Center Shaft)
14 9705443 Pin, Groove
15 4162324 Gasket, Transmissn
16 67500−55 O−Ring
17
W10323378
Washer
18 Lower Gearcase
19 103994 Screw
20 4176067 Shaft, Agitator
21 9703438 Ring, Retaining
22 9704677 Pin, Groove
23 4162914 Screw
24 Cover, End
25 311932 Screw
26 3400022 Screw
27 240309−2 Gear, Worm
and Bracket
28 4160474 Shaft, Center &
O−Ring
29 8533914 Washer, Spring
Lock
30 3400025 Screw
31 3400203 Screw, Set
32 9703903 Pinion, Gear
Agitator Shaft
33 9706090 Washer
34 Planetary
35 240285 Ring, Planetary
Drip
36 89411 Screw, Adjusting
37 9703904 Gear, Internal
Refer to Pages 2 & 3
MOTOR AND CONTROL PARTS
6
For Models: KSM150AGB__0
W10325324
MOTOR AND CONTROL PARTS
7
For Models: KSM150AGB__0
W10325324
Illus. Part
No. No. DESCRIPTION
1 110679 Screw, Pivot
2 116241 Washer, Spring
3 Lever, Speed
Control Assy
9709276 Black
4 3183680 Spring, Control
Plate
5 9704324 Washer, Ball
Bearing (Front)
6 9708315 Armature & Bearing
7
W10323376
Washer
8 16998 Stud, Governor
Drive
9 3180526 Bracket, Bearing
Assembly
10 240775−1 Seal, End
11
W10131078
Nut
12 3180238 Washer
13 240769 Screw
14
W10068270
Washer
15 3184176 Speed Link & Cam
16 240205 Spring, Flat
17 9702695 Field Assembly
18 4162634 Sleeve, Motor Stud
19
W10380496
Brush w/Spring
20 9707926 Screw, Set
21 4162546 Brush Holder
22 3179908 Housing, Brush
Holder
23 240680 Insert, Brush
Holder
24 116286 Cap, Spring Seat
25 116287 Spring, Cap
26 Cap, Brush Holder
3184212 Black
27
W10068260
Screw
28
W10119326
Control Plate Assy
29
W10330804
Governor Assembly
30
W10325124
Phase Control Brd
31 Cord, Power
W10164883
Black
32 3184609 Screw, Self Tap
BASE AND PEDESTAL UNIT
8
For Models: KSM150AGB__0
W10325324
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9709785 Use & Care/Triling
W10325324
Repair Parts List
2
W10220977
Ring, Thread
3 Beater, Flat
9707572 Burnished
4
W10154769
Bowl, 5 Qt Glass
5 3400020 Screw
6
W10191926
Cap, Screw Bowl
7 9709707 Foot, Base
8 9704329 Whip, Wire
9 9706626 Hook, Dough
10 9709055 Latch
11 24452 Latch, Link &
Lever
12 110679 Screw, Pivot
13 116241 Washer, Spring
14 8533912 Washer
15 103993 Screw, Latch
Bearing
16 24450 Link, Latch
17 Lever, Latch
9709280 Black
18 16910 Pin, Hinge
19 Pedestal
REFER TO PAGES 2 & 3
ACCESSORY PARTS
9
For Models: KSM150AGB__0
W10325324
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
4164839 Speed Disc
(Service Tool)
4176597 Grease, Planetary
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FGA),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVSA)
(FPPA)
4164749 Food Grinder
(FGA)
W10318099
Grain Mill
(KGM−0)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SNFGA)
4164775 Fruit/Vegetable
Strainer Parts
(Use With FGA
Model Only) (FVSP)
4164750 Rotor Slicer/
Shredder(With
4 Standard Cones)
Fine Shredder,
Coarse Shredder,
Thick Slicer,and
Thin Slicer
(RVSA)
9709923 Pouring Shield
(KN1PS0)
SNPA−0 Pasta Maker Plates
4164774 Fruit/Vegetable
Strainer and Food
Grinder (FVSFGA)
4396709 Cover, Quilted
(KMCC1WH)
241675 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
8212519 Ice Cream Maker
(KICA0WH0)
9709314 Bowl Cover,
(KBC90N1)
W10154769
Bowl, Glass
5 Qt. (K5GB)
W10223140
Cover, Glass Bwl
KPEXTA Pasta Extruder
w/6 Discs
