OVEN PARTS

For Models:KEBK171SBL04, KEBK171SWH04, KEBK171SSS04

(Black) (White) (Stainless)

4−09 Litho in U.S.A. (amd)(bay) Part No. W10269251 Rev. A

27" BUILT−IN ELECTRIC

SINGLE OVEN

OVEN PARTS

For Models:KEBK171SBL04, KEBK171SWH04, KEBK171SSS04

(Black) (White) (Stainless)

W10269251

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

8304336 Oven

8304571 Undercounter

W10162179

Use & Care Guide

Tech Sheet

W10220952

English

W10220953

French

8304335 Easy Set Guide

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

W10181198

Divider, Vent

Center

W10204469

Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10169756

Lens, Light

W10009940

Oven Light

Assembly

W10169757

Bulb, Light

13 3400832 Screw (2)

14 8304629 Frame, Front

15 8304494 Gasket, Door

16 3196176 Screw

17 4449040 Screw

18 4449154 Screw

19 4451477 Support, Insulation

W10169348

Thermostat,

Bracket

21 Mounting Rail,Side

Right

8303675BL

Black

8303675WH

White

Left

8303676BL

Black

8303676WH

White

W10195935

Latch, Mortorized

23 4449743 Screw

24 4449748 Screw

25 4455641 Side, Chassis

26 8304304 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse 105C

W10131825

Sensor

31 8303772 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

34 Trim, Bottom Vent

8303706BL

Black

8303706WH

White

W10216231

Stainless

35 4448444 Grommet, Mounting

Rail

36 3400893 Screw (12)

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303966 Insulation, Wrap

8303968 Insulation, Back

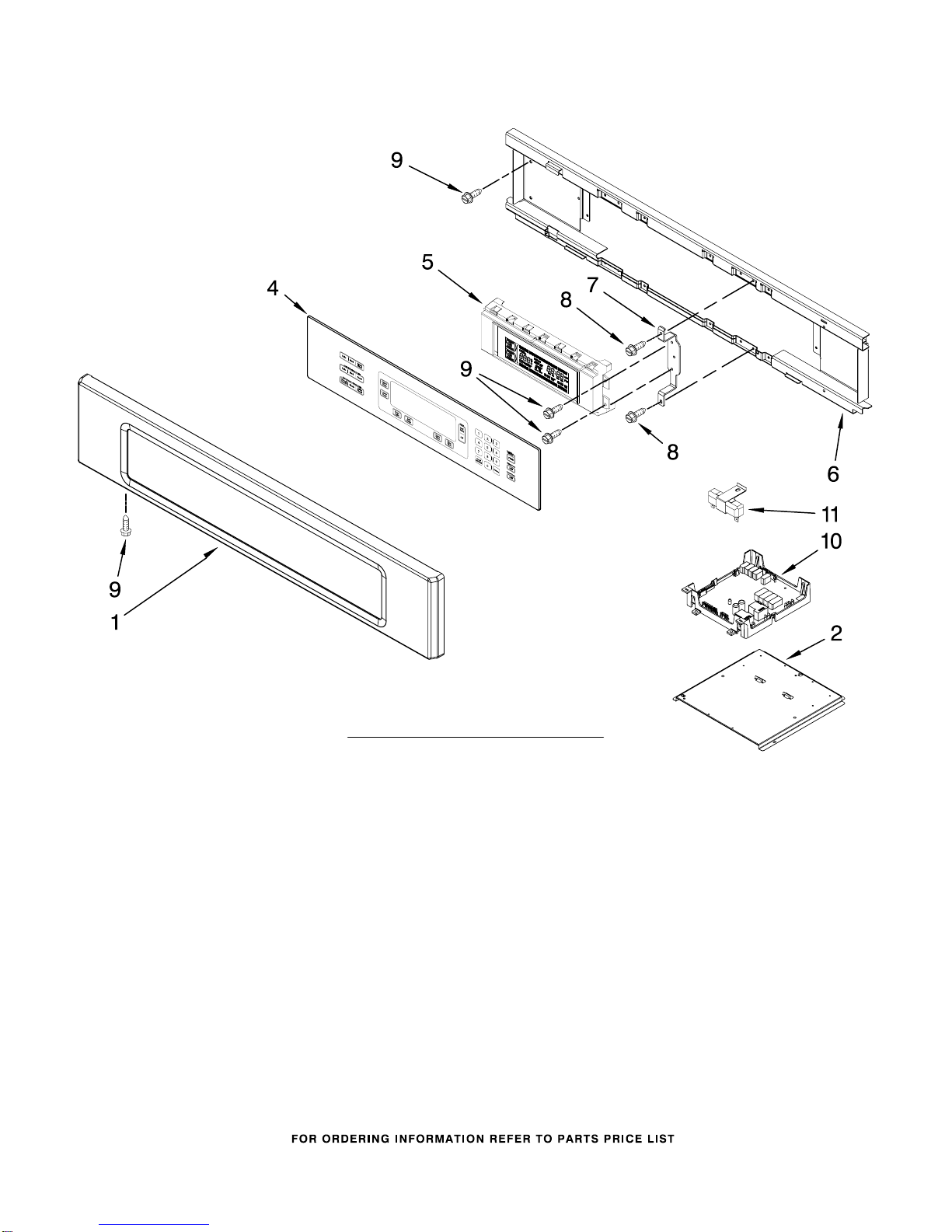

CONTROL PANEL PARTS

For Models:KEBK171SBL04, KEBK171SWH04, KEBK171SSS04

(Black) (White) (Stainless)

W10269251

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8303717BL

Black

8303717WH

White

W102016220

Stainless

2 8303687 Support, Appliance

Manager

4 8304331 Keyboard, Glass

Touch

W10118733

User Inferface

6 8303720 Backer, Control

7 8303887 Bracket,

Enclosure (2)

8 4449154 Screw

9 3400832 Screw

W10119143

Appliance Manager

11 8304441 Resistor, Drop

OVEN DOOR PARTS

For Models:KEBK171SBL04, KEBK171SWH04, KEBK171SSS04

(Black) (White) (Stainless)

W10269251

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8304522 Bumper, Door

W10174288

Hinge, Door (2)

3 3196183 Screw

8304580BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

8303738BL

Door Liner

7 8303732 Glass, Inner

W10143950

Screw

9 Cover, Door Hinge

W10137044

Right

W10137043

Left

10 8304523 Seal

8304361BL

Bracket, Handle

12 Door Glass,

Assembly

Includes #17

8304001 Black

8304003 White

W10237352

Stainless

13 Door Handle

8303775BL

Black

8303775WH

White

8303775SS

Stainless

8303745BL

Frame,Door Side(2)

16 8303754 Door, Top Bracket

17 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

INTERNAL OVEN PARTS

For Models:KEBK171SBL04, KEBK171SWH04, KEBK171SSS04

(Black) (White) (Stainless)

W10269251

Illus. Part

No. No. DESCRIPTION

1 8304602 Element, Broil

Shield

2 9760774 Element, Broil

3 4449154 Screw

4 4448715 Rack, Oven

6 9760768 Element, Bake

7 4455036 Tray, Bake

8 4450039 Cover, Bake Tray

9 4449809 Screw

TOP VENTING PARTS

For Models:KEBK171SBL04, KEBK171SWH04, KEBK171SSS04

(Black) (White) (Stainless)

W10269251

Illus. Part

No. No. DESCRIPTION

1 8304643 Duct, Air Outlet

7103P027−60

Nut (3)

3 4449809 Screw

4 8303972 Blower, 60mm

6 8285593 Connector, Cover

W10111628

Transformr,Control

8 4450118 Nut

9 4449868 Block, Terminal

10 3400080 Screw

11 8303722 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

14 8304220 Cover, Top

OPTIONAL PARTS (NOT INCLUDED)

For Models:KEBK171SBL04, KEBK171SWH04, KEBK171SSS04

(Black) (White) (Stainless)

W10269251

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

WIRING HARNESS PARTS

W10143473

Harness, Latch

Door

W10155291

Connector, Flex

W10171561

Harness, Main

8304051 Harness,

Communication

8304438 Conduit, Single

4450800 Screw,Ground

Miscellaneous

4448950 Screw, Install (4)

98997 Clip
