KitchenAid KEBU107SSS03 Manuale utente

OVEN PARTS

For Models: KEBU107SSS03

(Stainless)

4−09 Litho in U.S.A. (amd)(bay) Part No. W10269266 Rev. A

30" BUILT−IN ELECTRIC

SINGLE OVEN

OVEN PARTS

For Models: KEBU107SSS03

(Stainless)

W10269266

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10140563

Installation

Instructions

W10162200

Use & Care Guide

Tech Sheet

8304549 English

8304550 French

W10138788

Easy Set Guide

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

W10181196

Divider, Vent

W10204470

Top Chassis

8 4449809 Screw

9 3196176 Screw

10 4452163 Lens, Light

11 4448972 Oven Light,

Assembly

12 4452164 Bulb, Light

13 3400832 Screw

W10115861

Frame, Front

15 8304493 Gasket, Door

16 4452158 Tube, Vent

17 4449040 Screw

18 3400893 Screw

19 4451478 Support, Insulation

W10169348

Bracket,

Thermostat

21 Mounting Rail,Side

8303675BL

Right

8303676BL

Left

W10195935

Latch, Mortorized

23 4449743 Screw

24 4448444 Mounting Grommet,

Rail (6)

25 4455641 Side, Chassis

W10153104

Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse

W10131825

Sensor

30 4449748 Screw

31 8303516 Base, Chassis

W10153361

Retainer, Gasket

33 8303517 Cover, Back

W10237368

Assembly,

Bottom Vent

35 9758597 Orifice, Boiler

Slip Fit

W10153098

Cover, BoilerOrifice

37 4449154 Screw

W10150076

Enclosure

W10077010

Gasket, Enclosure

W10111418

Valve, Solenoid

W10076760

Sensor, Conductivity

Slip Fit

W10076910

Tubing

45 9761146 Clamp, Crimp

46 9758598 Boiler Assembly

W10194453

Switch, Pressure

W10076930

Hose

(includes clamp)

W10142627

Tubing, Steam

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303965 Insulation, Wrap

W10141379

Insulation, Back

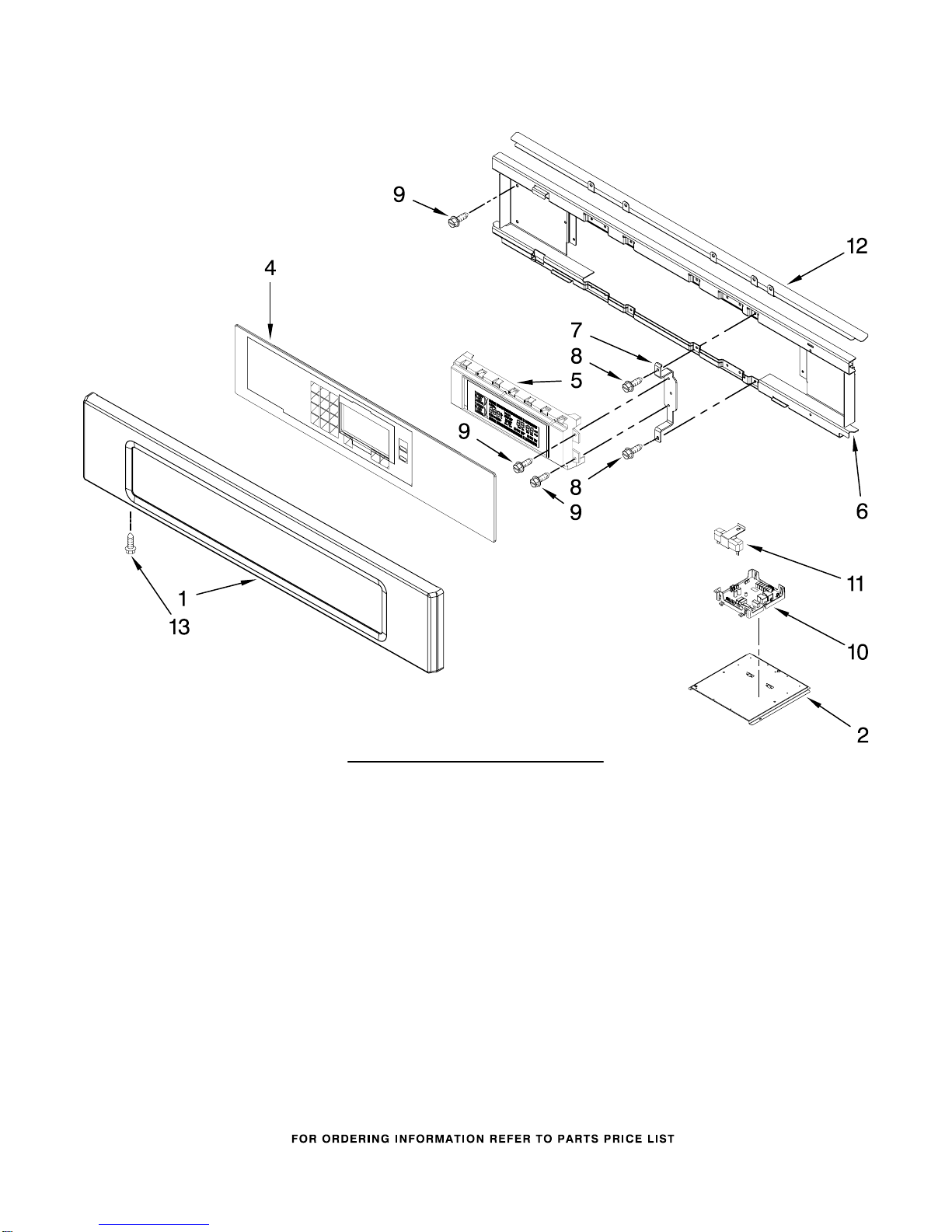

CONTROL PANEL PARTS

For Models: KEBU107SSS03

(Stainless)

W10269266

Illus. Part

No. No. DESCRIPTION

W10216219

Panel, Control

2 8303687 Support Appliance

Manager

W10016010

Control Panel,

Glass Touch

W10143289

User Interface

6 8303719 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400832 Screw

W10160958

Appliance Manager

11 8304441 Resistor, Drop

W10134765

Vapor, Stop

13 3400805 Screw

OVEN DOOR PARTS

For Models: KEBU107SSS03

(Stainless)

W10269266

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8303737BL

Door Liner

W10174285

Hinge, Door (2)

3 3196183 Screw

8304581BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

6 8303746 Door, Top Bracket

7 8303731 Glass, Inner

8 4449743 Screw

8303745BL

Frame, Door Side

10 8304523 Seal

8304360BL

Bracket, Handle

W10237350

Door Glass,

Assembly

8303774SS

Door Handle

8304603SS

Badge

16 8304522 Bumper, Glass

17 Cover,Hinge

W10137044

Right

W10137043

Left

W10143950

Screw

INTERNAL OVEN PARTS

For Models: KEBU107SSS03

(Stainless)

W10269266

Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 8303841 Rack, Oven

3 9760768 Element, Bake

4 4455037 Tray, Bake

5 4449154 Screw

6 4450039 Cover, Bake Tray

7 4449809 Screw

W10116228

Motor, Convection

Fan

W10116351

Blade, Fan

W10116349

Nut

W10141211

Cover, Fan

12 3400968 Nut

W10150011

Jack, Meat Probe

14 9755547 Lockwasher

15 9755546 Locknut

16 8304602 Shield, Broil

W10153105

Plate, Mounting

Convection Fan

W10116434

Element,

Convection

19 9755542 Probe, Temperature

W10208155

Oven Rack

(Sliding)

TOP VENTING PARTS

For Models: KEBU107SSS03

(Stainless)

W10269266

Illus. Part

No. No. DESCRIPTION

1 8304219 Cover, Top

2 8304643 Duct, Air Outlet

3 4449809 Screw

4 8303972 Blower

5 9760588 Transformer,

Lights

6 8285593 Connector, Cover

7 9762885 Transformer,

Control

9 4449868 Block, Terminal

10 3400080 Screw

11 8303684 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

14 4450118 Nut

OPTIONAL PARTS

For Models: KEBU107SSS03

(Stainless)

W10269266

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

WIRING HARNESS PARTS

W10143473

Harness, Latch

W10157925

Harness, Main

8304318 Communication,

Harness

8304611 Conduit, Single

4450800 Screw, Ground

7103P027−60

Nut

Miscellaneous

4448950 Screw, Install (4)

W10111330

Filter, Cartridge

W10051680

Reducer, Stem

W10049700

Filter Assembly

W10076960

Elbow, Plug In
