NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 Trim, Side

4450850 RH Black

4450851 RH White

4450852 RH Almond

4452122 RH Biscuit

4450853 LH Black

4450854 LH White

4450855 LH Almond

4452123 LH Biscuit

Screw

4449747 Black

4449041 White

4 4448520 Bumper, Door

6 4452200 Divider, Vent

4449809 Screw

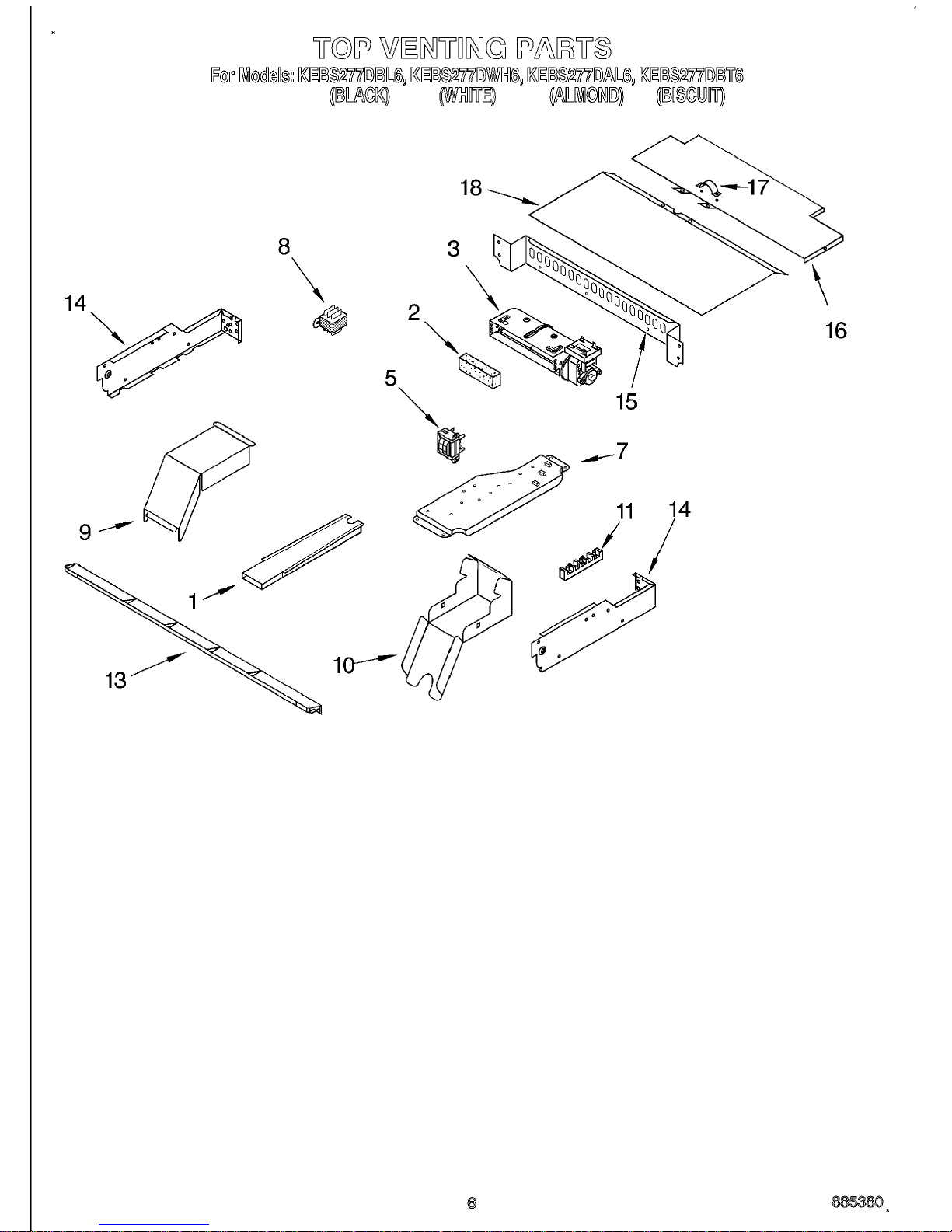

7 4452043 Top Chassis

4449809 Screw

9 4452158 Tube, Vent

4449154 Screw

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

14 4451739 Frame, Front

4449040 Screw

4450118 Nut

15 4449371 Gasket, Door

19 4451477 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

24 4451424 Latch Assy

4451663 Solenoid

4451422 Micro Switch N.C.

4451426 Micro Switch

4449154 Screw

25 4450528 Side, Chassis (R.H. & L.H.)

4449809 Screw

26 4451545 Back, Chassis

4449809 Screw

27 Liner, Oven (Not serviceable)

29 4450026 Sensor

4449154 Screw

33 4450280 Deflector, Vent

34 4452161 Vent, Center

37 4452223 Thermostat (TOD)

4449809 Screw

43 4451397 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 Trim, Bottom

4448458 Black

4448459 White

4448460 Almond

4452126 Biscuit

4159465 Screw

53 4449845 Support, Bracket

4449809 Screw

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

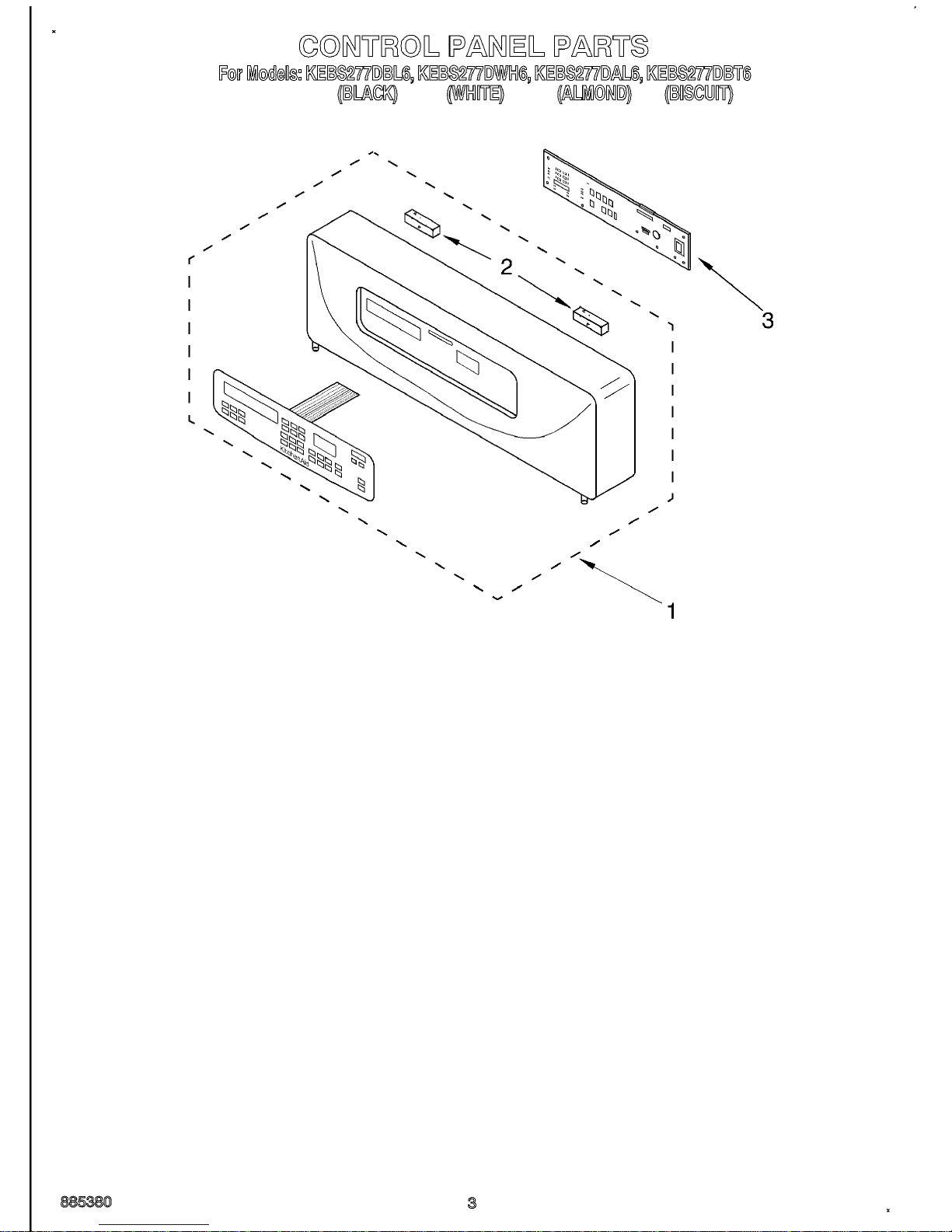

1 Control Panel Assy. W/Membrane Switch

4451291 Black

4451292 White

4451293 Almond

4451297 Biscuit

2 4451033 Gasket, Control Panel

4159465 Screw

3 4448871 Microcomputer

4449745 Screw

LITERATURE PARTS

LIT4450410 Installation Instructions

LIT4450571 Use & Care Guide (Oven)

LIT4449066 Cookbook (T/C Oven)

LIT4452026 Tech Sheet (Oven)

LIT4449264 Easy Set Guide

LIT3191638 Safer Cooking Tips

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 4451718 Door Liner

2 4451172 Hinge, Door

4449743 Screw

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4451670 Retainer, Glass

4449809 Screw

7 4449257 Glass, Inner

12 Door Glass, Assy

4452071 Black

4452072 White

4452073 Almond

4452146 Biscuit

13 Door Handle

4448411 Black

4448412 White

4448413 Almond

4452128 Biscuit

14 4450813 Bracket, Handle

4451040 Screw

19 4450361 Shield, Heat

4449809 Screw

20 4451668 Retainer, Glass

4449809 Screw

21 4451673 Seal, Door Top

23 Retainer, Clip

4450863 Black

4450864 White

4450865 Almond

4452119 Biscuit

2 4452156 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4448715 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Convection Motor

4449154 Screw

10 4452226 Blade, Fan

11 4448882 Washer, Lock

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4448722 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4452157 Element, Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw
