OVEN PARTS

For Models: KEBS278DBL8, KEBS278DWH8, KEBS278DBS8, KEBS278DSS8

(Black) (White) (Black Stainless) (Stainless Steel)

12−99 Litho in U.S.A.(RS) Part No. 8177418

27" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION

SELF−CLEAN

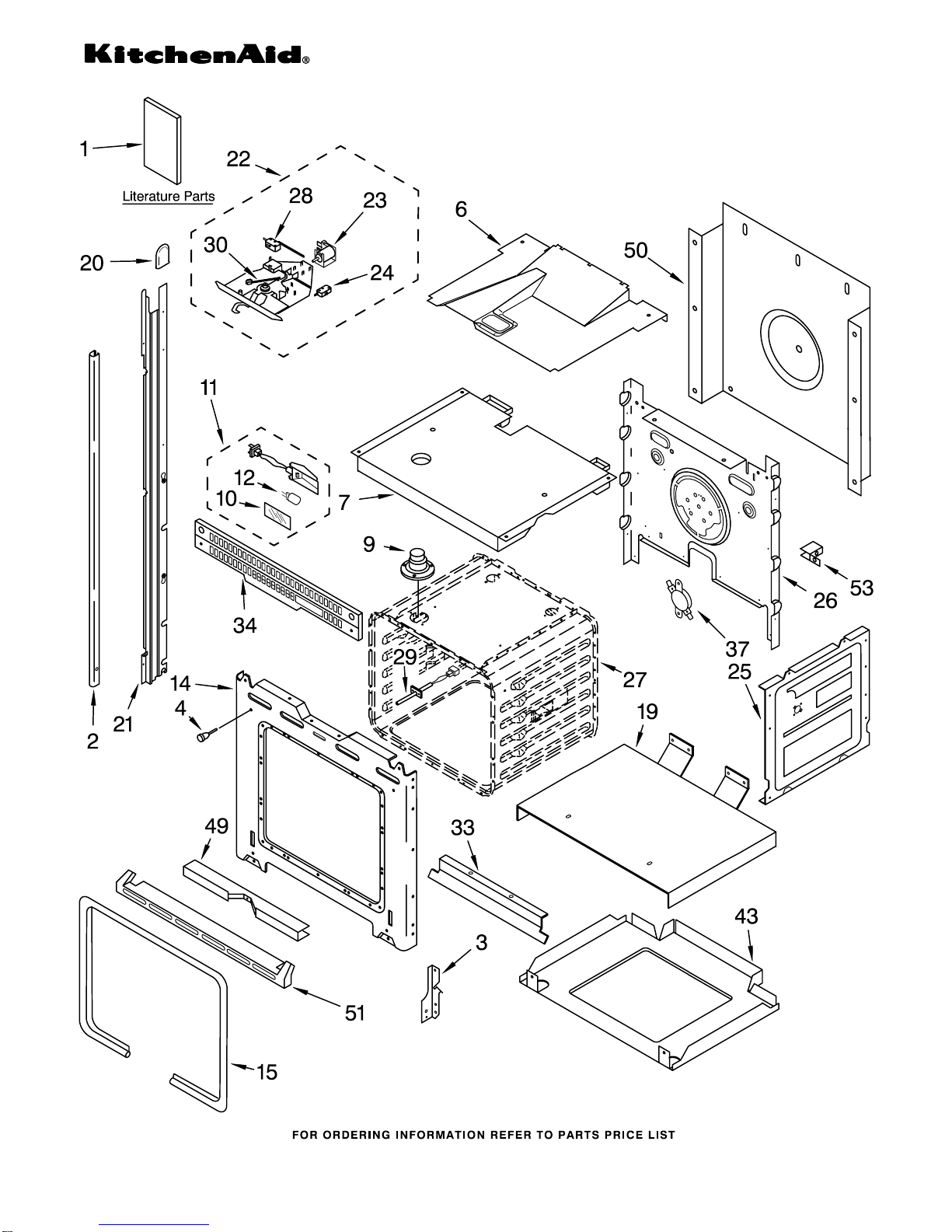

OVEN PARTS

For Models: KEBS278DBL8, KEBS278DWH8, KEBS278DBS8, KEBS278DSS8

(Black) (White) (Black Stainless) (Stainless Steel)

8177418

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Literature Parts

LIT4450410

Installation

Instructions

LIT4451952

Use & Care Guide

LIT4449066

Cookbook

(T/C Oven)

LIT4451879

Tech Sheet (Oven)

LIT4449264

Easy Set Guide

LIT3191638

Safer Cooking Tips

2 Trim, Side

4450850 RH Black & BS Mdls

4450851 RH White Model

4452081 RH Stainless Steel

4450853 LH Black & BS Mdls

4450854 LH White Model

4452082 LH Stainless Steel

Screw

4449747 Black & BS Mdls

4449041 White Model

3 Hinge Receiver

4454664 Left Hand

4454665 Right Hand

4 4448520 Bumper, Door

6 4452200 Divider, Vent

4449809 Screw

7 4455189 Top Chassis

4449809 Screw

9 4452158 Tube, Vent

4449154 Screw

10 4452163 Lens, Light

11 4448972 Oven Light Assy

12 4452164 Bulb, Light

4449748 Screw

14 4451739 Frame, Front

4449040 Screw

4450118 Nut

15 4455381 Gasket, Door

19 4451477 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

22 4451896 Latch Assy

23 4452224 Solenoid

24 4452312 Microswitch N.C.

4449154 Screw

25 4454691 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452233 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

28 4451426 Micro Switch

29 4451665 Sensor

4449154 Screw

30 4451537 Spring, Latch

33 Deflector, Vent

4450280 Black, White &

Black Stainless

Models

4452489 Stainless Steel

Model

34 4452266 Vent, Center

37 4452223 Thermostat (TOD)

4449809 Screw

43 4451397 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 Trim, Bottom

4448475 Black & BS Models

4448476 White Model

4452480 Stainless Steel

Model

4452152 Bracket, Mounting

Bottom Trim

4159465 Screw

53 4449845 Support, Bracket

4449809 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

4452336 Insulation, Bottom

Stainless Steel

Model

CONTROL PANEL PARTS

For Models: KEBS278DBL8, KEBS278DWH8, KEBS278DBS8, KEBS278DSS8

(Black) (White) (Black Stainless) (Stainless Steel)

8177418

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Control Panel Assy.

W/Membrane Switch

4451942 Black & BS Models

4451943 White Model

N/A Stainless Steel

2 4451033 Gasket,

Control Panel

3 4453165 Microcomputer

4449745 Screw

4 4452376 Membrane Switch

Stainless Steel

Model

5 4451790 Panel, Control

Stainless Steel

Model

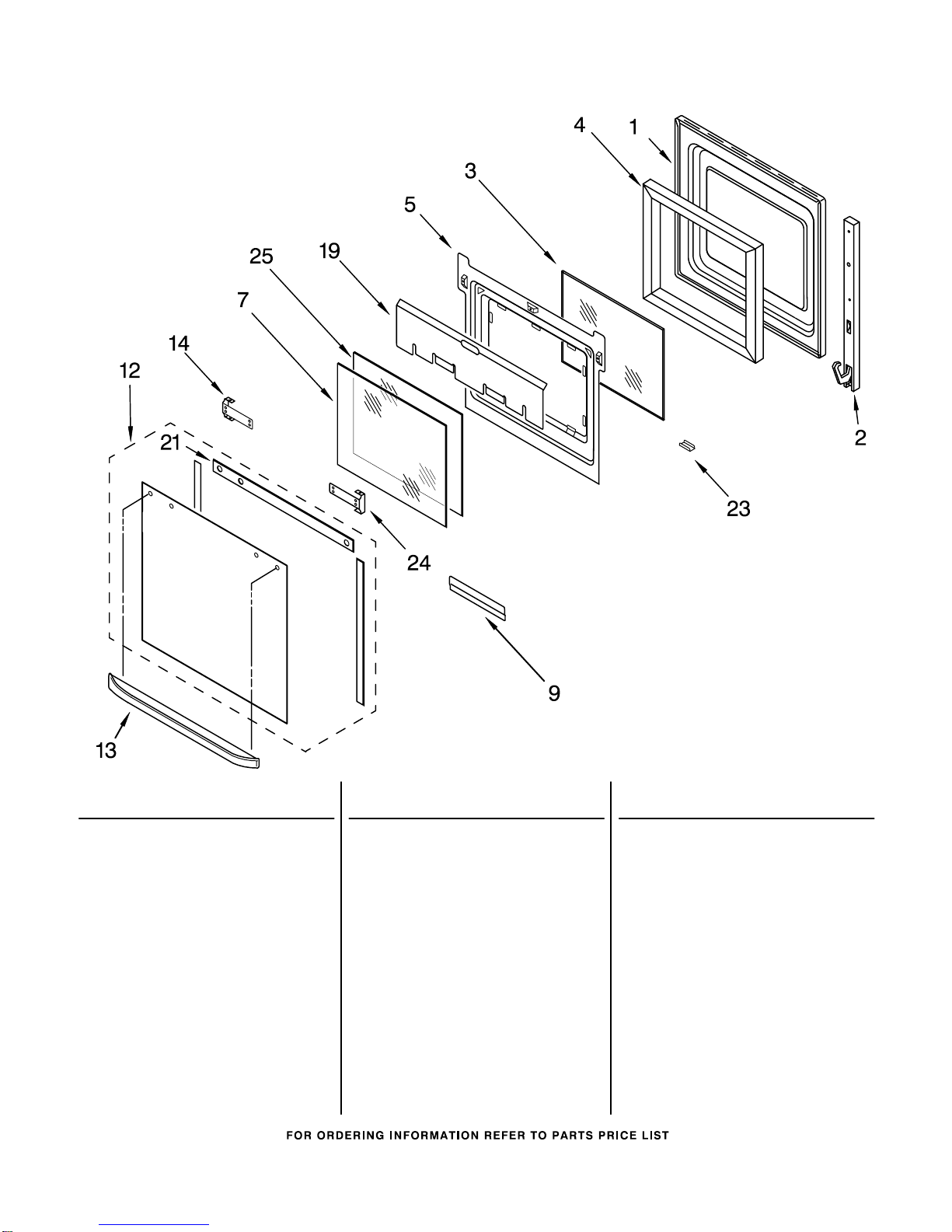

OVEN DOOR PARTS

For Models: KEBS278DBL8, KEBS278DWH8, KEBS278DBS8, KEBS278DSS8

(Black) (White) (Black Stainless) (Stainless Steel)

8177418

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451718 Door Liner

2 Hinge, Door

4454946 Black & White

Models

4454948 Black Stainless

& Stainless Steel

Models

4449743 Screw

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4451670 Retainer, Glass

4449809 Screw

7 4449257 Glass, Inner

9 4451668 Retainer, Glass

4449809 Screw

12 Door Glass, Assy

4452071 Black Model

4452072 White Model

4452077 BS Model

4452315 Stainless Steel

Model

13 Door Handle

4448411 Black & BS Models

4448412 White Model

4452087 Stainless Steel

Model

14 4450813 Bracket, Handle

Black, White &

Black Stainless

Models

4451040 Screw

19 4450361 Shield, Heat

4449809 Screw

21 4451673 Seal, Door Top

23 Retainer, Clip

4450863 Black & BS Models

4450864 White Model

24 Bracket, Handle

Stainless Steel

Model

4452487 Right Hand

4452488 Left Hand

25 4455256 Glass, Inner

INTERNAL OVEN PARTS

For Models: KEBS278DBL8, KEBS278DWH8, KEBS278DBS8, KEBS278DSS8

(Black) (White) (Black Stainless) (Stainless Steel)

8177418

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4448982 Plug, Button

2 4452156 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4448715 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Fan, Convection

4449154 Screw

10 4452226 Blade, Fan

11 4448882 Washer, Lock

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4455036 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4452157 Element,

Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw

TOP VENTING PARTS

For Models: KEBS278DBL8, KEBS278DWH8, KEBS278DBS8, KEBS278DSS8

(Black) (White) (Black Stainless) (Stainless Steel)

8177418

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451758 Foam, Block

2 4455178 Elbow, Vent−Top

3 Blower

6610168 45MM Lower Oven

4455334 60MM Upper Oven

4455352 Bracket, Blower

60MM

4455191 Plate, Service

5 6610122 Transformer,

(Lights)

4449809 Screw

7 4451929 Transformer

4449809 Screw

8 4451759 Vent, Exhaust

9 4455177 Elbow, Vent−Bottom

10 4451789 Plate, Mounting

11 4449868 Block, Terminal

3400016 Screw

13 Vent, Control

Panel

4448551 Black, White &

Black Stainless

Models

4448548 Stainless Steel

Model

4450038 Screw

14 Side, Control Top

4451597 Right

4451598 Left

4449809 Screw

15 4452244 Back, Control

4449809 Screw

16 4450550 Cover, Top Rear

4449809 Screw

17 4448664 Clamp

4449809 Screw

112432 Nut

18 4452366 Cover, Top Front

4449809 Screw

4452260 Spacer, Foam

19 4451985 Suppressor

OPTIONAL PARTS

For Models: KEBS278DBL8, KEBS278DWH8, KEBS278DBS8, KEBS278DSS8

(Black) (White) (Black Stainless) (Stainless Steel)

8177418

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4451926 Harness, Wire

(Latch)

4451864 Harness, Wire

(Main)

4450953 Conduit, Double

4450800 Screw

4448664 Clamp

4449809 Screw

112432 Nut

4450815 Fuse Assy

(Service Only)

4452222 Spacer, Harness

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

313438 Harness, Clip

Miscellaneous

814381 Hinge Pin Kit

4448950 Screw, Install (4)
