KitchenAid KGSS907SBL02 Manuale utente

COOKTOP PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

4−09 Litho in U.S.A. (amd) (eeb) Part No. W10269051 Rev. A

30" FREESTANDING

GAS OVEN

CONVECTION

COOKTOP PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literaturre Parts

W10118262

Installation

Instructiions

W10162198

Use & Care Guide

Tech Sheet

W10112145

English

W10112146

French

9757680 Anti−Tip

Instructions

9762761 Safe Cooking Tips

9763467 Guide Easy Set

W10153103

Burner Box

3 9761784 Bracket, Mounting

4 Cooktop

W10175850

Black/Stainless

W10175851

White

5 3196537 Screw

7 3400843 Screw

9 9763445 Bracket, Burner

10 9756821 Support, Wiring

12 Grate, Burner

Right

9761555CB

Coal Black

9761555SD

Satin Cumberland

13 Grate, Burner

Left

9761556CB

Coal Black

9761556SD

Satin Cumberland

16 9759944 Thermostat (60c)

17 Vent, Center

9760225BL

Black

9760225WH

White

18 Grate, Insert

9761557CB

Coal Black

9761557SD

Satin Cumberland

19 Cap, Burner

6K (RF, LR)

8284669CB

Coal Black

9761562SD

Satin Cumberland

12.5K (RR)

9761563CB

Coal Black

9761563SD

Satin Cumberland

20 4449809 Screw

21 3196160 Screw

23 9759627 Cover, Cooktop

Rear

24 9763436 Cover, Top Rear

25 Head, Burner

8286181 LR, RF

8286182 RR

W10109920

Gasket (Tape)

OVEN PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

OVEN PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

Right

W10109540

Black

W10109570

White

W10140548

Stainless

Left

W10109490

Black

W10109520

White

W10140547

Stainless

2 8053971 Brace, Main Back

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

5 4448444 Grommet

6 3400832 Screw

7 8303099 Top Chassis

8 9759722 Insulation, Body

Side Trim

9 9761666 Tube, Vent

W10067870

Lens, Light

W10009930

Assembly, Oven

Light

12 4452166 Bulb, Light

13 9757732 Shield, Heat

W10115831

Frame, Front

W10074200

Gasket, Door

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 9757461 Bracket,Side Panel

20 Oven, Side Panel

9760723PB

Black

9760723PW

White

21 9757811 Brace, Side Panel

W10195934

Latch, Motorized

23 9757807 Thermostat

24 9759890 Clip, Side Panel

25 4455641 Side, Chassis

26 9759762 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 9759945 Standoff, Rear

W10131825

Sensor

30 9756454 Bracket, GOC

31 9760223 Slide, DSI

W10083460

Slide, GOC

33 9762774 Central, Appliance

34 3196537 Screw

35 9760481 Washer, Insulation

Body Side Trim

37 9759242 Thermostat (TOD)

41 4449743 Screw

W10110534

Base, Chassis

49 4448933 Retainer, Gasket

50 9758583 Cover, Back

51 4449809 Screw

54 Vent, Bottom Upper

9756481BL

Black

9756481WH

White

9756481SS

Stainless

55 Trim, Bottom Vent

W10153486

Black

W10153488

White

W10154789

Stainless

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

W10095410

Insulation Cover,

Back Top

W10095400

Insulation Cover,

Back Side

DOOR PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

DOOR PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

Illus. Part

No. No. DESCRIPTION

1 9759413 Panel, Door

2 9757706 Glass, Inner

3 4451722 Insulation, Door

4 4457132 Retainer, Glass

5 Hinge, Oven Door

9760579 Right

9760580 Left

6 9759225 Glass, Inner

7 4457114 Shield, Heat

Bottom

8 9759229 Bracket, Glass

Side

9 4457104 Shield, Heat Top

10 9759225 Glass, Inner Door

11 9759230 Bracket, Central

12 Bracket, Handle

9763497 Right

9763496 Left

13 8522415 Seal, Window

14 Assembly, Door

Kit

W10131888

Black

W10131889

White

15 Handle, Door

8303774BL

Black

8303774WH

White

8303774SS

Stainless

16 3196184 Screw

17 4448520 Bumper, Door (3)

18 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

DRAWER PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

9763501BL

Support, Front

& Rear

3 Brace, Drawer

4453720 Right

4453721 Left

5 Side, Base

9759953 Right

9759954 Left

W10058460

Foot

8 3196037 Foot Assembly

W10164163

Drawer

W10164169

Panel, Drawer

13 Front, Drawer

W10203760

Black

W10203762

White

W10203763

Stainless

14 Handle, Drawer

9761573BL

Black

9761573WH

White

9761573SS

Stainless

15 3196537 Screw

16 8274149 Thermistor

17 9760775 Element, Warming

18 4449809 Screw

19 9758676 Support, Element

23 9761796 Enclosure, Warming

Drawer

W10153099

Cover, Access

25 3400805 Screw

TOP VENTING PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

Illus. Part

No. No. DESCRIPTION

W10203758

Front, Air Duct

2 Top, Air Duct

W10068590

Right

W10068600

Left

3 9759320 Blower

4 4451758 Block, Foam

7 9757829 Bracket,

Transformer

W10111628

Transformer

9 3196537 Screw

10 4449040 Screw

11 4449809 Screw

INTERNAL OVEN PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9752980 Shield, Flame

W10196895

Motor, Convection

5 9757779 Fitting, Broiler

W10179152

Rack, Oven

7 9760776 Element, Broil

8 4453957 Pan Support, Bake

9 9760229 Electrode, Bake

10 9760228 Burner, Bake Log

11 9752737 Shield, Oven

12 4453984 Shield, Bake Flame

3196176 Screw

13 9763716 Valve, Assemble

14 9756831 Tube, Broil

W10111219

Burner, Broil

16 8054129 Ignitor, Broil

17 4454009 Cover, Ignitor

18 4453920 Pan, Oven Bottom

19 9760777 Element, Convect

W10104790

Cover, Fan

21 9755542 Probe, Meat

23 Shield, Element

W10153093

Right

W10153094

Left

W10153101

Diverter, Air

W10116351

Blade, Fan

W10116349

Nut

27 9755543 Jack, Meat Probe

28 9755547 Washer, Lock

External

29 9755546 Hex Nut

30 3196176 Screw

31 4449154 Screw

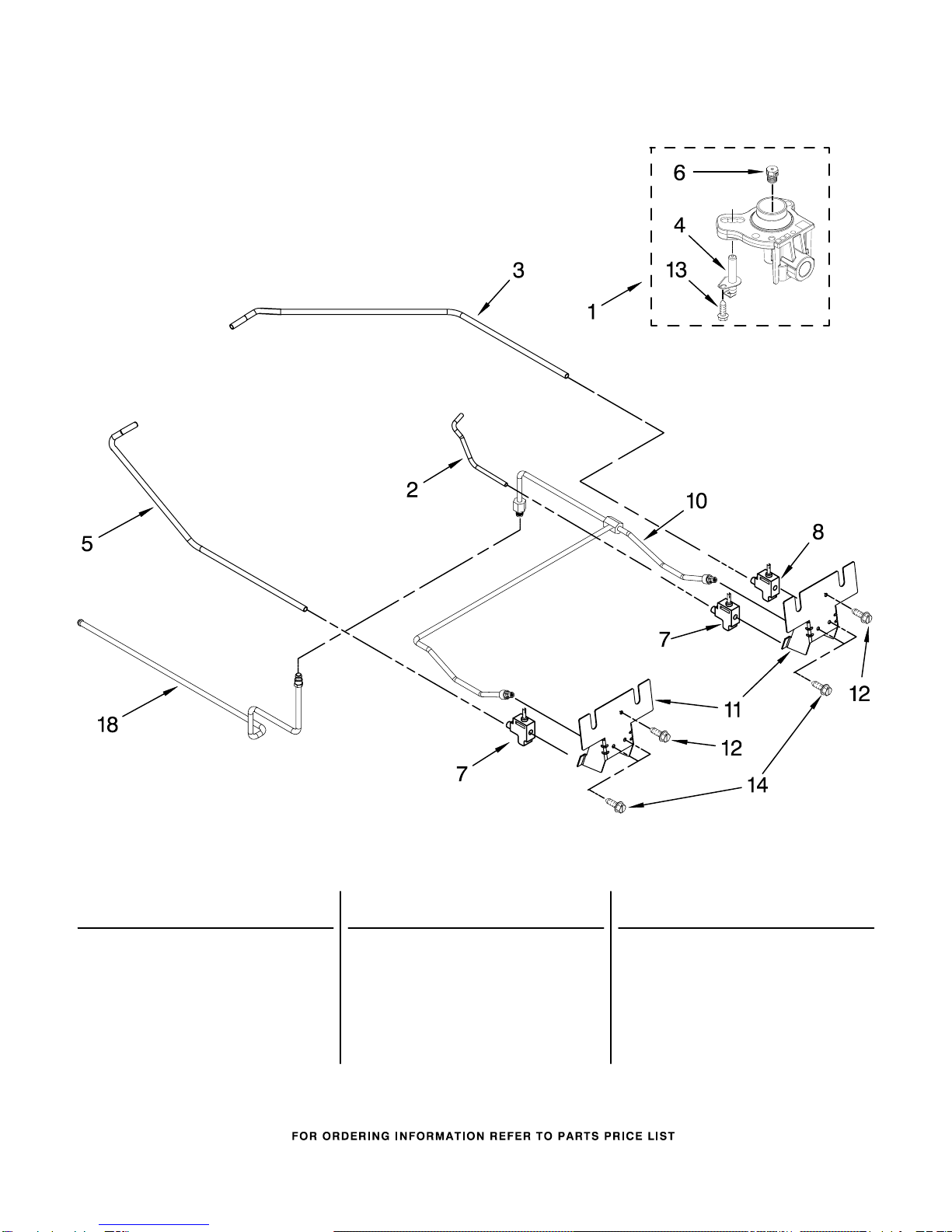

COOKTOP BURNER PARTS

For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02

(Black) (White) (Stainless)

W10269051

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Burner Base

W10128446

LR, RF

W10128455

2 9761069 Tubing, Burner(RF)

3 9761070 Tubing, Burner(RR)

W10110378

Ingitor, Orifice

Holder

5 9761068 Tubing, Burner(LR)

6 Orifice

9762937 LR, RF

9762938 RR

7 4456816 Valve, Burner

Small (2)

8 4456817 Valve, Burner

Large

10 9761648 Tube, Manifold

11 Manifold

9761641 TCB

9761642 Cooktop

12 3196537 Screw

13 8273062 Screw

14 8523704 Bolt, Valve (4)

18 4453754 Tubing

GDS to Manifold
