OVEN PARTS

For Models: KEBK206SBL00, KEBK206SWH00, KEBK206SSS00

(Black) (White) (Stainless)

2−07 Litho in U.S.A. (amd) Part No. W10122718 Rev. A

30" BUILT−IN ELECTRIC

DOUBLE OVEN

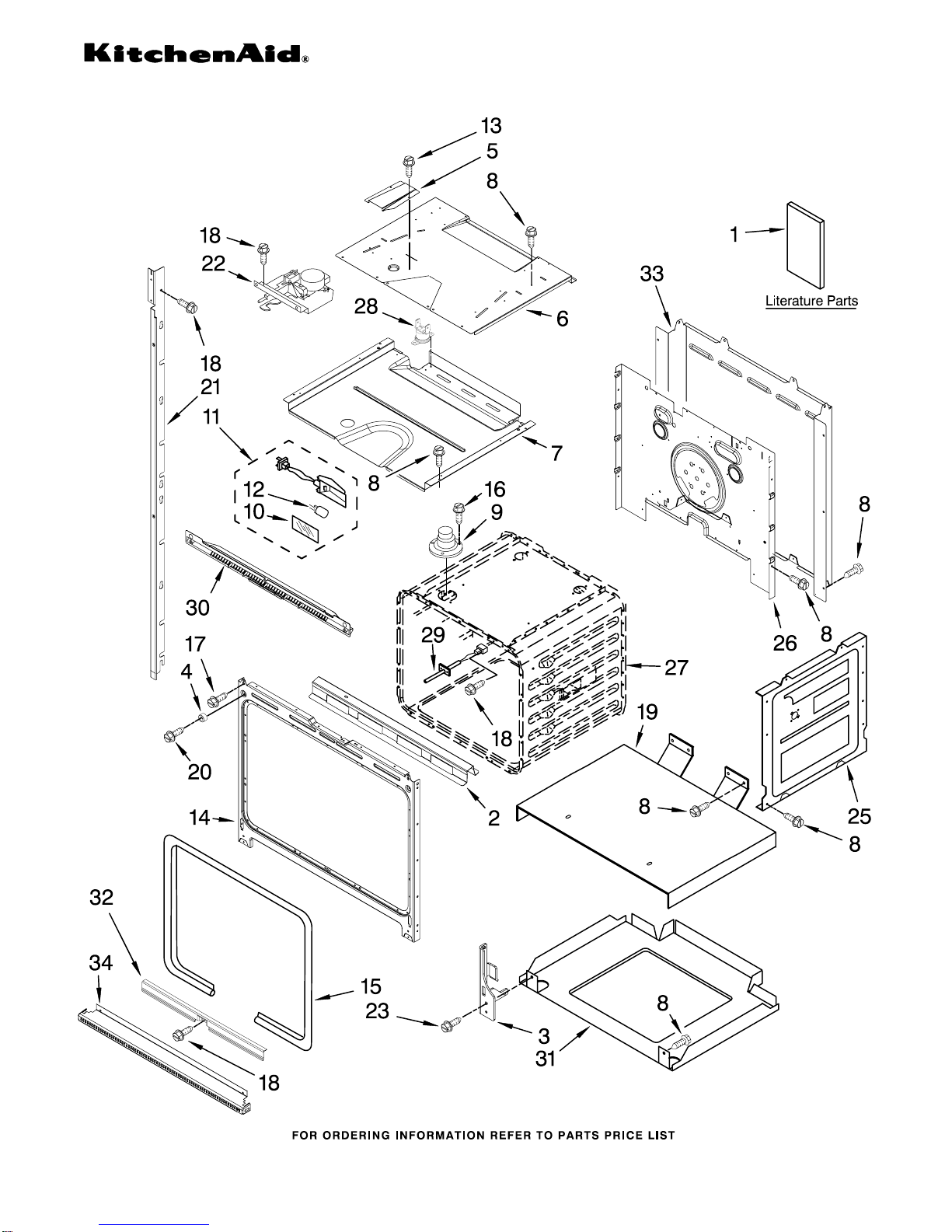

OVEN PARTS

For Models: KEBK206SBL00, KEBK206SWH00, KEBK206SSS00

(Black) (White) (Stainless)

W10122718

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304336 Installation

Instructions

8304323 Use & Care Guide

Tech Sheet

8303952 English

8304416 French

8304335 Easy Set Guide

Safer Cooking Tips

3191638 English

9759133 French

2 8304420 Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

4 9760749 Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

6 8303513 Divider, Vent

7 8303511 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light,

Assembly

12 4452164 Bulb, Light

13 3400832 Screw (2)

W10116849

Frame, Front

15 8304493 Gasket, Door

16 3196176 Screw

17 4449040 Screw

18 4449154 Screw

19 4451478 Support, Insulation

20 4450038 Screw (2)

21 Mounting Rail,Side

Right

8303677BL

Black

8303677WH

White

Left

8303678BL

Black

8303678WH

White

22 8303692 Latch, Mortorized

23 4449743 Screw

25 4455641 Side, Chassis

26 8304303 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse 105C

29 4455636 Sensor

30 8303685 Vent, Center

31 8303516 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

34 Trim, Bottom Vent

8303705BL

Black

8303705WH

White

8303705SS

Stainless

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303965 Insulation, Wrap

8303967 Insulation, Back

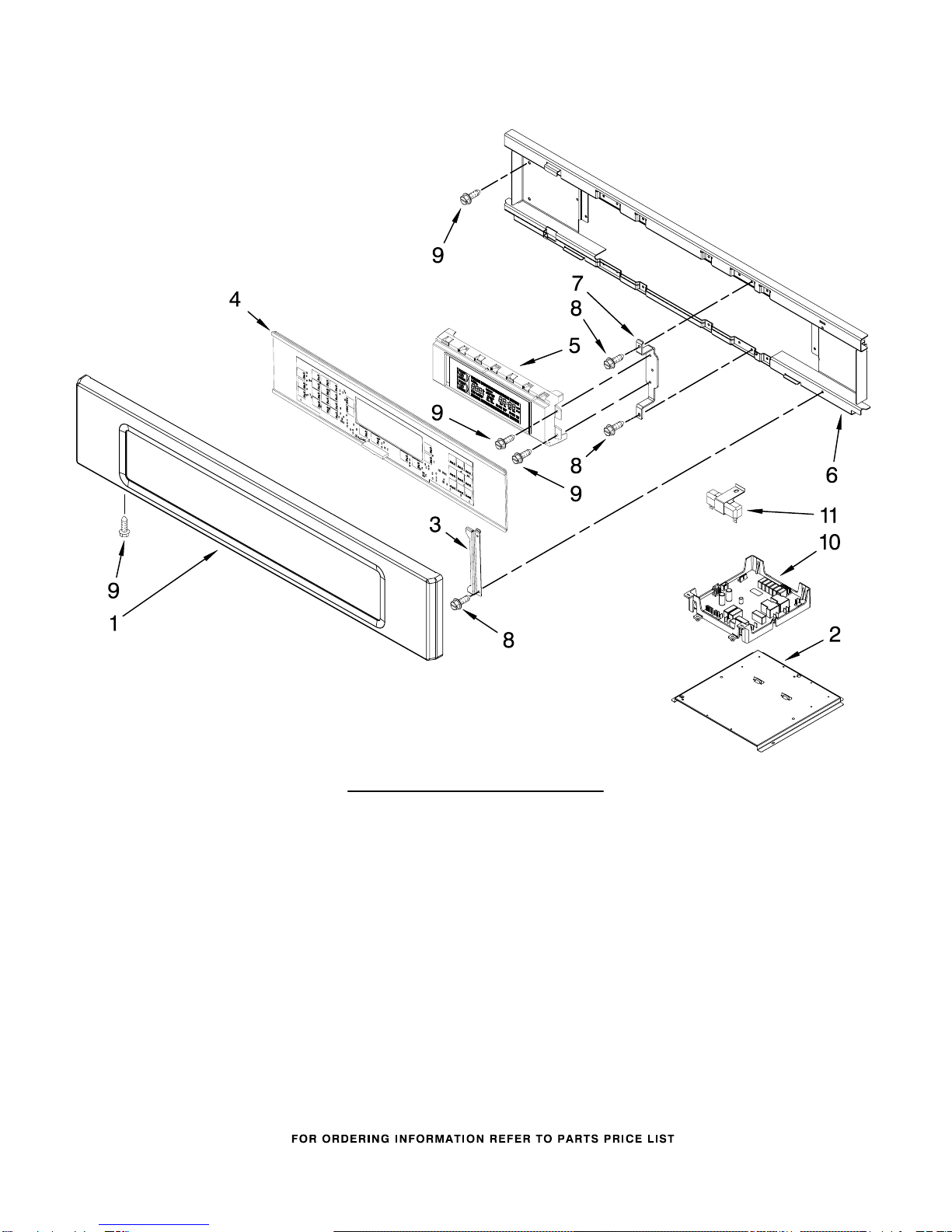

CONTROL PANEL PARTS

For Models: KEBK206SBL00, KEBK206SWH00, KEBK206SSS00

(Black) (White) (Stainless)

W10122718

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8303716BL

Black

8303716WH

White

8303716SS

Stainless

2 8303687 Support, Appliance

Manager

3 8303797 Bracket, Glass

Touch

4 8304333 Control Panel,

Glass Touch

W10118696

User Interface

6 8303719 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400832 Screw

W10119142

Appliance Manager

11 8304441 Resistor, Drop

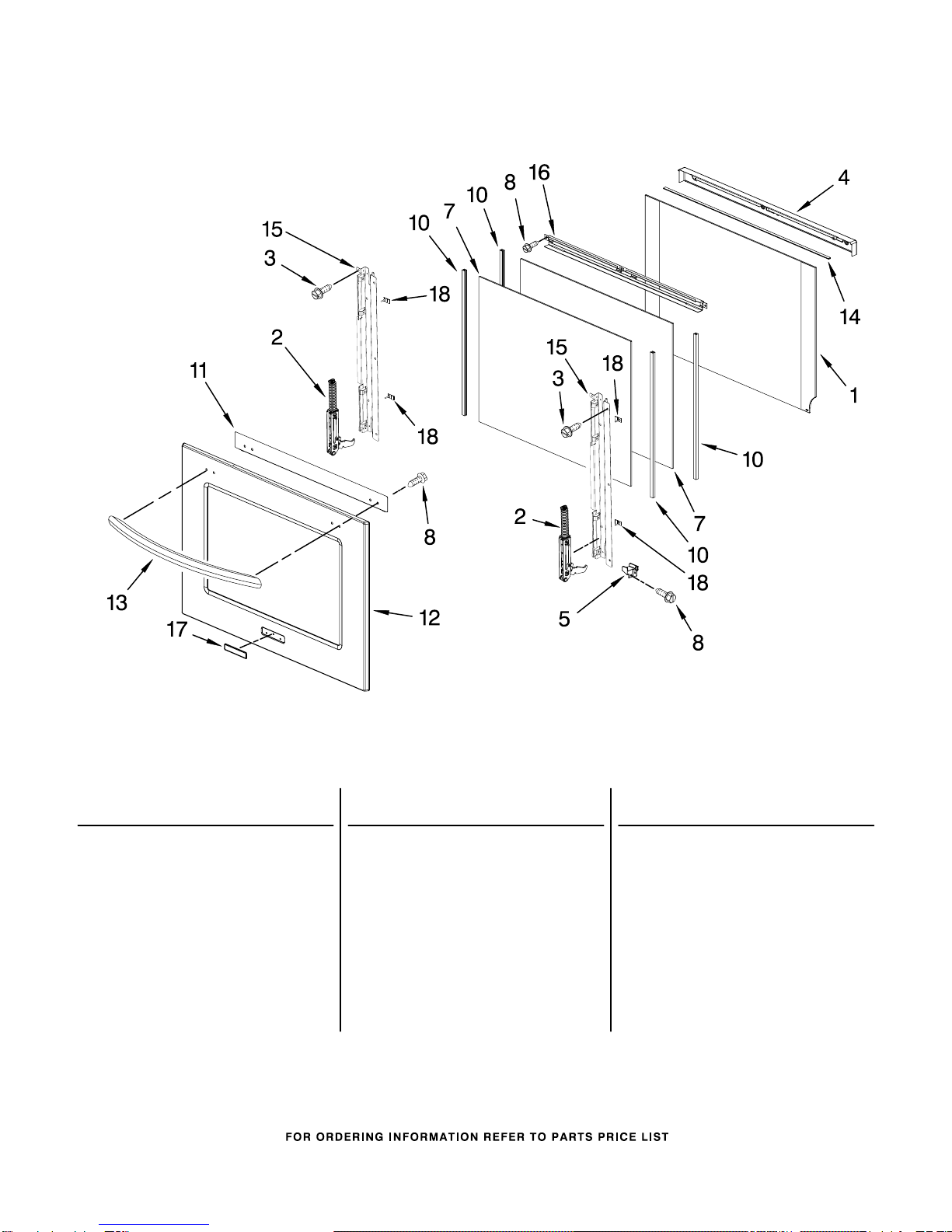

OVEN DOOR PARTS

For Models: KEBK206SBL00, KEBK206SWH00, KEBK206SSS00

(Black) (White) (Stainless)

W10122718

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8303737BL

Door Liner

2 8303989 Hinge, Door (2)

3 3196183 Screw

8304581BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

7 8303731 Glass, Inner

8 4449743 Screw

10 8304523 Seal

8304360BL

Bracket, Handle

12 Door Glass,

Assembly Lower

Includes #17

8303995 White

8303993 Black

8303991 Stainless

Door Glass,

Assembly Upper

No Badge

8303996 White

8303994 Black

8303992 Stainless

13 Door Handle

8303774WH

White

8303774BL

Black

8303774SS

Stainless

14 8304524 Seal

8303745BL

Side, Door Frame

16 8303746 Door, Top Bracket

17 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

18 8304522 Bumper, Glass

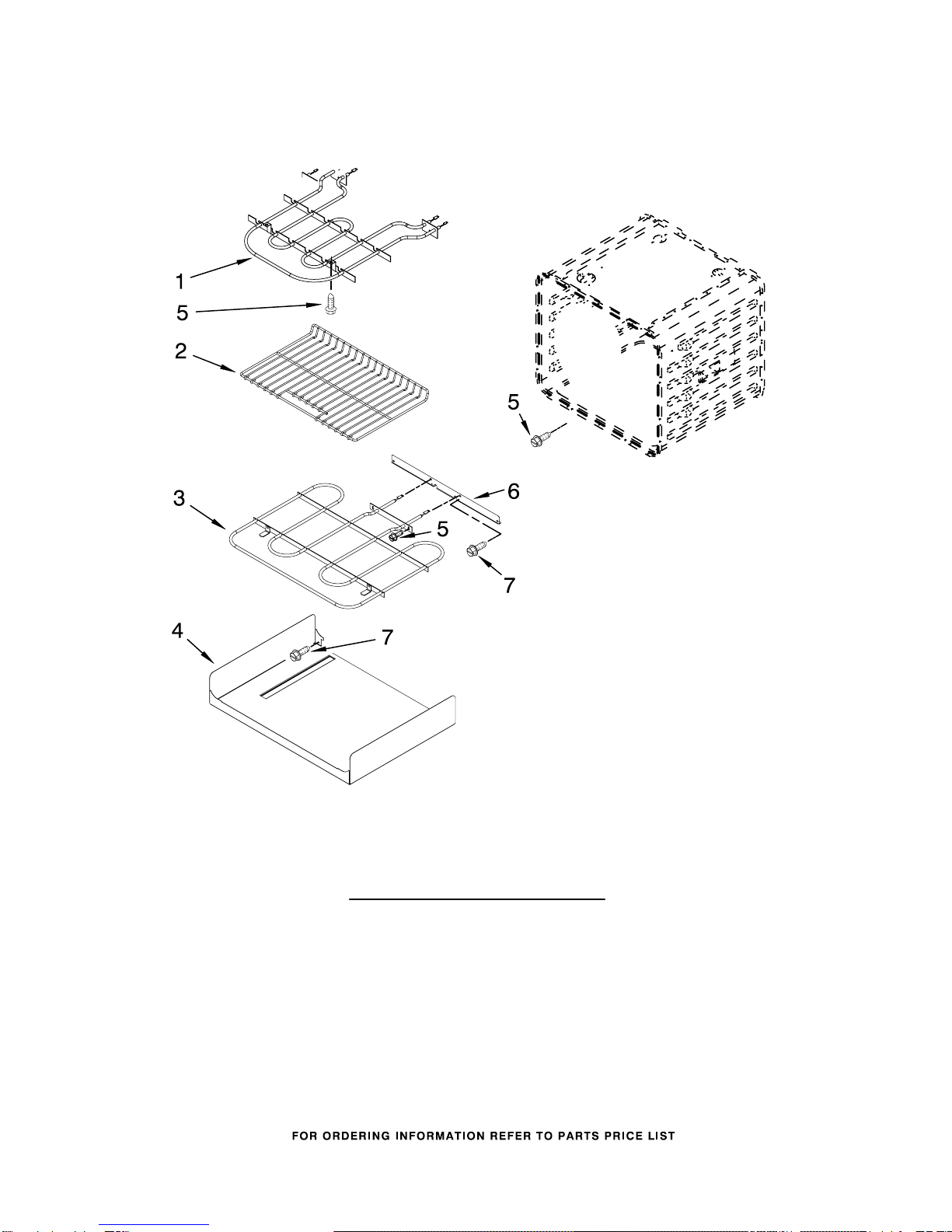

INTERNAL OVEN PARTS

For Models: KEBK206SBL00, KEBK206SWH00, KEBK206SSS00

(Black) (White) (Stainless)

W10122718

Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 8303841 Rack, Oven

3 9760768 Element, Bake

4 4455037 Tray, Bake

5 4449154 Screw

6 4450039 Cover, Bake Tray

7 4449809 Screw

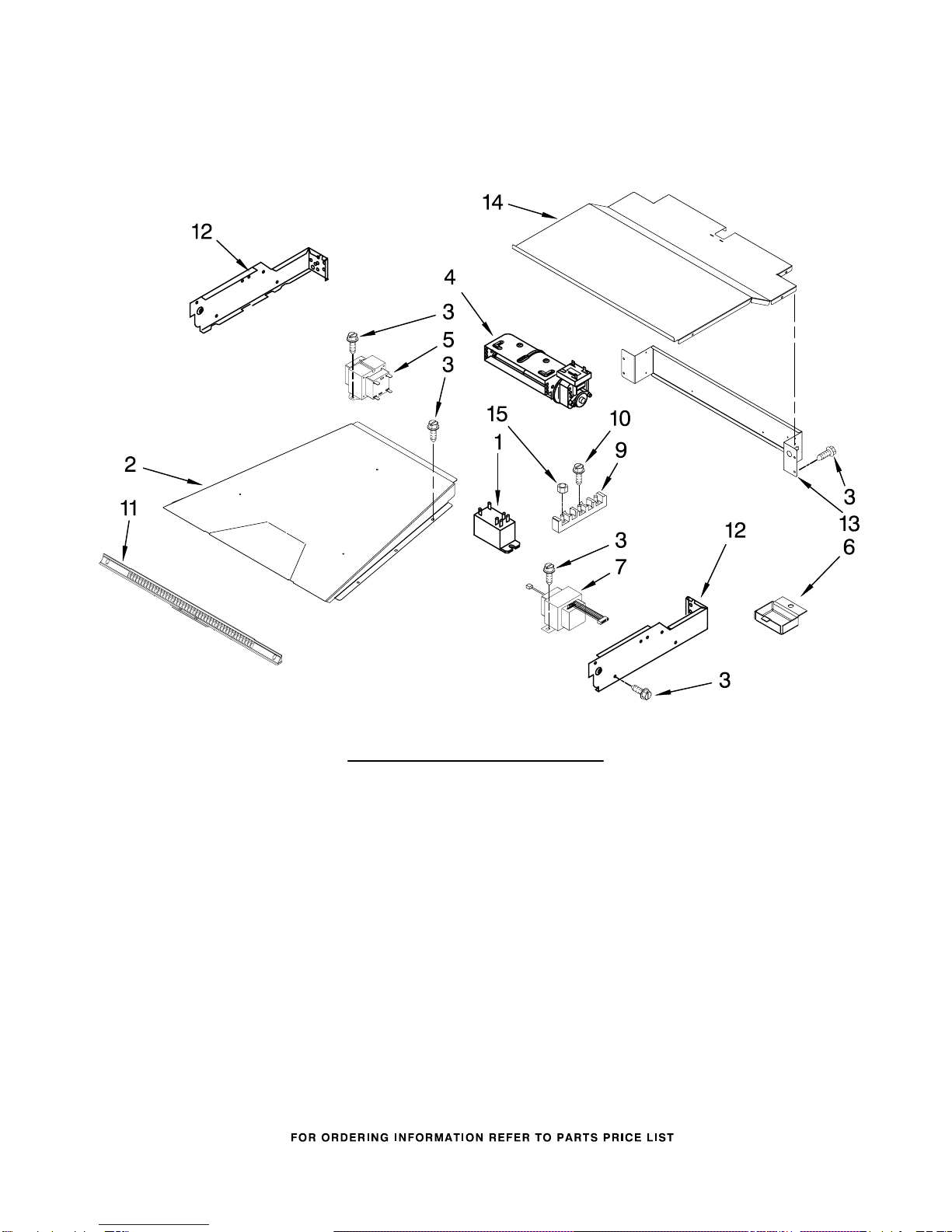

TOP VENTING PARTS

For Models: KEBK206SBL00, KEBK206SWH00, KEBK206SSS00

(Black) (White) (Stainless)

W10122718

Illus. Part

No. No. DESCRIPTION

1 9752759 Relay (2)

2 8303514 Duct, Air Outlet

3 4449809 Screw

4 8303972 Blower, 60mm

5 9762052 Transformer,

Lights

6 8285593 Connector, Cover

7 9760212 Transformr,Control

9 4449868 Block, Terminal

10 3400080 Screw

11 8303684 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

14 8304219 Cover, Top

15 112432 Nut (3)

OPTIONAL PARTS

For Models: KEBK206SBL00, KEBK206SWH00, KEBK206SSS00

(Black) (White) (Stainless)

W10122718

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

8304102 Harness, Wire

(Latch)

9762781 Harness,(Keyboard)

8304405 Harness, Main

8304051 Communication,

Harness

8304439 Conduit, Double

4450800 Screw,Ground

4452222 Spacer, Harness

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

313438 Clip, Harness

Miscellaneous

4448950 Screw, Install (4)

2308388 Stainless Cleaner
