CONTROL PANEL PARTS

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White) SUPERBA

27" BUILT−IN ELECTRIC

DUAL THERMAL CONVECTION

9−93 Litho in U.S.A. Part No. 4174343

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

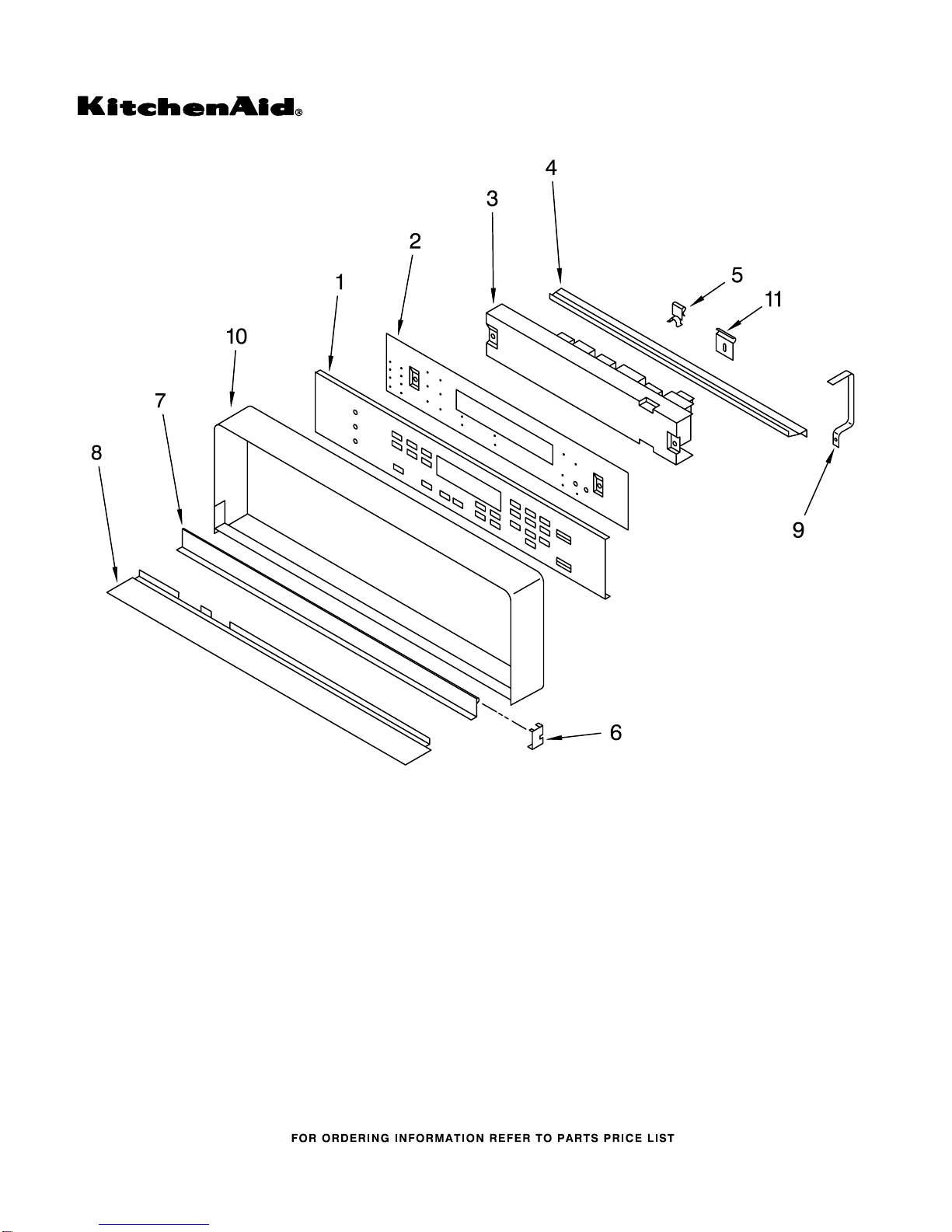

CONTROL PANEL PARTS

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Membrane, Switch

3187064 Black

3187065 White

3187066 Almond

2 3181889 Bracket, Mounting

Membrane Switch

3 3184922 Microcomputer

3185648 Screw (2)

4 3183705 Retainer, Bracket

3182939 Screw

3148443 Screw

5 3182985 Clip, (3)

Retainer

6 3182162 Hinge, Vent Door

7 Door, Latch Handle

3182151 Black

3182157 Almond

3182154 White

3178001 Screw (2)

8 3183702 Trim, Panel

4173601 Screw

9 3184321 Bracket (2)

3182939 Screw (2)

10 3182148 Frame, Control

Panel

11 3184567 Clip, Control

Frame

3148443 Screw

LITERATURE PARTS

LIT3187653 Tech Sheet

LIT3187360 Installation

Instructions

LIT3187080 Use & Care Guide

LIT3150693 Cookbook

LIT3183987 Guide, Auto Set

Miscellaneous

3171507 Mounting Hardware

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

18 Ga. 80 c Rating

350806 Yellow

16 Ga. 80 c Rating

242829 Blue

14 Ga. 150 c Rating

242820 Black

242821 Blue

242822 Brown

242823 Green

242824 Orange

242825 Red

242826 White

242827 Yellow

14 Ga. 200 c Rating

242830 Brown

242831 Red

242832 Yellow

12 Ga. 150 c Rating

242828 Black

242829 Red

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Harvest Gold

72112 Toast

72113 Platinum

72032 Black

261869 Citrine White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

261890 Harvest Gold

285365 Toast

285366 Platinum

830864 Black

350942 Primer

350941 Leveler (Primer)

PAINT, BULK (1 qt.)

799344 White

978883 Almond

261891 Harvest Gold

285367 Toast

285368 Platinum

ADHESIVE

482338 Sealer, Silastic

(3 Oz.)

591014 Adhesive, Loctite

(1/3 Oz.)

UPPER OVEN PARTS

4174343

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

CONVECTION FAN PARTS

UPPER OVEN PARTS

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

2 3177545 Bracket, Conduit

3 3177741 Cabinet, Back

3185647 Screw

6 3178143 Cabinet, Top

3185647 Screw

7 3183748 Top, Module

3185647 Screw

8 Side, Cabinet

3177440 Right Hand

3177443 Left Hand

3185647 Screw

9 3181699 Tube, Vent

3185648 Screw (3)

10 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 311255 Bulb, Oven

Light

13 3185085 Plug, Button

Bulb

14 3185860 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Module, Bottom

20 3179220 Rail, Support (4)

3185647 Screw

21 3181733 Insert, Middle

Vent Trim

4170323 Screw (2)

22 3177434 Support, Oven

3185647 Screw

23 3178612 Shield, Radiation

3179795 Screw (6)

3185647 Screw

24 3177433 Bracket, Hinge

3185647 Screw

26 3177561 Back, Module

3185647 Screw

27 3185563 Liner, Oven

28 3178298 Hinge, Door (2)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4168863 Screw (2)

34 Vent, Middle Trim

3181965 Black

3181968 Brushed Chrome

3180022 Screw (4)

4168863 Screw (2)

35 3183791 Vent, Tube

39 4168203 Cover, Cap Tube

4159445 Screw

4168874 Screw

41 3183752 Bracket, Control

3177991 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

3185551 Insulation, Wrap

3177872 Insulation, Back

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3178512 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 3182088 Motor

8 4173238 E−Ring

9 4173185 Bracket Guard

10 4173230 Flatwasher

11 3179790 Gasket, Foam

LOWER OVEN PARTS

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LOWER OVEN PARTS

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3 3183748 Top, Module

3185647 Screw

4 3181699 Tube, Vent

3185648 Screw (3)

5 3185563 Liner, Oven

7 311255 Bulb, Oven Light

9 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 3177684 Frame, Front

13 3179813 Seal, Door

3179848 Clip, Oven Seal

14 3177681 Bracket, Switch

3177991 Screw (2)

15 3177923 Insulator, Switch

16 3177551 Bottom, Oven

17 3179220 Rail, Support (2)

3185647 Screw

18 3177433 Bracket, Hinge (2)

3179795 Screw (6)

3185647 Screw

19 3177621 Bottom, Module

20 3178612 Shield, Radiation

3179795 Screw (6)

3185647 Screw

21 3177434 Support, Oevn

3185647 Screw

22 3177561 Back, Module

3185647 Screw

24 3179848 Clip, Seal (3)

25 3178298 Hinge, Door (2)

26 3185085 Button, Plug

28 3182159 Vent Tube, Lower

3185647 Screw

29 3182160 Vent Tube, Upper

30 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

32 3179587 Retainer, Seal

4159450 Screw (2)

33 4168203 Cover, Cap Tube

4159445 Screw

34 Trim, Lower Vent

3177787 Black

3177789 Brushed Chrome

35 4163883 Cover, Probe

36 3149652 SPST Thermostat

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3185551 Insulation, Wrap

3177872 Insulation, Back

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

UPPER AND LOWER OVEN DOOR PARTS

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3185497 Liner, Door

2 3185462 Gasket, Window

3 3185457 Glass, Clear

4 3185460 Insulation, Door

5 3185437 Insulation

Retainer

4173601 Screw (4)

6 3185458 Glass, Reflective

7 Glass, Door

3185474 Black

3185478 Almond

3185476 White

8 3185439 Retainer, Glass

9 3185459 Glass, Clear

10 Handle, Door

3182165 Black

3182171 Almond

3182168 White

11 3185438 Plate, Latch

12 3181402 Frame, Door

13 3182138 Spacer, Handle

14 3185456 Bushing, Handle

3181637 Screw

342043 Screw

15 3185470 Foil, Adhesive

16 3181701 Bumper, Door

Glass

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

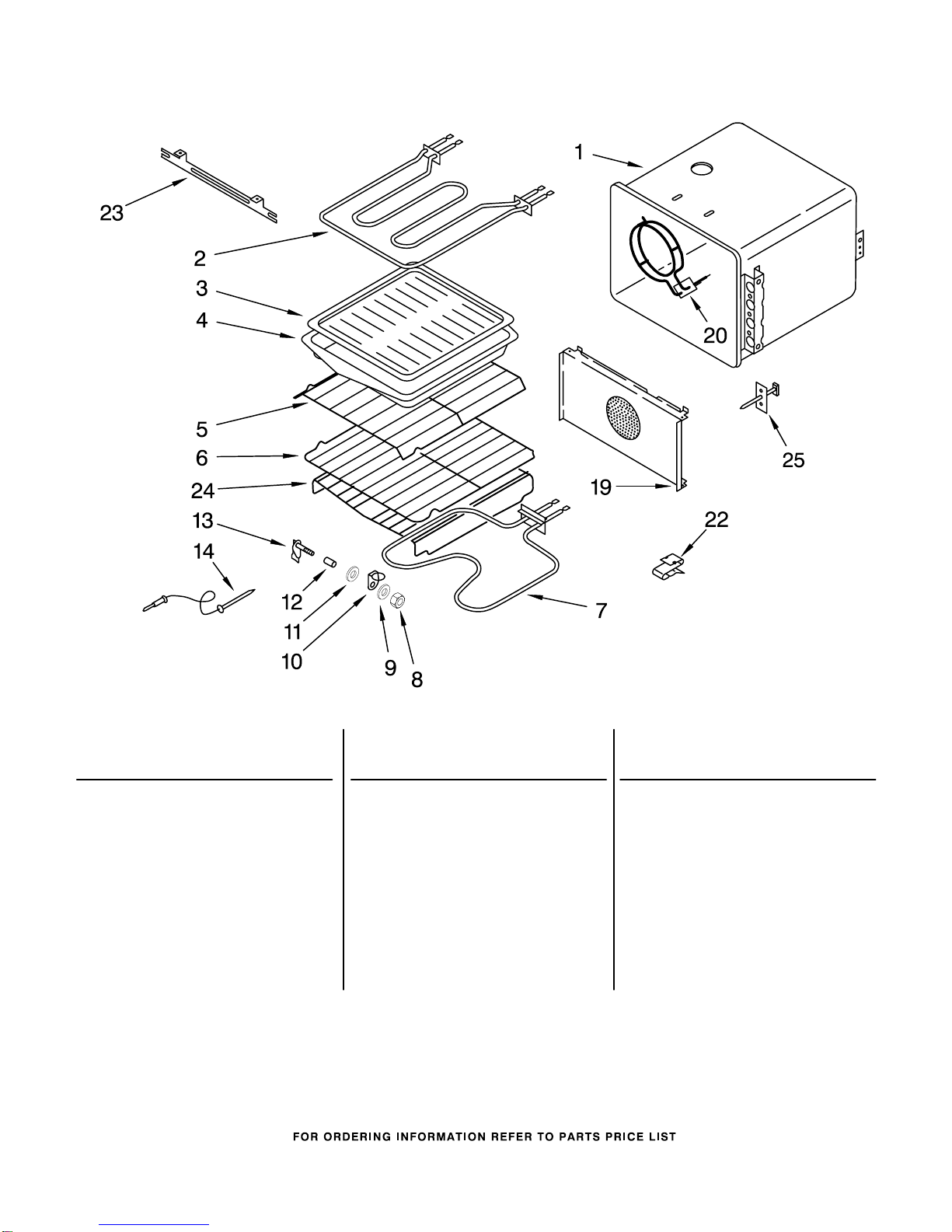

INTERNAL OVEN PARTS

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3185563 Liner, Oven

2 661415 Element, Broil

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3185307 Rack, Offset

6 3185308 Rack, Oven

7 661416 Element, Bake

3185648 Screw (2)

8 4167277 Nut, Meat Probe

9 4163975 Gasket, Meat Probe

10 4167266 Probe Cover

11 4159557 Washer

12 3179672 Spacer − Tubing

13 3150107 Meat Probe Jack

14 3150144 Meat Probe

19 3180815 Cover, Fan

3185648 Screw (4)

20 3178517 Element, Convect.

3185648 Screw (3)

22 313570 Clip, Tubing

23 3180694 Bracket, Element

3185648 Screw (2)

24 3181534 Rack, Roasting T/C

25 3148440 Sensor

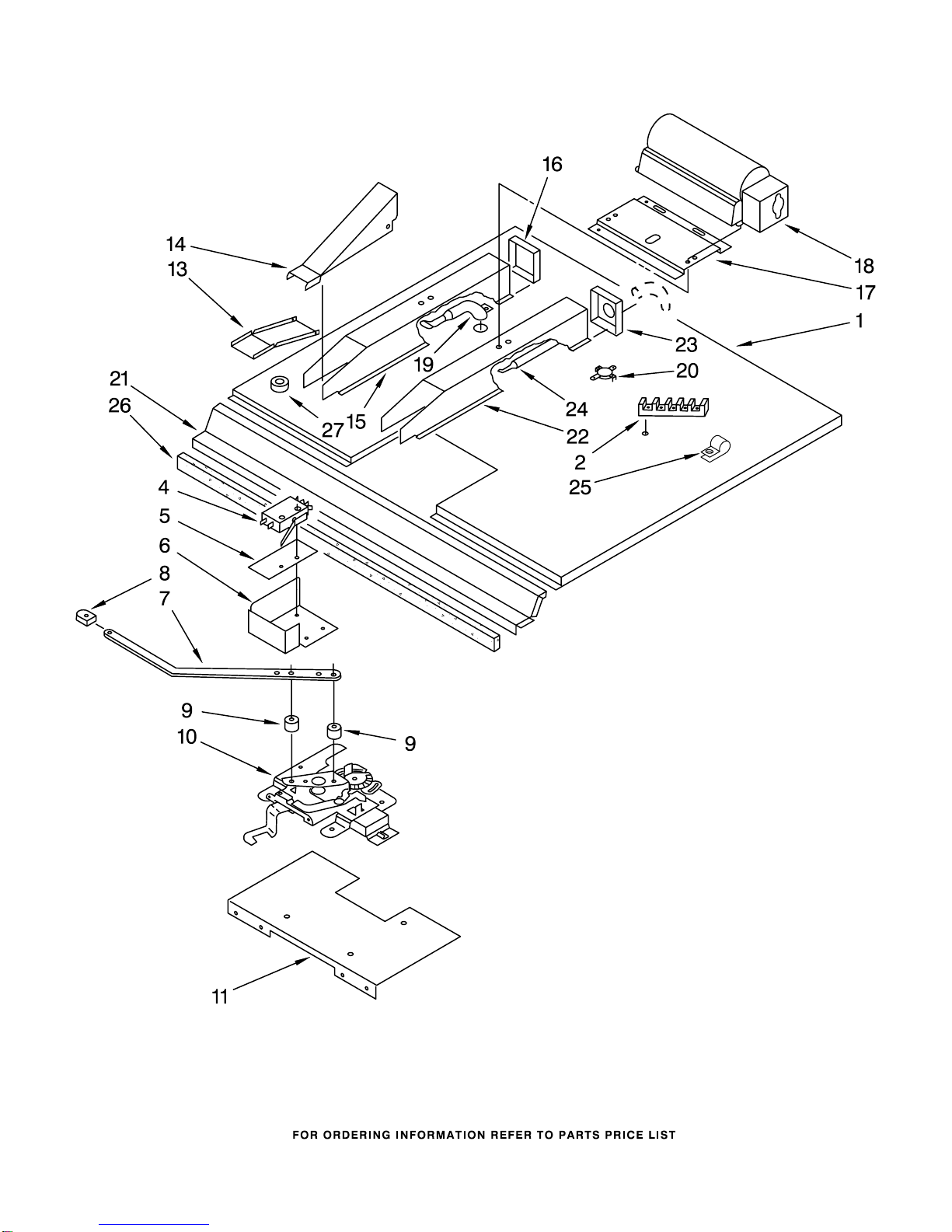

LATCH AND VENT PARTS

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

LATCH AND VENT PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KEBS278ABL0, KEBS278AAL0, KEBS278AWH0

(Black) (Almond) (White)

4174343

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3183748 Module, Top

2 258076 Block, Terminal

308043 Screw

4 3183784 Switch, Latch

98106 Screw

254225 Screw

5 3178185 Insulator, Switch

6 3177662 Guard, Latch

3177991 Screw

7 Handle, Latch

3177969 Upper Oven

3184037 Screw (2)

3181963 Lower Over

3179950 Screw (2)

3185414 Screw

8 3184039 Knob, Handle

3183294 Screw

9 3184040 Spacer, Latch

Handle

3184037 Screw

10 3178410 Latch Mechanism

11 3177496 Plate, Mounting

3177991 Screw

13 3183954 Nozzle, Vent

Bottom (2)

14 3183955 Nozzle, Vent

Top (2)

15 3183999 Box, Vent

4159372 Screw

16 3183964 End, Vent Box

3185647 Screw

17 3183533 Bracket, Mounting

Fan

3177991 Screw

18 3183720 Blower, Fan

19 3183791 Vent, Tube

20 3149650 SPST Thermostat

3185647 Screw

21 3183785 Shield, Heat

3177991 Screw

22 3183953 Box, Vent

4159372 Screw

3179116 Screw

23 3183965 End, Vent Box

3185647 Screw

24 3183793 Vent Tube, Lower

Oven

25 3183532 Clamp, Tube

26 313755 Seal, Foam

27 4159035 Bushing

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KitchenAid Forno

KitchenAid

KitchenAid SUPERBA KEBS277YBL1 Manuale utente

KitchenAid

KitchenAid KEBS276YWH1 Manuale utente

KitchenAid

KitchenAid KEMS378SBL00 Manuale utente

KitchenAid

KitchenAid Imperial KEBI-140 Manuale utente

KitchenAid

KitchenAid SUPERBA KEBS276BBL2 Manuale utente

KitchenAid

KitchenAid KEBC141KWH0 Manuale utente

KitchenAid

KitchenAid KEBC247KBL0 Manuale utente

KitchenAid

KitchenAid Convection Oven Manuale utente

KitchenAid

KitchenAid Architect Series II KEBC247V Istruzioni utente

KitchenAid

KitchenAid YKEBC278KB0 Manuale utente

KitchenAid

KitchenAid KEBS207DBL11 Manuale utente

KitchenAid

KitchenAid KEMS306X Manuale utente

KitchenAid

KitchenAid KCO253CU Manuale utente

KitchenAid

KitchenAid KEMS378SBL02 Manuale utente

KitchenAid

KitchenAid KEBS208BAL0 Manuale utente

KitchenAid

KitchenAid YKEMC308KM01 Manuale utente

KitchenAid

KitchenAid KEMI300W Manuale utente

KitchenAid

KitchenAid KESS908SPB04 Manuale utente

KitchenAid

KitchenAid KEBC167VSS00 Manuale utente

KitchenAid

KitchenAid KEBS109 Manuale utente

KitchenAid

KitchenAid SUPERBA KEBS277BAL1 Manuale utente

KitchenAid

KitchenAid Superba KEBS277WBL1 Manuale utente

KitchenAid

KitchenAid KEBS107SSS04 Manuale utente

KitchenAid

KitchenAid KEBC167MSS - Architect Series 36'' Single Electric Wall... Manuale utente

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente
