NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

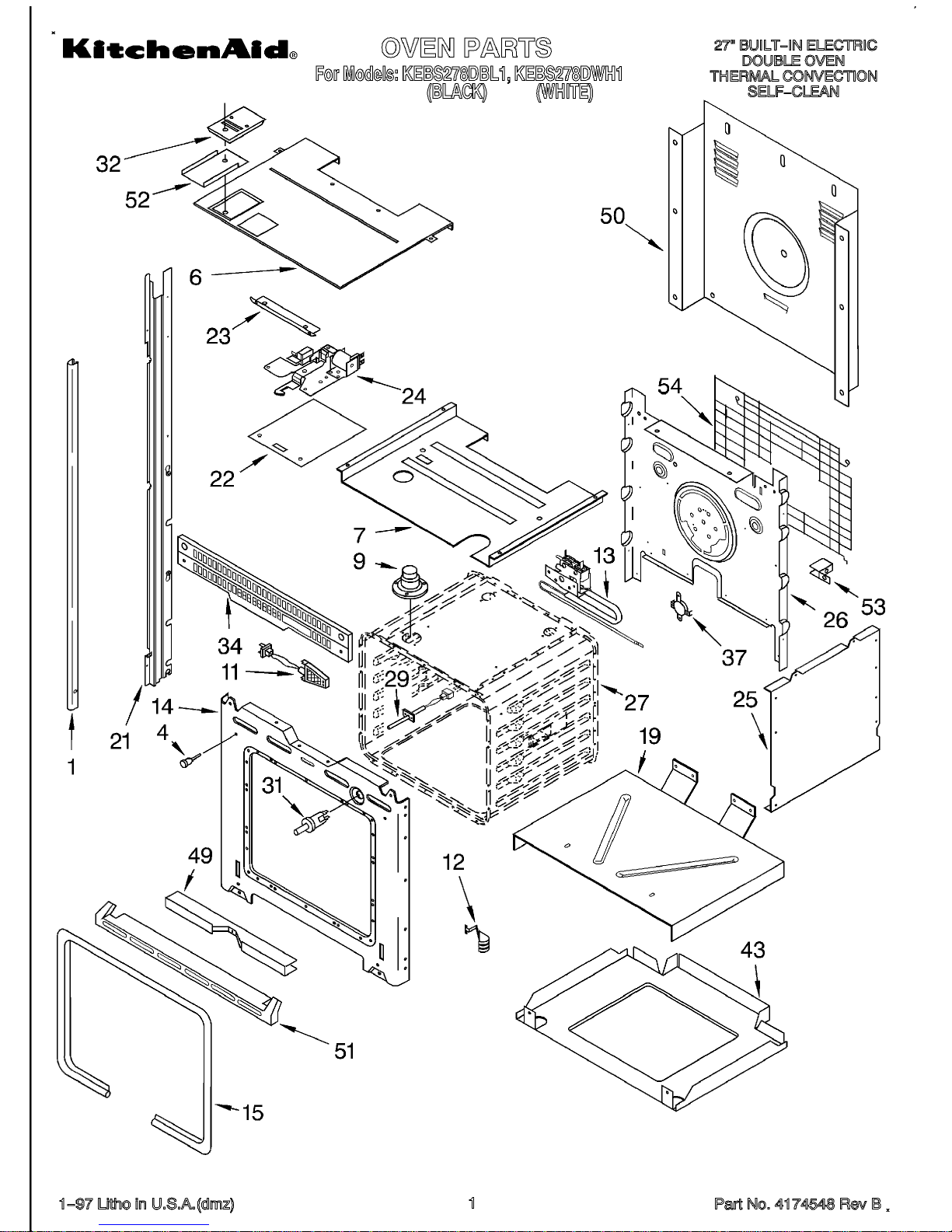

1 Trim, Side

4450850 RH Black

4450851 RH White

4450853 LH Black

4450854 LH White

Screw

4449747 Black Model

4449041 White

4 4448520 Bumper, Door

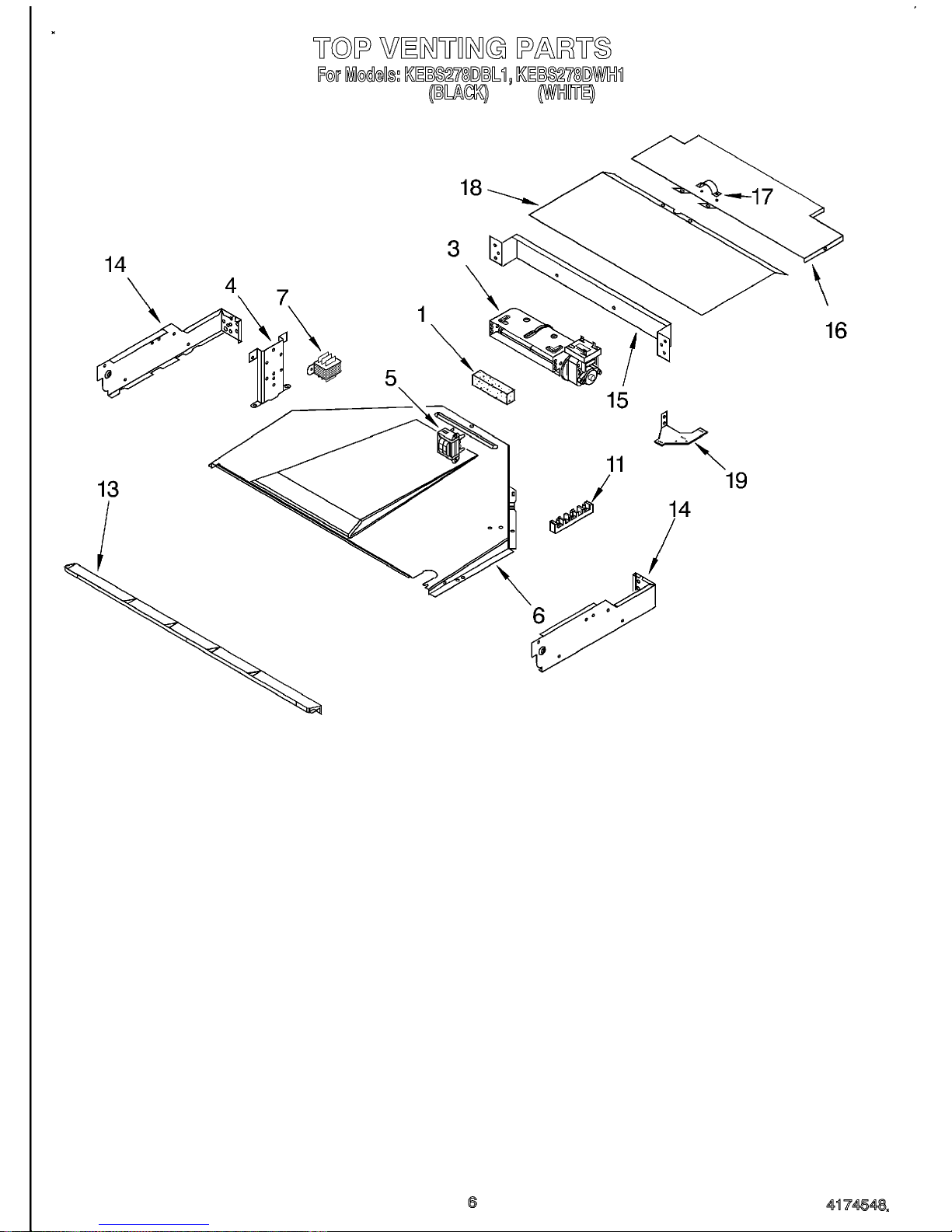

6 4451038 Divider, Vent

4449809 Screw

7 4451165 Partition

4449809 Screw

9 4449009 Tube, Vent

4449154 Screw

11 4448972 Oven Light Assy

4449748 Screw

12 313382 Clip, Bulb

13 4450812 Safety Switch (Oven Temp)

4449809 Screw

14 4450416 Frame, Front

4449040 Screw

15 4449371 Gasket, Door

19 4450541 Support, Insulation

4449809 Screw

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

22 4451036 Shield, Latch

4450289 Screw

23 4450051 Deflector, Latch

4449154 Screw

24 4450332 Latch Assy

4449809 Screw

25 4450528 Side, Chassis (R.H. & L.H.)

4449809 Screw

26 4451168 Back, Chassis

4449809 Screw

27 Liner, Oven (Not serviceable)

29 4450026 Sensor

4449154 Screw

31 4450819 Switch, Door

32 4449369 Vent Box Assy.

4449809 Screw

34 4449049 Vent, Center

37 Thermostat (TOD)

4450934 Upper

4450249 Lower

4449809 Screw

43 4450526 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4450544 Cover, Back

4449809 Screw

51 Trim, Bottom

4448458 Black Model

4448459 White Model

4159465 Screw

52 Extension, Vent

4450797 Lower Oven

4450795 Upper Oven

4449809 Screw

53 4449845 Support, Bracket

4449809 Screw

54 4451002 Spacer, Harness

4449809 Screw

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 Control Panel Assy. W/Membrane Switch

4451279 Black Model

4451280 White Model

2 4451033 Gasket, Control Panel

3 4448871 Microcomputer

4449745 Screw

LITERATURE PARTS

LIT4450410 Installation Instructions

LIT4450571 Use & Care Guide (Oven)

LIT4450786 Cooking Guide

LIT4449066 Cookbook (T/C Oven)

LIT4450937 Tech Sheet (Oven)

LIT4449264 Easy Set Guide

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

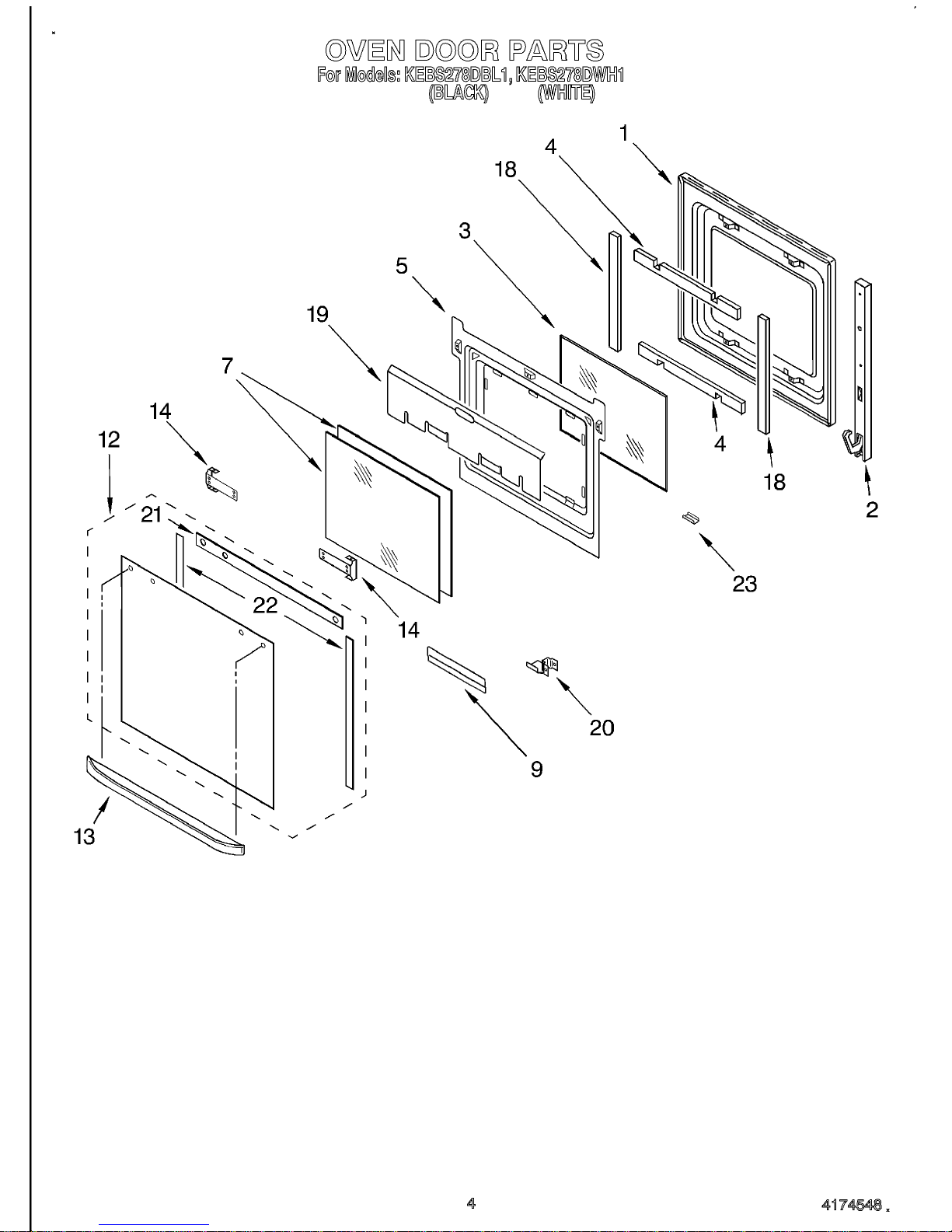

1 4450428 Door Liner

2 4451173 Hinge, Door

4449743 Screw

3 4449253 Glass, Inner

4 4448679 Insulation, Top and Bottom Door

5 4450422 Retainer, Glass

4449809 Screw

7 4449257 Glass, Inner (2)

9 4449031 Retainer, Glass

4449809 Screw

12 Door Glass

4450696 Black Model

4450697 White Model

13 Door Handle

4448411 Black Model

4448412 White Model

14 4450813 Bracket, Handle

4451040 Screw

18 4448707 Insulation, Sides

19 4450361 Shield, Heat

4449809 Screw

20 4450470 Retainer, Glass

4449809 Screw

21 4450836 Seal, Door Top

22 4450838 Seal, Side

23 Retainer, Clip

4450863 Black Model

4450864 White Model

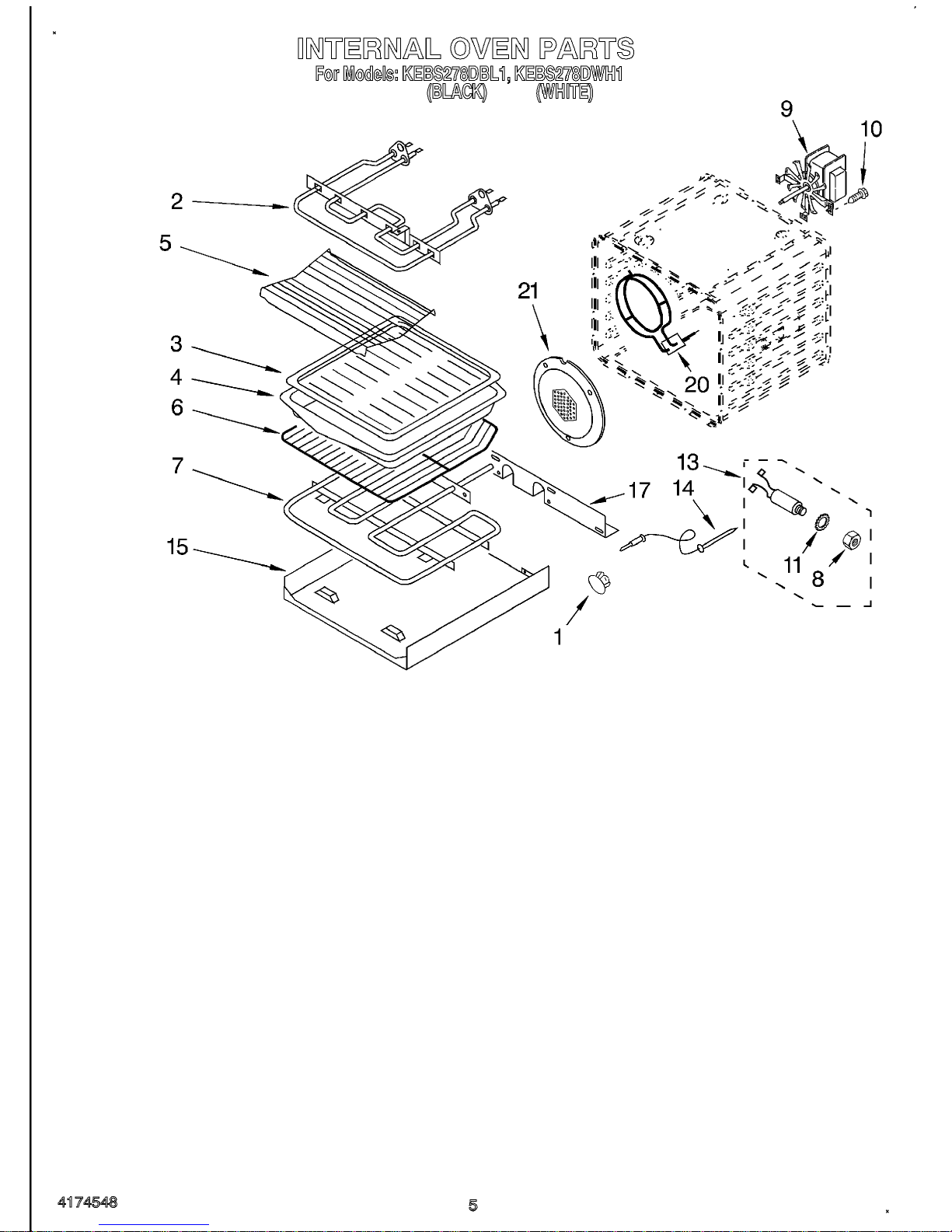

1 4448982 Plug, Button

2 4448701 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4448715 Rack, Oven

7 4448695 Element, Bake

8 4448881 Nut, Hex

9 4448952 Fan, Convection

10 4449154 Screw

11 4448882 Washer, Lock

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4448722 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4448841 Element, Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw
