OVEN PARTS

For Models: KEBC147KBL07, KEBC147KWH07, KEBC147KSS07

(Black) (White) (Stainless)

08−07 Litho in U.S.A. (amd) Part No. W10160902 Rev. A

24" BUILT−IN

ELECTRIC OVEN

SELF CLEAN

OVEN PARTS

For Models: KEBC147KBL07, KEBC147KWH07, KEBC147KSS07

(Black) (White) (Stainless)

W10160902

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10045010

Installation

Instructions

8304062 Owners Manual

8302067 Tech Sheet (Oven)

8301928 Installation,

MWO Trim Kit

4449264 Easy Set Guide

Safer Cooking Tips

3191638 English

9759133 French

2 Trim, Side

Right

4455377 Black

w10144983

Stainless

4455428 White

Left

4455376 Black

w10144984

Stainless

4455429 White

3 Hinge Receiver

4455605 Left

4455606 Right

W10105790

Bumper, Door

5 4452490 Spacer, Foam

6 8281236 Screw

7 4455863 Top Chassis

8 Deflector, Vent

Box

4455807 Black

W10145009

Stainless & White

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Assembly, Oven

Light

12 4452164 Bulb, Light

13 4450118 Nut

14 9760754 Frame, Front

15 4455380 Gasket, Door

16 4449743 Screw

17 3196176 Screw

18 4449040 Screw

19 4451476 Support, Insulation

20 4451605 Cap, Spacer

21 Rail, Side

4450579 Right

4450580 Left

22 9760888 Latch, Motorized

23 4449154 Screw

24 4448444 Grommet

25 4455641 Side, Chassis

26 4452232 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 3400832 Screw

29 4455636 Sensor

30 4449748 Screw

31 4452152 Bracket, Mounting

32 4450038 Screw

33 9760675 Deflector, Vent

37 9759242 Thermostat (130c)

43 4450525 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 4449809 Screw

53 4449845 Support, Bracket

55 Trim, Bottom

4456811 Black

4456812 White

W10144973

Stainless

4452152 Bracket, Mounting

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

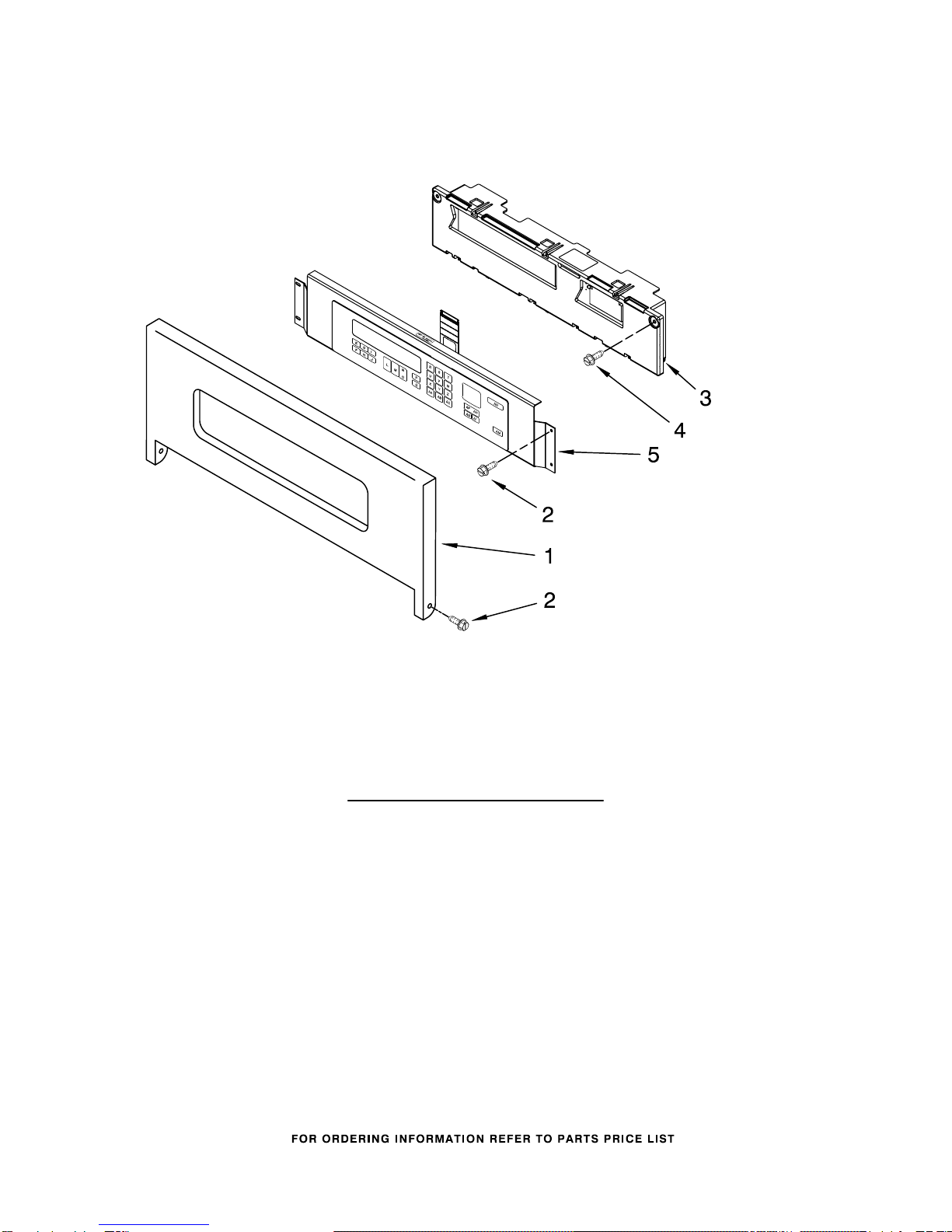

CONTROL PANEL PARTS

For Models: KEBC147KBL07, KEBC147KWH07, KEBC147KSS07

(Black) (White) (Stainless)

W10160902

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8300815 Black

8300816 White

W10144975

Stainless

2 3400832 Screw

3 8303017 Assembly, Control

4 4449745 Screw

5 Switch, Membrane

8302742 Black

8302745 White

8302765 Stainless

INTERNAL OVEN PARTS

For Models: KEBC147KBL07, KEBC147KWH07, KEBC147KSS07

(Black) (White) (Stainless)

W10160902

Illus. Part

No. No. DESCRIPTION

1 9760772 Element, Broil

2 4449154 Screw

6 4448716 Rack, Oven

7 9760768 Element, Bake

8 4449809 Screw

9 9760769 Element, Convect.

10 4451583 Motor, Convection

11 4448418 Cover, Fan

12 9755547 Lock Washer

13 9755543 Jack, Meat Probe

14 9755546 Hex Nut

15 4455035 Tray, Bake

16 9755542 Probe − Meat

17 4450039 Cover, Bake Tray

OVEN DOOR PARTS

For Models: KEBC147KBL07, KEBC147KWH07, KEBC147KSS07

(Black) (White) (Stainless)

W10160902

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303698 Door Liner

2 Hinge, Door

9760569 Right (Green)

9760570 Left (Green)

(Below hinges are

used on Stainless

models only)

9760571 Right (White)

9760572 Left (White)

3 4449247 Glass, Inner

4 4451720 Insulation, Door

5 4449743 Screw

6 3196184 Screw

7 9759223 Glass, Inner

8 3400832 Screw

9 4448520 Bumper, Door

10 4449809 Screw

12 Door Glass, Assy

8300836 Black

8300837 White

W10151060

Stainless

13 Door Handle

9760538 Black

9760539 White

9760537 Stainless

14 Bracket, Handle

4455803 Right

4455804 Left

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

19 4457101 Shield, Heat

20 4457130 Retainer, Glass

21 8300853 Seal, Door Top

22 4457112 Shield, Heat (Btm)

23 Retainer, Clip

4450863 Black

4450864 White

4451432 Stainless

24 9759226 Glass, Inner

TOP VENTING PARTS

For Models: KEBC147KBL07, KEBC147KWH07, KEBC147KSS07

(Black) (White) (Stainless)

W10160902

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 4457289 Blower 60MM

4 4451758 Block, Foam

5 9760588 Transformer, Light

6 4451985 Suppressor

7 3400080 Screw

8 4455177 Elbow, Vent−Bottom

10 8300642 Transformer,

Control

11 4449868 Block, Terminal

12 3400080 Screw

13 4448547 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450549 Cover, Top Rear

17 4449809 Screw

18 4452365 Cover, Top Front

OPTIONAL PARTS

For Models: KEBC147KBL07, KEBC147KWH07, KEBC147KSS07

(Black) (White) (Stainless)

W10160902

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8301847 Harness, Main

4450952 Conduit

4448664 Clamp

4449809 Screw

4450800 Screw, Ground

112432 Nut

4451761 Support, Wiring

4454842 Tie, Cable

4452222 Spacer−Harness

4454835 Tie, Cable

4452400 Harness, Ground

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)
