KitchenAid KEBS277YBL0 Manuale utente

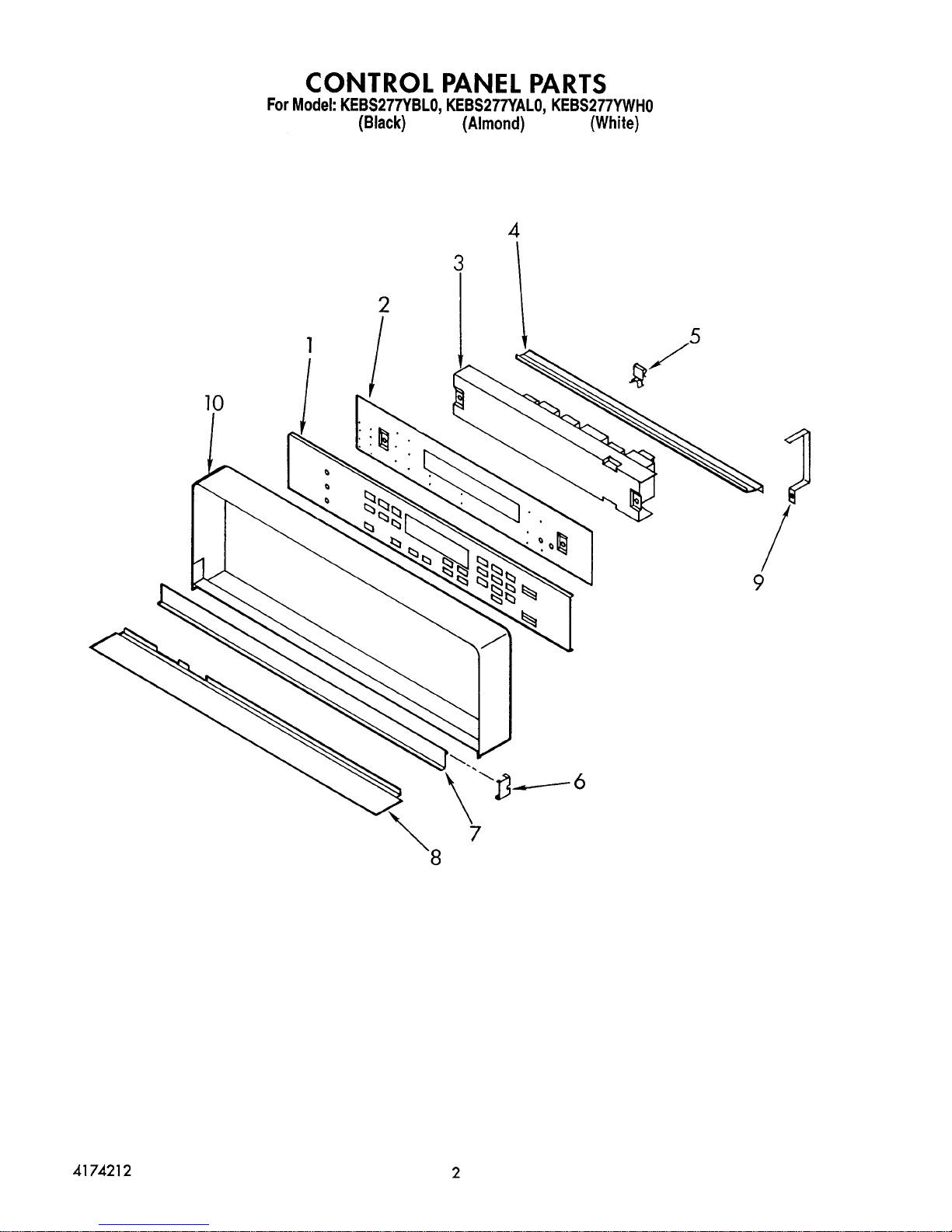

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 Membrane, Switch

3181783 Black

3181784 White

3181785 Almond

2 3181889 Bracket, Mounting Membrane Switch

3 3181705 Microcomputer

3179117 Screw (2)

4 3183705 Retainer, Bracket

3182939 Screw

5 3182985 Clip, (3) Retainer

6 3182162 Hinge, Vent Door

7 Door, Latch Handle

3182151 Black

3182157 Almond

3182154 White

3179847 Screw (2)

8 3183702 Trim, Panel

300890 Screw (3)

9 3184321 Bracket (2)

3182939 Screw (2)

10 3182148 Frame, Control Panel

LITERATURE AND OPTIONAL PARTS

LITERATURE PARTS

LIT4174212 Repair Parts List

LIT3182131 Tech Sheet

LIT3183659 Installation Instructions

LIT3182135 Use & Care Guide

LIT3150693 Cookbook

LIT3183790 Video, T/C Ovens

LIT3183987 Guide, Auto-Set

Miscellaneous

3171507 Mounting Hardware

FOLLOWING PARTS NOT ILLUSTRATED

SPLICING WIRES--25FT. LENGTH

18 Ga. 80~c Rating

350806 Yellow

16 Ga. 80~c Rating

242829 Blue

14 Ga. 150~c Rating

242820 Black

242821 Blue

242822 Brown

242823 Green

242824 Orange

242825 Red

242826 White

242827 Yellow

14 Ga. 200~c Rating

242830 Brown

242831 Red

242832 Yellow

12 Ga. 150~c Rating

242828 Black

242829 Red

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Harvest Gold

72112 Toast

72113 Platinum

72032 Black

261869 Citrine White

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Harvest Gold

285365 Toast

285366 Platinum

830864 Black

350942 Primer

350941 Leveler (Primer)

PAINT,BULK (1 qt.)

799344 White

978883 Almond

261891 Harvest Gold

285367 Toast

285368 Platinum

ADHESIVE

482338 Sealer, Silastic (3 Oz.)

591014 Adhesive, Loctite (1/3 Oz.)

ACCESSORY PARTS

799832 Kit, Porcelain Repair (White)

832985 Rack, Cooking (Bi-Level)

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

2 3177545 Bracket, Conduit

3 3177739 Cabinet, Back

300890 Screw (14)

6 3178138 Cabinet, Top

300890 Screw (5)

7 3183748 Top, Module

300890 Screw (8)

8 Side, Cabinet

3177440 Right Hand

3177438 Left Hand

300890 Screw (18)

9 3181699 Tube, Vent

3179117 Screw (3)

10 3150505 Oven Light Assy.

12 311255 Bulb, Oven Light

13 3185085 Plug, Button Bulb

14 3177682 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Module, Bottom

20 3179220 Rail, Support (4)

300890 Screw (4)

21 3181733 Insert, Middle Vent Trim

4173601 Screw (2)

22 3177434 Support, Oven

300890 Screw (2)

23 3178612 Shield, Radiation

3179795 Screw (6)

300890 Screw (2)

24 3177433 Bracket, Hinge

300890 Screw (2)

25 3177572 Side, Module (R.H. & L.H.)

300890 Screw (4)

26 3177561 Back, Module

300890 Screw (8)

27 3177472 Liner, Oven

28 3178298 Hinge, Door (2)

3178000 Screw (4)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4159450 Screw (2)

34 Vent, Middle Trim

3181965 Black

3181968 Brushed Chrome

3180022 Screw (4)

4168863 Screw (2)

35 3183791 Vent, Tube

4173231 Screw

39 4168203 Cover, Cap Tube

4159445 Screw

4168874 Screw

41 3183752 Bracket, Control

3177991 Screw

44 4173179 Retainer, Insulation

300890 Screw (2)

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

3177862 Insulation, Wrap

3177872 Insulation, Back

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3178512 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 3182088 Motor

8 4173238 E-Ring

9 4173185 Bracket Guard

10 4173230 Flatwasher

11 3179790 Gasket, Foam
