OVEN PARTS

For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02

(Black) (White) (Stainless)

05−08 Litho in U.S.A. (amd) (eeb) Part No. W10203839 Rev. A

30" BUILT−IN ELECTRIC

SINGLE OVEN

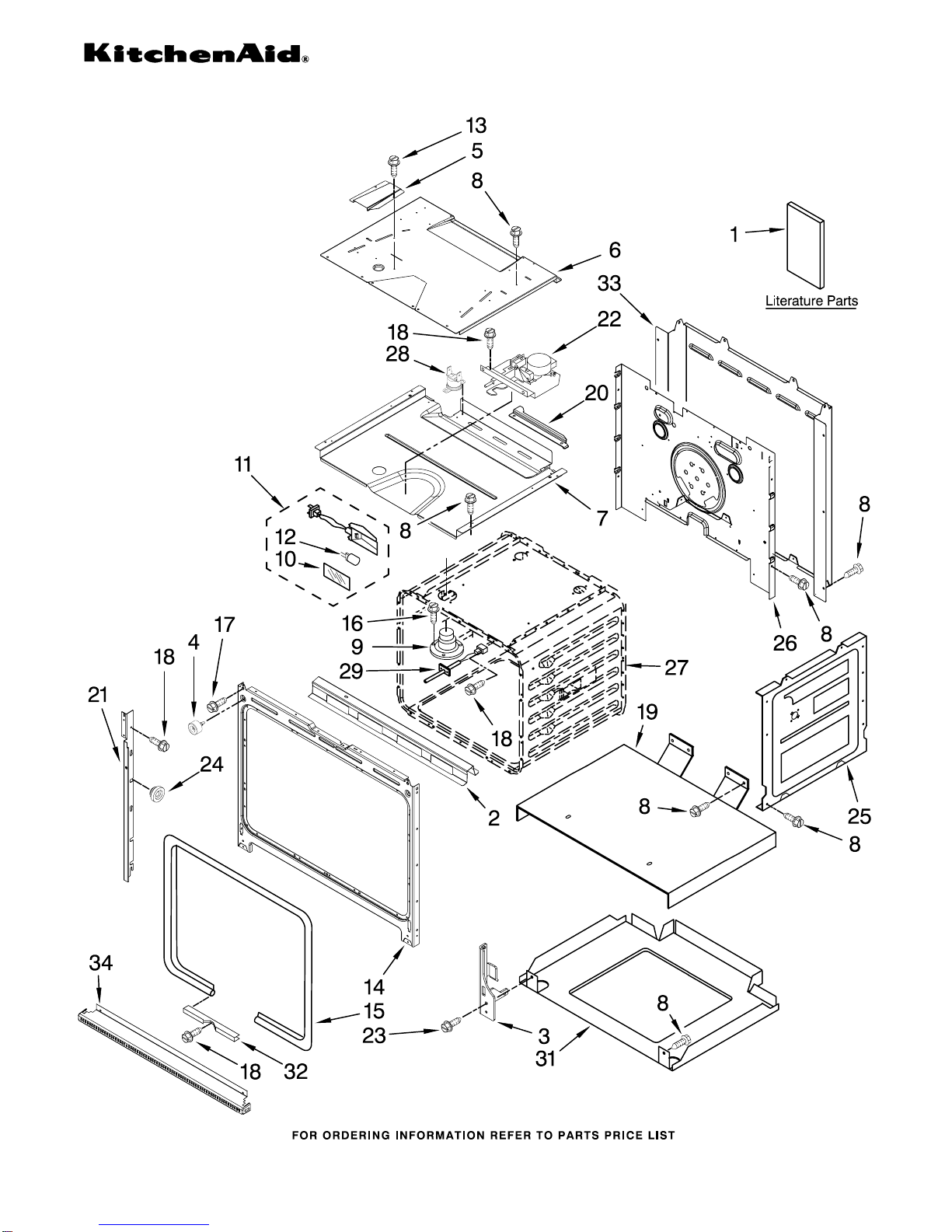

OVEN PARTS

For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02

(Black) (White) (Stainless)

W10203839

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

8304336 English

8304571 French

W10162179

Use & Care Guide

Tech Sheet

W10185201

English

W10185202

French

8304335 Easy Set Guide

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

W10181196

Divider, Vent

Center

7 8303511 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10169756

Lens, Light

W10009940

Oven Light,

Assembly

W10169757

Bulb, Light

13 3400832 Screw (2)

14 8304627 Frame, Front

15 8304493 Gasket, Door

16 3196176 Screw

17 4449040 Screw

18 3400893 Screw (6)

19 4451478 Support, Insulation

W10169348

Thermostat,

Bracket

21 Mounting Rail,Side

Right

8303675BL

Black

8303675WH

White

Left

8303676BL

Black

8303676WH

White

22 8303692 Latch, Mortorized

23 4449743 Screw

24 4448444 Mounting Grommet,

Rail (6)

25 4455641 Side, Chassis

26 8304303 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse 105C

29 4455636 Sensor

31 8303516 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

34 Trim, Bottom Vent

8303705BL

Black

8303705WH

White

8303705SS

Stainless

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303965 Insulation, Wrap

8303967 Insulation, Back

CONTROL PANEL PARTS

For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02

(Black) (White) (Stainless)

W10203839

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8303716BL

Black

8303716WH

White

W10165445

Stainless

2 8303687 Support Appliance

Manager

3 8303797 Bracket, Glass

Touch

4 8304331 Control Panel,

Glass Touch

W10118733

User Interface

6 8303719 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400832 Screw

W10119143

Appliance Manager

11 8304441 Resistor, Drop

OVEN DOOR PARTS

For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02

(Black) (White) (Stainless)

W10203839

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8303737BL

Door Liner

W10174285

Hinge, Door (2)

3 3196183 Screw

8304581BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

6 8303746 Door, Top Bracket

7 8303731 Glass, Inner

8 4449743 Screw

8303745BL

Frame, Door Side

10 8304523 Seal

8304360BL

Bracket, Handle

12 Door Glass,

Assembly

8303993 Black

8303995 White

8303991 Stainless

13 Door Handle

8303774BL

Black

8303774WH

White

8303774SS

Stainless

15 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

16 8304522 Bumper, Glass

17 Cover, Door Hinge

W10137044

Right

W10137043

Left

INTERNAL OVEN PARTS

For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02

(Black) (White) (Stainless)

W10203839

Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 4448717 Rack, Oven

3 9760768 Element, Bake

4 4455037 Tray, Bake

5 4449154 Screw

6 4450039 Cover, Bake Tray

7 4449809 Screw

8 8304602 Element, Broil

Shield

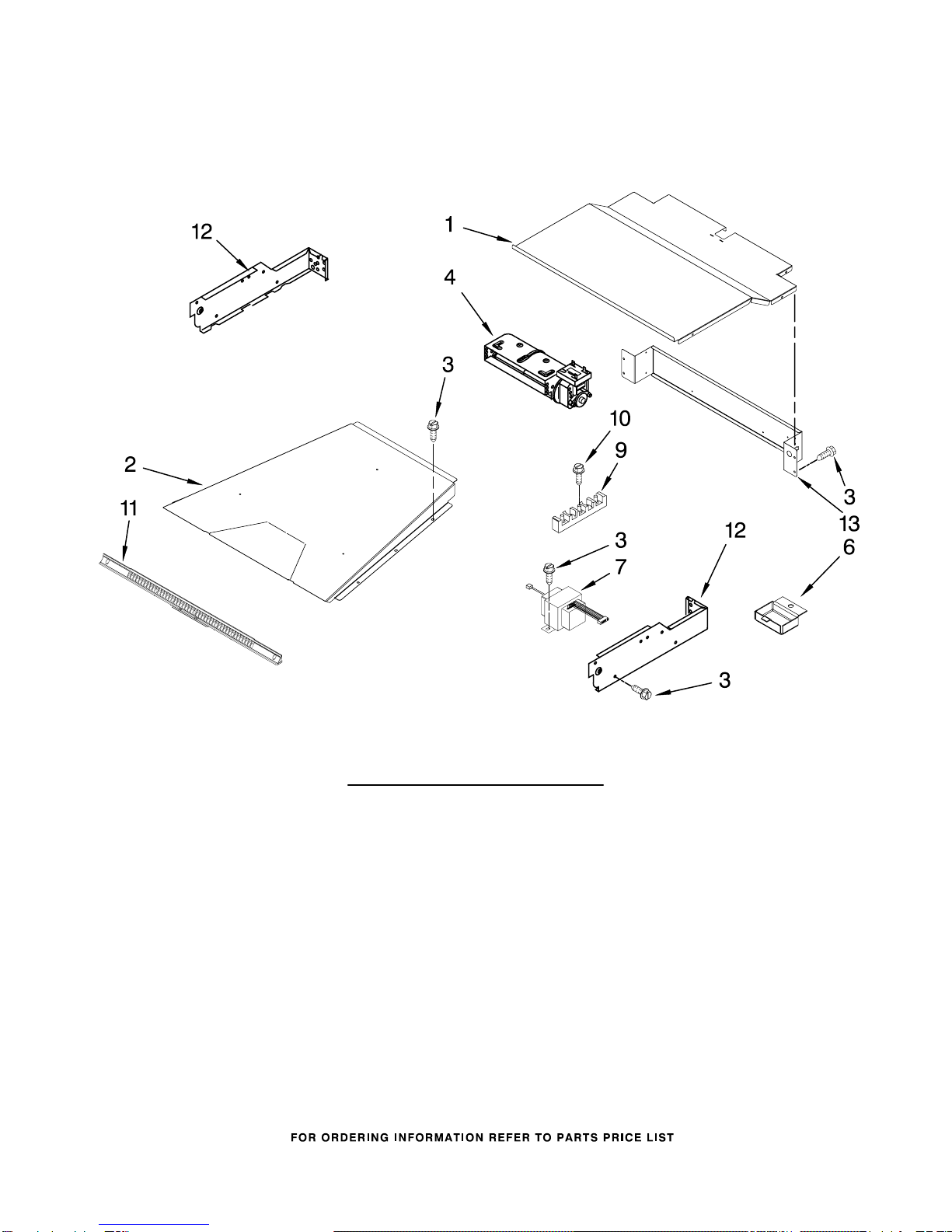

TOP VENTING PARTS

For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02

(Black) (White) (Stainless)

W10203839

Illus. Part

No. No. DESCRIPTION

1 8304219 Cover, Top

2 8304643 Duct, Air Outlet

3 4449809 Screw

4 8303972 Blower, 60mm

6 8285593 Connector, Cover

W10111628

Transformr,Control

9 4449868 Block, Terminal

10 3400080 Screw

11 8303684 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

OPTIONAL PARTS

For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02

(Black) (White) (Stainless)

W10203839

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

W10143473

Harness, Latch

Door

W10155291

Connector, Flex

W10171561

Harness, Main

8304051 Communication,

Harness

98997 Clip

8304438 Conduit, Single

4450800 Screw, Ground

Miscellaneous

4448950 Screw, Install (4)
