KitchenAid KEBC247KBL04 Manuale utente

OVEN PARTS

For Models: KEBC247KBL04, KEBC247KWH04, KEBC247KSS04

(Black) (White) (S.Steel)

1−05 Litho in U.S.A.(cre) Part No. 8186247

24" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION

SELF−CLEAN

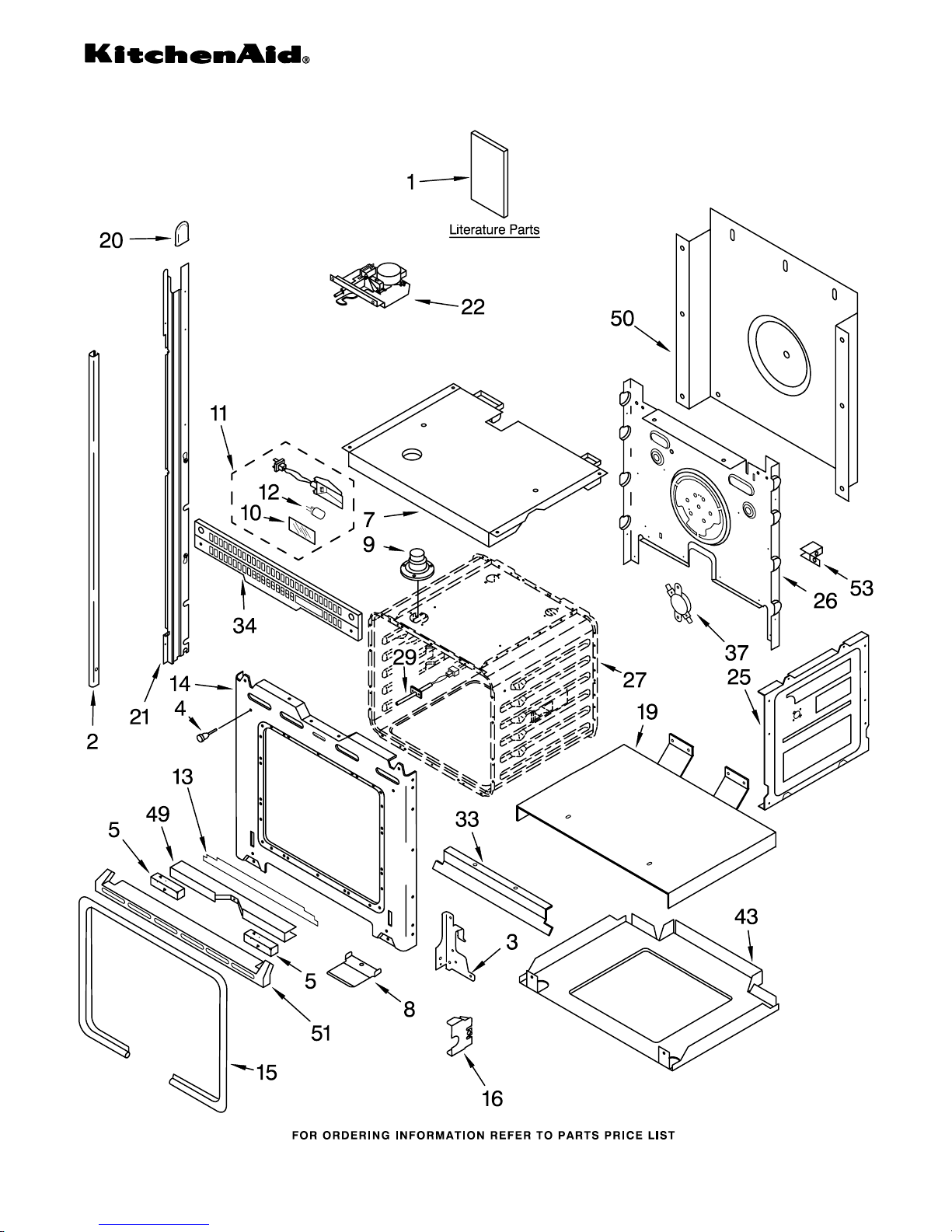

OVEN PARTS

For Models: KEBC247KBL04, KEBC247KWH04, KEBC247KSS04

(Black) (White) (S.Steel)

8186247

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8300656 Installation

Instructions

8300886 Use & Care Guide

4449066 Cookbook

(T/C Oven)

8302066 Tech Sheet

4449264 Easy Set Guide

3191638 Safer Cooking Tips

2 Trim, Side

4455426 RH Black

4455375 RH White

4452081 RH S.Steel

4455427 LH Black

4455374 LH White

4452082 LH S.Steel

8281236 Screw

3 Hinge, Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4452490 Spacer, Foam

7 4455863 Top Chassis

4449809 Screw

8 Deflector,

Vent Box

4455807 Black

4452489 Stainless Steel

9 4452158 Tube, Vent

3196176 Screw

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 8300825 Insulation,

Bottom Vent

3400832 Screw

14 4455610 Frame, Front

4449040 Screw

4450118 Nut

15 4455380 Gasket, Door

16 4452152 Bracket, Mounting

19 4451476 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

22 9759481 Latch, Motorized

25 4455641 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452232 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

4449154 Screw

33 8300880 Deflector, Vent

34 4452265 Vent, Center

37 9759242 Thermostat (TOD)

4449809 Screw

43 4450525 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 Trim, Bottom

8300828 Black Model

8300829 White Model

8302366 S.Steel Model

3400832 Screw

53 4449845 Support, Bracket

4449809 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

CONTROL PANEL PARTS

For Models: KEBC247KBL04, KEBC247KWH04, KEBC247KSS04

(Black) (White) (S.Steel)

8186247

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8300815 Black Model

8300816 White Model

8302364 S.Steel Model

3400832 Screw

2 Switch, Membrane

8302743 Black

8301963 White

8302359 S.Steel

3400832 Screw

3 8302305 Assy, Control

8301848 Latch, Sister

Board

4449745 Screw

OVEN DOOR PARTS

For Models: KEBC247KBL04, KEBC247KWH04, KEBC247KSS04

(Black) (White) (S.Steel)

8186247

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4457125 Liner, Door

2 Hinge, Door

8300569 R.Side (Green)

8300570 L.Side (Green)

8300571 R.Side (White)

8300572 L.Side (White)

4449743 Screw

3 4449247 Glass, Inner

4 4451720 Insulation, Door

5 4457130 Retainer, Glass

4449809 Screw

7 9759223 Glass, Inner

12 Door Glass, Assy

8300836 Black Model

8300837 White Model

8302467 S.Steel

13 Door Handle

4452498 Black

4452499 White

8301255 S.Steel

14 Bracket, Handle

4455803 R.Side

4455804 L.Side

3196184 Screw

15 9759229 Bracket(2nd Glass)

19 4457101 Shield, Heat

4449809 Screw

21 9759230 Bracket(3rd Glass)

22 4457112 Shield, Heat (Btm)

23 Retainer, Clip

4450863 Black Model

4450864 White Model

24 9759226 Glass, Inner

INTERNAL OVEN PARTS

For Models: KEBC247KBL04, KEBC247KWH04, KEBC247KSS04

(Black) (White) (S.Steel)

8186247

Illus. Part

No. No. DESCRIPTION

2 4456104 Element, Broil

4449154 Screw

3 3195996 Grill, Broiler

4 3196076 Pan, Broiler

5 3181534 Rack, Roasting

6 4448716 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Convection Motor

4449154 Screw

10 4452226 Blade, Fan

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4455035 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4452157 Element,

Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw

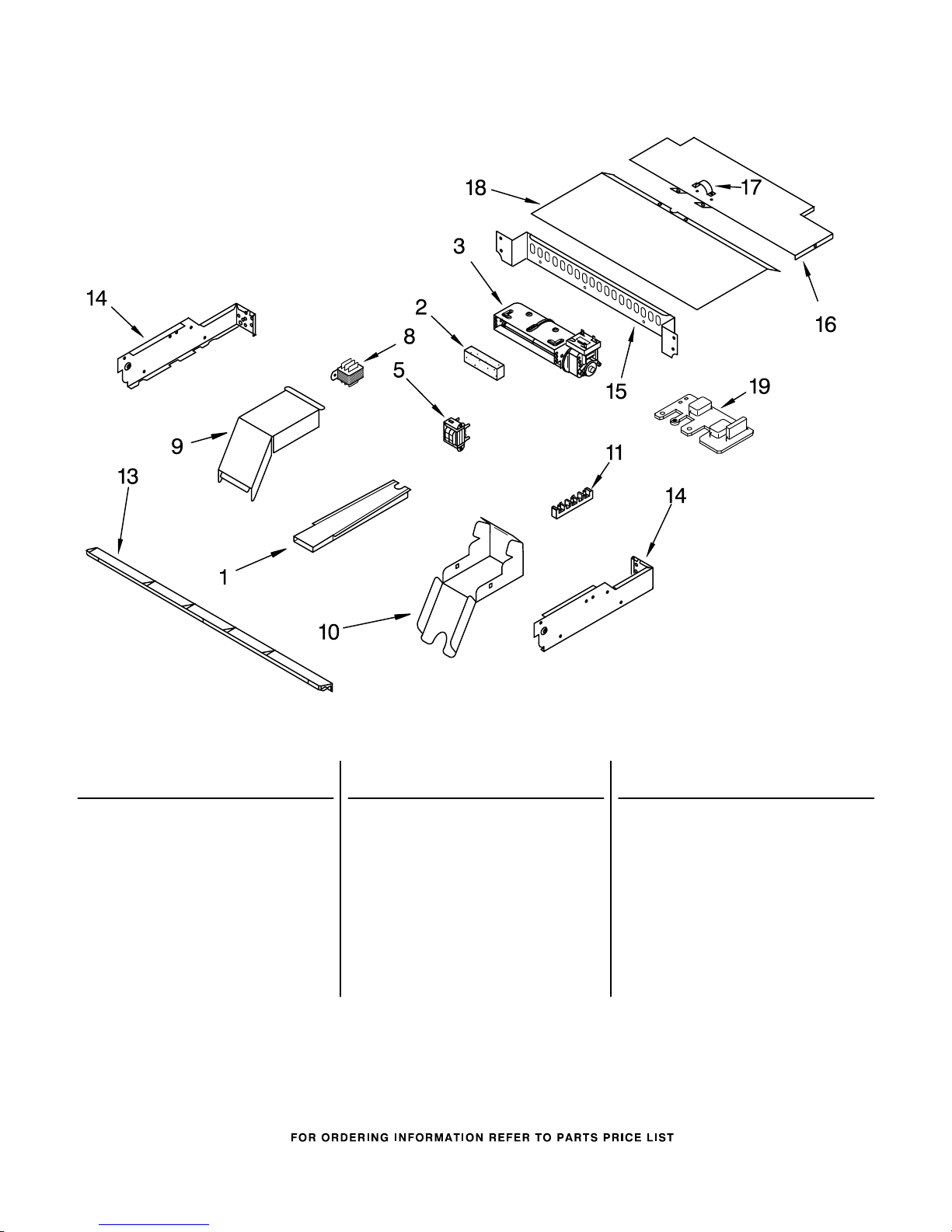

TOP VENTING PARTS

For Models: KEBC247KBL04, KEBC247KWH04, KEBC247KSS04

(Black) (White) (S.Steel)

8186247

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4451758 Foam, Block

3 Blower

6610168 45MM Lower Oven

4457289 60MM Upper Oven

5 6610122 Transformer,

(Lights)

4449809 Screw

8 8300642 Transformer, Control

4449809 Screw

9 4455178 Elbow, Vent−Top

10 4455177 Elbow, Vent−Bottom

11 4449868 Block, Terminal

3400080 Screw

13 4448547 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Top

4451597 Right

4451598 Left

4449809 Screw

4449154 Screw

15 9759135 Back, Control

4449809 Screw

16 4450549 Cover, Top Rear

4449809 Screw

17 4448664 Clamp

4449809 Screw

112432 Nut

18 4452365 Cover, Top Front

4449809 Screw

4452260 Spacer, Foam

19 4451985 Suppressor,

Transient

4455191 Plate, Service

OPTIONAL PARTS

For Models: KEBC247KBL04, KEBC247KWH04, KEBC247KSS04

(Black) (White) (S.Steel)

8186247

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

8301909 Harness, Wire

(Latch)

8301872 Harness, Wire

(Main)

4450953 Conduit, Double

4450800 Screw, Ground

4448664 Clamp

4449809 Screw

112432 Nut

4452222 Spacer, Harness

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

4454835 Tie, Cable

313438 Harness Clip

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)
