KitchenAid SUPERBA KEBS277XBL2 Manuale utente

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3178273 Thermostat, upper

155023 Screw (2)

2 3179778 Housing, Backlight

3 3178236 Switch, Selector

155023 Screw (2)

4 4168598 Light, Indicator

5 Switch, Oven Light

3179891 Black

3179708 Brass

6 98788 Nut, Timer (4)

7 Insert, Top

4173163 Black

3180130 Almond

3180131 White

8 3177804 Bracket, Control

9 3148111 Timer, Electronic

10 Glass, Control Panel

3181286 Black

3181604 Almond

3181603 White

11 Frame, Control Panel

3177760 Black

3178576 Almond

3178575 White

12 3179916 Insert, Vent

3179847 Screw (4)

13 3179704 Knob, Timer (2)

14 3179705 Knob, Timer

15 Door, Latch Handle

3177972 Black

3179710 Almond

3179709 White

4170323 Screw (5)

16 3178400 Knob, Control (3)

17 Disc, Selector

3178256 Lower

3178265 Upper

18 3178481 Disc, Thermostat (Self Clean) (2)

19 4173611 Meat Probe Indicator Assy.

20 4168838 Nut (3)

21 3177971 Hinge, Door (2)

3179847 Screw (2)

22 4167590 Retainer, Glass

4159456 Screw (6)

23 3178274 Thermostat, Lower

155023 Screw (2)

24 3177747 Bracket, Control Panel

3177991 Screw(2)

25 Bezel, Switch

4169372 Black

3179707 Chrome

26 3177650 Support, Frame

3177991 Screw(2)

27 3178234 Switch Selector

155023 Screw (2)

254225 Screw (2)

29 3178126 Switch, Rotory (2)

30 4163840 Knob, Meat Probe

3180844 Clip, Spacer

LITERATURE PARTS

LIT4174183 Repair Parts List

LIT3185202 Tech Sheet

LIT3178195 Installation Instructions

LIT3181352 Use & Care Guide

LIT3150693 Cookbook

MISCELLANEOUS

3171507 Mounting Hardware

SPLICING WIRES-25FT. LENGTH

18 Ga. 80~c Rating

350806 Yellow

16 Ga. 80~c Rating

242829 Blue

14 Ga. 150~c Rating

242820 Black

242821 Blue

242822 Brown

242823 Green

242824 Orange

242825 Red

242826 White

242827 Yellow

14 Ga. 200~c Rating

242830 Brown

242831 Red

242832 Yellow

12 Ga. 150~c Rating

242828 Black

242829 Red

PAINT, TOUCH-UP (1/2 oz.)

72017 White

72107 Almond

72110 Harvest Gold

72112 Toast

72113 Platinum

72032 Black

261869 Citrine White

PAINT, PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Harvest Gold

285365 Toast

285366 Platinum

830864 Black

350942 Primer

350941 Leveler (Primer)

PAINT, BULK (1 qt.)

799344 White

978883 Almond

261891 Harvest Gold

285367 Toast

285368 Platinum

ADHESIVE

482338 Sealer, Silastic (3 Oz.)

591014 Adhesive, Loctite (1/3 Oz.)

ACCESSORY PARTS

799832 Kit, Porcelain Repair (White)

261881 Rotisserie Kit

832985 Rack, Cooking (Bi-Level)

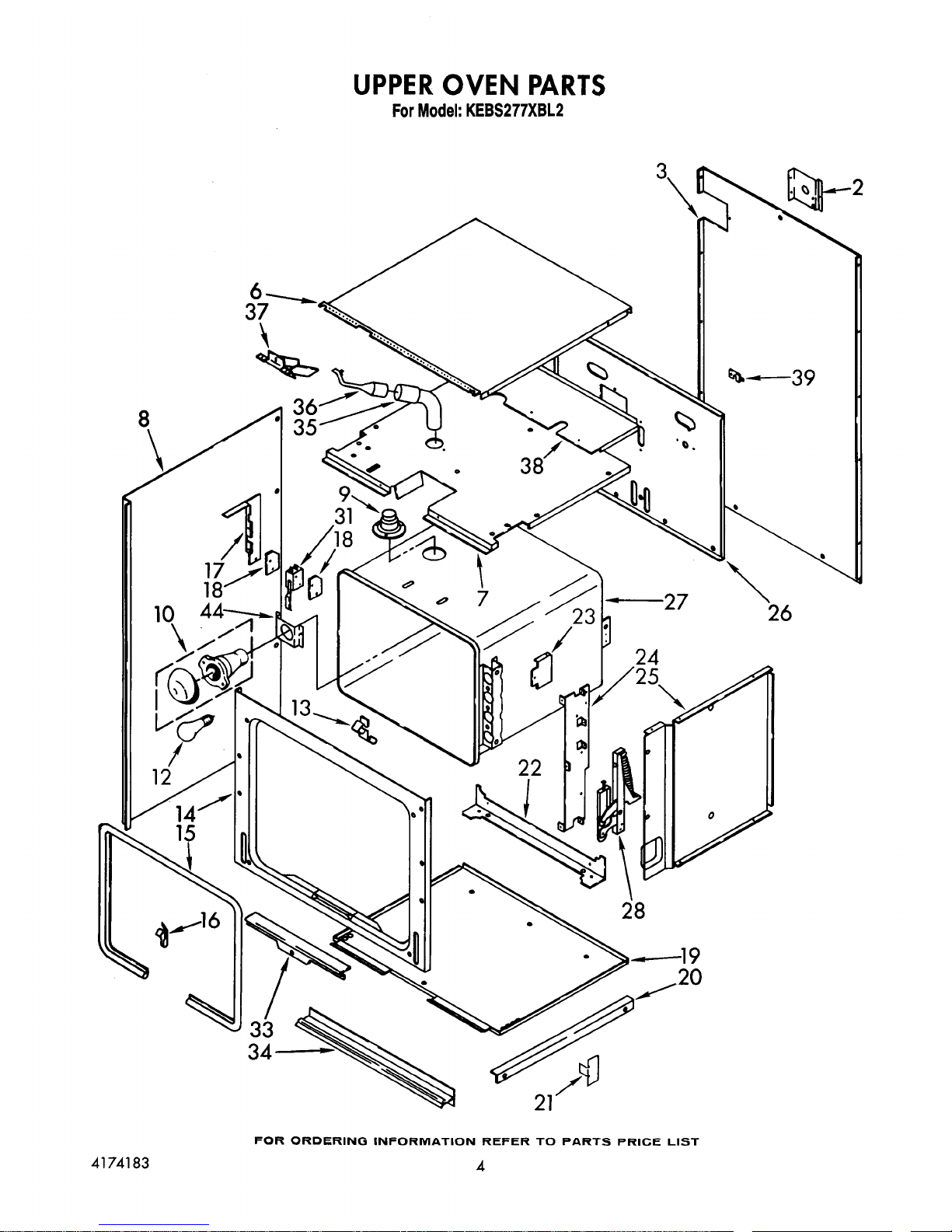

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

2 3177545 Bracket, Conduit

3 3177739 Cabinet, Back

300890 Screw (14)

6 3178136 Cabinet, Top

300890 Screw (5)

7 3177436 Top, Module

300890 Screw (8)

8 Side, Cabinet

3177440 Right Hand

3177438 Left Hand

300890 Screw (18)

9 3181699 Tube, Vent

3179117 Screw (3)

10 3150505 Oven Light Assy.

12 311255 Bulb, Oven Light

13 313382 Clip, Thermostat Bulb

14 3177682 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Module, Bottom

20 3179220 Rail, Support (4)

300890 Screw (4)

21 3181733 Insert, Middle Vent Trim

4173601 Screw (2)

22 3177434 Support, Oven

300890 Screw (2)

23 3178612 Shield, Radiation

3179795 Screw (6)

300890 Screw (2)

24 3177433 Bracket, Hinge

3179795 Screw (6)

300890 Screw (2)

25 3177572 Side, Module (R.H. & L.H.)

300890 Screw (4)

26 3177556 Back, Module

300890 Screw (8)

27 3180782 Liner, Oven

28 3178298 Hinge, Door (2)

3178000 Screw (4)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4159450 Screw (2)

34 Vent, Middle Trim

3181965 Black

3181968 Brushed Chrome

3180022 Screw (4)

4168863 Screw (2)

35 3179922 Vent, Tube (Upper, Female)

36 3180891 Vent, Tube (Upper, Male)

37 3180890 Shield, Vent

300890 Screw (2)

38 3178132 Extension, Shelf

3177991 Screw (8)

39 4168203 Cover, Cap Tube

4159445 Screw

4168874 Screw

44 4173179 Retainer, Insulation

300890 Screw (2)

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

3177862 Insulation, Wrap

3177872 Insulation, Back

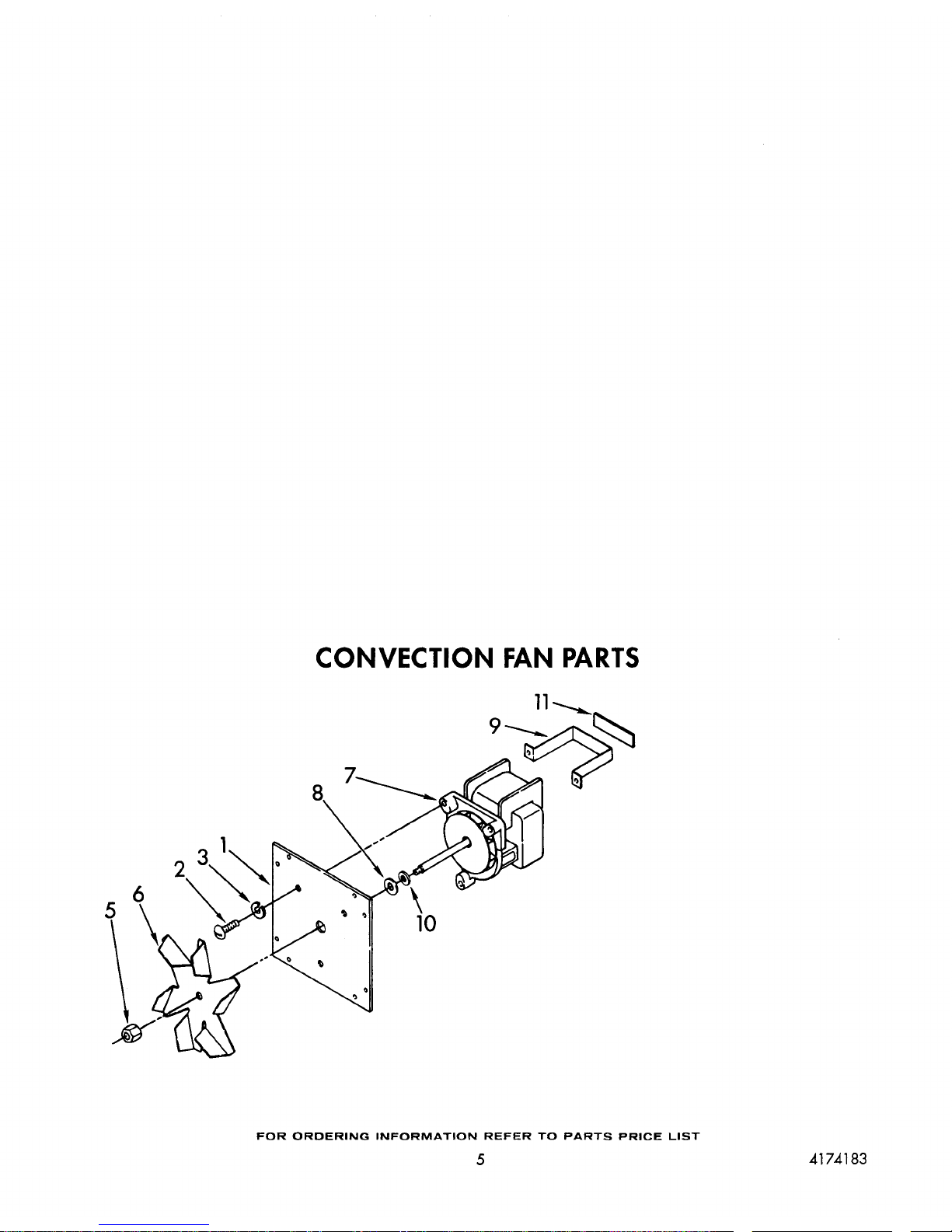

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3178512 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 4173612 Motor

8 4173238 E-Ring

9 4173185 Bracket Guard

10 4173230 Flatwasher

11 3179790 Gasket, Foam
