KitchenAid Superba KEBS277WBL2 Manuale utente

NOTE:The screws and nuts required to attach a part are listed immediately

following that part.

1 3178273 Thermostat, upper

155023 Screw (2)

2 3179778 Housing, Backlight

3 3178236 Switch, Selector

155023 Screw (2)

4 4168598 Light, Indicator

5 Switch, Oven Light

3179891 Black

3179708 Brass

6 98788 Nut, Timer (4)

7 Insert, Top

4173163 Black

3180130 Almond

3180131 White

8 3177804 Bracket, Control

9 3148111 Timer, Electronic

10 Glass, Control Panel

3177938 Black

3179714 Almond

3179713 White

11 Frame, Control Panel

3177760 Black

3178576 Almond

3178575 White

12 3179916 Insert, Vent

3179847 Screw (4)

13 Knob, Timer (2)

3177122 Black

3179704 Chrome

14 Knob, Timer

3177121 Black

3179705 Chrome

15 Door, Latch Handle

3177972 Black

3179710 Almond

3179709 White

4170323 Screw (5)

16 3178400 Knob, Control (3)

17 Disc, Selector

3178256 Lower

3178254 Upper

18 3178477 Disc, Thermostat (Self Clean) (2)

19 4173153 Meat Probe Indicator Assy.

20 4168838 Nut (3)

21 3177971 Hinge, Door (2)

3179847 Screw (2)

22 4167590 Retainer, Glass

4159456 Screw (6)

23 3178274 Thermostat, Lower

155023 Screw (2)

24 3177747 Bracket, Control Panel

3177991 Screw(2)

25 Bezel, Switch

4169372 Black

3179707 Chrome

26 3177650 Support, Frame

3177991 Screw(2)

27 3178234 Switch Selector

155023 Screw (2)

254225 Screw (2)

29 3178126 Switch, Rotory (2)

30 4163840 Knob, Meat Probe

3180844 Clip, Spacer

LITERATURE PARTS

LIT4174135 Repair Parts List

LIT3178200 Tech Sheet

LIT3178195 Installation Instructions

LIT3177060 Guide, Use & Care

LIT3149670 Cooking Guide

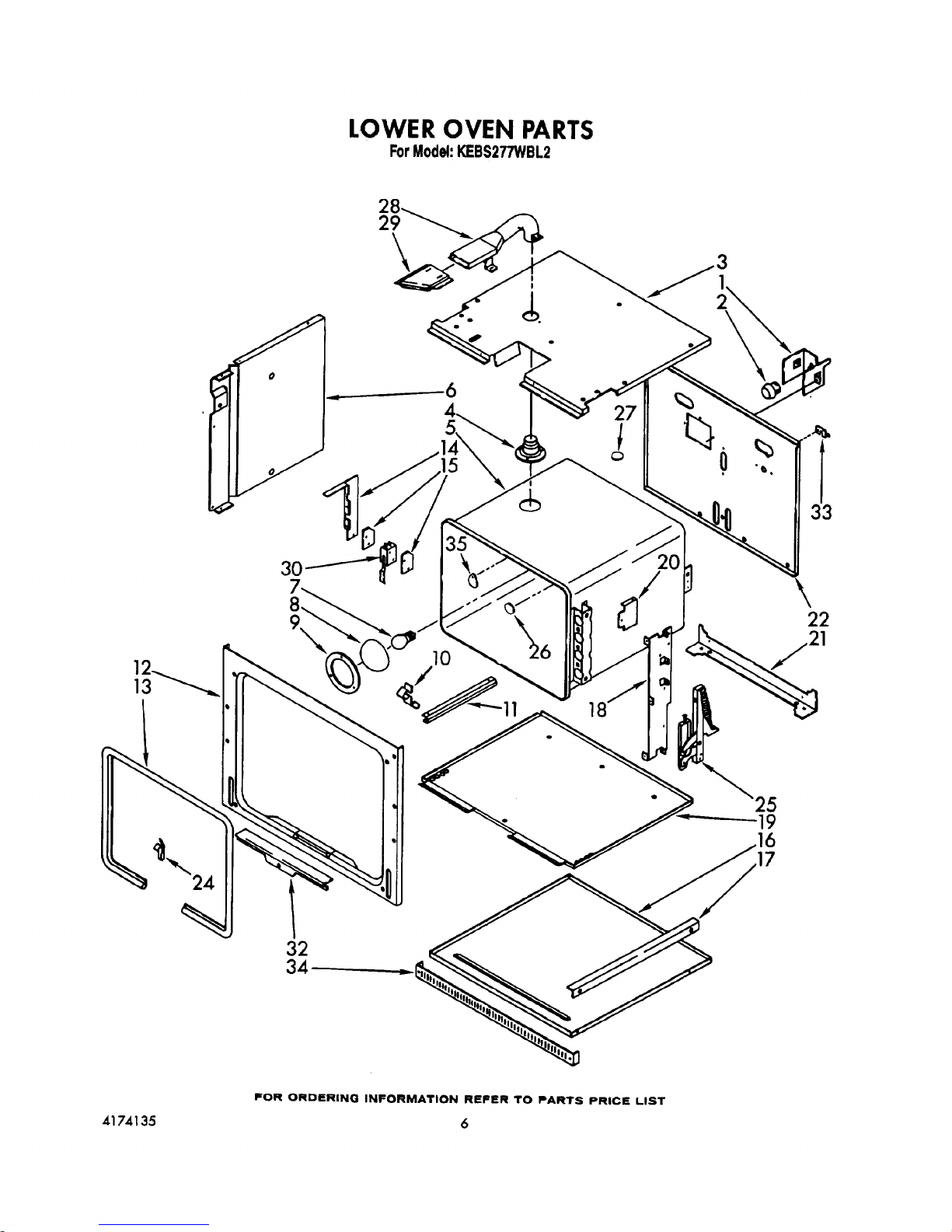

NOTE:The screws and nuts required to attach a part are listed immediately

following that part.

2 3177545 Bracket, Conduit

3 3177739 Cabinet, Back

300890 Screw (14)

4 3177446 Housing, Light

300890 Screw (2)

5 4173173 Base, Oven Light

6 3178136 Cabinet, Top

300890 Screw (5)

7 3177436 Top, Module

300890 Screw (8)

8 Side, Cabinet

3177440 Left Hand

3177438 Right Hand

300890 Screw (18)

9 4168492 Tube, Vent

3179117 Screw (3)

10 3178521 Assembly, Oven Light

11 4173174 Lens, Light

12 4173175 Bulb, Oven Light

13 313382 Clip, Thermostat Bulb

14 3177682 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Module, Bottom

20 3179220 Rail, Support (4)

300890 Screw (4)

21 4168217 Support, Element (2)

3179117 Screw (4)

4168674 Retainer, Element

22 3177434 Support, Oven

300890 Screw (2)

23 3178612 Shield, Radiation

300890 Screw (2)

24 3177433 Bracket, Hinge

3179795 Screw (6)

300890 Screw (2)

25 3177572 Side, Module (R.H. & L.H.)

300890 Screw (4)

26 3177556 Back, Module

300890 Screw (8)

27 3177467 Liner, Oven

28 3178298 Hinge, Door (2)

3179795 Screw (4)

29 4159122 Button, Plug

30 4159120 Button, Plug

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

32 3177923 Insulator Switch

33 3179587 Retainer, Seal

4159450 Screw (2)

34 Vent, Middle Trim

3177755 Black

3177753 Brushed Chrome

3180022 Screw (4)

4168863 Screw (2)

35 3179922 Vent, Tube (Upper, Female)

36 3180891 Vent, Tube (Upper, Male)

37 3180890 Shield, Vent

300890 Screw (2)

38 3178133 Extension, Shelf

3177991 Screw (8)

39 4168203 Cover, Cap Tube

4159445 Screw

40 4167518 Plate, Cover

4168874 Screw

43 3178040 Plate, Mounting Oven Light

4159445 Screw (2)

44 4173179 Retainer, Insulation

300890 Screw (2)

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

3177862 Insulation, Wrap

3177868 Insulation, Back

1 3178512 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173196 Nut(Left Hand)

6 4173236 Fan

7 4173198 Motor

8 4173238 E-Ring

9 4173185 Bracket Guard

10 4173230 Flatwasher

11 3179790 Gasket, Foam
