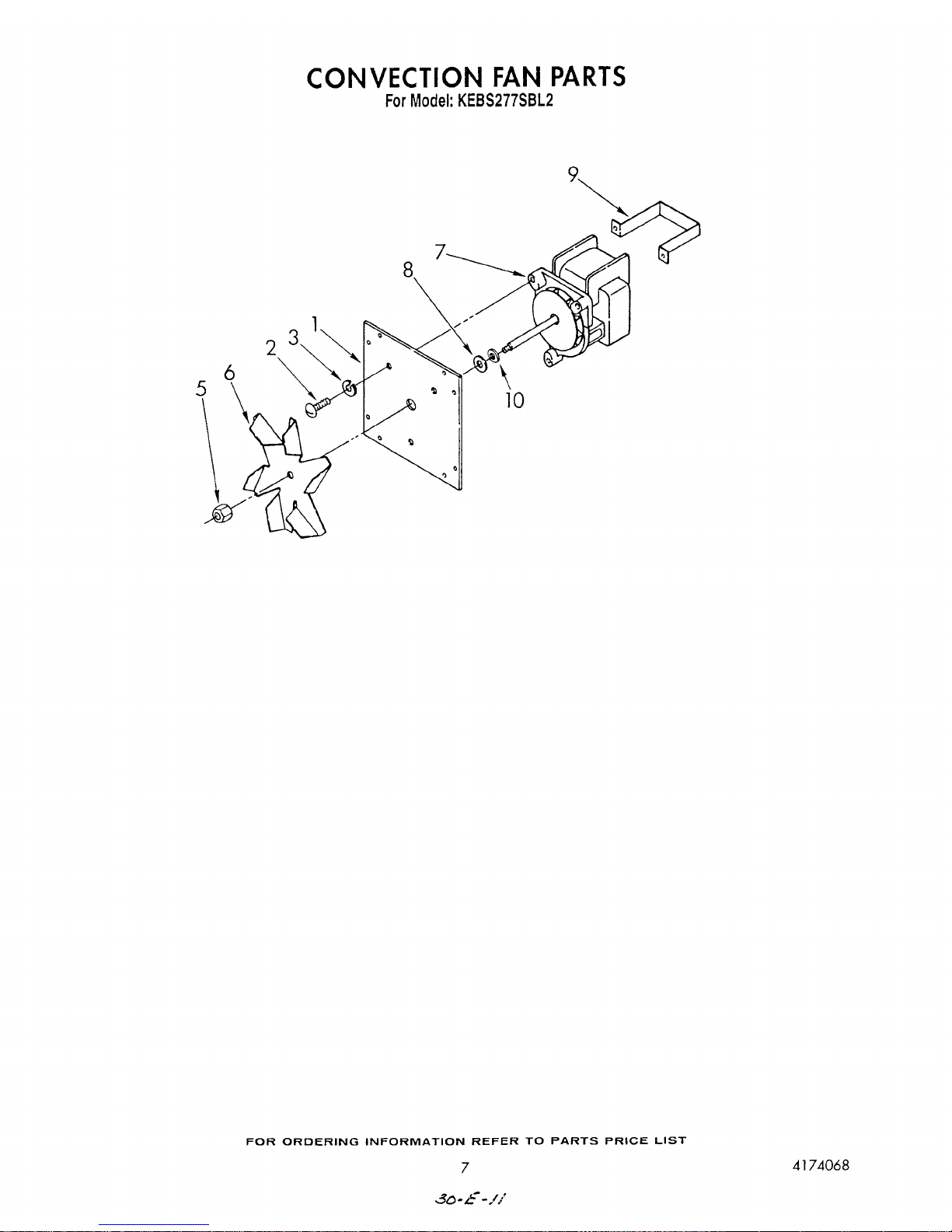

KitchenAid KEBS277SBL2 Manuale utente

1 4173159 Thermostat Disc Lower Oven

2 4173158 Selector Disc Lower Oven

3 4173159 Thermostat Disc Upper Oven

4 4173160 Selector Disc Upper Oven

5 4173071 Clock, Electronic

6 4173148 Mounting Panel

7 4168597 Indicator Light Upper Oven

8 4168597 Indicator Light Lower Oven

9 3178514 Selector Switch Upper Oven

10 4164361 Thermostat, Upper Oven

11 4164362 Thermostat, Lower Oven

12 3178515 Selector Switch, Lower Oven

13 4173153 Meat Probe Indicator assy.

15 4164360 Nut, (4) Washer Type

16 4163869 Lock Indicator Light, Lower Oven

17 4163869 Clean Indicator Light, Lower Oven

18 4163869 Lock Indictor Light, Upper Oven

19 4163869 Clean Indicator Light, Upper Oven

21 4173150 Back Light Housing

22 4168533 Switch, (2) Retained Heat

Following Parts Not Illustrated

4173156 Wiring Harness High Temp

4173157 Wiring Harness Low Temp

1 4167590 Retainer

2 4163831 Bezel, Oven Light

3 4163840 Knob, Meat Probe Indicator

4 4168403 Knob, Thermostat, Lower Oven

5 4168403 Knob, Selector, Lower Oven

6 4168403 Knob, Thermostat Upper Oven

7 4168403 Knob, Selector, Upper Oven

8 3177122 Knob, Clock

9 3177121 Knob, Clock (2)

10 Vent Insert

3178516 Black

3178980 Almond - White

11 4168624 Control Frame

3178571 White

3178572 Almond

4164363 Black

12 Insert, Top

4173436 White

4173437 Almond

4173163 Black

13 Glass, Control Panel

3179615 White

3179614 Almond

4173162 Black

15 4168571 Knob, (2) Retained Heat

1 4173054 Sandwich Panel

2 4173043 Bushing, (2) Electrical

4 4168257 Hole Cover

6 4166561 Transformer, Probe

7 4163731 Relay, Meat Probe

9 4168295 Terminal Block, Power Supply

10 4167614 Conduit, 1/2 x 56

11 4173276 Cabinet Top

13 4173165 Bushing, Flexible

14 4173166 Panel, Blower Mounting

15 4173004 Blower Assembly

17 4173008 Switch, Auxiliary Fan

1 4168063 Mounting Plate

2 4168538 Latch Mechanism

4 Latch Lever

3177965 Upper Oven

3177966 Lower Oven

5 4168292 Solenoid Spacer

6 4169323 Solenoid

7 Safety Switch

4173007 Upper Oven

3179691 Lower Oven

8 4173053 Screw (Rd Hd) 4-40 x 1 1/4

10 4168560 Solenoid Spring

11 4159129 Cotter Pin

12 4168514 Latch Switch With Roller

13 4164366 Latch Switch

14 4159117 Locknut (4)

17 4168517 Latch Switch (2)

18 4168522 Insulator (2)

20 4168579 Shoulder Screw Latch Lever (2)

23 4168554 Shoulder Screw, Actuator Arm

24 4168553 Spacer, Actuator Arm

25 4168058 Actuator Arm

26 4159160 Retaining Ring

27 4159603 Washer, Flat

28 4159109 Nut, Hex Kep 10-24

29 4159287 Screw 10-24 x 3/8

30 4173168 Bracket, Harness

32 4173170 Mounting Bracket, Safety Switch

Following Parts Not Illustrated

4173169 Harness, Upper Latch

3178524 Harness, Lower Latch

4178555 Insulator Sleeve, Safety Switch
