NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

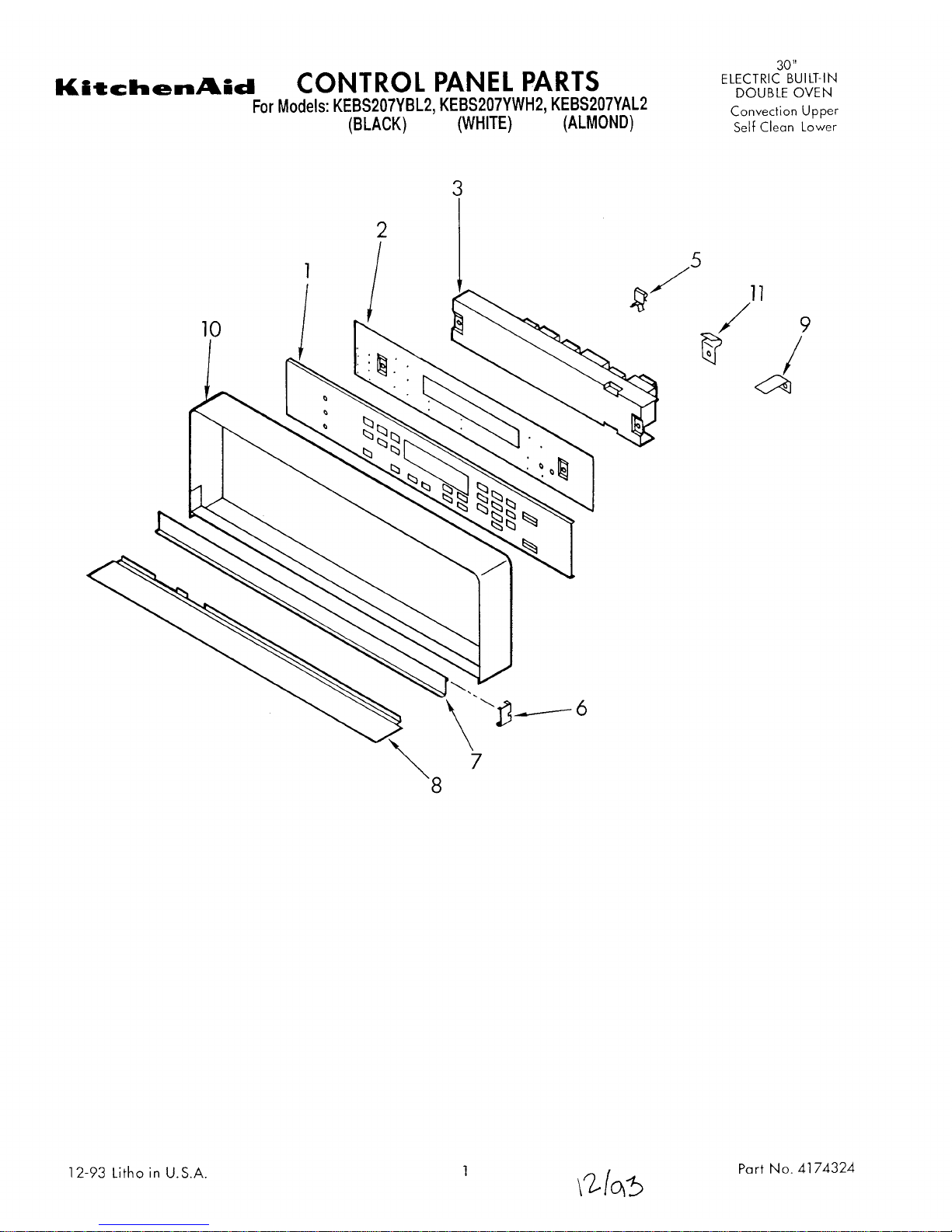

1 Membrane, Switch

3183529 Black

3183530 White

3183531 Almond

2 3181889 Bracket, Mounting Switch Membrane

3 3181705 Microcomputer

3179117 Screw

5 3182985 Clip, Retainer

6 3182162 Trim, Door

7 Door, Latch Handle

3182152 Black

3182155 White

3182158 Almond

8 3183703 Trim, Panel

3148443 Screw

9 3185424 Bracket

3182939 Screw

10 3182149 Frame, Control Panel

11 3184567 Clip, Control Frame

FOLLOWING PARTS NOT ILLUSTRATED

LITERATURE PARTS

LIT3182131 Tech Sheet

LIT3182137 Installation Instructions

LIT3185643 Use & Care Guide

LIT3150693 Cookbook

LIT3183987 Guide-Autoset

LIT3183739 Guide-Quickset

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3176719 Frame Front

2 307985 Pin, Hinge Ear (2)

3 309111 Snubber, Door (2)

4 308306 Pushnut (2)

5 3182031 Oven 30"

311056 Screw (3)

6 310713 Bracket, Oven Mounting (2)

343641 Screw (6)

8 3185086 Button, Plug

9 3185944 Insulation Tray

3148107 Screw (2)

10 311774 Support, Side Wrapper (4)

3148107 Screw (4)

11 Side Wrapper

311005 Right Side

311008 Left Side

3148107 Screw,

12 Hinge Ear

3185662 Right Side

3185663 Left Side

13 310659 Plate (2) (Side Panel)

308544 Screw (4)

14 3185664 Channel Arm (2)

15 307986 Pin, Hinge (2)

16 307594 Retainer Ring (2)

17 308125 Anchor Spring (2)

18 308126 Spring, Oven Door (2)

19 3183792 Tube, Vent

343641 Screw, Ground

20 310839 Eliminator, Smoke

21 310662 Plate Cover

3148107 Screw (2)

22 3185197 Seal, Pyro

24 3150505 Oven Light Assy.

25 311255 Bulb, Oven Light

26 3184533 Gasket, Light

28 3183796 Baffle, Top Insulation

3148107 Screw (2)

29 3182585 Bracket, Mounting Control Frame

3179847 Screw

312713 Screw

35 310345 Switch, Door

690989 Screw

40 3184099 Cover, Top

3148107 Screw (4)

41 Side Trim

310686 Left Side

310690 Right Side

42 3182052 Panel, Back

3148107 Screw (16)

43 Trim, Center vent

3183633 Black

3183644 Aluminum

309133 Screw (3)

44 311582 Stand Off

48 311011 Cover, Rear

3148107 Screw (9)

55 309102 Bracket Stand Off

3148107 Screw

58 3182042 Bracket, Motor

3179117 Screw

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

310433 Insulation, Wrap

310435 Insulation, Oven

3149328 Insulation, Top

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3176719 Frame, Front

2 307985 Pin, Hinge Ear (2)

3 309111 Snubber, Door (2)

4 308306 Pushnut (2)

5 3182032 Oven 30"

311056 Screw (3)

6 3185086 Button, Plug

7 310713 Bracket, Oven Mounting (2)

9 3182814 Button, Plug

10 3185944 Insulation Tray

3148107 Screw (2)

11 Side Wrapper

311007 Right Side

311010 Left Side

12 311774 Support, Side Wrapper (4)

3148107 Screw (2)

13 Hinge Ear

3185662 Right Side

3185663 Left Side

14 310659 Plate, Side Panel (2)

308544 Screw (4)

15 3185664 Channel Arm (2)

17 307986 Pin Hinge

18 307594 Retainer, Ring

19 308125 Anchor, Spring (2)

20 308126 Spring, Oven Door (2)

343641 Screw

21 3182159 Tube, Vent (Lower)

22 310839 Eliminator, Smoke

3148107 Screw (2)

23 310662 Plate Cover

3148107 Screw (2)

24 3182161 Tube, Vent (Upper)

25 3183796 Baffle, Top

26 3184533 Gasket, Light Insulation

3150532 Screw (4)

27 3150505 Oven Light Assy.

28 311255 Bulb, Oven Light

29 310345 Switch, Door

30 3185197 Seal, Door

31 3182052 Panel, Back

3148107 Screw (6)

32 255095 Angle Support (2)

3148107 Screw (6)

33 Side Trim

310685 Left Side

310689 Right Side

3148107 Screw (14)

34 Grill, Bottom

3150349 Black

3150350 White

3150351 Almond

309029 Screw, 8-15 x 1/2 Black (3)

338156 Screw, Chrome

35 311592 Angle Support (2)

37 3185945 Cover, Bottom

3148107 Screw (4)

41 311013 Cover, Rear

3148107 Screw (11)

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

310433 Insulation, Wrap

310435 Insulation, Oven

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3182045 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 3183220 Motor

8 4173238 E-Ring

10 4173230 Flatwasher

11 3181750 Bracket, Guard

12 3179790 Gasket, Foam
