KitchenAid KEBS278SBL04 Manuale utente

OVEN PARTS

For Models:KEBS278SBL04, KEBS278SWH04, KEBS278SSS04

(Black) (White) (Stainless)

5−09 Litho in U.S.A. (amd)(bay) Part No. W10269260 Rev. A

27" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION

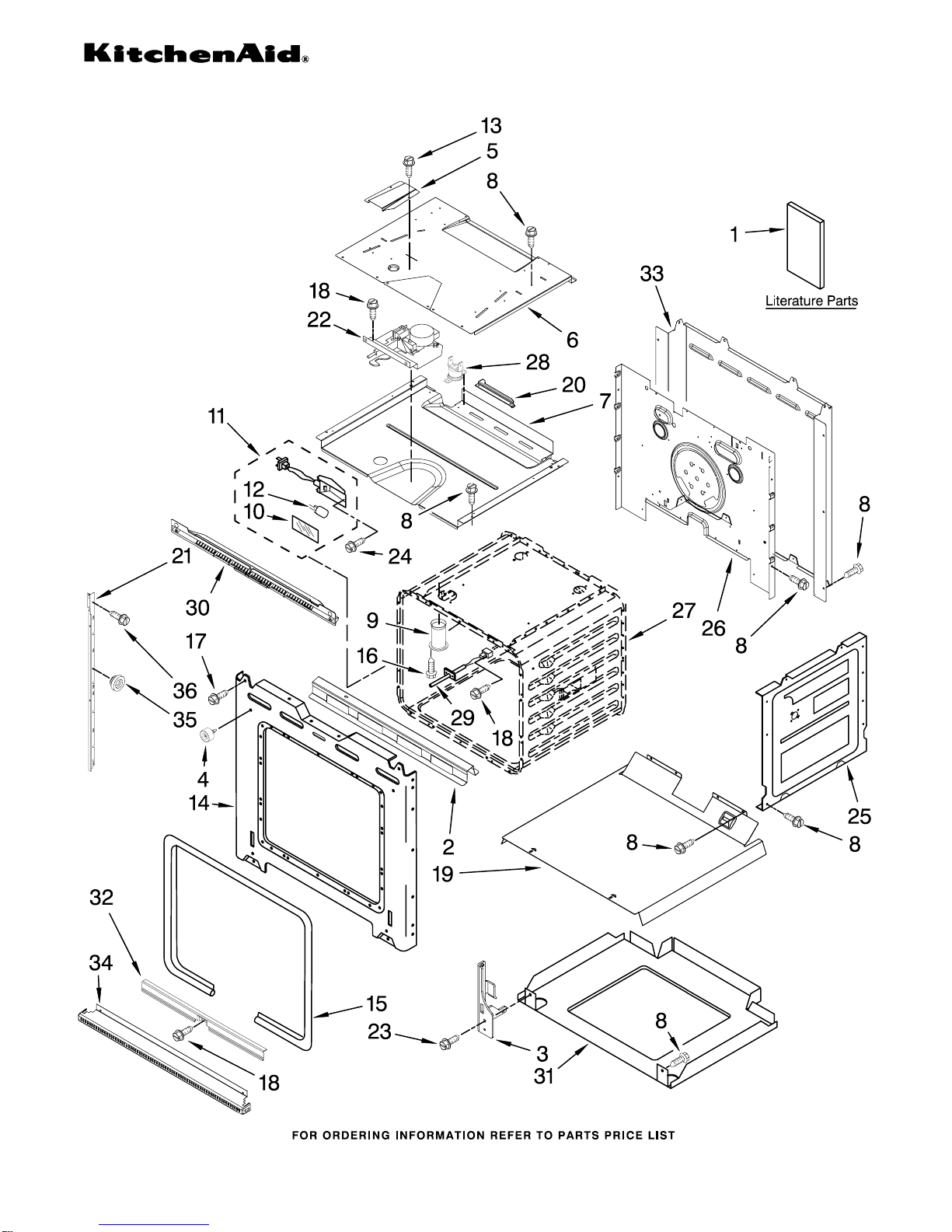

OVEN PARTS

For Models:KEBS278SBL04, KEBS278SWH04, KEBS278SSS04

(Black) (White) (Stainless)

W10269260

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304336 Installation

Instructions

W10162180

Use & Care Guide

Tech Sheet

W10220954

English

W10220955

French

8304335 Easy Set Guide

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

W10181198

Divider, Center

Vent

W10204469

Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10169756

Lens, Light

W10009940

Oven Light

Assembly

W10169757

Bulb, Light

13 3400832 Screw (2)

14 8304629 Frame, Front

15 Gasket, Door

8304494 Lower

4455381 Upper

16 3196176 Screw

17 4449040 Screw

18 4449154 Screw

19 4451477 Support, Insulation

W10169348

Bracket,

Thermostat

21 Mounting Rail,Side

Right

8303677BL

Black

8303677WH

White

Left

8303678BL

Black

8303678WH

White

W10195935

Latch, Mortorized

23 4449743 Screw

24 4449748 Screw

25 4455641 Side, Chassis

26 8304304 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse 105C

W10131825

Sensor

30 8303724 Vent, Center

31 8303772 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

34 Trim, Bottom Vent

8303706BL

Black

8303706WH

White

W10165444

Stainless

35 4448444 Grommet, Mounting

Rail

36 3400893 Screw (12)

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303966 Insulation, Wrap

8303968 Insulation, Back

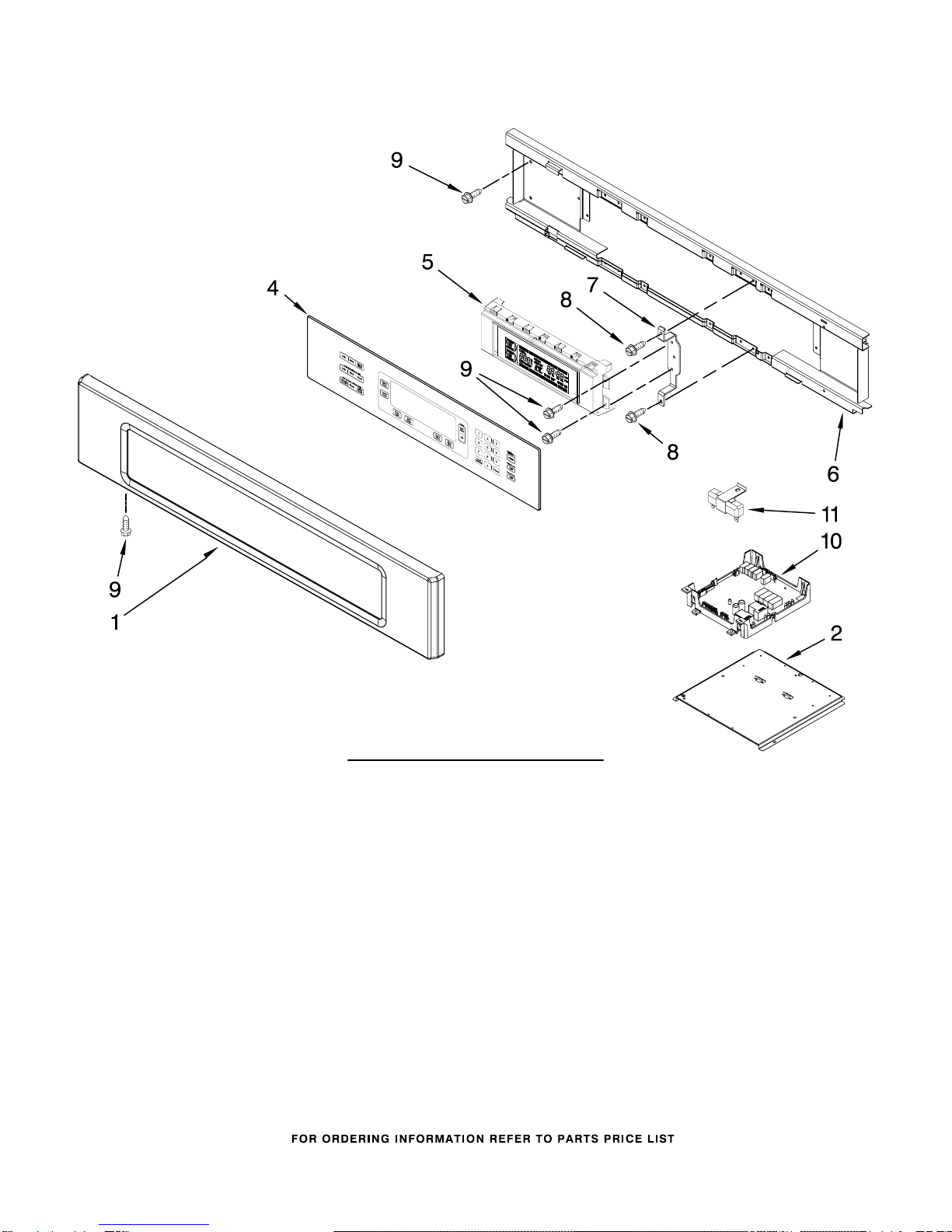

CONTROL PANEL PARTS

For Models:KEBS278SBL04, KEBS278SWH04, KEBS278SSS04

(Black) (White) (Stainless)

W10269260

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8303717BL

Black

8303717WH

White

W10165446

Stainless

2 8303687 Support, Appliance

Manager

4 8303880 Control Panel,

Glass Touch

W10172472

User Inferface

6 8303720 Backer, Control

7 8303887 Bracket,

Enclosure (2)

8 4449154 Screw

9 3400832 Screw

W10119142

Appliance Manager

11 8304441 Resistor, Drop

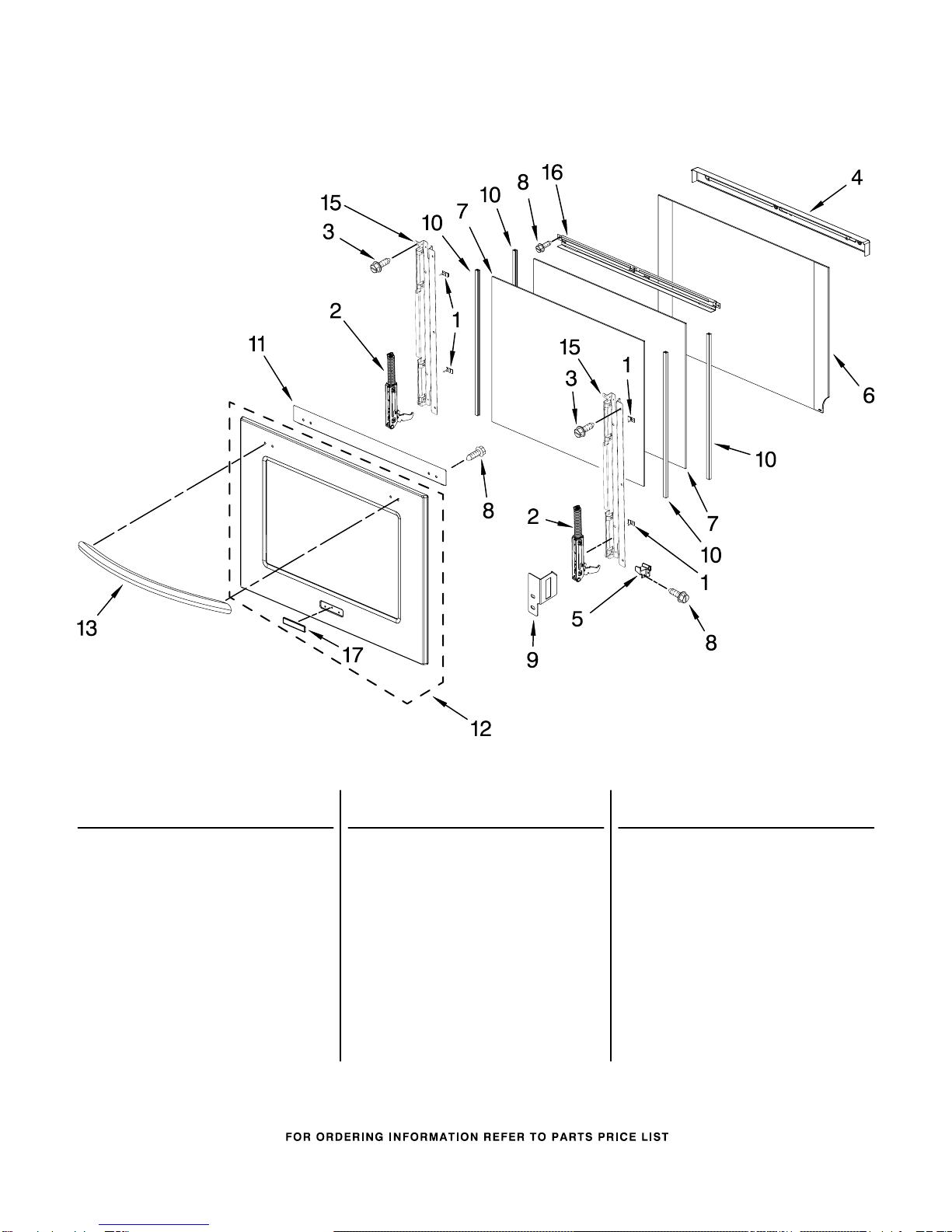

OVEN DOOR PARTS

For Models:KEBS278SBL04, KEBS278SWH04, KEBS278SSS04

(Black) (White) (Stainless)

W10269260

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8304522 Bumper, Door

W10174288

Hinge, Door (2)

3 3196183 Screw

8304580BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

8303738BL

Door Liner

7 8303732 Glass, Inner

8 4449743 Screw

9 Cover, Hinge

W10137044

Right

W10137043

Left

10 8304523 Seal

8304361BL

Bracket, Handle

12 Door Glass,

Assembly

Lower Includes #17

8304001 Black

8304003 White

W10237352

Stainless

Door Glass,

Assembly

Upper No Badge

8304002 Black

8304004 White

W10237353

Stainless

13 Door Handle

8303775BL

Black

8303775WH

White

8303775SS

Stainless

8303745BL

Frame,Door Side(2)

16 8303754 Door, Top Bracket

17 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

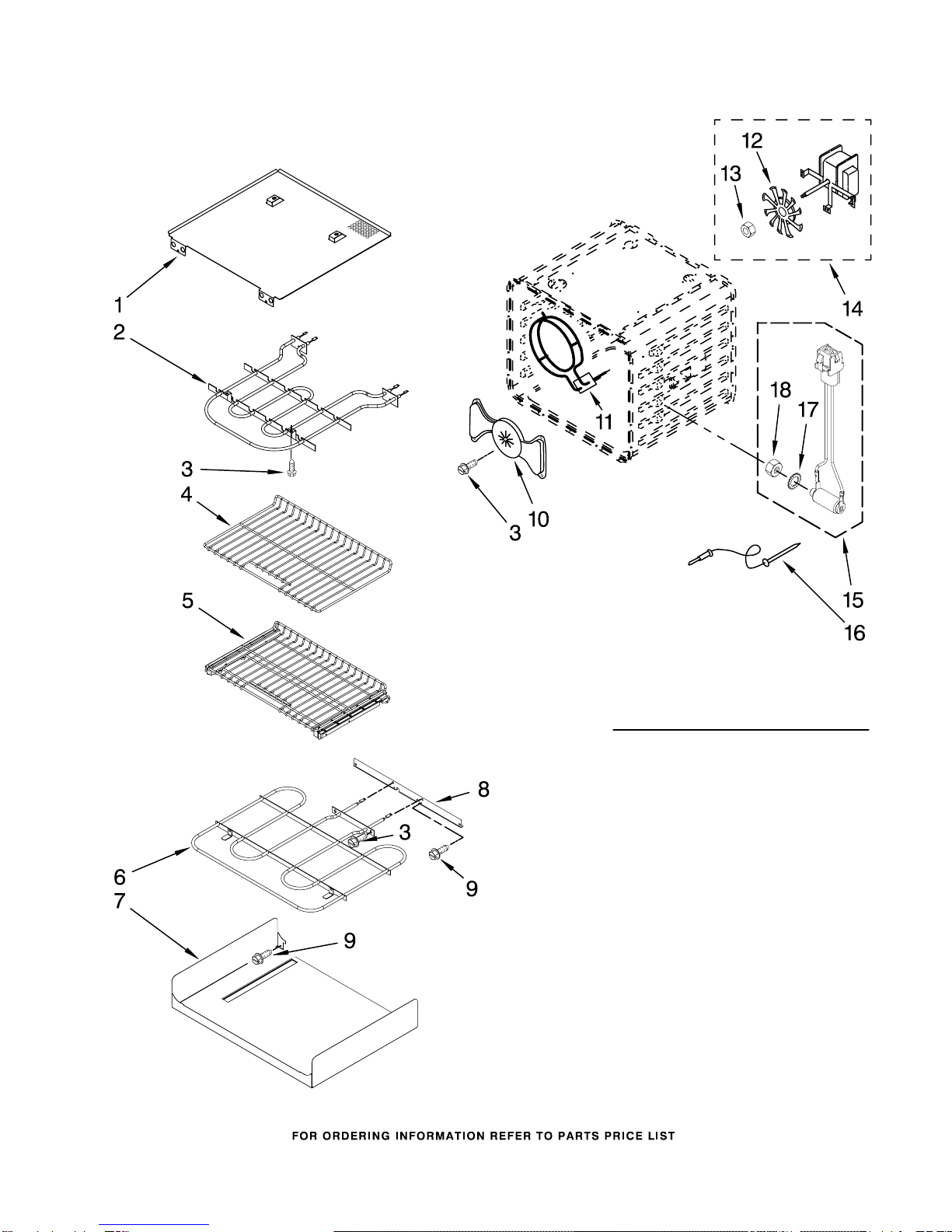

INTERNAL OVEN PARTS

For Models:KEBS278SBL04, KEBS278SWH04, KEBS278SSS04

(Black) (White) (Stainless)

W10269260

Illus. Part

No. No. DESCRIPTION

1 8304602 Element, Broil

Shield

2 9760774 Element, Broil

3 4449154 Screw

4 8303842 Rack, Oven

5 8303840 Oven Rack

(Sliding)

6 9760768 Element, Bake

7 4455036 Tray, Bake

8 4450039 Cover, Bake Tray

9 4449809 Screw

8304422BU

Cover, Fan

11 9760769 Element

Convection

W10116351

Blade, Fan

W10116349

Nut

W10116228

Fan, Convection

15 9755543 Jack, Meat Probe

16 9755542 Probe, Meat

17 9755547 Washer, Lock

18 9755546 Nut, Hidden

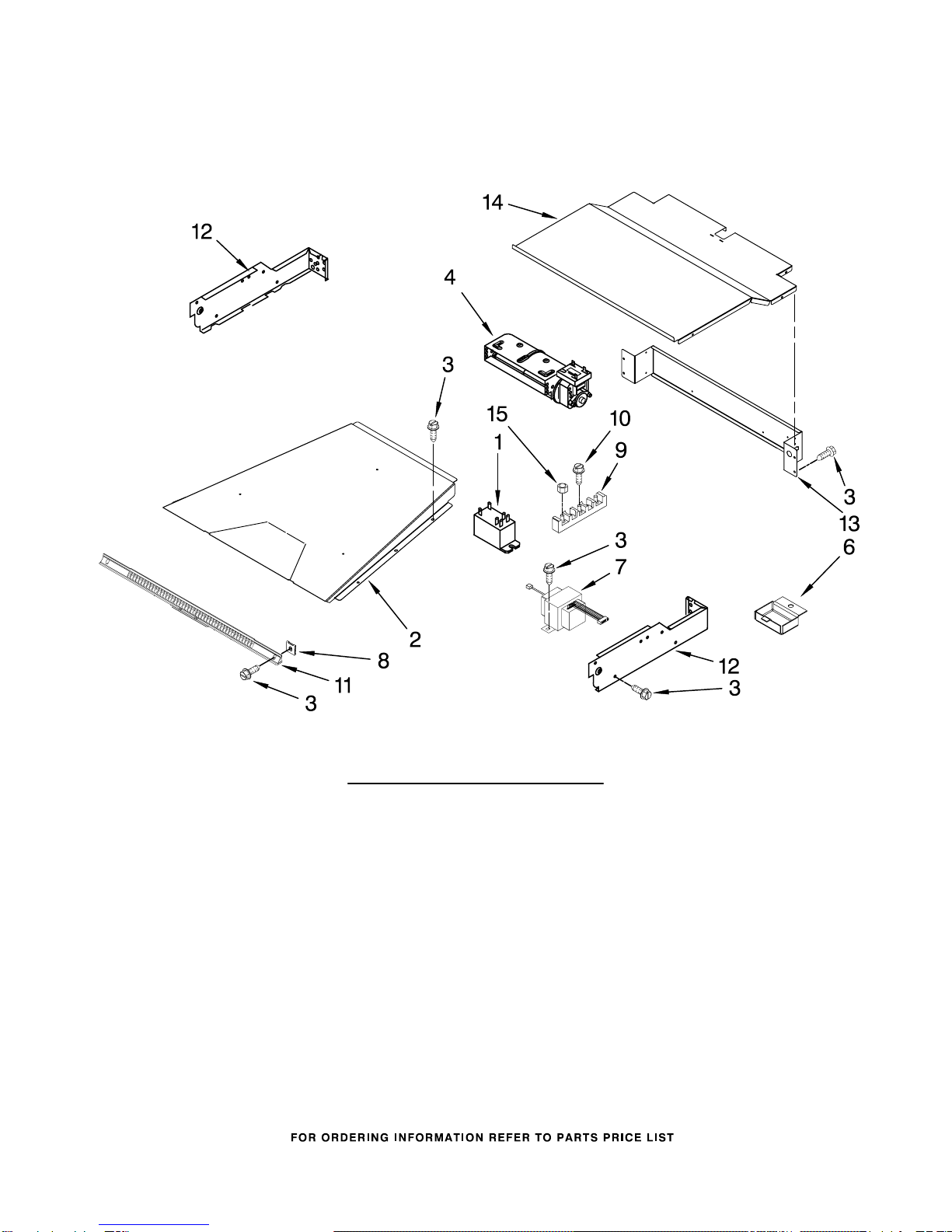

TOP VENTING PARTS

For Models:KEBS278SBL04, KEBS278SWH04, KEBS278SSS04

(Black) (White) (Stainless)

W10269260

Illus. Part

No. No. DESCRIPTION

1 9752759 Relay (2)

2 8304643 Duct, Air Outlet

3 4449809 Screw

4 8303972 Blower, 60mm

6 8285593 Connector, Cover

W10111628

Transformer,

Control

8 4450118 Nut

9 4449868 Block, Terminal

10 3400080 Screw

11 8303722 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

14 8304220 Cover, Top

15 112432 Nut (3)

OPTIONAL PARTS (NOT INCLUDED)

For Models:KEBS278SBL04, KEBS278SWH04, KEBS278SSS04

(Black) (White) (Stainless)

W10269260

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

WIRING HARNESS PARTS

W10143473

Harness, Latch

W10155291

Harness, Keyboard

W10171560

Harness, GOC

8304051 Harness, Main

W10155291

Connector, Flex

8304439 Conduit, Double

7103P027−60

Nut

4450800 Screw,Ground

4452260 Spacer, Foam

Miscellaneous

4448950 Screw, Install (4)

98997 Clip
