COOKTOP PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

3−10 Litho In U.S.A. (ll) (bay) Part No. W10304838 Rev.B

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

CONVECTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10188242

Installation

Instructions

W10185364

Owners Manual

W10281615

Wiring Diagram

Tips, Safe Cooking

9762761 English

W10065852

French

2 Cap, Burner

(RF)

7504P300−60

Black

7504P296−60

Gray

(LF)

7504P299−60

Black

7504P295−60

Gray

(RR & LR)

W10168355

Black

W10168351

Gray

(CTR)

7504P294−60

Gray

7504P298−60

Black

8010P149−60

Spacer, Snap−In

4 Burner

8286181 (CTR)

8286182 (LF)

W10194076

(RR & LR)

8286183 (RF)

5 Cooktop

W10225509

Black

W10225508

White

6 Panel, Manifold

W10168240

Black

W10168241

White

W10168678

Stainless Steel

7 Knob, Control (5)

W10160374

Black

W10160372

White

W10160375

S.Steel

8 Grate, Burner (2)

W10218262

Black

W10168265

Gray

W10218264

Stainless Steel

9 3400701 Screw (8)

10 3196178 Screw

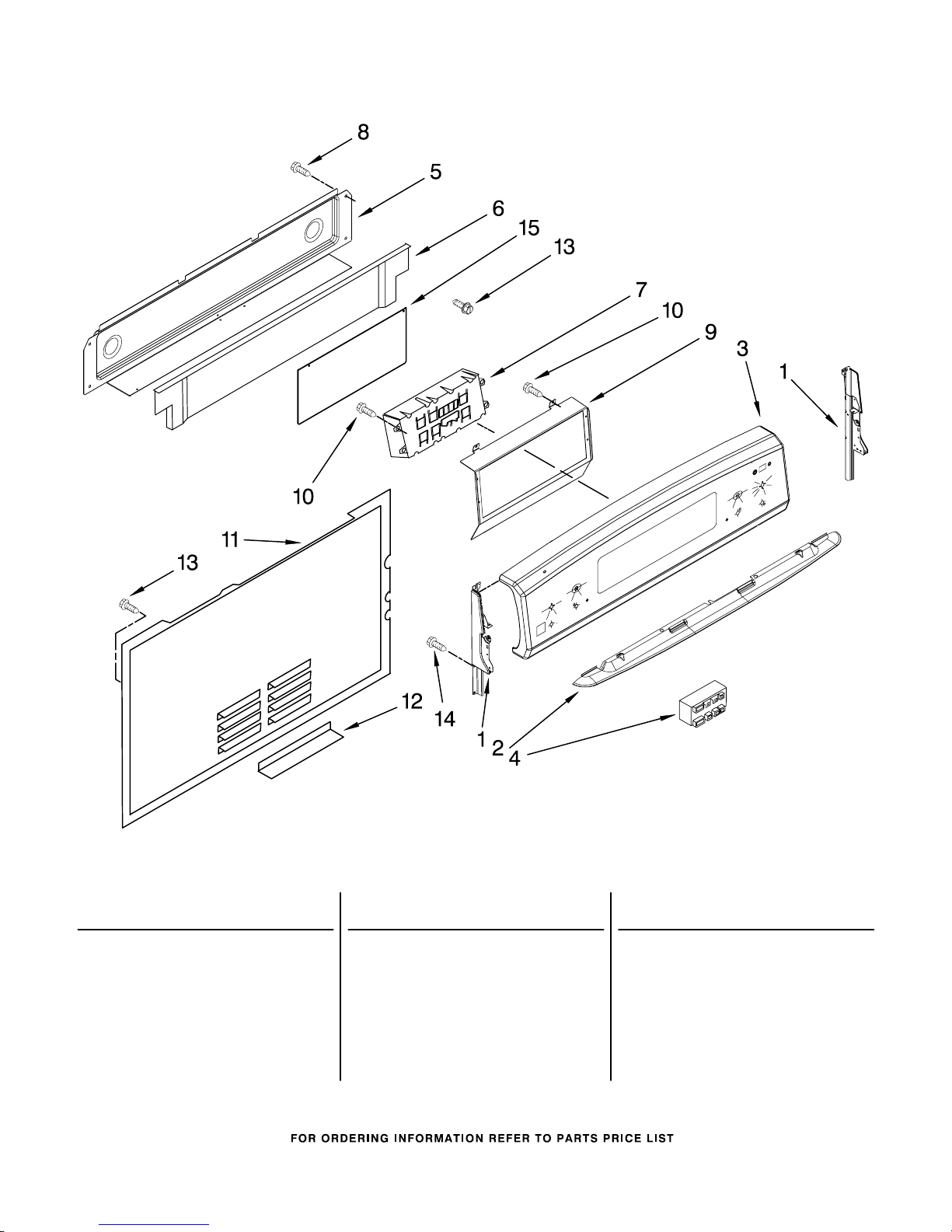

CONTROL PANEL PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

3807F703−70

Black

3807F703−71

White

Endcap, Right Hand

3807F702−70

Black

3807F702−71

White

2 Heat Shield,Visor

3604F382−09

Black

3604F382−81

White

3 Panel, Backguard

& Switch Assy

W10218265

Black

W10218262

White

W10218264

Stainless Steel

7431P053−60

Module, Spark

4005F804−51

Cover, Upper

3604F381−19

Shield, Vent

8507P351−60

Control

8 3196178 Screw

3801F945−51

Bracket, Control

10 3196557 Screw

W10243047

Cover, Main Wire

4005P704−51

Bottom, Wire Cover

13 3196557 Screw

14 3196178 Screw

360P372−51

Exention, Shield

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

CHASSIS PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8026P080−60

Vent, Oven

8010P148−60

Spacer, Side Panel

3807P680−45

Support, Oven

Bottom

4 Panel, Side (2)

2618F172−69

Black

2618F172−58

White

3605F305−19

Plate, Convect

7427P108−60

Fan, Convect

3801F656−51

Bracket, Anti−Tip

8 Frame, Front

(Not Serviced)

7106P125−60

Hinge, Receiver

7101P507−60

Foot, Leveler (4)

W10211367

Bottom, Oven

W10131827

Sensor, Oven

3601P356−45

Baffle, Burner

14 3196178 Screw

3605P146−51

Plate, Conduit

3605P146−51

Panel, Access

17 3196178 Screw

W10243045

Cover, Lower Wire

W10205618

Back, Main

W10162385

Seal, Oven

7101P336−60

Screw

23 3196160 Screw

7112P158−60

Clip (4)

7402P109−60

Cord, Power

3801P822−45

Bracket, Oven

Bottom

8007P047−60

Bushing, Wire

28 3196701 Light Assembly

7407P103−60

Bulb, Oven Light

8002P104−60

Latch, Door Lock

3804F316−51

Retainer,

Insulation

3604P409−51

Shield, Heat

33 3196178 Screw (2)

3801P798−51

Bracket, Oven

35 3196166 Screw

7002P480−60

Insulation

37 3196178 Screw

7101P282−60

Screw (4)

3801P798−51

Bracket, Oven

Support

40 3196178 Screw

3804F300−51

Retainer, Insul.

7101P618−60

Screw

3401F082−45

Pan, Bake

INSULATION

7002P424−60

Insulation, Wrap

W10243056

Insulation, Back

W10182346

Insul., Side Pnl.

MANIFOLD PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

MANIFOLD PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

Illus. Part

No. No. DESCRIPTION

1 3400701 Screw, Valve

2 Holder, Orifice

W10169907

Right Front

W10169902

Right Rear

W10169901

Left Rear

W10169906

Left Front

W10169903

Center

8010P149−60

Spacer, Snap−In

7506P361−60

Tubing,

Main Supply

7403P983−60

Harness, Igniter

Includes Switches

W10216419

Ignitor, Top

Burner (4)

7513P499−60

Pipe, Manifold

8 Valve

7502P501−60

(RF)

7502P500−60

LR & RR

7502P499−60

W10269504

Center

7103P030−60

Nut

W10160904

Burner, Broiler

7505P331−60

Burner, Bake

7501P233−60

Valve/Regulator

13 Igniter

7432P106−60

Broil

7432P136−60

Bake

7506P368−60

Tubing (Broiler

Fitting To Valve)

W10247148

Fitting, Broiler

4005F421−45

Cover, Igniter

17 Orifice, Burner

W10178934

Left Front

W10170506

Left Rear

W10170511

Right Front

W10170508

Right Rear

W10251991

Center

18 3196385 Screw

7101P282−60

Screw

20 3196165 Screw

3601P336−45

Baffle,

Broil Burner

23 3196178 Screw

Following Parts Not Illustrated

W10271869

Spuds, LP Gas

(Kit of 5)

DOOR PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

DOOR PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

Illus. Part

No. No. DESCRIPTION

1 Trim, Top

3608F139−70

Black

3608F139−71

White

W10176584

Screw

3 Handle, Door

W10153015

Black

W10153013

White

W10153016

S.Steel

2402W297−19

Liner, Door

7902P436−60

Glass, Inner (2)

7 3196166 Screw

7002P246−60

Insulation, Door

3601F380−51

Retainer,

Insulation

7106P124−60

Hinge, Door

11 Glass, Outer Door

W10160908

Black

W10160906

White

W10160909

Stainless Steel

12 Trim, Door Side

3608F126−70

Black

3608F126−71

White

13 3196165 Screw

14 Trim, Lower Door

3608F092−70

Black

3608F092−71

White

16 3196166 Screw

7101P282−60

Screw

18 Bracket, Handle

3801P857−45

Right

3801P858−45

Left

7002P484−60

Insulation, Corner

W10208311

Tape, Foil (3")

3801F886−51

Bracket, Window(2)

23 Spacer, Handle

W10169553

White

W10169552

Black

3823F017−45

Stainless Steel

DRAWER AND RACK PARTS

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

Illus. Part

No. No. DESCRIPTION

W10268578

Rack, Oven (3)

8010P146−60

Spacer, Bumper

7101P652−60

Screw

3405F037−80

Drawer

7701P547−60

Handle, Drawer

7101P652−60

Screw

7 Panel, Drawer Frnt

2416F104−70

Black

2416F104−71

White

3605P337−51

Panel, Inner

8038P037−60

Drawer, Stop

10 3196173 Screw

3406P034−51

Rail, Drawer

7118P032−60

Shaft, Storage

W10272883

Roller, Drawer

7103P190−60

Nut

OPTIONAL PARTS (NOT INCLUDED)

For Models: KGRS205TWH5, KGRS205TBL5, KGRS205TSS5

(White) (Black) (Stainless Steel)

W10304838

Illus. Part

No. No. DESCRIPTION

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350939 Black

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

799340 Black (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

WIRING HARNESS PARTS

W10278571

Harness, Main

W10237924

Harness, DSI

8019P013−60

Clip, Harness

7101P027−60

Screw, Ground
