KitchenAid KBFS25EVWH - 24.8 cu. ft. Refrigerator Manuale utente

CABINET PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

9−09 Litho In U.S.A. (mat)(bay) Part No. W10294609 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10238846

Tech Sheet

W10187309

Owners Manual

W10187812

Energy Guide

10463203SP

Elbow, Fill Tube

3 12698403 Block, Pivot

4 B5759649 Gasket

5 Cover, Right Hinge

12629801W

White

12629801B

Black

12629801AP

Apollo Grey

6 Cabinet (Not A

Serviceable Part)

8 12990504 Screw

9 12992602 Screw

12566604ED

Hinge, Top Right

11 12992201 Screw (6)

13 Cover, Left Hinge

W10217484

White

W10217485

Black

W10217487

Apollo Grey

14 12992403 Screw (6)

15 Hinge, Center

12655102WD

White

12655103ED

Black

12655102AP

Apollo Grey

16 12777701 Block, Fill Tube

17 Cover, Corner (2)

12587703W

White

12587703B

Black

12587703AP

Apollo Grey

12566605ED

Hinge, Top Left

19 Roller Assembly

W10275850

Left

W10275849

Right

20 12991302 Screw (8)

21 12579702 Shim, Hinge

22 Grille, Toe

W10244559

White

W10244561

Black

W10244558

Apollo Grey

23 M0108105 Clamp, Tube

25 12990511 Screw (10)

26 12726003 Cover, Water Line

W10208593

Guard, Water Valve

28 12990303 Screw (2)

29 12831101 Sweep, Dual Tube

W10211855

Cover, Unit

32 A3076901 Plug, Button

33 12820505 Insulation, Sound

34 10354002 Brake, Foot

35 M0104106 Clip (2)

W10210988

Tube, Drain

M0114003SP

Clip

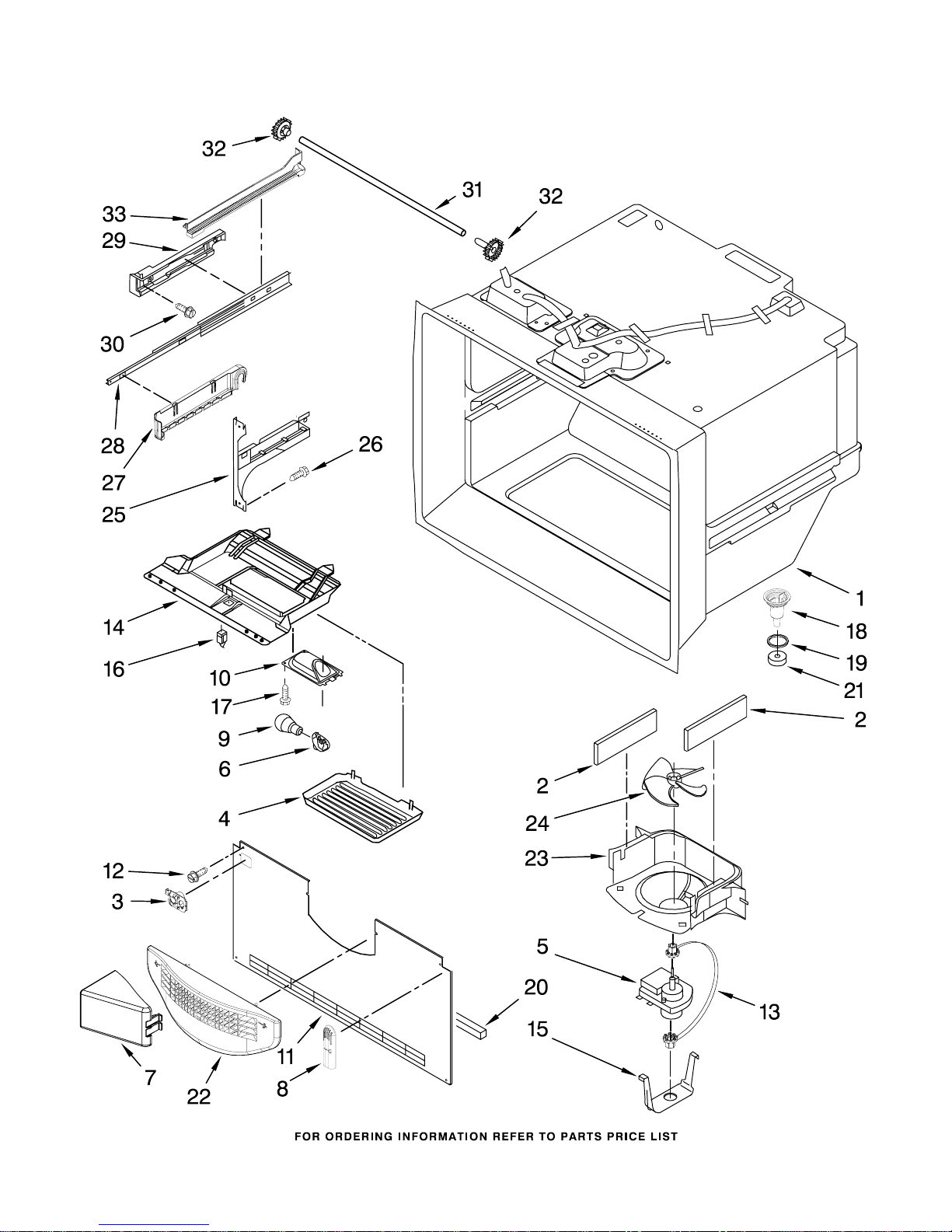

FREEZER LINER PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

FREEZER LINER PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12932103 Guide, Fill Tube

4 12804901 Cover, Light

5 13062901 Motor, Evaporator

12570701V

Socket, Light

W10157765

Diverter, Air

8 12815301 Cover, Thermistor

W10194422V

Bulb, Light

12476401V

Housing, Light

11 12226112 Cover, Evaporator

12 12990511 Screw (4)

W10150583

Grommet

14 12805001 Module, Fz Control

15 13058002 Clip, Evap Motor

16 12466105 Switch, Light

12991603V

Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 A3189396 Gasket, Bottom

21 B8381501 Gasket

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10122147

Left

W10122148

Right

26 12990521 Screw (8)

27 Cradle, Basket

W10280608

Left

W10280613

Right

W10120018

Slide, Drawer (2)

29 Adapter, Slide

W10149390

Left

W10149391

Right

30 12990501 Screw (6)

12812903WD

Shaft

32 12002497 Gear

33 Rack, Side

W10284694

W10284695

(Includes RH & LH)

Following Parts Not Illustrated

W10235312

Harness, Fz Module

(Includes

Thermistor)

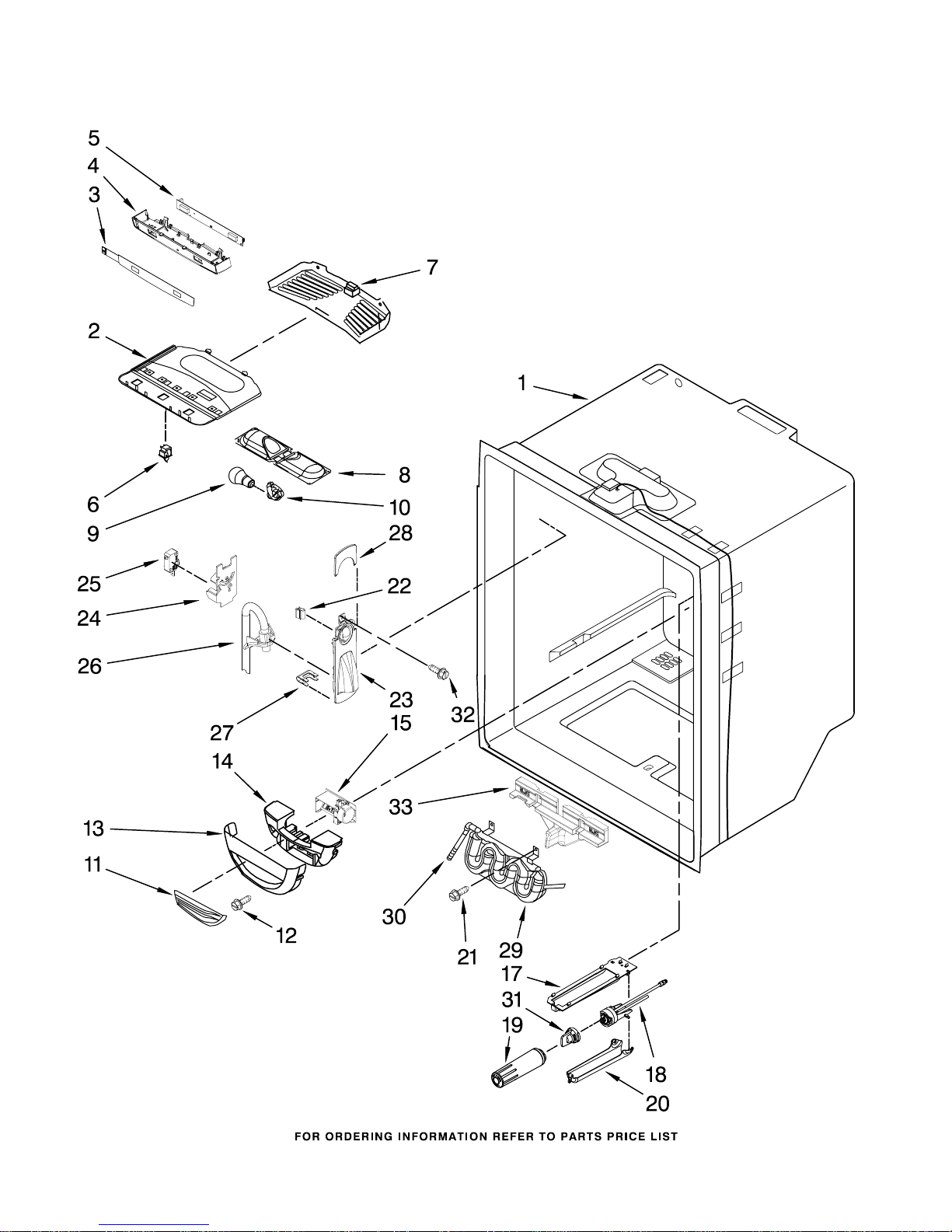

REFRIGERATOR LINER PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

REFRIGERATOR LINER PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806302 Module, Light

W10217739

Overlay

4 12806405 Housing, Control

W10217475

Board, Control

C3680310V

Switch, Light (2)

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw

13 12806701 Cover, Damper

14 13012402 Insulation

W10207517

Control, Damper

17 12704801 Plate

18 12590620 Head, Water Filter

UKF8001AXX

Filter, Water

20 12568001 Cover, Filter

21 12990512 Screw (2)

B8390302SP

Clip, Facade (2)

12706909SP

Facade, Disp.

12707303SP

Plate, Switch

25 12575501 Switch, Limit

12707206SP

Guide, Waterline

12251001SP

Clip, Waterline

28 12707005 Facade, Disp (Top)

29 12706112 Tank, Water

30 61006182 Union

31 61003146 Plug, Bypass

32 12990513 Screw

W10117358

Insulation, Water

Tank

Following Parts Not Illustrated

W10224292

Harness, Control

(Refrigerator)

(Includes

Thermistor)

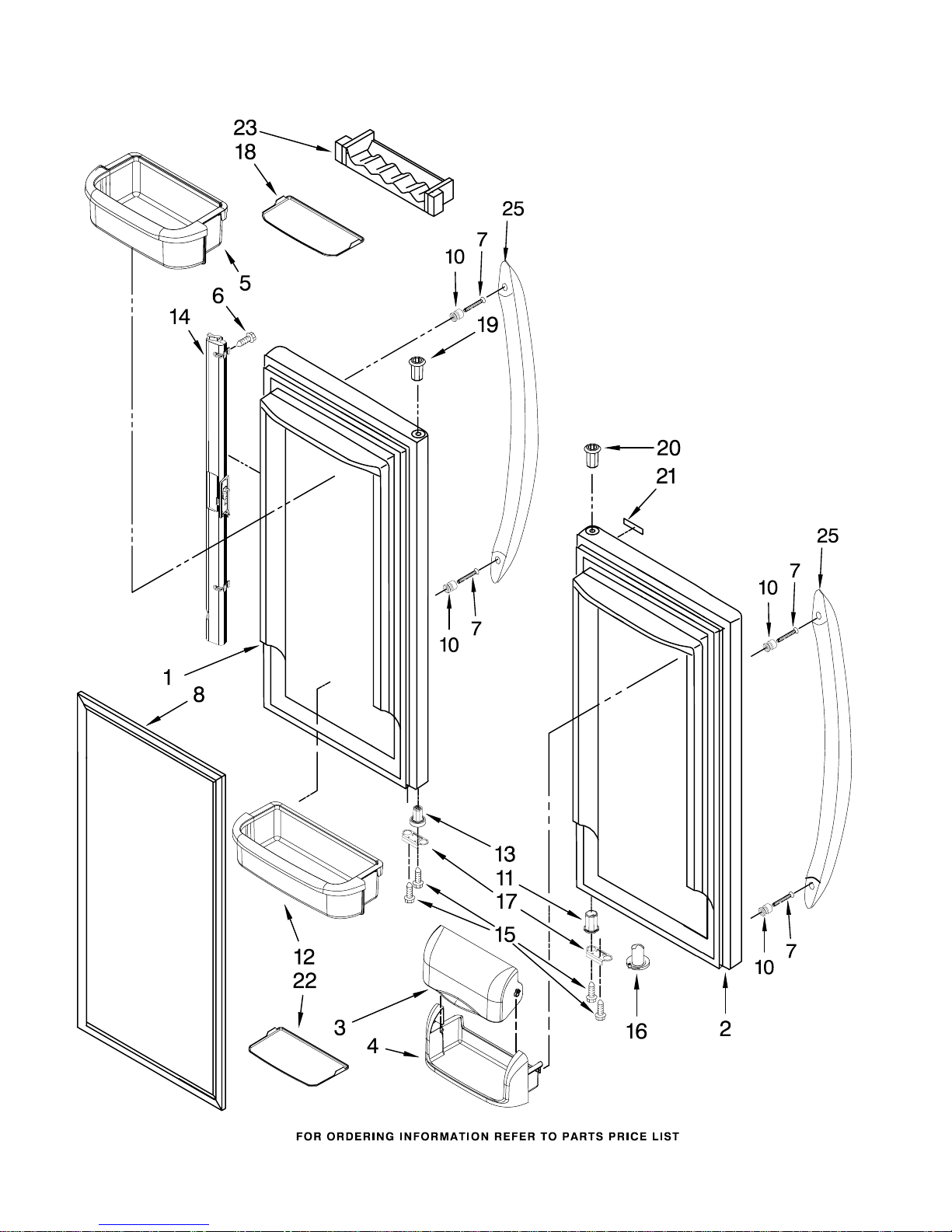

REFRIGERATOR DOOR PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

REFRIGERATOR DOOR PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024048WQ

White

13024048BQ

Black

13024052SQ

Stainless

2 Door, Right

13024047WQ

White

13024047BQ

Black

13024051SQ

Stainless

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

5 12699215 Bucket, Medium

6 12990204 Screw

7 3196181 Screw, Mount

8 Gasket, Door (2)

W10163894

White

W10163895

Black

W10179332

Apollo Grey

10 12691403 Mount, Handle

11 Bushing, Door

(Bottom Right)

12028601W

White

12028601B

Black

12028601AP

Apollo Grey

12699210SP

Bucket, Gallon

13 Bushing, Door

(Bottom Left)

12699301W

White

12699301B

Black

12699301AP

Apollo Grey

14 Mullion, Door

12722803W

White

12722803B

Black

12722803AP

Apollo Grey

15 12990504 Screw

16 Closure, Door

12028505W

White

12028505B

Black

12028505AP

Apollo Grey

17 Stop, Door

10447111 White

10447112 Black

10447114 Apollo Grey

12567321SP

Mat, Medium

19 Bushing, Door

(Upper Left)

12395501W

White

12395501B

Black

12395501AP

Apollo Grey

20 Bushing, Door

(Upper Right)

10961006W

White

10961006B

Black

10961006AP

Apollo Grey

21 Nameplate

W10046670

White

W10046640

Black

W10046610

Stainless

12567320SP

Mat, Gallon

23 12690102 Caddy, Can

25 Handle, Door

W10119642

White

W10119643

Black

W10119644

Stainless

UNIT PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

UNIT PARTS

For Models: KBFS25EVWH1, KBFS25EVBL1, KBFS25EVMS1

(White) (Black) (Monochromatic Stainless)

W10294609

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210985

Basepan

4 12990511 Screw

5 2264017 Capacitor

W10217747

Tube, Discharge

W10224515

Harness, Evap.

Heater

W10215085

Pan, Drain

W10216919

Screw, Shoulder

10 12729129 Heater, Defrost

W10204187

Strap, Bale

W10197428

Start Device

W10137529

Grommet, Cond (4)

15 12477102 Roller (2)

16 12992101 Screw

10835903SP

Grommet (4)

W10135026

Condenser

19 10547003 Clip, Drier

12225403WD

Tray, Drip

21 12990701 Screw

22 12726403 Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

24 12825101 Motor, Fan

25 10428101 Clip, Heater

W10234025

Harness, Unit

with Power Cord

W10143759

Drier

W10134623

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189184

Shroud

W10257665

Box, HV Control

33 12957702 Lid, HV Box

34 12957801 Gasket, HV Box

W10205552

Board, Control

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
