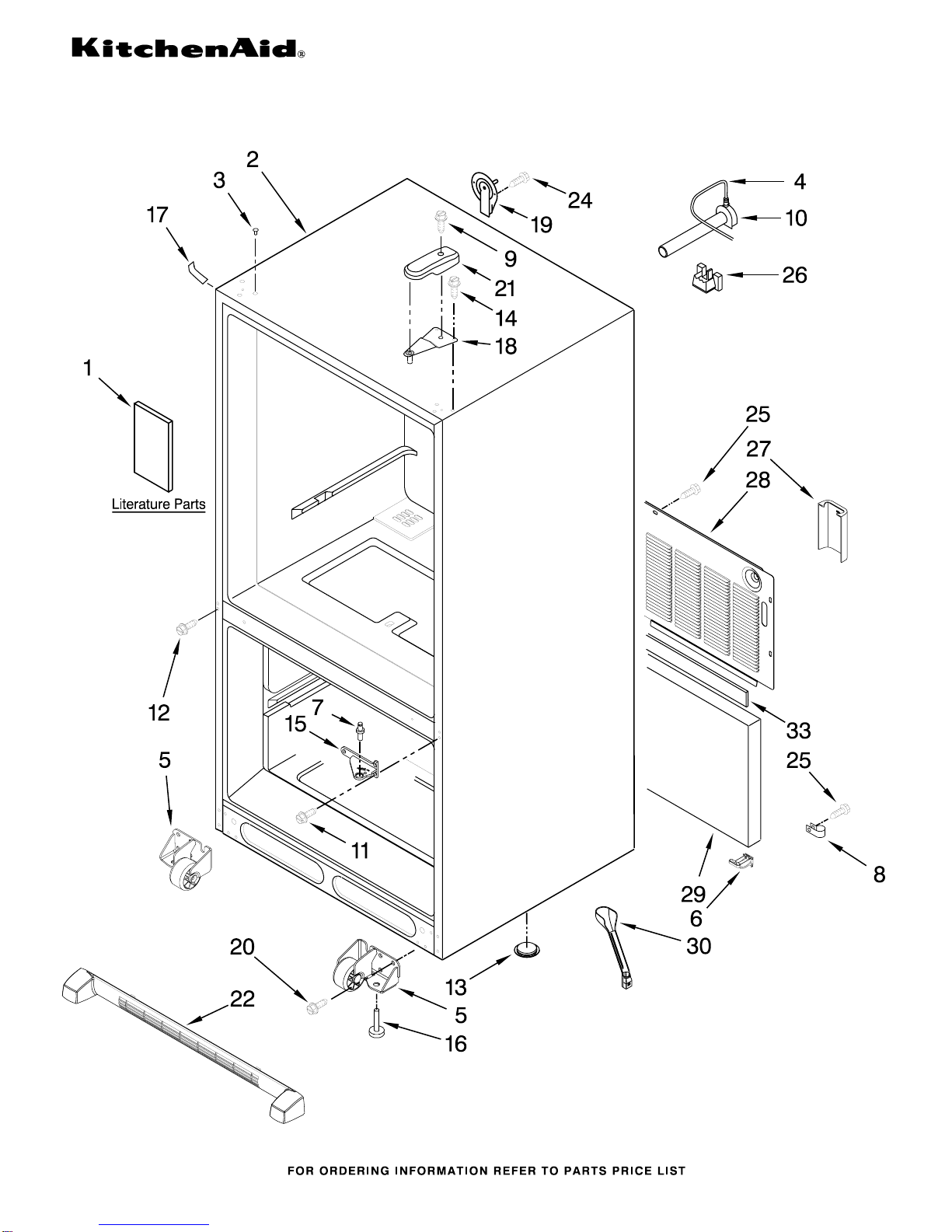

CABINET PARTS

For Model: KBRS20EVBL4

(Black)

8−11 Litho In U.S.A (MMS) (eeb) Part No. W10446143 Rev. B

REFRIGERATOR

CABINET PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10366210

Use & Care Guide

W10209771

Energy Guide

W10432495

Tech Sheet

2 Cabinet (Not a

Serviceable Part)

3 Plug, Button (3)

12246608 Black

B5705333SP

Tube, Plastic

5 Roller Foot

Assembly

W10275850

W10275849

6 12831101 Sweep, Dual Tube

7 10351006 Pin, Center Hinge

8 M0108107 Clamp−Tube

9 12992602 Screw

10463203SP

Elbow, Fill Tube

11 12992201 Screw

12 12990521 Screw

13 A3076901 Plug, Button

14 12992403 Screw

15 Hinge, Center

12607104ED

Black

W10141622

Foot Brake (2)

17 Cover, Corner

12587703B

Black

12566606ED

Hinge, Top Left

19 12726003 Cover, Waterline

20 12991302 Screw (8)

21 Cover, Hinge

12477601B

Black

22 Grille Assembly

W10244561

Black

24 12990504 Screw

25 12990511 Screw

26 12777701 Block, Filter

W10208593

Guard, Water Valve

W10211855

Cover, Unit

29 12820505 Insulation, Sound

W10210988

Tube, Drain

33 B5759655 Gasket

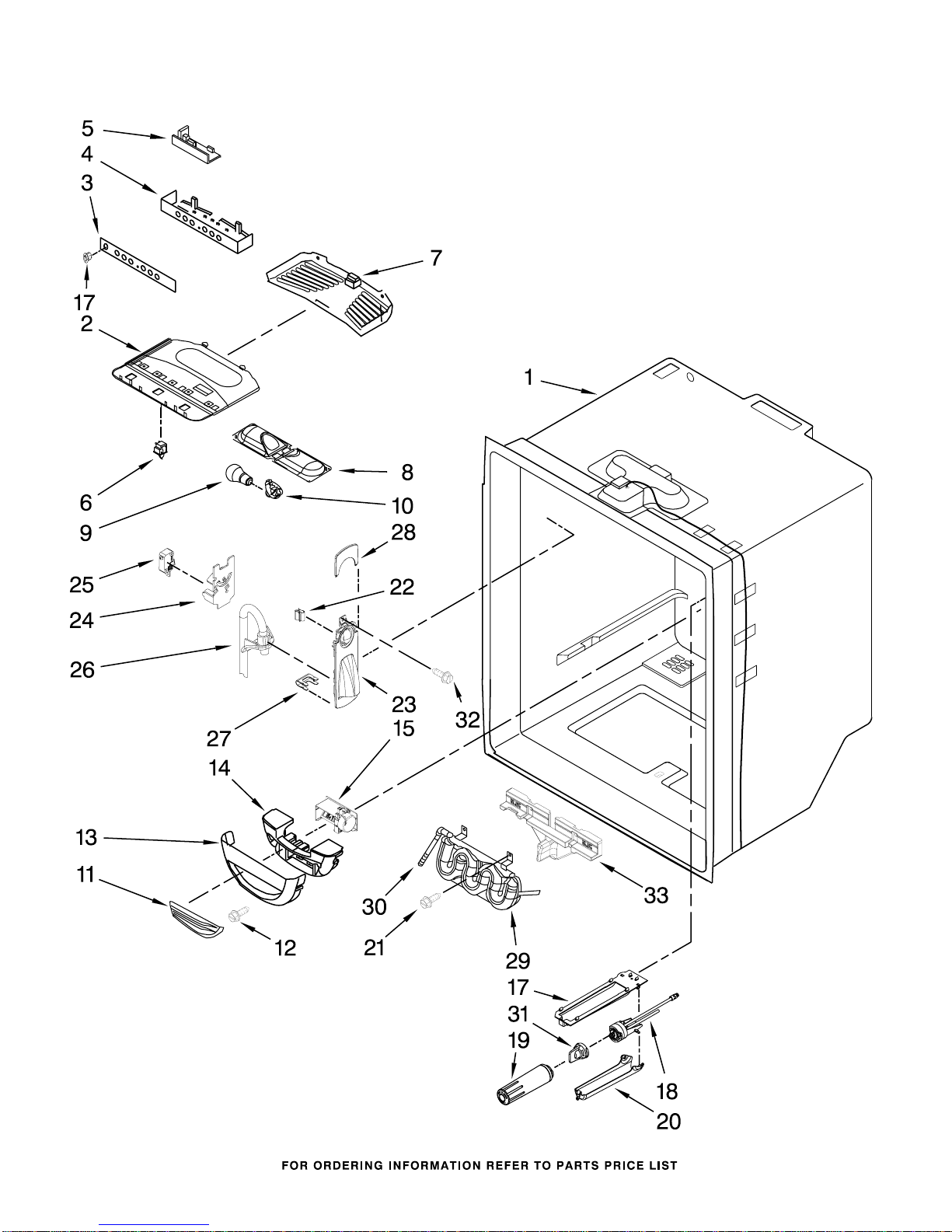

REFRIGERATOR LINER PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

REFRIGERATOR LINER PARTS

For Model: KBRS20EVBL4

(Black)

4W10446143

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806301 Module, Light

W10217738

Overlay

4 12806405 Housing, Control

W10428901

Board, Control

C3680310V

Switch, Light (2)

7 12806501 Cover, Light

12806601V

Housing, Light

9 2255743N Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw

13 12806701 Cover, Damper

14 13012402 Insulation

W10207517

Control, Damper

17 12704801 Plate

18 12590620 Head, Water Filter

19 UKF8001 Filter, Water

20 12568001 Cover, Filter

21 12990512 Screw (2)

22 B8390302 Clip, Facade (2)

23 12706909 Facade, Disp.

24 12707303 Plate, Switch

25 12575501 Switch, Limit

26 12707206 Guide, Waterline

27 12251001 Clip, Waterline

28 12707005 Facade, Disp (Top)

29 12706112 Tank, Water

30 61006182 Union

12664501SP

Plug, Bypass

32 12990513 Screw

W10163893

Insulation, Water

Tank

Following Parts Not Illustrated

W10224290

Harness, Control

(Refrigerator)

(Includes

Thermistor)

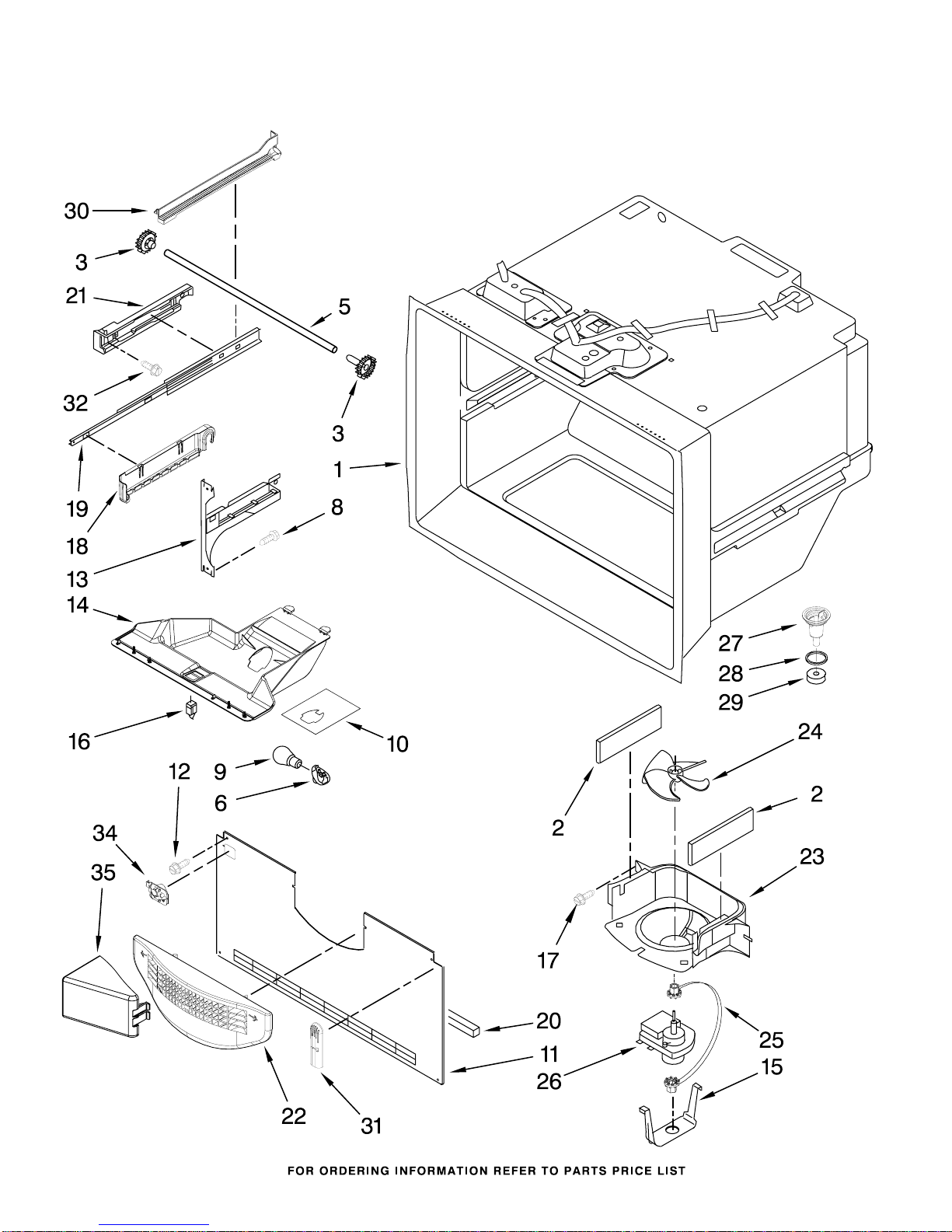

FREEZER LINER PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

FREEZER LINER PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear−(L & R)

12812903WD

Shaft

12570701V

Socket, Light

8 12990521 Screw (8)

9 2255743N Bulb, Light

W10277466

Foil−FZ Light

W10308416

Cover, Evaporator

12 12990511 Screw (4)

13 Bracket, Door

W10330991

Left

W10330993

Right

W10277025

Module−FZ Light

15 13058002 Clip, Evap Motor

16 12466105 Switch, Light

17 12990504 Screw (2)

18 Cradle, Basket

W10281115

Left

W10281116

Right

19 13055901 Slide, Drawer (2)

20 A3189396 Gasket, Bottom

21 Adapter, Slide

W10284692

Left

W10284693

Right

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

W10284696

Rack−Side−Left

W10284697

Rack−Side−Right

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

34 12932103 Guide, Fill Tube

W10157765

Diverter, Air

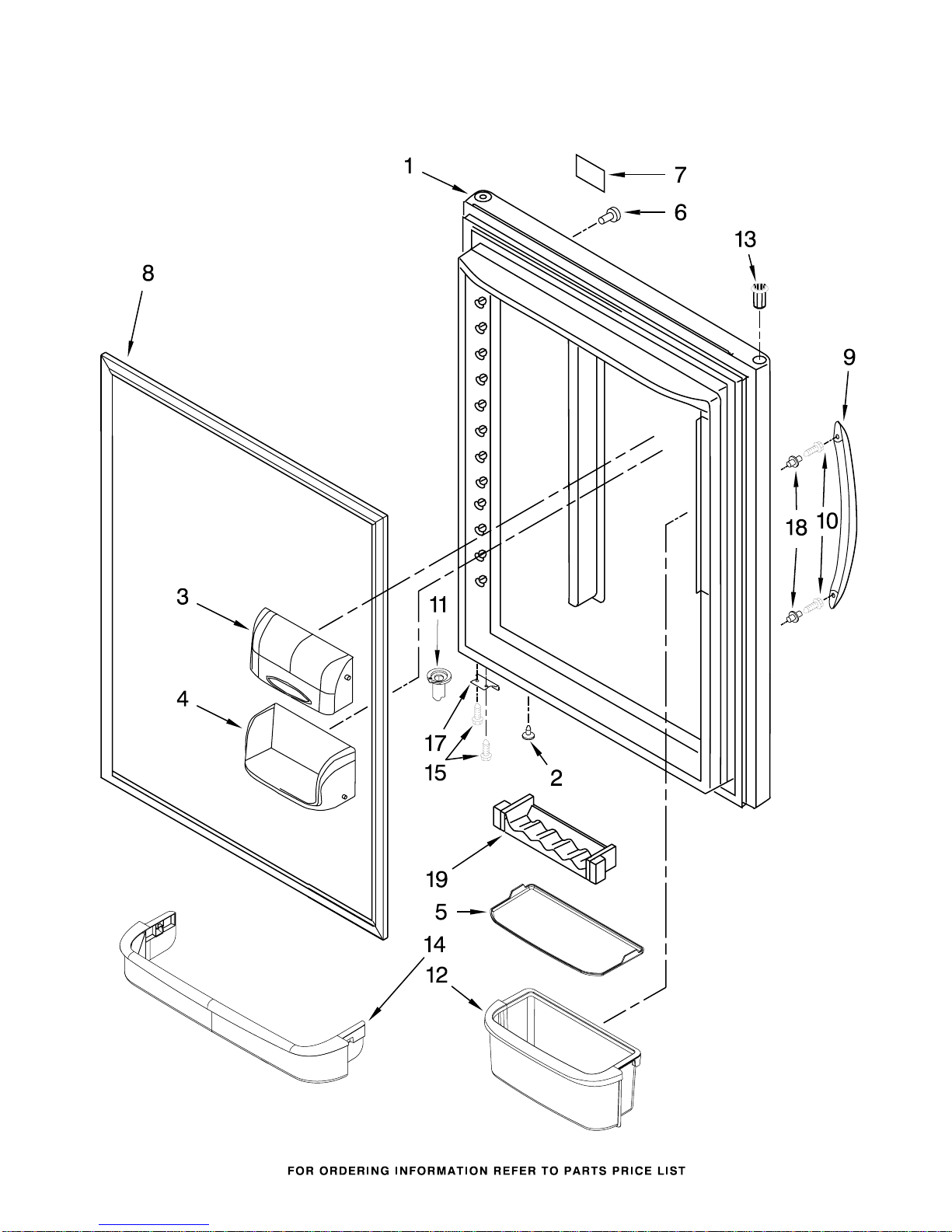

REFRIGERATOR DOOR PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

REFRIGERATOR DOOR PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

12658582B

Black

2 Plug, Vent

12246608 Black

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

12567322SP

Gripper, Bucket

6 Plug, Handle Hole

12246608 Black

7 Nameplate

W10243392

Black

8 Gasket, Door

W10164039

Black

9 Handle, Door

W10314516

Black

W10290759

Screw, Handle

11 Closure, Door

12028505B

Black

12849115SP

Bucket, Shelf (2)

(Gallon)

13 Bushing

10961006B

Black

14 12690503 Retainer, Door

15 12990504 Screw

17 Stop, Door

10447112 Black

18 13001201 Mount, Handle

19 12690102 Caddy, Can

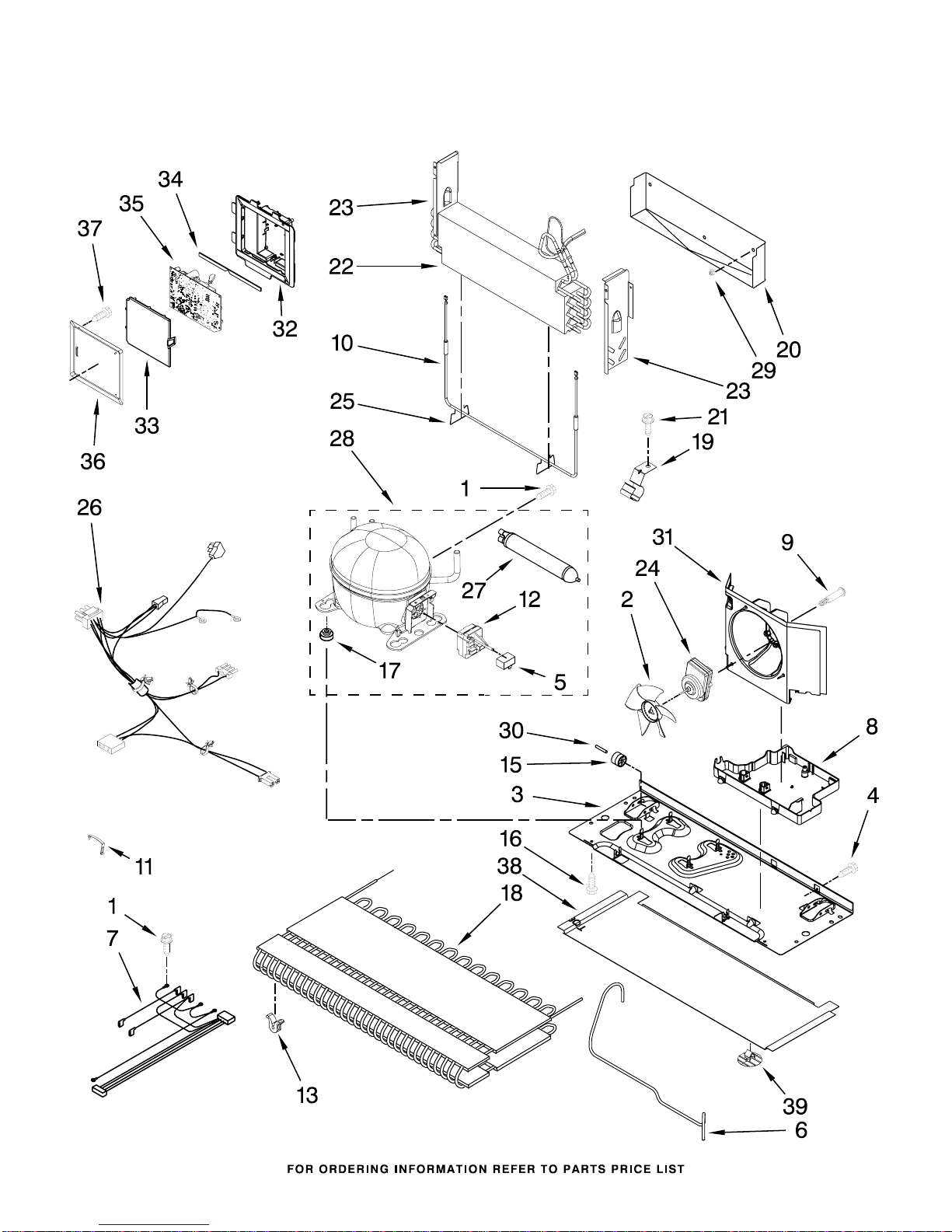

UNIT PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

UNIT PARTS

For Model: KBRS20EVBL4

(Black)

W10446143

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210985

Basepan

4 12990511 Screw

5 2264017 Capacitor

W10217747

Tube, Discharge

W10292242

Harness, Evap.

Heater

W10296785

Pan, Drain

W10216919

Screw, Shoulder

10 12729129 Heater, Defrost

W10204187

Strap, Bale

W10197428

Start Device

W10137529

Grommet, Cond (4)

15 12477102 Roller (2)

16 12992101 Screw

10835903SP

Grommet (4)

W10346415

Condenser

W10281329

Clip, Drier

W10292803

Tray, Drip

21 12990501 Screw

W10317014

Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

W10239053

Motor, Fan

25 10428101 Clip, Heater

W10234025

Harness, Unit

with Power Cord

W10143759

Drier

W10134623

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189184

Shroud

W10257665

Box, HV Control

W10296541

Lid, HV Box

34 12957801 Gasket, HV Box

W10268635

Board, Control

36 12961602 Cover−Control Box

37 12990702 Screw

W10206338

Extension−Basepan

W10206339

Fastener−Basepan

Following Parts Not Illustrated

and Optional Parts Not Included

37 12990702 Screw

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
