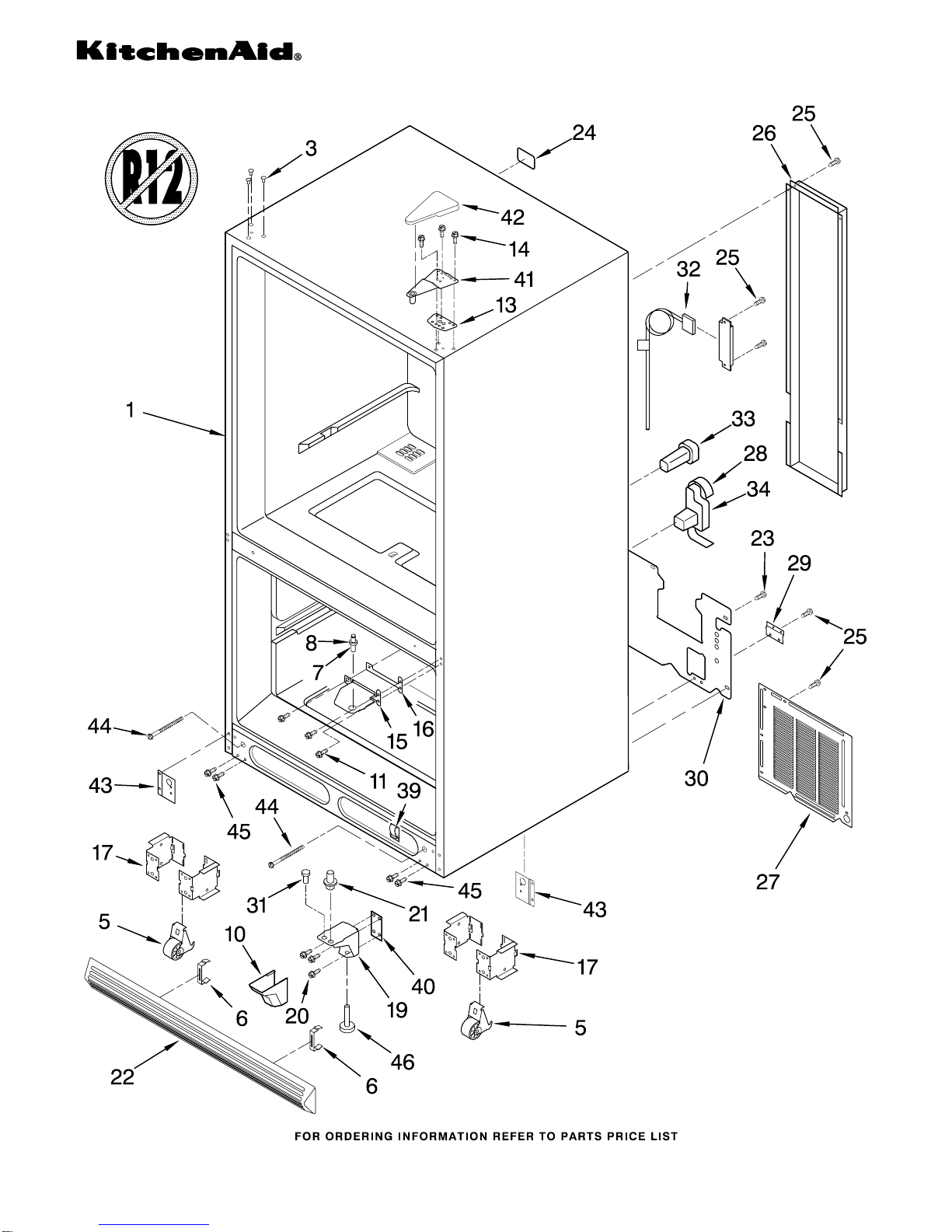

CABINET PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

5−00 Litho In U.S.A. (cre) Part No. 4398708

REFRIGERATOR

CABINET PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cabinet (Not a

Service Part)

3 Plug, Button (3)

4344209 White

8170487 Biscuit

4344208 Black

5 4344291 Roller, Front Assy.

6 4344155 Clip, Grille

7 4344177 Pin, Center Hinge

8 Shim

4344187 White

4344188 Black

10 Hinge Cover, Bottom

4344204 White

8170490 Biscuit

4344202 Black

11 4344186 Screw

13 Shim, Hinge Top

4344194 White

4344193 Almond

4344192 Black

14 4344198 Screw

15 4344431 Hinge, Center

16 Shim, Center Hinge

4344176 White

4344426 Almond

4344425 Black

17 8170506 Housing, Roller

19 Hinge Bottom

8170454 White

8170453 Black

20 8170455 Screw

21 4344178 Pin, Bottom Hinge

22 Grille

8170483 White

8170482 Biscuit

8170481 Black

23 4344267 Screw

24 4344264 Plug, I/M

25 4343759 Screw

26 4344257 Wire Cover

27 8170375 Back Cover

28 8170449 Harness, Control

29 4344266 Plate, Water Valve

30 8170377 Cover, Unit

31 4344210 Plug, Button

32 4344263 Power Cord

33 4344259 Grommet

34 4344260 PLug

39 4344265 Clip

40 4344286 Shim, Hinge

41 4344172 Hinge Top

42 Hinge Cover

8170379 White

8170488 Biscuit

4344195 Black

43 Plate, Hinge

Tap

4344299 Right Side

4344301 Left Side

44 8170380 Biscuit

45 4344293 Screw

46 4344298 Foot Break

FREEZER LINER PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

FREEZER LINER PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not a

Serviceable Part)

3 4343675 Screw

4 4344205 Light Lens

5 4344206 Screw

6 8170456 Light, Socket

7 4343682 Clip, Ground

8 4344396 Screw

9 4343660 Light Bulb

10 8170381 Housing, Frz.Lt.

11 4344387 Cover, Evaporator

12 4344215 Screw

13 4344211 Washer (4)

14 8170341 Cover, Switch

16 4344571 Switch, Light

17 4344166 Cover, Plug

18 4344315 Plug, Button

19 4344228 Plug, Button

20 4344216 Gasket, Bottom

21 4343886 Gasket, Top (2)

22 4344220 Cover, Fan Shroud

23 4344587 Gasket

24 4344230 Gasket

25 4344229 Evap. Fan Shroud

26 4343657 Grommet, Screw

27 4344391 Fan, Evaporator

29 8170388 Grommet

30 8170389 Motor, Evaporator

31 8170390 Spacer

32 8170391 Screw (4)

33 4344227 Plug, Button

34 4344222 Duct, Return Air

35 4344218 Screw

36 4343860 Screw

37 4344214 Knob, Control

38 4344224 Screw

39 8170392 Cover, Frz.Control

40 4343861 Screw

41 4344225 Thermostat

42 4343215 Screw

43 4344578 Bracket, Control

44 4344316 Plug, Button

45 4344321 Grommet

46 4344312 Housing, Frz.Ctrl.

47 4344308 Funnel, Drain

48 4344311 Seal

49 4344310 Gasket

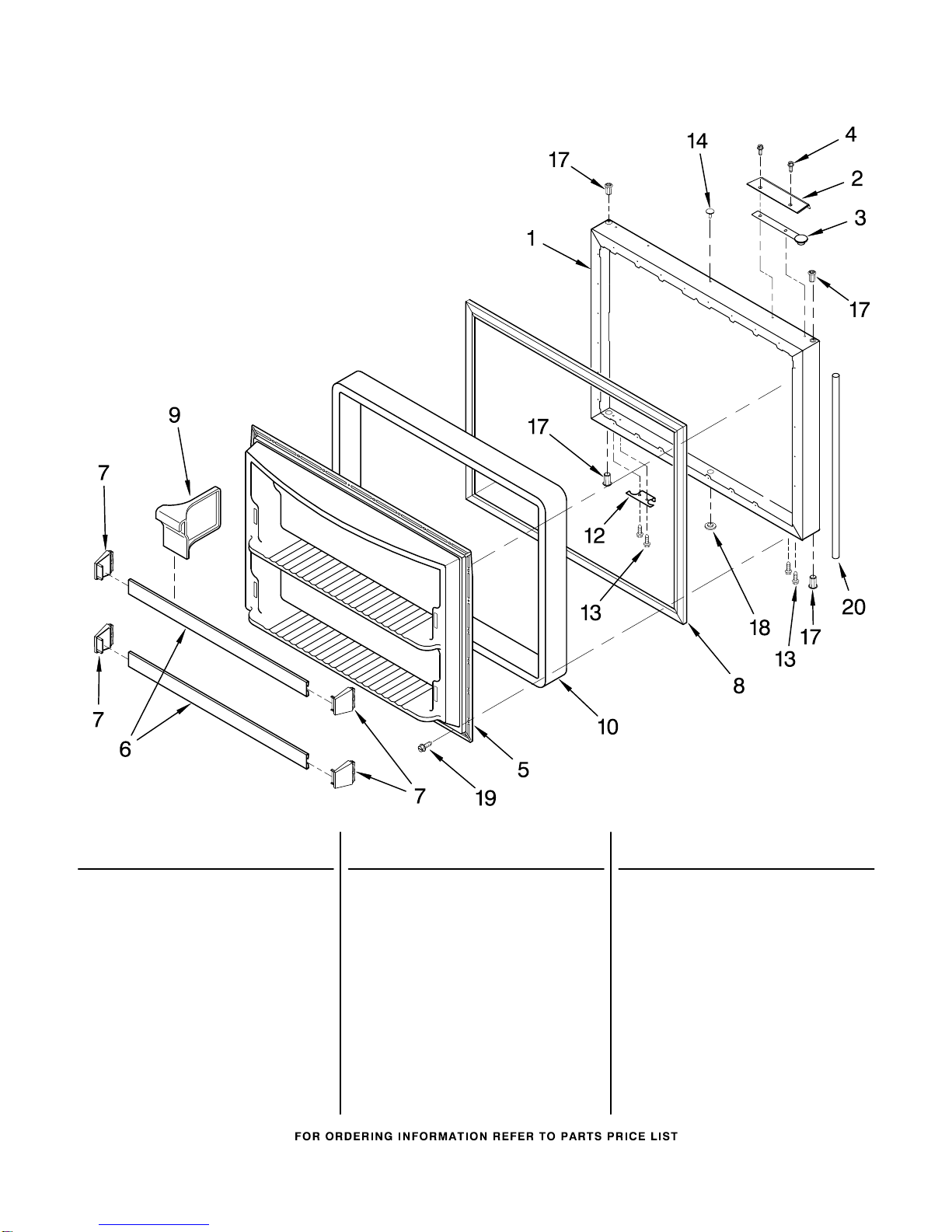

FREEZER DOOR PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

Panel (Includes

Insulation)

8170459 White

8170496 Biscuit

8170457 Black

2 Handle

4344596 White

8170511 Biscuit

4344598 Black

3 Plug, Button

4344159 White

8170484 Biscuit

4344157 Black

4 4344333 Screw

5 4344355 Interior Panel

6 4344582 Trim, Shelf

7 4344352 End Cap

8 Door Gasket,

Magnetic

8170510 White

8170509 Black

9 4344300 Divider, Door Shelf

10 4344350 Insulation

12 Door, Stop

4344463 White

4344563 Black

13 4344333 Screw

14 Plug, Button

4344535 White

4344533 Black

17 Bushing

4344362 White

4344361 Black

18 Plug, Button

4344227 White

4344364 Black

19 4343811 Screw

20 4344199 Sipport Pin

REFRIGERATOR LINER PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8170381 Housing, Ref.

Light

3 4343928 Cover, Light

Switch

4 4344314 Light Switch

5 4343682 Ground Clip

6 4344167 Screw

10 4344211 Washer (4)

11 4344167 Screw (8)

12 4344169 Egg Bin

13 4344321 Grommet

14 4344309 Screw

15 8170409 Control, Damper

16 4344184 Insulation, Damper

17 8170383 Shield, Light

18 8170384 Socket, Duel

19 4344185 Gasket

20 4343660 Light Bulb

21 8170386 Light Lens, Top

22 4343571 Screw

23 4343681 Gasket, Damper

24 4343650 Insert

25 8170371 Cover, Control

26 4344180 Knob, Control

28 4343240 Insulation, Plug

29 4344241 Plug, Button

REFRIGERATOR DOOR PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

REFRIGERATOR DOOR PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

Panel (Includes

Insulation)

8170493 White

8170492 Biscuit

8170491 Black

2 4344371 Interior Panel

3 4344369 Door, Compartment

4 4344370 Trim, Comp. Door

5 4344151 Screw

6 4344372 Shelf Bin (1)

8 Door Gasket,

Magnetic

8170508 White

8170507 Black

10 End Cap

4344591 White

8170502 Biscuit

4344589 Black

11 Insert, Handle

8170501 White

8170500 Biscuit

8170498 Black

12 4344365 Shelf Bin (3)

13 4344588 Screw

14 4344373 Trivet, Door

17 Stop, Door

4344463 White

8170494 Biscuit

4344563 Black

18 Plug, Button

4344535 White

8170495 Biscuit

4344533 Black

19 4343811 Screw

21 4344333 Screw

22 8170313 Screw

23 Bushing

4344362 White

4344361 Black

24 Plug, Button

4344227 White

8170497 Biscuit

4344364 Black

25 Nameplate

8170505 White

8170512 Biscuit

8170503 Black

28 4344296 Butter Dish

29 4344374 Holder, Beverage

UNIT PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

UNIT PARTS

For Models: KBRS22KGWH3, KBRS22KGBT3, KBRS22KGBL3

(White) (Biscuit) (Black)

4398708

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4343865 Screw

2 4344271 Fan, Blade

3 8170489 Condenser & Pan

Assembly

5 4343691 Screw

6 4343860 Screw

7 4344217 Heat Shield

8 4344276 Drain Pan

10 4344232 Evaporator Heater

11 4343852 Cover

12 4343849 Overload

13 4344275 Gasket

14 4344231 Bi−Metal

15 4343850 Relay

16 4344278 Bracket, Timer

17 8170450 Capacitor

18 4344277 Shield, Capacitor

19 4343969 Clip, Wire

20 4344221 Drain Pan

22 8170402 Evaporator

24 4344419 Motor, Fan

25 4343918 Clip, Heater

26 4344569 Harness, Unit

27 4344268 Drier

28 8170403 Compressor

(Includes Items

11, 12, 15,

17 & 27)

30 4344282 Washer

31 4344554 Shroud

32 4344272 Bracket, Fan Motor

33 4344281 Screw

34 4343763 Clip, Drier

35 8170451 Cover, Timer

36 Block, Evaporator

37 4344151 Screw

38 8170404 Timer, Defrost

39 4343845 Grommet (4)

40 4344562 Screw

41 4344274 Harness

42 4344219 Clip, Evaporator

43 4343772 Screw

44 4343847 Screw

45 4344545 Screw

46 4343661 Clamp

48 4344395 Screw

49 4344297 Cabinet, Brace

50 4344396 Screw

51 4344289 Axle−Roller

52 4344288 Roller−Rear

53 4344292 Screw

54 4344287 Plug, Button

55 4344283 Drain Tube

56 4344595 Insulation

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.5 Ozs.

(R−134A)
