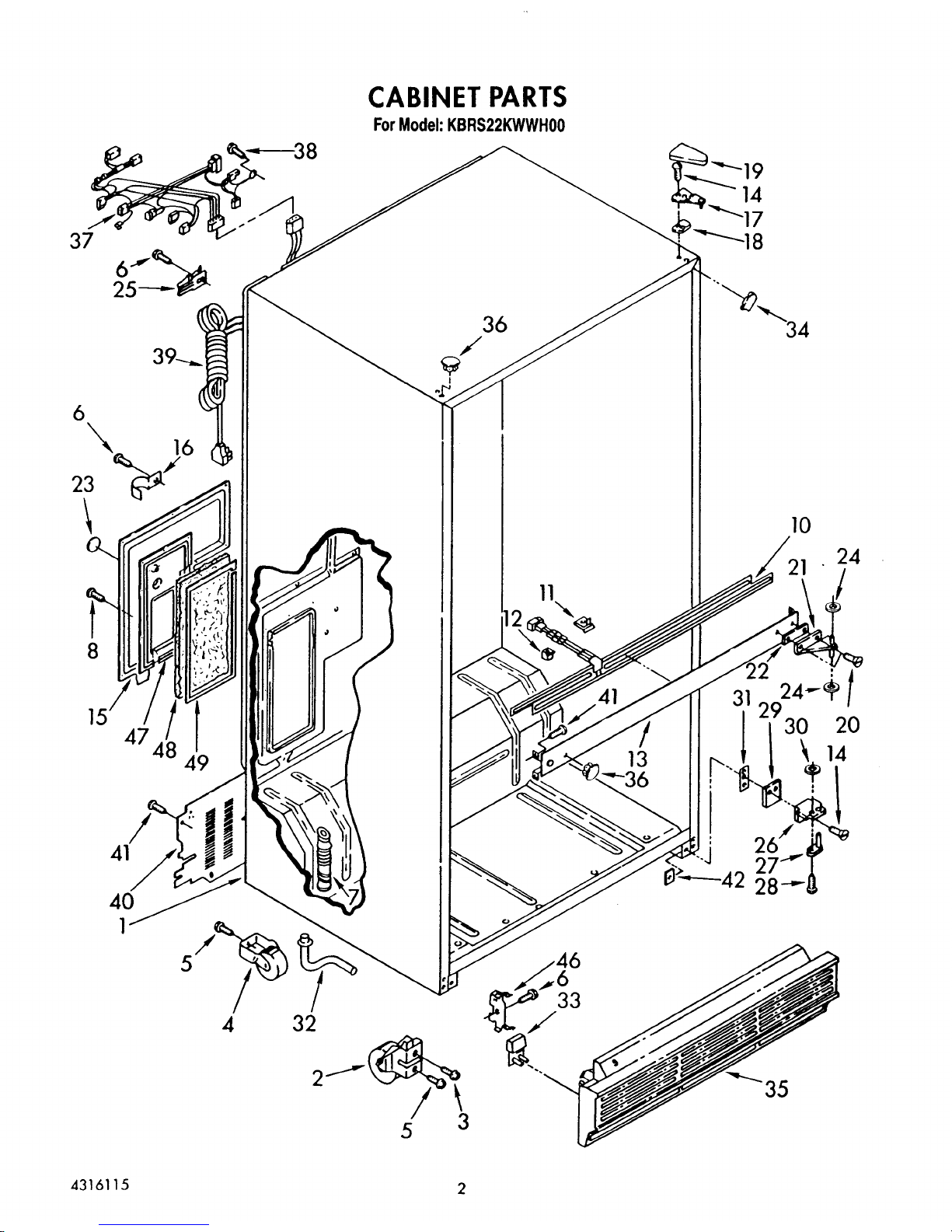

KitchenAid KBRS22KWWHOO Manuale utente

1 Cabinet (Not A Serviceable Part)

2 2152011 Roller, Front

3 488681 Screw, 5/16-24 x 1-1/4

4 2147324 Roller, Rear (2)

5 489339 Screw, 1/4-28 x 1/2 (6)

6 489333 Screw

7 942768 Drain Fitting

8 489337 Screw (10)

10 1105433 Heater, Mullion

11 2149060 Clip, Mullion (4)

12 1115105 Spacer (3)

13 Center Rail

1127242 White

1127245 Almond

14 489327 Screw

15 2149157 Cover, Flush

16 1105607 Tube Clamp (3)

17 1123514 Hinge, Top

18 1123515 Shim, Hinge Top

19 Hinge Cover

842010 White

989194 Almond

20 489179 Screw

21 836153 Hinge, Center

22 836194 Shim, Hinge Center

836195 Shim, Center (Repair)

23 1129056 Hole Seal

24 488296 Washer, 11/64

25 549193 Clamp, Service Cord

26 836159 Hinge Butt, Bottom

27 654366 Hinge Pin, Bottom

28 488714 Screw, 10-32 x 5/16

29 836196 Shim, Bottom

30 488184 Washer, 7/32

31 1129868 Spacer

32 1127377 Extension, Drain Tube

33 1125665 Corner Filler, Grille

34 Filler, Wrap Corner (2)

1110708 White

1110709 Almond

35 Grille

1125663 White

1125667 Almond

36 Hole Plug (5)

1129062 White

1129063 Almond

37 2149887 Cabinet Wiring Assembly

38 489048 Screw, 8-32 x 1/2

39 937360 Cord, Service

40 2147329 Cover, Unit

41 489084 Screw

42 2147310 Tap-Plate, Bottom Hinge

46 1114789 Clip, Grille Retainer (2)

47 1115013 Plug Cover

48 1115131 Insulation

49 1121118 Sealing Gasket

1 Liner (Not A Serviceable Part)

2 Slide, Basket

986382 Right Side

986383 Left Side

3 487042 Screw

4 Shelf Track,

1114679 Right Side

1114680 Left Side

5 1106612 Stud (2)

6 1108112 Rocker Arm Switch

7 1127396 Electrical Shield Extension

8 488500 Screw, 8-32 x 3/8

9 2149169 Scroll, Fan

10 1127434 Wiring Assembly, Fan Motor

11 1127401 Fan Motor

12 992920 Fan Blade

13 992953 Compression Ring

14 1114354 Grommet (2)

15 489168 Screw (2)

16 1127406 Gasket, Fan Scroll

17 489242 Screw (4)

18 1115004 Cover, Evaporator

19 489196 Screw (7)

20 1125567 Hole Cover, Evaporator

22 941839 Hole Plug

23 1103725 Hole Plug

1 1126098 Compartment Separator Assembly (Includes Center Rail and

Heater Assembly)

1121213 Front, Compartment Seperator

2 2149098 Defrost Timer

3 488678 Screw, 8 x 1-3/8 (2)

4 946059 Light Bulb

5 983910 Light Lens

6 851067 Light Socket

7 1105166 Switch, Toggle

8 2149889 Wiring Assembly, Control Box

9 1102000 Cable Tie

10 1115076 Thermostat Barrier Assembly

11 487584 Screw, 8-15 x 3/8 (2)

12 848446 Bracket, Thermostat

13 488500 Screw, 8-32 x 3/8

14 1125967 Control Knob

15 1125965 Control Panel Assembly (Includes Item 16)

16 940014 Hole Plug

17 489242 Screw

18 986021 Air Diffuser Assembly

19 836667 Spacer (2)

20 488357 Screw, 8 x 1-1/4 (2)

21 1127488 Gasket

22 984658 Air Damper

23 836493 Retainer, Air Damper

24 1126092 Knob, Air Diffuser (Includes Item 25)

25 837444 Retainer, Knob

26 1115373 Switch, Rocker

27 2149127 Stud-Hook

28 983359 Freezer, Light Lens

29 1115317 Support, Stud

1 1127413 Shelf, Ladder (2)

2 1127414 Shelf, Ladder Center

3 520965 Screw, Support (4)

4 520959 Screw, Support Center (2)

5 489345 Screw, 8-32 x 1-1/4 (3)

6 488163 Screw, 8 x 1-1/4 (3)

7 1126140 Shelf, Cantilever (2)

8 1125782 Gasket (Front)

9 1125897 Pan Cover Assembly

10 1125528 Gasket, Pan Cover (Front)

11 1125531 Glass, Pan Cover

12 1125533 Pan Shelf, Cantilever

13 1125529 Gasket, Pan Cover (Rear) (2)

14 1125539 Glass, Shelf

15 1106613 Crisper, Support

16 1125521 Glass, Shelf

17 2149146 Basket-Freezer

18 1127250 Basket-Freezer

19 1125934 Pan, Meat

20 1125544 Pan, Crisper

21 1126135 Ice Cube Pan

22 841180 Ice Tray (4)

23 1110744 Retainer, Shelf

24 1125523 Shelf, Full Cantilever

25 1125783 Gasket (Front)

26 1125524 Glass, Full Shelf

27 1125525 Retainer, Shelf

28 1125576 Gasket (Front)

29 1125815 Gasket (Rear)

30 1125900 Trim, Basket

31 2147011 Shelf, Ice Tray

33 1112303 Roller

34 1112308 Eyelet, Roller

35 489212 Screw

36 1126137 Wine & Egg Rack

37 2149150 Icemaker Arm (When Ordering Field Installable Icemaker This

Arm Must Be Used)

Parts Not Illustrated and Optional Parts (Not Included)

Miscellaneous

212643 Sealer, Gum (4 Feet)

479502 Tape, Vinyl (3/4 x 108")

876370 Kit, Insulation (2 Pcs. x 3" x 24" X 48")

876305 Kit, Insulation (14 Pcs. x 3" x 24" x 48")

978941 Insulation, Fiberglass (63-1/2" x 35-1/2" X 2-5/8)

876029 Kit, Foam Slab (30" x 32-1/2" x 1-1/2")

505587 Sealer, Mastic (1 Qt.)

503695 Cork, Sealer (1/4 Pound)

511873 Touch-Up, White Porcelain (2 Oz.)

542638 Grease, Silicone (1/2 Oz.)

542639 Cement, Alumilastic (1-1/4 Oz.)

606755 Bag, Insulation (36-5/8" x 46")

799833 Kit, Evaporator Repair (Aluminum Epoxy)

833938 Kit, Terminal Connector

515393 Transformer (115-230 Volts)

Customer Touch Up Material

350942 *Primer, White (13 Oz. Spray Can)

350941 *Leveler, Enamel (13 Oz. Spray Can)

350939 *Enamel, Black (13 Oz. Spray Can)

350930 *Enamel, White (13 Oz. Spray Can)

350956 *Enamel, Almond (13 Oz. Spray Can)

72017 Brush Touch-Up Kit (White)

72107 Brush Touch-Up Kit (Almond)

72032 Brush Touch-up kit (Black)

Refinishing Material

799340 Enamel, Black (1 Qt. Uncut)

799344 Enamel, White (1 Qt. Uncut)

978883 Enamel, Almond (1 Qt. Uncut)

LITERATURE PARTS

LIT1125641 Label, Use & Care Guide

LIT2149912 Service & Wiring Sheet

LIT1125910 Energy Label

LIT628107 Modular Icemaker Service Sheet

LIT4316115 Parts List

TORX SCREW WRENCH

1117510 Torx Key

ICE MAKER FIELD INSTALLABLE

1129318 KIMS8 Icemaker
