CABINET PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

REFRIGERATOR

8−03 Litho In U.S.A. (kdj) Part No. 8198035 Rev. A

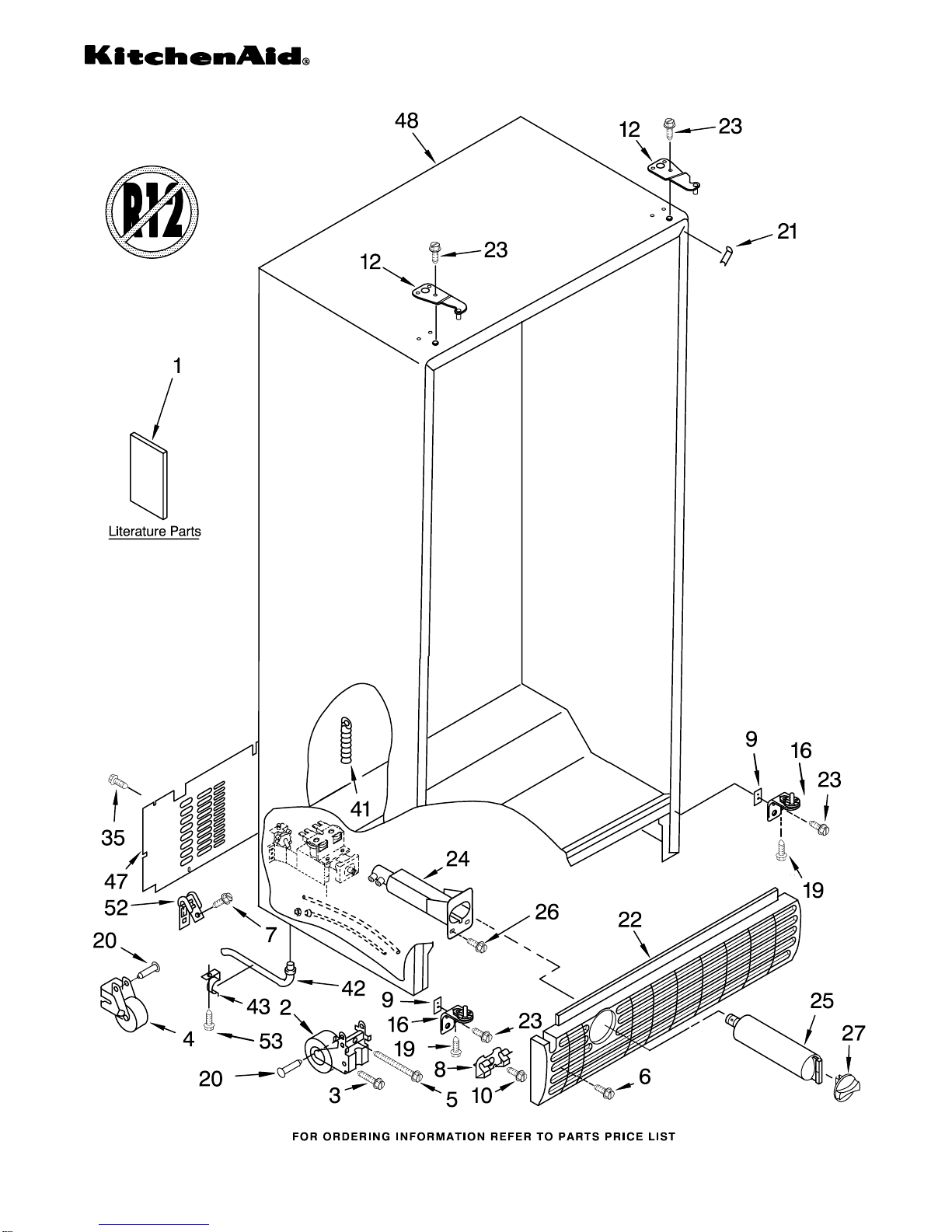

CABINET PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT2221516

Use & Care Guide

LIT2214447

Service & Wiring

Sheet

LIT2220332

Energy Label

LIT628370

Modular Icemaker

Service Sheet

2 2203007 Front Roller (2)

3 3400512 Bolt

4 2203008 Roller (Rear) (2)

5 3400511 Bolt

6 488649 Screw

7 489478 Screw

8 2209558 Clip

9 2156056 Shim

10 3400515 Screw

12 Hinge Top

2203124W Right, White

2203124T Right, Biscuit

2203124B Right, Black

2199935W Left, White

2199935T Left, Biscuit

2199935B Left, Black

16 2208137 Hinge & Cam Assy

19 3400103 Screw

20 981126 Pin

21 Filler, Wrapper

2203067W White

2203067T Biscuit

2203067B Black

22 Grille

2199904W White

2199904T Biscuit

2199904B Black

23 489497 Screw

24 2199840 Housing, Water

Filter

25 2203220 Water Filter

26 489478 Screw

27 Cap, Water

Filter

2186494W White

2186494T Biscuit

2186494B Black

35 489464 Screw

41 940139 Drain Fitting

42 2199954 Extension Tube

43 1108439 Clip, Drain Tube

47 2214385 Cover, Unit

48 Cabinet (Not A

Serviceable Part)

52 549193 Clamp, Service

Cord

53 489084 Screw

REFRIGERATOR LINER PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 1116793 Cover, Thermistor

3 2213442 Thermistor

4 2209204 Clip, Thermistor

5 2220377 Air Baffle

9 2181796 Ladder, Shelf

10 489478 Screw

16 2179404 Rack, Wine & Egg

24 2214367 Air Diffuser

Assembly

29 2162085 Socket

31 2196171 Reservoir

33 527949 Light Bulb

34 2203266 Light Lens

35 2205813 Strap

37 489478 Screw

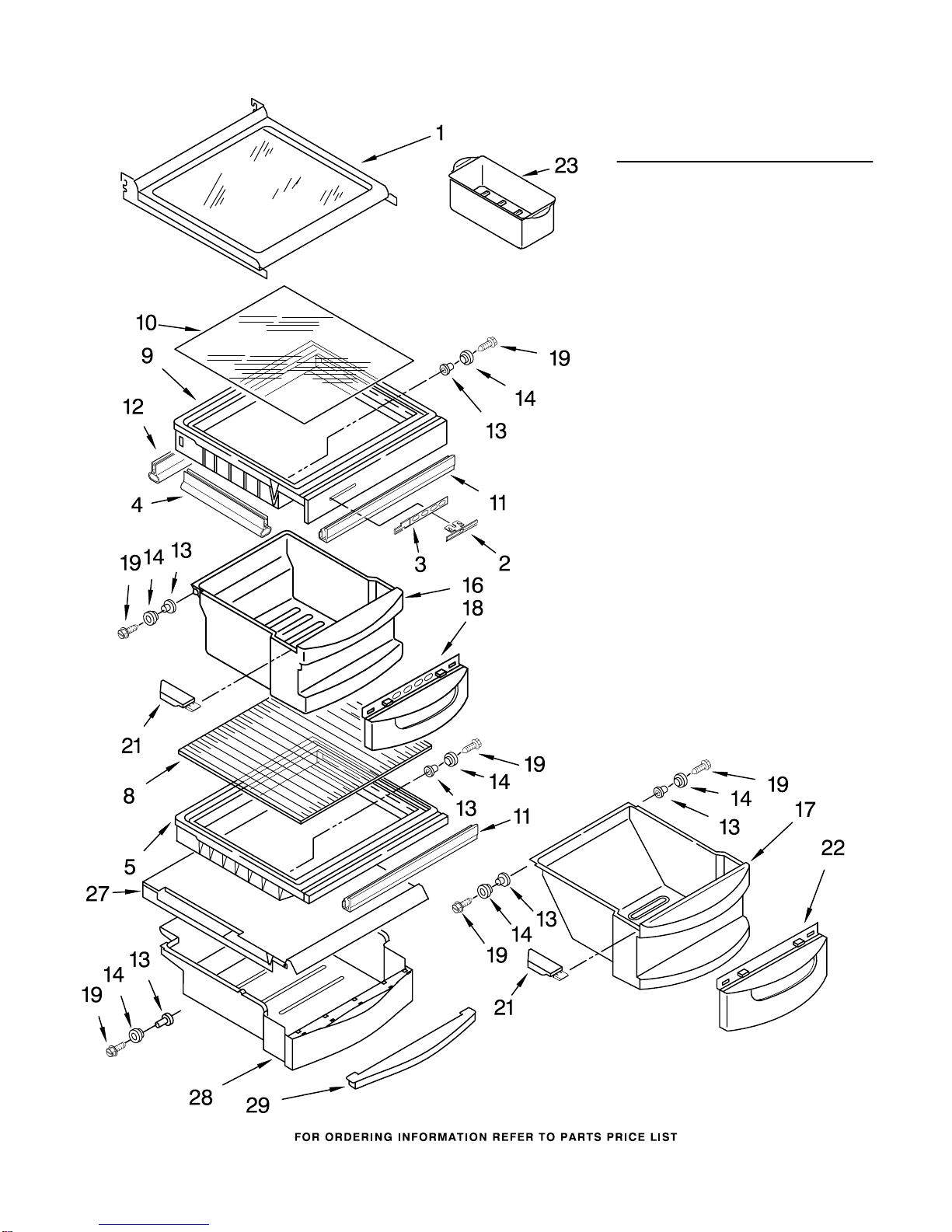

REFRIGERATOR SHELF PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

Illus. Part

No. No. DESCRIPTION

1 2203054 Shelf Assembly

Cantilever

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side

5 2203034 Cover, Meat Pan

(Includes Items

13, 14 & 19)

8 2203038 Glass, Cover

9 2174250 Cover, Crisper

(Includes 2, 3, 4,

11, 12, 13,

14 & 19)

10 2174148 Glass, Cover

11 2174272 Gasket (Front)

12 2174274 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

16 2179227 Crisper Pan

(Includes 13, 14,

18, 19, & 21)

17 2203036 Meat Pan

(Includes 13, 14,

19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

21 Cap, Crisper Pan

2174259 Right Side

2174258 Left Side

22 2174076 Window, Meat Pan

23 2216624 Egg Bin

27 2203027 Cover, Beverage

28 2203028 Beverage Pan

29 2203029 Handle, Beverage

FREEZER LINER PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

FREEZER LINER PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2209204 Clip, Thermistor

3 2199860 Door, Ice

Compartment

5 2174478 Eyelet, Roller

6 842534 Clip, Air Duct (2)

7 2196206 Support, Stud (4)

8 2213442 Thermistor

9 2199867 Trim, Basket

10 2199863 Basket (2)

11 2199892 Basket, Shallow

12 2188212 Roller

13 1116793 Cover, Thermistor

14 2203111 Wiring Cover

15 489464 Screw

16 489211 Screw

17 Slide, Basket

2208198 Right Side (2)

2208197 Left Side (2)

18 489355 Screw

19 1115373 Switch, Rocker Arm

20 2196483 Stud (12)

21 489478 Screw

22 1113169 Stop, Roller

23 2209533 Shelf, Top

Compartment

24 2199965 Light Lens

25 527949 Light Bulb

26 2162085 Light Socket

28 Slide, Container

2002721 Left Side

2002720 Right Side

29 2003478 Screw

30 8281158 Screw (12)

31 2199861 Shelf

32 3400893 Screw (4)

MOTOR AND ICE CONTAINER PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

MOTOR AND ICE CONTAINER PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

Illus. Part

No. No. DESCRIPTION

1 2214579 Bracket, Motor

2 2188385 Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Solenoid

7 2206503 Wiring Assembly,

Ice Dispenser

8 489399 Screw

9 2205716 Coupling, Motor

10 489355 Screw

11 2162085 Socket, Light

14 2199895 Ice Container

15 983668 Coupling, Conveyor

18 1119005 Spacer, Step (3)

19 1119007 Spacer, Flat (2)

20 1119006 Blade, Rotary

21 1119012 Blade, Rotary

22 1119013 Blade, Rotary

23 489235 Washer, Plain

24 1119009 Blade, Fixed (2)

25 2157405 Block, Blade

26 489229 Roll Pin

27 2160602 Conveyor

28 2196194 Drum

29 3400912 Washer

30 2171682 Floating Baffle

31 1119018 Nut, Bearing

32 2002728 Control Arm

33 1119020 Spring, Return

34 1119021 Retainer Clip, Rod

35 488886 Screw

37 2180348 Housing, Crusher

38 1119017 Deflector, Ice

39 489234 Washer, Plain

40 489236 Retainer Ring

44 2199913 Front Cover,

Ice Container

45 527949 Light Bulb

46 2171706 Light Lens,

Dispenser

REFRIGERATOR DOOR PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

REFRIGERATOR DOOR PARTS

For Models: KSBS25FKWH01, KSBS25FKBT01, KSBS25FKBL01

(White) (Biscuit) (Black)

8198035

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #8)

2210773W White

2210773T Biscuit

2210773B Black

3 2182399 Door, Compartment

4 2182190 Trim, Door Shelf

5 3196537 Screw

6 2199986 Bin, Door

7 Trim, Door (Top)

2207312W White

2207312T Biscuit

2207312B Black

8 Door Gasket,

Magnetic

2221305 Mist Beige

2221310 Black

9 Handle

2207308W White

2207308T Biscuit

2207308B Black

10 3400012 Screw

11 2159124 Gasket

12 2195497 Divider, Bin

13 Trim, Door

(Bottom)

2207314W White

2207314T Biscuit

2207314B Black

14 2182179 Door Closer,

Upper Cam

15 489420 Screw

16 Bracket, Door Stop

2210774 Chrome

2214451 Black

17 1113948 Retainer, Shelf

Ladder (2)

18 1113949 Ladder, Shelf (2)

19 2203087 Trim, Door Shelf

20 3196180 Screw

21 2165792 Butter Dish

22 2199983 Bin, Door (3)

23 2195916 Endcap (2)

25 Trim, Door

(Hinge Side)

2207310W White

2207310T Biscuit

2207310B Black
