KitchenAid KSRG25FKBL01 Manuale utente

CABINET PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

REFRIGERATOR

4−01 Printed In U.S.A. (mek) Part No. 8197618 Rev. A

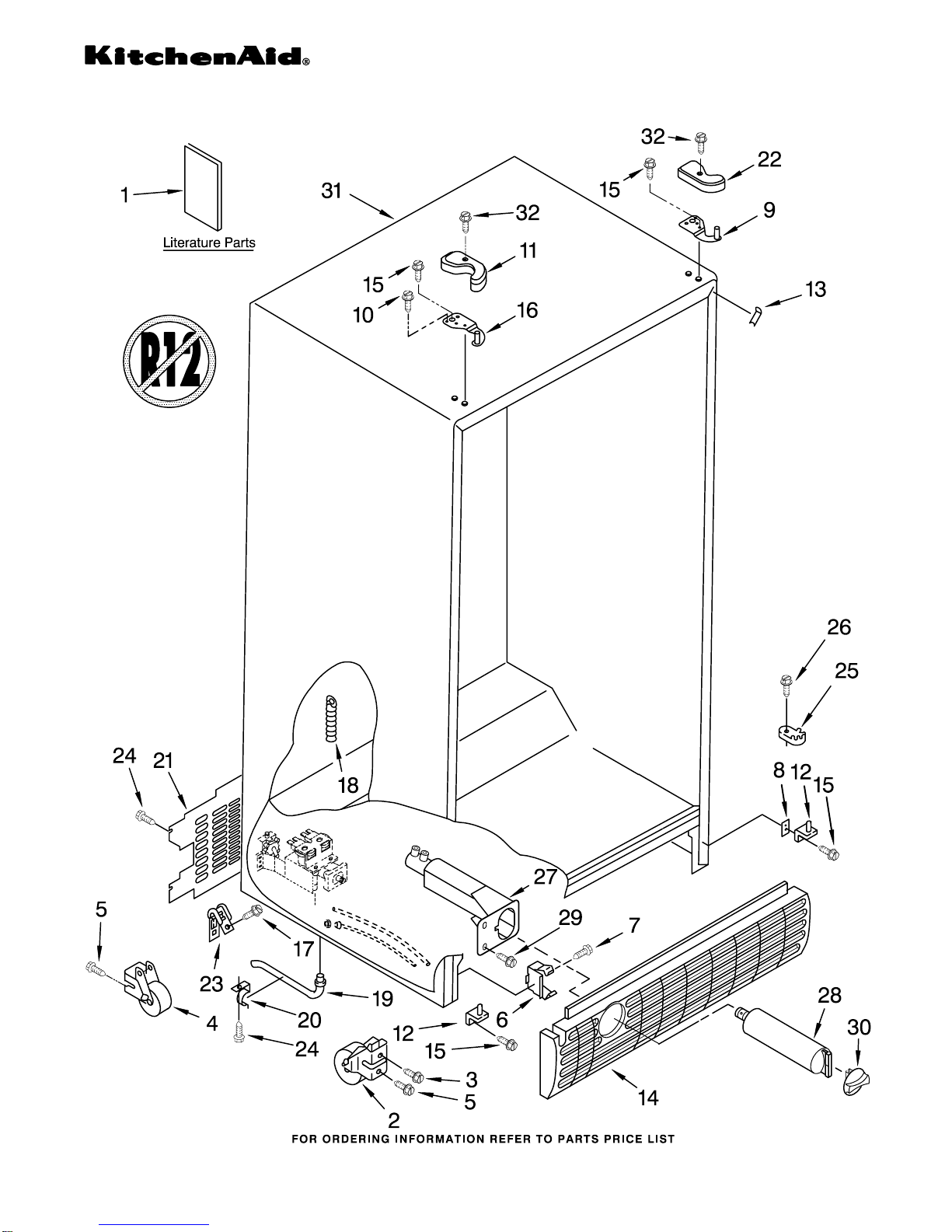

CABINET PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT2216271

Use & Care Guide

LIT2216952

Service & Wiring

Sheet

LIT2219704

Energy Label

LIT628370

Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top, RC

10 8281149 Screw

11 Hinge Cover, FC

2203407W White

2203407B Black

2203407T Biscuit

12 2217075 Hinge Bottom (2)

13 Filler, Wrapper

2196094 White

2196097 Black

2196150 Biscuit

14 Grille

2186881W White

2186881B Black

2186881T Biscuit

15 489497 Screw

16 2203770 Hinge, Top FC

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Tube, Extension

20 1108439 Clip, Drain Tube

21 2204203 Cover, Unit

22 Hinge Cover, RC

2203408W White

2203408B Black

2203408T Biscuit

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 2186443 Housing, Water

Filter

28 2203220 Water Filter

29 489500 Screw

30 Cap, Water

Filter

2186884W White

2186884B Black

2186884T Biscuit

31 Cabinet (Not A

Serviceable Part)

32 8281227 Screw

REFRIGERATOR LINER PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2182147 Louver

6 2196485 Stud Assembly

7 3400894 Screw

8 2196483 Stud Assembly

9 2206273 Ladder, Shelf (2)

10 8281158 Screw

11 486298 Screw (2)

12 487539 Screw

13 2205813 Strap

16 2179404 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2209754 Air Diffuser

Assembly

25 2152019 Air Diffuser

Cover

26 2150331 Cover, Conduit

29 2162085 Socket

30 842534 Clip, Air Duct

31 2209687 Reservoir

33 527949 Light Bulb

34 2206269 Light Lens

37 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

Illus. Part

No. No. DESCRIPTION

1 2195975 Shelf Assembly,

Cantilever (3)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2161491 Cover, Meat Pan

(Includes Items

13, 14 & 15)

6 2209677 Snack Pan

7 2179243 Trim, Handle

8 2189526 Glass, Cover

9 2174250 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2174148 Glass, Cover

11 2174272 Gasket (Front)

12 2174274 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2179227 Crisper Pan

(Includes 13,

14, 18, 19 & 21)

17 2179231 Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2174259 Right Side

2174258 Left Side

22 2174362 Window, Meat Pan

23 2182730 Egg Bin

24 2216102 Shelf & Roller

Assembly

26 2206346 Shelf, Snack Pan

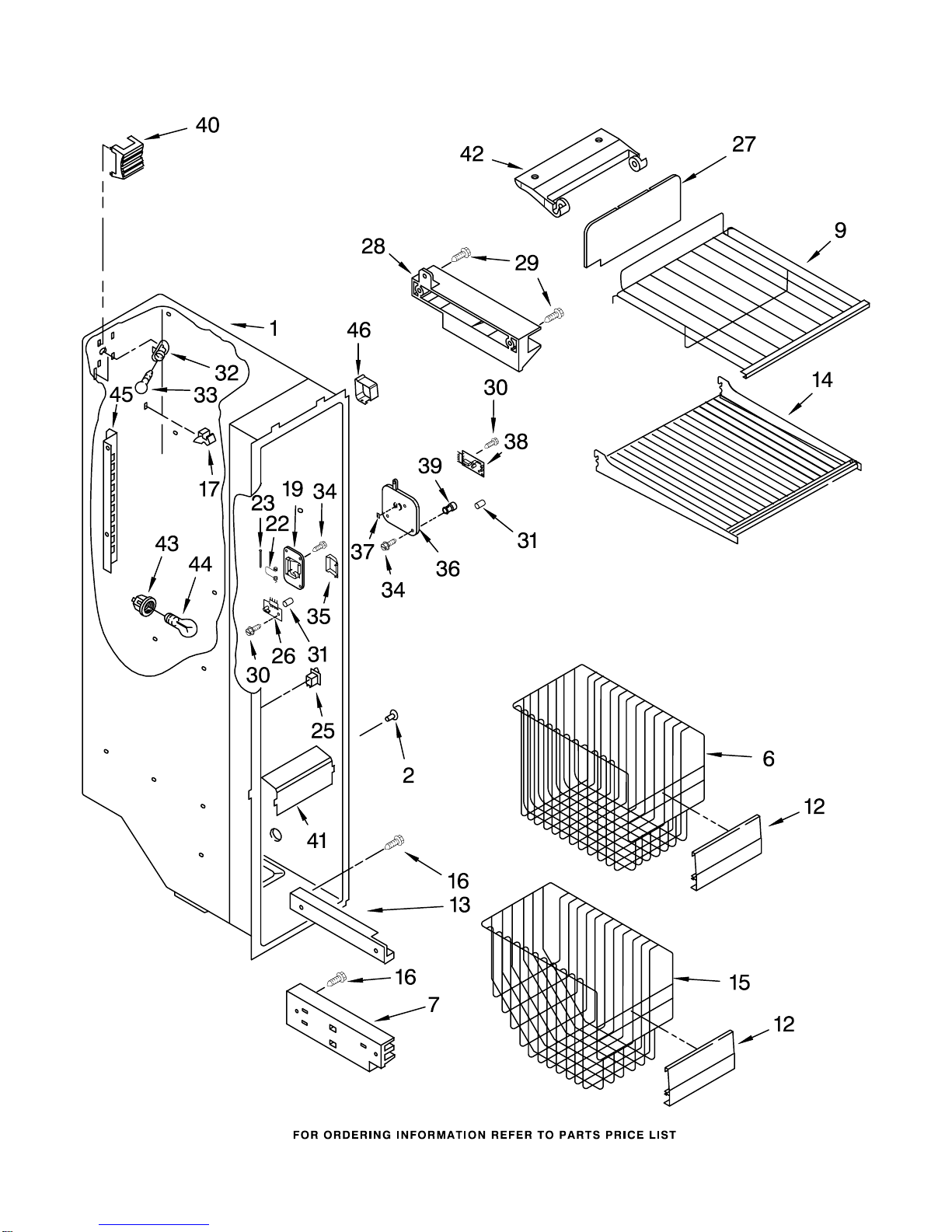

FREEZER LINER PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

FREEZER LINER PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 941839 Hole Plug

6 2181765 Basket, Tall

7 Track, Basket−Dual

2216106 Right Side

2216107 Left Side

9 2211746 Shelf, Slide Out

Upper

12 2171766 Basket, Front

13 Shelf Track

2181760 Right Side

2181759 Left Side

14 2205837 Shelf

15 2181764 Basket, Sloped

16 486298 Screw

17 842534 Clip, Air Duct

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2198585 P.C. Board

Emitter

27 2198642 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

31 2198665 Tube, P.C. Board

32 2162085 Light Socket

33 527949 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2198588 Cover, Receiver

37 2198637 Slide, Ice Maker

Shut Off

38 2198586 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2211506 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

44 527949 Light Bulb

45 Ladder

2198609 Left Side

2198610 Right Side

46 2198639 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2212367 Crusher Bin

3 2211590 Auger

4 2198603 Blade, Stirring

5 1119007 Spacer, Flat (6)

6 2198591 Cover, Crusher

7 1119013 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2198601 Blade, Fixed

10 1119012 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 1119006 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2198604 Coupling

17 8281164 Screw

18 3400065 Screw

19 2198605 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw

23 8281163 Screw

24 2212369 Holder

25 2198627 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

28 2198666 Pin

29 2198607 Spring

30 2198624 Drive Shaft

31 2198655 Bracket, Motor

32 2198594 Dispenser, Motor

33 2198626 Cover

34 8281162 Screw

36 2212365 Sleeve, Coupling

REFRIGERATOR DOOR PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

REFRIGERATOR DOOR PARTS

For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01

(White) (Black) (Biscuit)

8197618

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2207327W White

2207327B Black

2207327T Biscuit

3 2182399 Door, Compartment

4 2193409 Holder, Beverage

5 2165792 Butter Dish

6 Insert, Handle

2173825 White

2173829 Black

2186863T Biscuit

7 Door Gasket,

Magnetic (Service)

2196243 Mist Beige

2196241 Black

8 End Cap, Handle

2194778W White

2194778B Black

2194778T Biscuit

9 3400852 Screw

10 Retainer, Insert

2194777W White

2194777B Black

2194777T Biscuit

11 489463 Screw

12 2182178 Door Closer,

Upper Cam

13 2159124 Gasket

14 489420 Screw

15 Bracket, Door Stop

2206629 Chrome

16 2171063 Shelf Bin (4)

17 3400012 Screw

18 2182180 Thimble−Top
