KitchenAid KSRS25QGAL05 Guida alla risoluzione dei problemi

CABINET PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

10−00 Printed In U.S.A. (mdg) Part No. 4398874

REFRIGERATOR

CABINET PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT2206106

Use & Care Guide

LIT2200279

Service & Wiring

Sheet

LIT2211861

Energy Label

LIT628370

Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2196048 Shim, Hinge Top

10 489284 Screw

11 Hinge Cover

1129262 White

2150343 Almond

2151694 Black

2186858 Biscuit

12 2171851 Hinge Bottom (2)

13 Filler, Wrapper

2196094 White

2196095 Almond

2196097 Black

2196150 Biscuit

14 Grille

2198470W White

2198470N Almond

2198470B Black

2198470T Biscuit

15 489497 Screw

16 2196046 Hinge, Top (2)

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Tube, Extension

20 1108439 Clip, Drain Tube

21 2176140 Cover, Unit

22 Hinge Cover

1119787 White

1119789 Almond

2155938 Black

2186857 Biscuit

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 Cabinet (Not a

Serviceable Part)

REFRIGERATOR LINER PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2182147 Louver

5 2171846 Release Valve

6 2196485 Stud Assembly

7 8281158 Screw

8 2196483 Stud Assembly

9 2206273 Ladder, Shelf (2)

10 3400894 Screw

11 486298 Screw (2)

12 487539 Screw

13 2205813 Strap

16 2179404 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2209751 Air Diffuser

Assembly

25 2161470 Air Diffuser

Cover

26 2150331 Cover, Conduit

29 2162085 Socket

30 842534 Clip, Air Duct

31 2209687 Reservoir

33 527949 Light Bulb

34 2206269 Light Lens

37 488280 Screw (2)

REFRIGERATOR SHELF PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

Illus. Part

No. No. DESCRIPTION

1 2195978 Shelf Assembly,

Cantilever (3)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2161491 Cover, Meat Pan

(Includes Items

13, 14 & 15)

6 2209677 Snack Pan

7 2179243 Trim, Handle

8 2189526 Glass, Cover

9 2174250 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2174148 Glass, Cover

11 2174272 Gasket (Front)

12 2174274 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2179227 Crisper Pan

(Includes 13,

14, 18, 19 & 21)

17 2179231 Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2174259 Right Side

2174258 Left Side

22 2174362 Window, Meat Pan

23 2182730 Egg Bin

24 2174021 Shelf & Roller

Assembly

25 489439 Screw

26 2206346 Shelf, Snack Pan

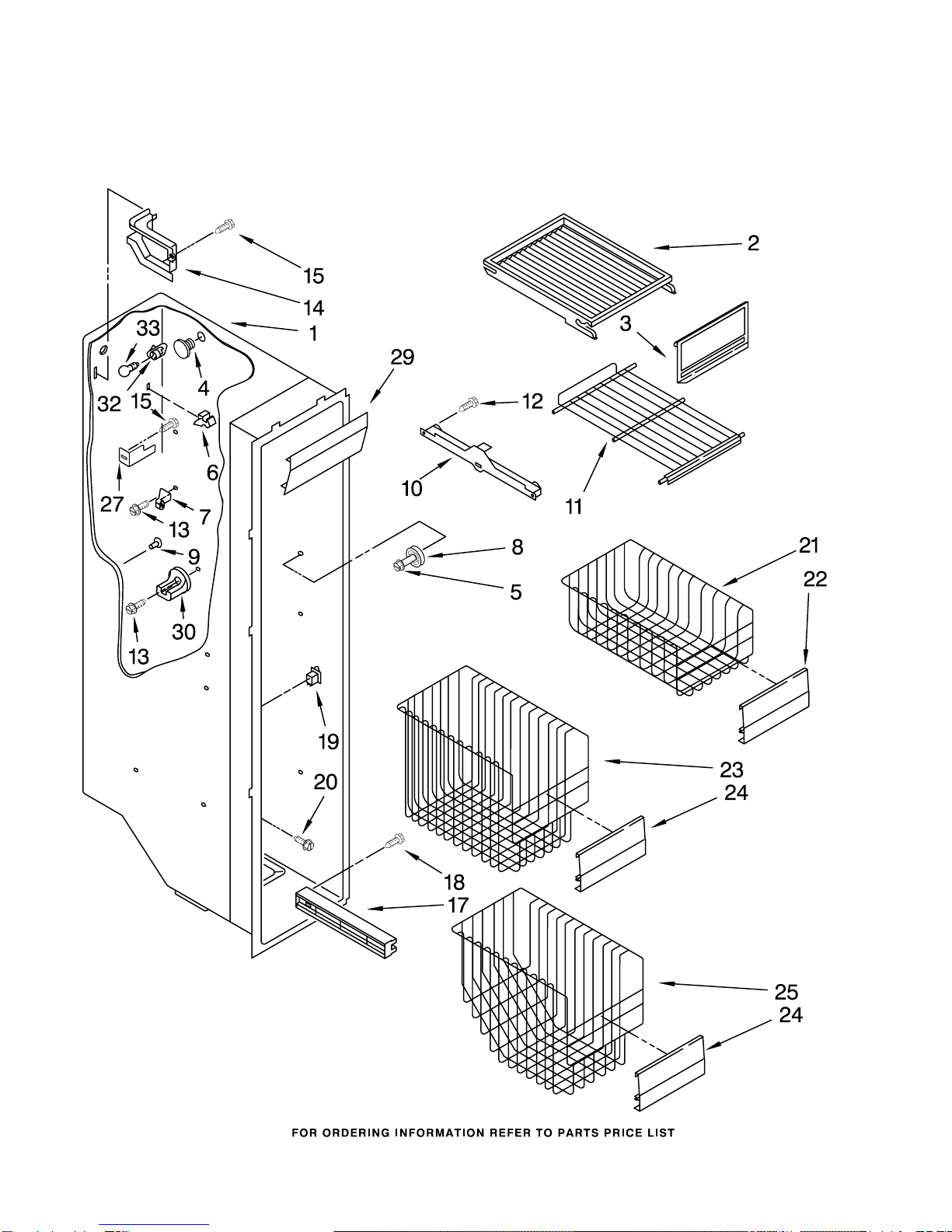

FREEZER LINER PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

FREEZER LINER PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2174493 Shelf, Top

Compartment

3 2171713 Door, Ice

Compartment

4 940014 Hole Plug

5 8281158 Screw

6 842534 Clip, Air Duct (2)

7 2196206 Support, Stud (4)

8 2196483 Stud Assembly

9 2176134 Grommet (2)

10 Slide, Container

1119237 Left Side

1119293 Right Side

11 2174267 Shelf

12 489100 Screw (4)

13 3400893 Screw

14 2155572 Cover, Wiring

15 489355 Screw

17 Shelf Track

2181760 Right Side (3)

2181759 Left Side (3)

18 486298 Screw

19 1115373 Switch, Rocker Arm

20 489478 Screw

21 2181763 Basket, Shallow

22 2171767 Front, Basket

23 2181765 Basket, Square

24 2171766 Front, Basket

25 2181764 Basket, Sloped

27 2209674 Bracket, Fill Tube

29 2171705 Light Lens

30 2196207 Stud, Rear

32 2162085 Socket, Light

33 527949 Bulb, Light

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

Illus. Part

No. No. DESCRIPTION

1 2183726 Bracket, Motor

2 2188385 Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Solenoid

7 2206501 Wiring Assembly,

Ice Dispenser

8 489399 Screw

9 2205716 Coupling, Motor

10 489478 Screw

11 2162085 Socket, Light

14 2196091 Ice Container

18 1119005 Spacer, Step (3)

19 1119007 Spacer, Flat (2)

20 1119006 Blade, Rotary

21 1119012 Blade, Rotary

22 1119013 Blade, Rotary

23 489235 Washer, Plain

24 1119009 Blade, Fixed (2)

25 2157405 Block, Blade

26 489229 Roll Pin

27 2196295 Auger

28 2209781 Drum

30 2171682 Floating Baffle

31 1119018 Nut, Bearing

32 2155231 Control Arm

33 1119020 Spring, Return

34 1119021 Retainer Clip, Rod

35 488886 Screw

37 2180348 Housing, Crusher

38 1119017 Deflector, Ice

39 489234 Washer, Plain

40 489236 Retainer Ring

44 2204321 Front Cover,

Ice Container

45 527949 Light Bulb

46 2171706 Light Lens,

Dispenser

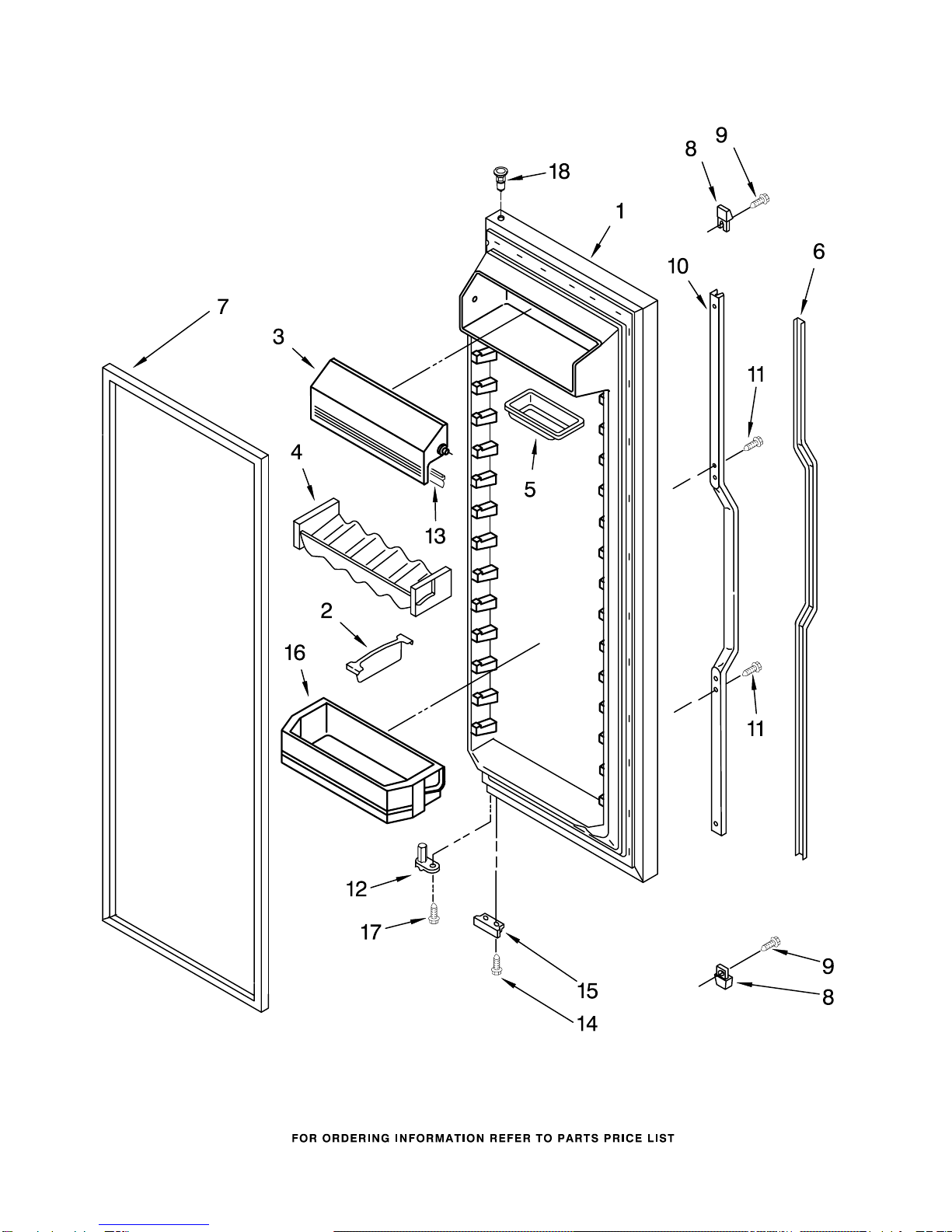

REFRIGERATOR DOOR PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

REFRIGERATOR DOOR PARTS

For Models: KSRS25QGWH05, KSRS25QGAL05, KSRS25QGBL05, KSRS25QGBT05

(White) (Almond) (Black) (Biscuit)

4398874

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2194233W White

2194233N Almond

2194233B Black

2194233T Biscuit

2 2195497 Load, Lock

3 2182399 Door, Compartment

4 2193409 Holder, Beverage

5 2165792 Butter Dish

6 Insert, Handle

2173825 White

2173828 Almond

2173829 Black

2186863T Biscuit

7 Door Gasket,

Magnetic (Service)

2159075 Mist Beige

2159083 Black

8 End Cap, Handle

2194778W White

2194778N Almond

2194778B Black

2194778T Biscuit

9 3400852 Screw

10 Retainer, Insert

2194777W White

2194777N Almond

2194777B Black

2194777T Biscuit

11 489463 Screw

12 2182178 Door Closer,

Upper Cam

13 2159124 Gasket

14 489420 Screw

15 Bracket, Door Stop

2195950 Chrome

2195952 Black

16 2171063 Shelf Bin (4)

17 3400012 Screw

18 2182180 Thimble−Top
