CABINET PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

5−03 Litho In U.S.A. (rcg) Part No. 8197674

36" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2215850

Use & Care Guide

LIT2221053

Energy Label

LIT2221021

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2215852

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Tube

Crossover

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 Cap, Water Filter

2186494W White

2186494B Black

2186494T Biscuit

9 2006442 Mounting Stud,

Grill

10 2005237 Clip, Wire

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

13 2006806 Support, Bottom

(Right Side)

15 2203220 Filter, Water

16 2006807 Support, Bottom

(Left Side)

17 2005378 Screw, Door Stop

18 2005295 Hinge (Top)

19 489478 Screw

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

23 2209090 Clamp, Filter

Housing

24 2004517 Spring, Door

Closure (2)

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2004992 Bushing,

Adjustable

31 2001415 Screw

32 Skirt−Grille,

Bottom

2209024W White

2209024B Black

2209024T Biscuit

33 8201584 Extension Arm,

Door Closer

34 Grille Bottom,

Front

2209425W White

2209425B Black

2209425T Biscuit

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2006960 Bushing,

Extension Arm

41 1163283 Screw

42 2196152 Union

43 2001415 Screw (4)

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Cover

2215923 Right

2215937 Left

48 2209449 Cover, Rear

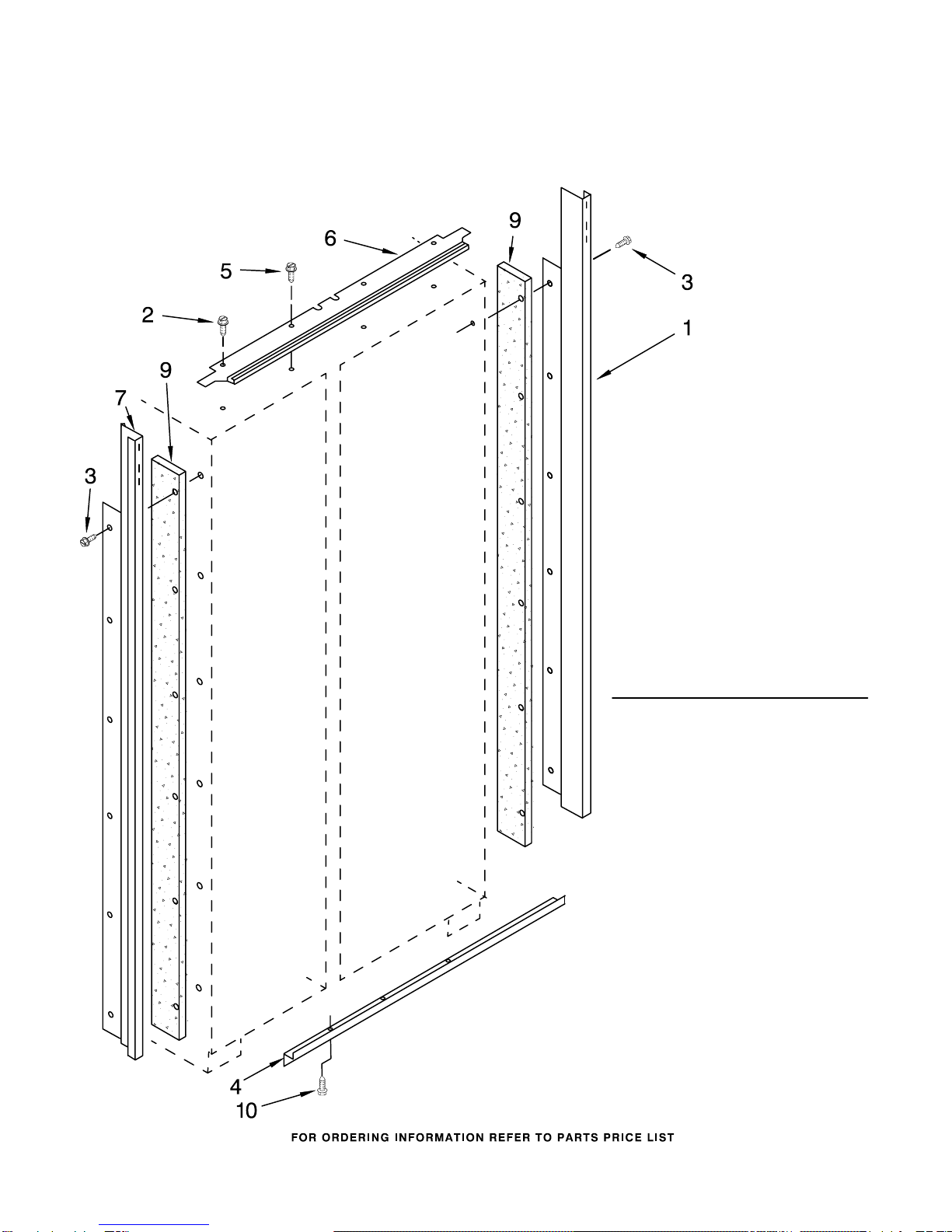

CABINET TRIM PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

2215919W White

2215919B Black

2215919T Biscuit

8201535 Etched Aluminum

2 2003857 Screw

3 Screw

8281251 White

8281252 Black

8281253 Biscuit

8281250 Stainless Steel

4 2209073 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2003645 Cabinet, Trim Top

7 Cabinet Trim

(Left Side)

2215936W White

2215936B Black

2215936T Biscuit

2215936 Etched Aluminum

9 2005925 Seal−Trim, Side

10 489464 Screw

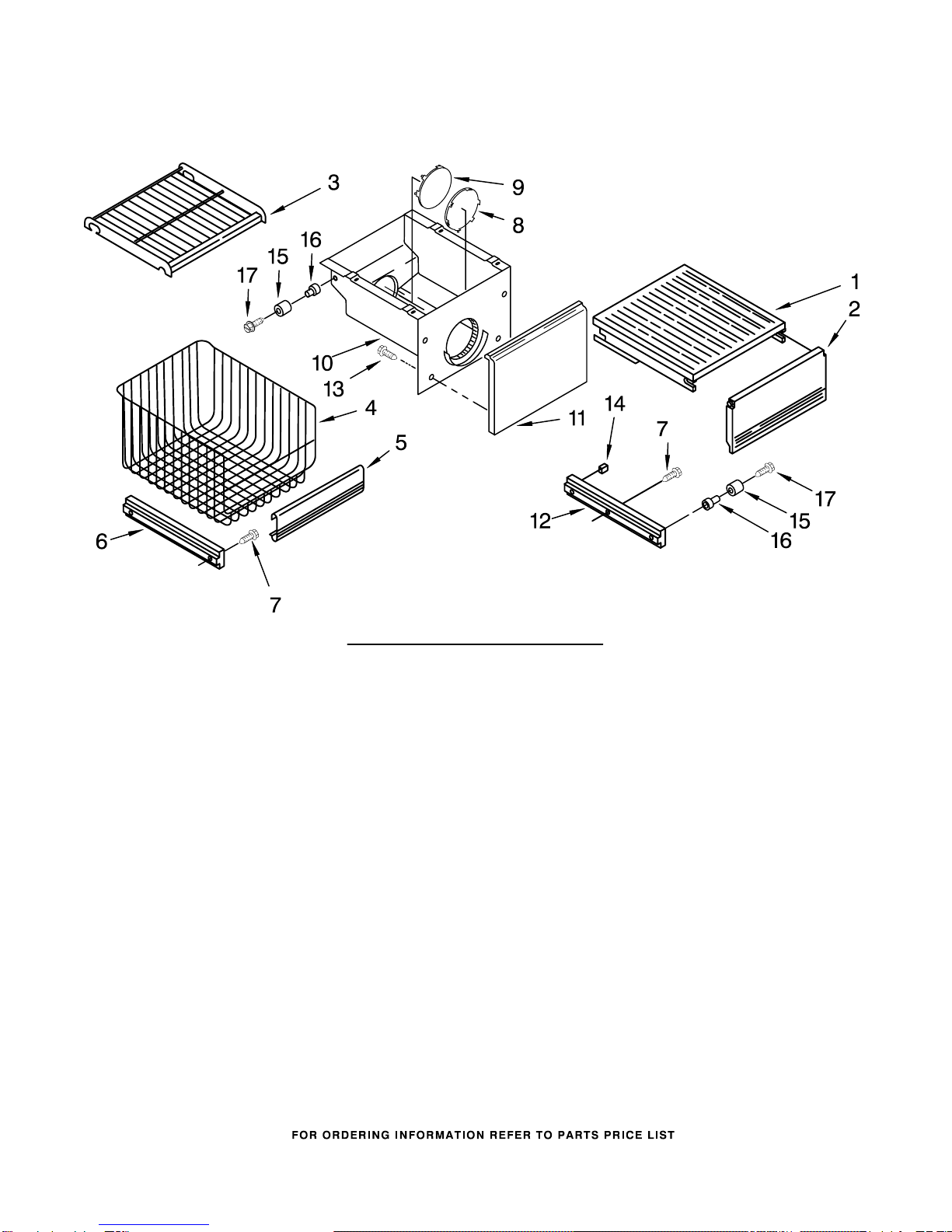

FREEZER SHELF PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

Illus. Part

No. No. DESCRIPTION

1 2220889 Solid Shelf

2 2220846 Front, Ice

Compartment

3 1113636 Shelf, Fixed (2)

1113564 Shelf, Deep

4 2208192 Basket

5 2220843 Trim, Basket

6 Slide, Basket

2208198 Right Side

2208197 Left Side

7 486194 Screw

8 2003046 Hole Plug, Front

9 2003047 Hole Plug, Rear

10 2208906 Ice Container

11 2003043 Front Cover

12 Slide, Container

2002720 Right Side

2002721 Left Side

13 488886 Screw

14 1113169 Stop, Roller

15 2188212 Roller

16 2174478 Eyelet, Roller

17 2003478 Screw

REFRIGERATOR LINER PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

REFRIGERATOR LINER PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2208975 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2220888 Meat Pan, Air

Duct Cover

11 2000337 Meat Pan, Air Duct

12 2220993 Release Valve

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2003811 Control Knob,

Meat Pan

16 2003841 Retainer, Knob

17 2208904 Air Baffle

Assembly

18 2209687 Reservoir

19 488280 Screw

21 2208997 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2213442 Thermistor

25 2215728 Cover, Diffuser

26 2003577 Guard, Air Return

CONTROL PANEL PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

Illus. Part

No. No. DESCRIPTION

1 2215715 Control Box

2 2215670 Insert, Control

Box

3 2209159 Circuit Board,

Housing Control

4 2215941 Control Box

Wire Harness

5 2003841 Retainer, Knob

11 2162085 Socket, Light

12 2160708 Light Bulb (2)

13 486194 Screw

15 2221067 Overlay

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

Illus. Part

No. No. DESCRIPTION

1 Top Grille

Assembly

2215924W White

2215924B Black

2215924T Biscuit

8201576 Etched Aluminum

2 2209490 Cover, Unit

3 486194 Screw

4 2215830 Back Panel

5 2209492 Guard, Wiring

6 487415 Screw

7 2220808 Wire Assembly

RC/FC Light Switch

8 2006440 Baffle−Air,

Condenser

9 489348 Clamp

REFRIGERATOR SHELF PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

REFRIGERATOR SHELF PARTS

For Models: KSSS36FKB00, KSSS36FKT00, KSSS36FKW00, KSSS36FKX00

(Black) (Biscuit) (White) (Etched Aluminum)

8197674

Illus. Part

No. No. DESCRIPTION

1 2174402 Frame, Shelf

2 2003375 Glass, Shelf

3 1113546 Reflector, Shelf

4 1113790 Gasket, Glass (2)

5 2179404 Rack, Wine

6 2216625 Egg Bin

7 2006523 Frame, Assembly

Meat Pan

9 1113893 Cover, Crisper

10 2003378 Glass, Crisper

(Includes #9)

11 2000742 Meat Pan,

Connector

12 2169935 Cover

14 2220895 Crisper Pan (2)

15 2188212 Roller

16 2174478 Eyelet, Roller

17 2003478 Screw

20 2220901 Meat Pan

23 2002181 Retainer, Glass

25 2006515 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 2006516 Crisper Spacer,

Left Side (2)

29 486194 Screw
