CABINET PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

10−05 Litho In U.S.A. (mek) Part No. 8214571

36" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2317086 Use & Care Guide

2307362 Energy Label

2306324 Service & Wiring

Sheet

2306337 Icemaker and

Ingredient Care

Center Service

Sheet

2302865 Main Control

Service Sheet

2309069 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Crossover

Tube

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 2186494B Cap, Water Filter

9 2006442 Mounting Stud,

Grill

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

13 488500 Screw

14 3400525 Screw

15 2255709 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

19 8281252 Screw

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

23 2209090 Clamp, Filter

Housing

24 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw

32 2209024B Skirt−Grille,

Bottom

33 Extension Arm,

Door Closer

2266882 Right

2266881 Left

34 2209425B Grille Bottom,

Front

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

42 2004514 Tube, Clamp

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Cover

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

2222552B Black

2222552X Etched Aluminum

2 486194 Screw

3 1163283 Screw

4 2254724 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2313991 Cabinet, Trim Top

7 Cabinet Trim

(Left Side)

2222553B Black

2222553X Etched Aluminum

9 2005925 Seal−Trim, Side

10 489464 Screw

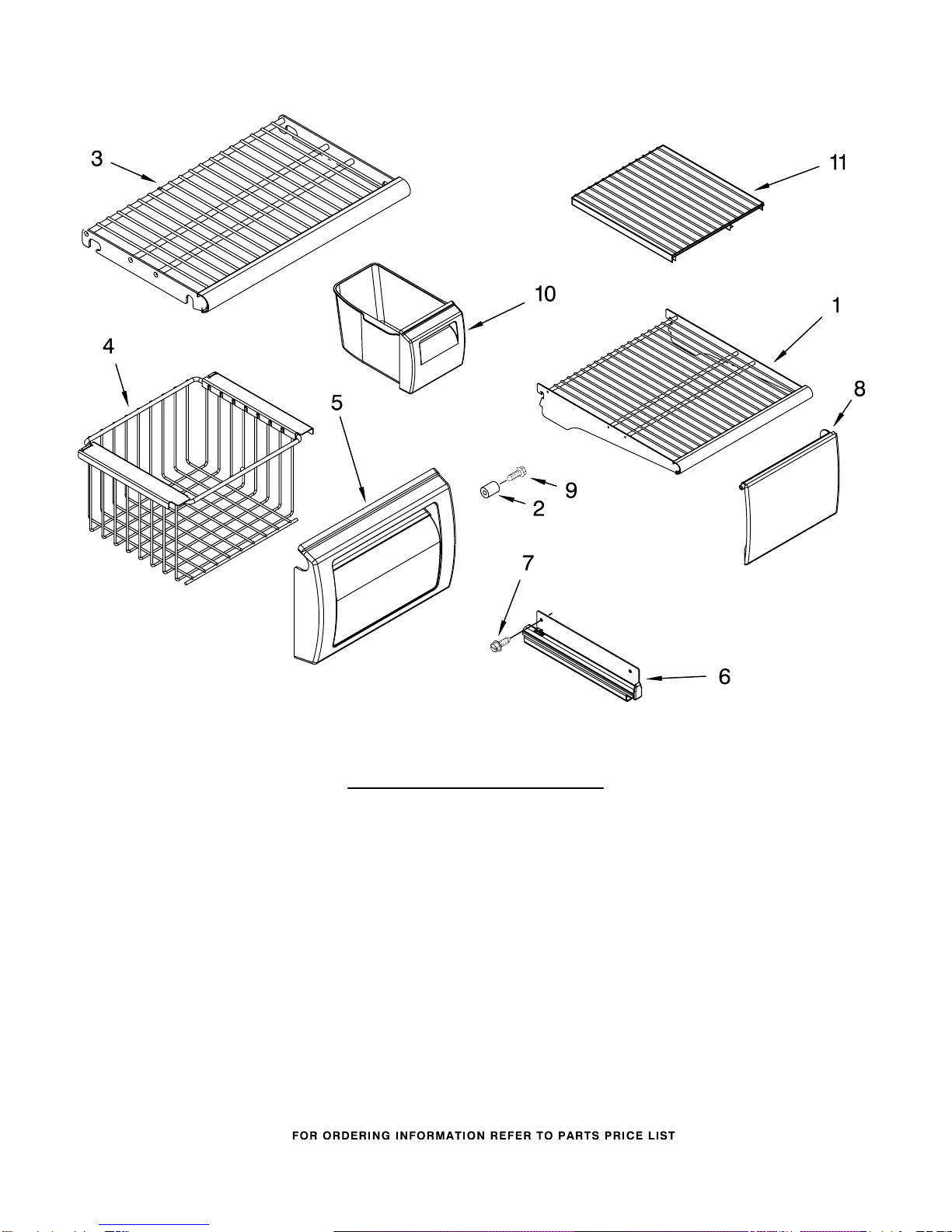

FREEZER SHELF PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

Illus. Part

No. No. DESCRIPTION

1 2302867 Shelf, Wire (2)

2 2266955 Spacer, Ice Door

3 2302882 Shelf, Fixed (2)

4 2259081 Basket (2)

5 2256269 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

8 2266933 Door, Ice

9 8533929 Screw

10 2266930 Ice Bucket

11 2302870 Cover, Shelf

REFRIGERATOR LINER PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

REFRIGERATOR LINER PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Baffle

11 2302987 Baffle Control

Assembly

12 2171846 Release Valve

13 2187619 Harness, Jumper

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

21 2309222 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer Assembly

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

Illus. Part

No. No. DESCRIPTION

1 2302771 Control Box

2 2303938 Insert, Control

Box

3 2302913 Circuit Board,

Housing Control

4 2187424 Control Box

Wire Harness

6 2221121 Support, Control

Box

7 489006 Screw (2)

9 2306086 Display Board,

Ingredient

Care Center

10 2302727 Shield, Light

11 2162085 Socket, Light

12 2255743 Light Bulb

13 486194 Screw

14 8281185 Screw

15 2257518 Overlay

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

Illus. Part

No. No. DESCRIPTION

1 Top Grille

Assembly

2257401B Black

2257401X Etched Aluminum

2 2259320 Cover, Unit

3 487415 Screw

4 2256466 Panel, Back

5 2302974 Cover, Unit Front

6 2215910 Grommet, Flexible

14 1157158 Screw

15 2187429 Wire Assembly,

RC/FC Light Switch

16 489348 Clamp, Tube

REFRIGERATOR SHELF PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

REFRIGERATOR SHELF PARTS

For Models: KSSS36FMB02, KSSS36FMX02

(Black) (Etched Aluminum)

8214571

Illus. Part

No. No. DESCRIPTION

1 2222591 Shelf Assembly

5 2179404 Rack, Wine

6 2221071 Egg Bin Assembly

9 2302841 Meat Pan Cover

Assembly

10 2302834 Crisper Cover

Assembly

11 2257611 Trim, Side Glass

12 2169935 Cover

13 2257581 Trim, Rear Glass

14 2252411 Crisper Pan (2)

17 Slide, Meat Pan

2302955 Right Side

2302954 Left Side

18 Trim, Front Glass

(Not Serviced

Separately)

19 2256253 Trim, Rear Glass

21 2256247 Front, Crisper Pan

23 2252255 Trim, Side Glass

Crisper Pan

24 2256250 Trim, Side Glass

Meat Pan

25 Spacer, Crisper

2256222 Right Side

2256223 Left Side

27 Slide, Crisper

2302957 Right Side

2302956 Left Side

28 Spacer, Meat Pan

2256244 Right Side

2256243 Left Side

29 Screw

8533929 Right Side

8533928 Left Side

30 2256368 Meat Pan

Assembly

31 2256365 Front, Meat Pan
