KitchenAid KSSS36QMB00 Manuale utente

CABINET PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

Part No. 8198485

36" BUILT IN

REFRIGERATOR

4−04 Litho In U.S.A. (mek)

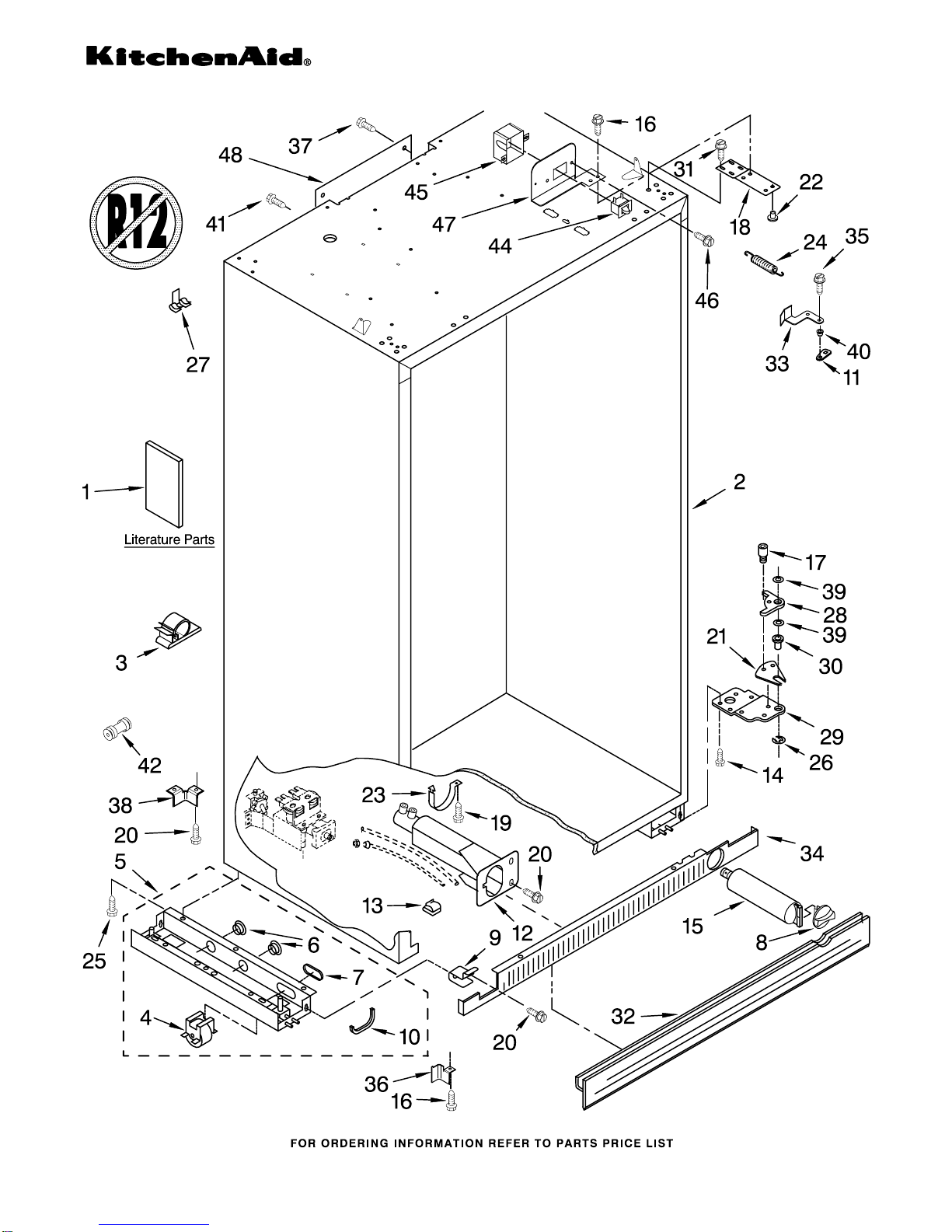

CABINET PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2266808

Use & Care Guide

LIT2266813

Energy Label

LIT2266827

Service & Wiring

Sheet

LIT2302855

Modular Icemaker

Service Sheet

LIT2266811

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2004514 Clamp, Tube

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 Cap, Water Filter

2186494W White

2186494B Black

9 2006442 Mounting Stud,

Grill

10 2005004 Grommet. Crossover

Tube

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

13 934011 Clip, Water Tube

14 3400525 Screw

15 2255709 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

19 1157158 Screw

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

23 2209090 Clamp, Filter

Housing

24 2004517 Spring, Door

Closure (2)

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2004992 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209024W White

2209024B Black

33 Extension Arm,

Door Closer

2221095 Right

2221094 Left

34 Grille Bottom,

Front

2209425W White

2209425B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2006960 Bushing,

Extension Arm

41 1163283 Screw

42 2209709 Union

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

2222552W White

2222552B Black

2222552X Etched Aluminum

3 Screw

8281251 White

8281252 Black

8281250 Stainless Steel

4 2254724 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2257366 Cabinet, Trim Top

7 Cabinet Trim

(Left Side)

2222553W White

2222553B Black

2222553X Etched Aluminum

9 2005925 Seal−Trim, Side

10 489464 Screw

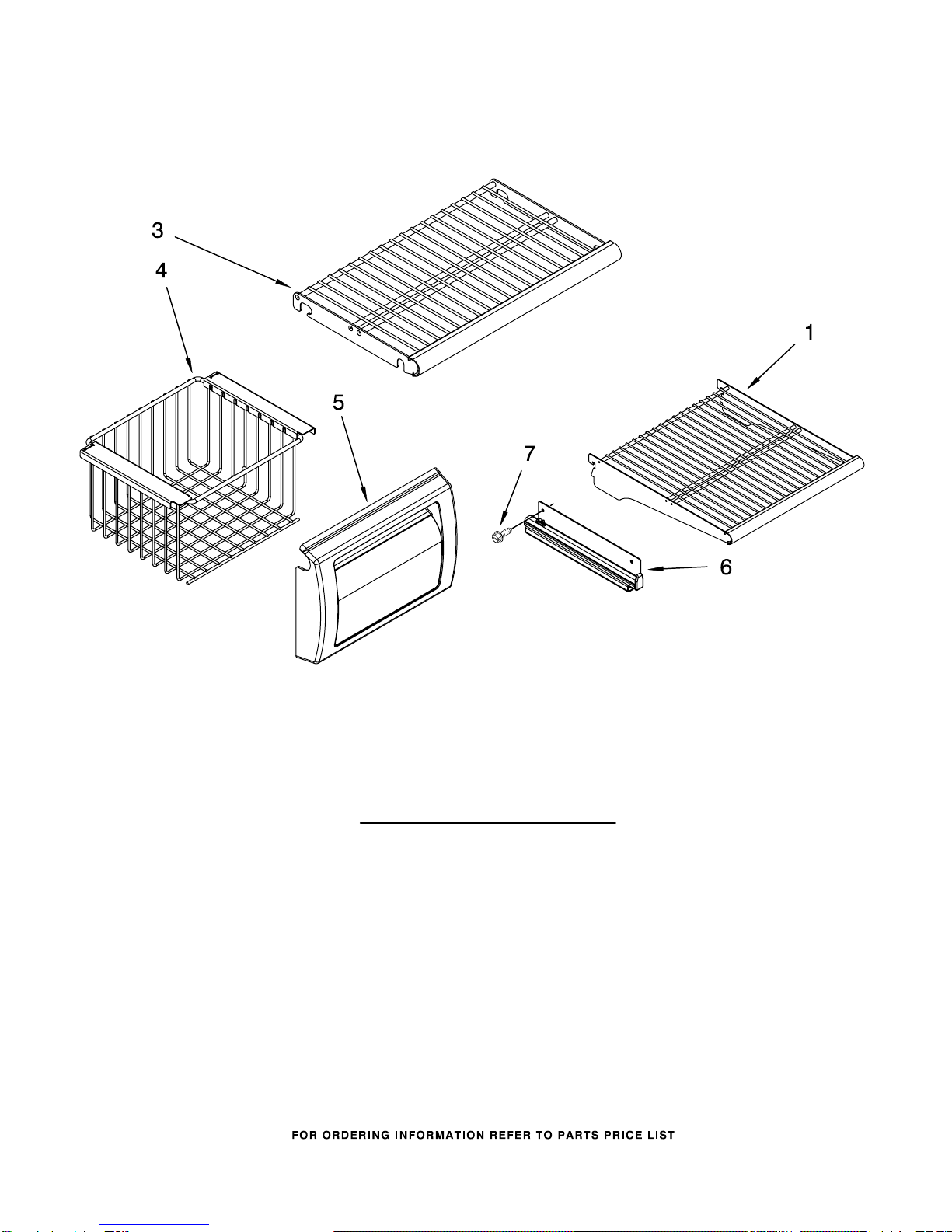

FREEZER SHELF PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

Illus. Part

No. No. DESCRIPTION

1 2256203 Wire, Shelf

3 2259002 Shelf, Fixed (2)

4 2259081 Basket

5 2256269 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

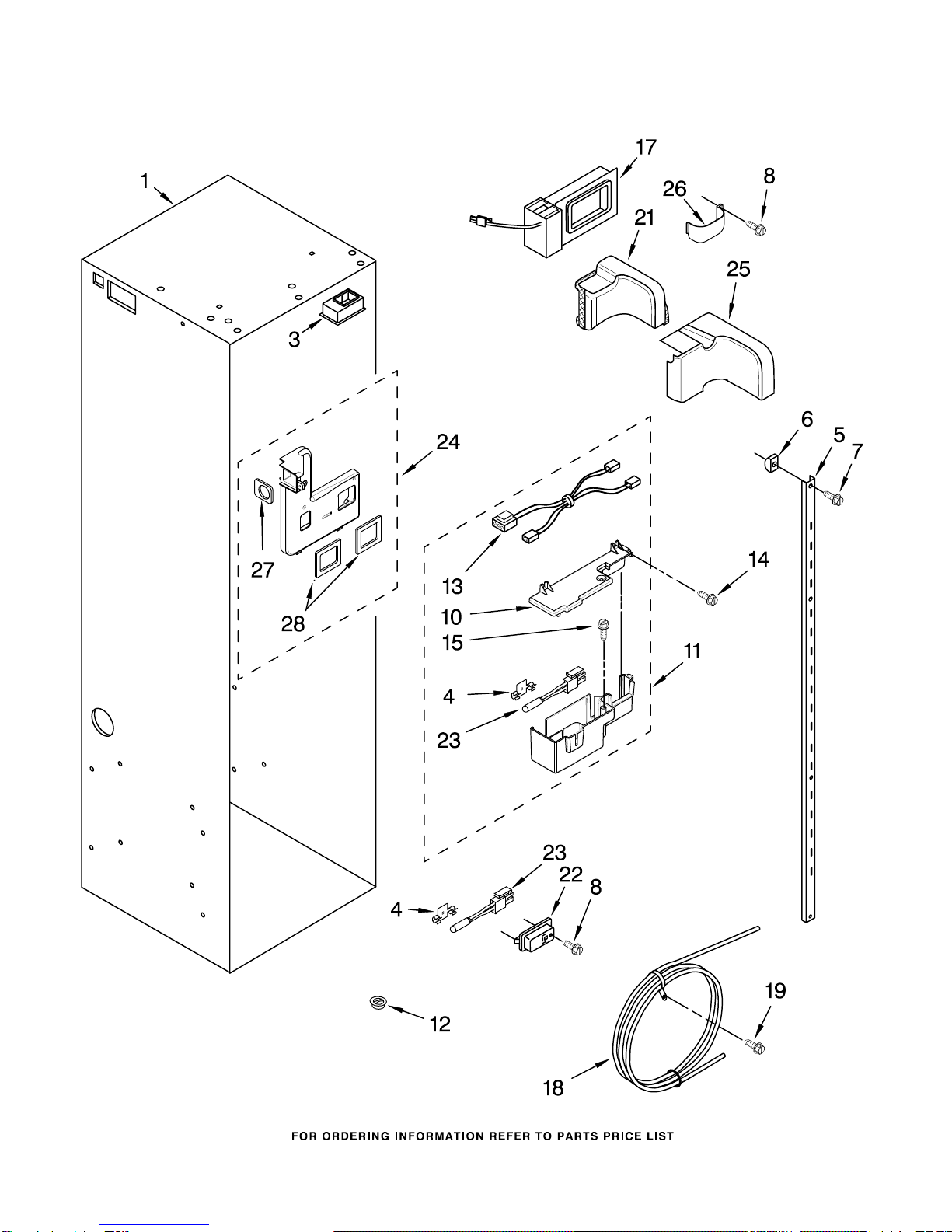

REFRIGERATOR LINER PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

REFRIGERATOR LINER PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

10 2257528 Lid, Meat Pan

Baffle

11 2257526 Baffle, Control

Assembly

12 2171846 Release Valve

13 2187619 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

18 2209687 Reservoir

19 488280 Screw

21 2208997 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2213442 Thermistor

24 2259372 Spacer, Air−

Baffle

25 2215728 Cover, Diffuser

26 2259066 Cover, Air Return

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

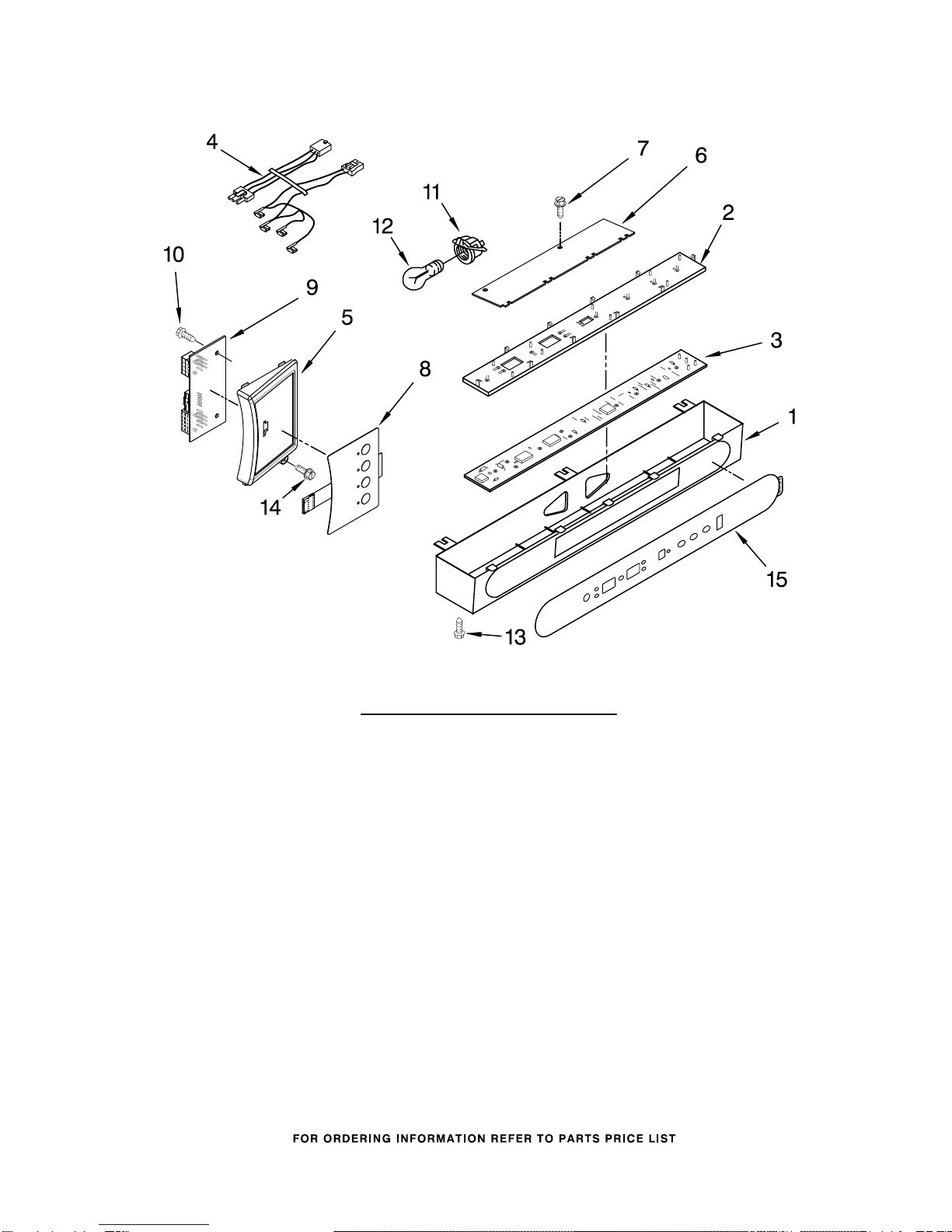

CONTROL PANEL PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

Illus. Part

No. No. DESCRIPTION

1 2215715 Control Box

2 2215670 Insert, Control

Box

3 2252110 Circuit Board,

Housing Control

4 2187424 Control Box

Wire Harness

5 2258914 Panel Control

Meat Pan

6 2221121 Support, Control

Box

7 489006 Screw (2)

8 2252067 Touch Pad, Meat

Pan

9 2252068 Display Board,

Temperature

Controlled Pan

10 2302712 Clip, Retainer

11 2162085 Socket, Light

12 2255743 Light Bulb

13 486194 Screw

14 8281185 Screw

15 2257518 Overlay

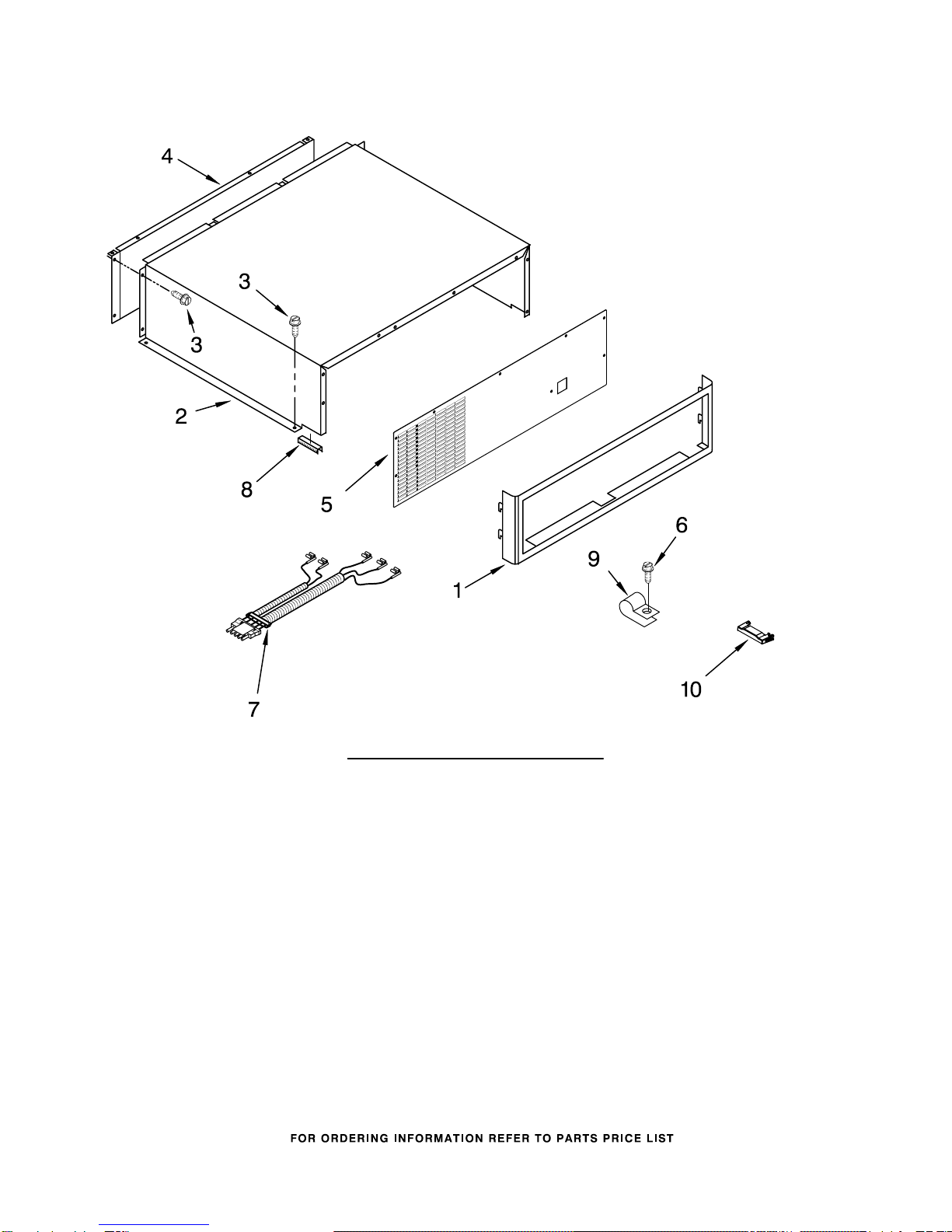

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

Illus. Part

No. No. DESCRIPTION

1 Top Grille

Assembly

2257401W White

2257401B Black

2257401X Etched Aluminum

2 2259320 Cover, Unit

3 486194 Screw

4 2256466 Back Panel

5 2259095 Cover, Unit Front

6 487415 Screw

7 2187429 Wire Assembly

RC/FC Light Switch

8 2215910 Grommet, Flexible

9 489348 Clamp

10 2221297 Enclosure,

Connector

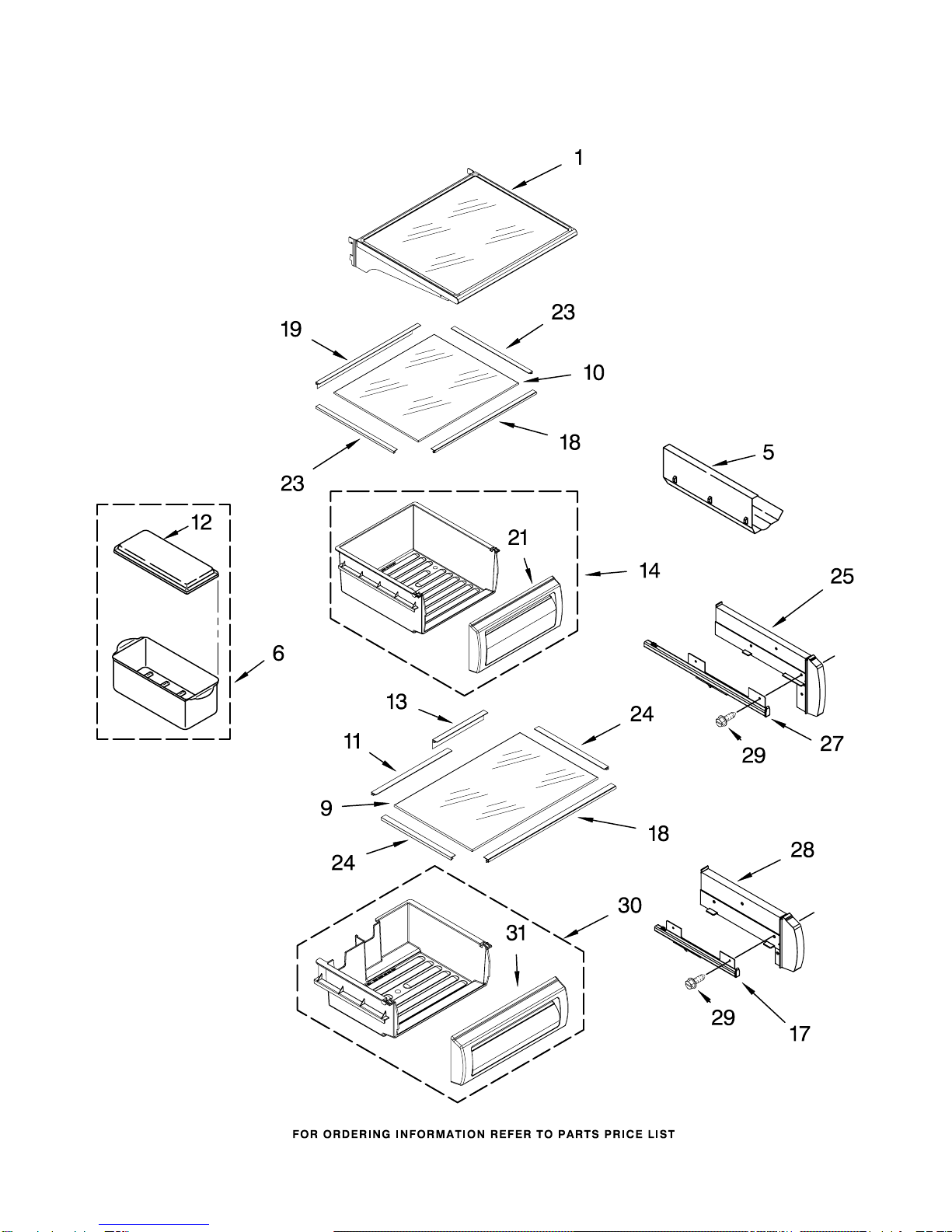

REFRIGERATOR SHELF PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

REFRIGERATOR SHELF PARTS

For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00

(White) (Black) (Etched Aluminum)

8198485

Illus. Part

No. No. DESCRIPTION

1 2222591 Shelf Assembly

5 2179404 Rack, Wine

6 2221071 Egg Bin

9 2256276 Glass, Meat Pan

Cover

10 2256426 Glass, Crisper

Cover

11 2257611 Trim, Glass Rear

Side

12 2169935 Cover

13 2257581 Trim, Glass Rear

14 2252411 Crisper Pan (2)

17 Slide, Meat Pan

2256245 Left Side

2256246 Right Side

18 2302830 Trim, Glass Front

19 2256253 Trim, Glass Rear

21 2256247 Front, Crisper

Pan

23 2252255 Trim, Glass Side

Crisper Pan

24 2256250 Trim, Glass Side

Meat Pan

25 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

27 Slide, Crisper

2222988 Right Side (2)

2222987 Left Side (2)

28 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

29 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

30 2256368 Pan Assembly

Meat

31 2256365 Front, Meat Pan
