KitchenAid KSSS42MAX03 Manuale utente

1 Cabinet (Not A Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front & Rear (4)

5 1112695 Leveler, Adjustable (2)

6 2000670 Adjusting Rod (2)

7 1113250 Sleeve, Retainer (2)

8 1112937 Bushing, Rod (2)

9 489359 Screw

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

13 1113122 Grommet, Wiring

14 2000834 Wiring Harness, Cabinet

15 1112848 Drain Fitting

16 Gap, Cover Assembly (Top)

2000305 Left Side

2000304 Right Side

17 2001295 Shoulder Screw

18 Hinge (Top)

2000306 Left Side

2000307 Right Side

19 2000770 Shim, Hinge Top

20 1112805 Guard, Wiring

21 487534 Screw (2)

23 1112992 Door Closer Assembly (2)

24 2000333 Bracket, Door Closer

25 486194 Screw,8x1/2

26 1112973 Tap Plate, Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover Assembly (Bottom)

2001200 Left Side

2001199 Right Side

29 Hinge (Bottom)

2001733 Left Side

2001732 Right Side

30 1112942 Shim, Hinge (1)

1112943 Shim, Hinge (2) Bottom (4)

31 2000490 Screw, 1/4-28 x 3/4

33 2001266 Tube clamp

34 2001963 Grille Base, Front

35 489238 Screw (6)

36 2000684 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

41 2001377 Screw

42 2000530 Grommet

43 2001415 Screw (8)

44 489359 Screw

1 2000651 Breaker Trim & Retainer Assembly

5 1112682 Magnet, Side (4)

6 1112684 Magnet, Freezer (2)

7 1112680 Magnet, Refrigerator (2)

9 2000321 Cabinet, Trim R.S

10 2000322 Cabinet, Trim L.S

11 2001297 Screw

12 1112801 Cabinet, Trim (Bottom)

13 488649 Screw, 8-32 x 1/2 (8)

14 2001310 Cabinet, Trim Top

15 2000007 Retainer, Unit Base (2)

16 487944 Washer (2)

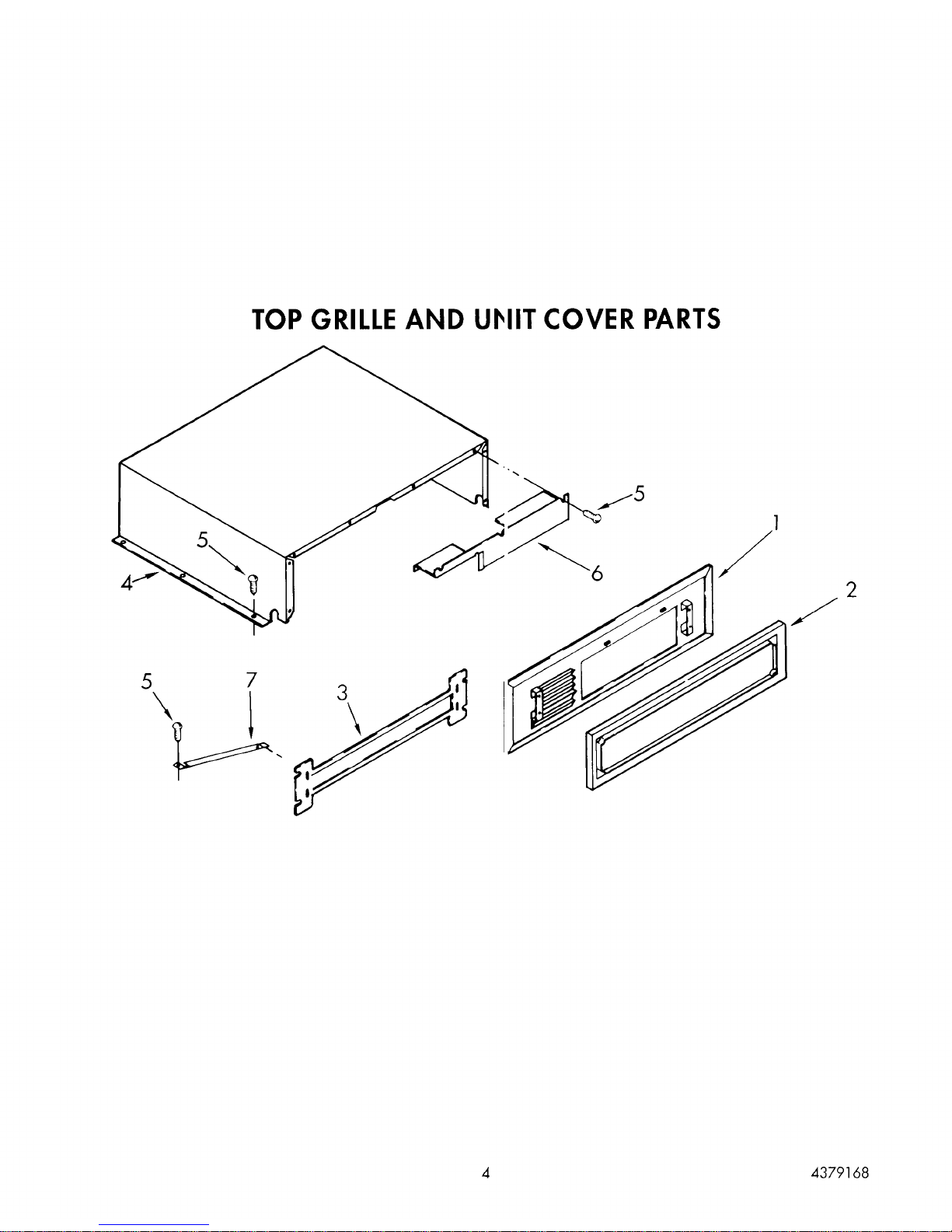

1 2001578 Top Grille Assembly

2 2001316 Decorative Panel Assembly

3 1113355 Back Up Panel

4 2001088 Cover Unit

5 481694 Screw,8x1/2

6 1113300 Cover, Component Assembly

7 1113317 Brace

1 LINER (Not A Serviceable Part)

2 1112591 Spacer, Control Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support, Ladder (8)

7 488357 Screw, 8 x 1-1/4 (8)

8 486194 Screw,8x1/2

9 1112257 Hole Plug

10 2000740 Meat Pan, Air Duct Cover (Also Order 12)

11 2000337 Meat Pan, Air Duct

12 2001302 Inlay, Control Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control, Meat Pan

15 2001735 Control Knob, Meat Pan

16 837444 Retainer, Knob

17 2000343 Air Baffle Assembly

20 2001073 Wiring Harness, Air Baffle

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2000736 Air Baffle Cover

26 2000527 Guard, Air Return

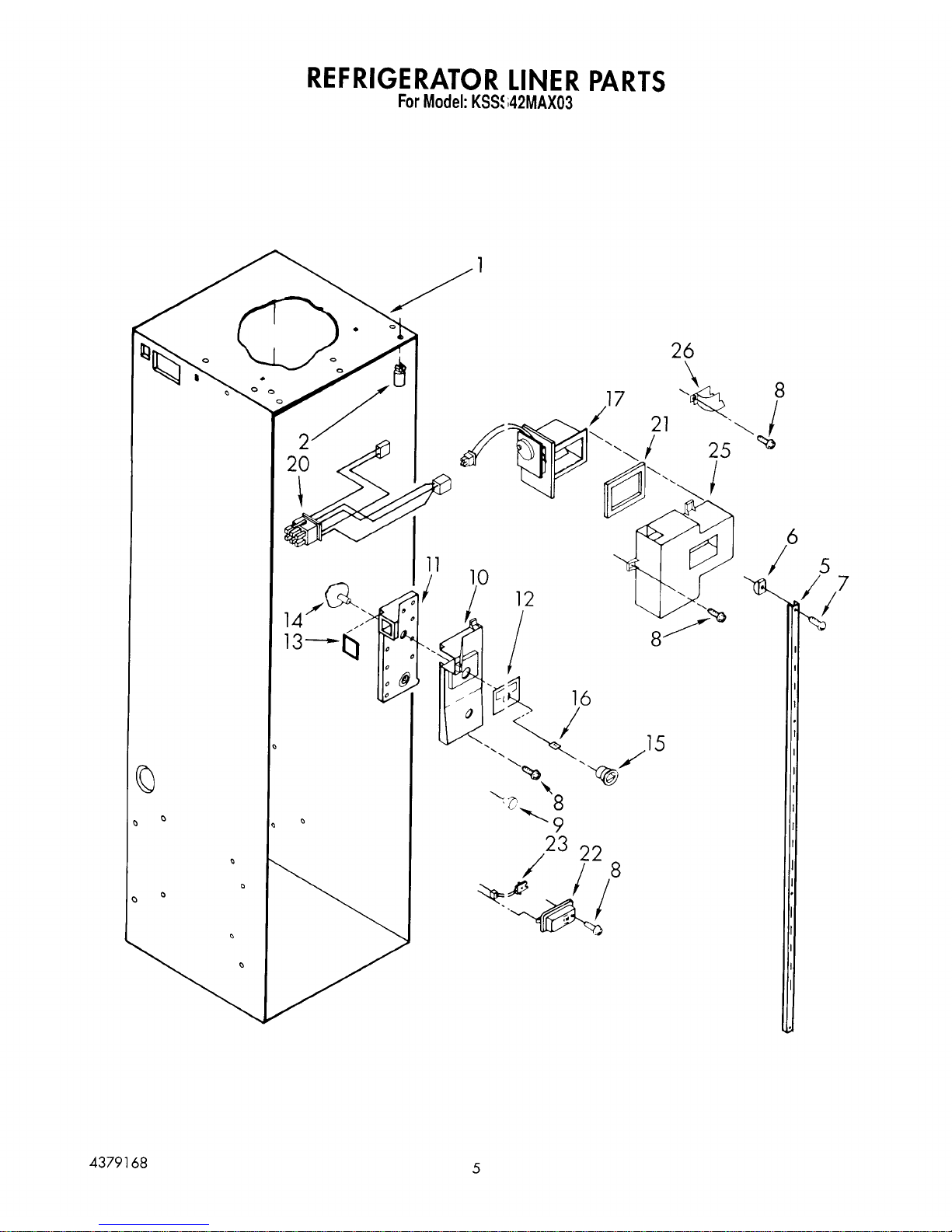

1 Liner (Not A Serviceable Part)

2 1113649 Bracket, Light

3 1113650 Light, Lens

4 1112613 Light, Socket

5 547225 Light Bulb

6 538533 Support Clip, Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw, 10-12 x 3/8 (2)

9 487294 Screw

12 486194 Screw,8x1/2

13 1112591 Spacer, Control Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support, Evaporator

17 658944 Stud, Shelf (20)

18 487559 Screw, 8-15 x 1-1/4 (20)
