CABINET PARTS

For Model: KSSS42QDX03

6−96 Litho In U.S.A. (tlf) Part No. 4394438

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: KSSS42QDX03

4394438

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cabinet (Not A

Serviceable Part)

2 1112019 Leveler, Front (2)

4 1112023 Roller, Front &

Rear (4)

5 1112695 Leveler,

Adjustable (2)

6 2000670 Adjusting Rod (2)

7 1113250 Sleeve,

Retainer (2)

8 1112937 Bushing, Rod (2)

9 489359 Screw

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

12 2002902 Stop Screw

13 1113122 Grommet, Wiring

14 2002804 Wiring Harness,

Cabinet

15 1112848 Drain Fitting

17 2001295 Shoulder Screw

18 Hinge (Top)

2001976 Left Side

2001975 Right Side

19 2000770 Shim, Hinge

Top

20 1112805 Guard, Wiring

21 487534 Screw (2)

22 2002903 Bushing

23 1112992 Door Closer

Assembly (2)

24 2000333 Bracket, Door

Closer

25 486194 Screw

26 1112973 Tap Plate,

Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover

Assembly (Bottom)

2003386 Left Side

2003387 Right Side

29 Hinge (Bottom)

2001978 Left Side

2001977 Right Side

30 1112942 Shim, Hinge (1)

1112943 Shim, Hinge (2)

31 2000490 Screw

33 2001266 Tube clamp

34 2001963 Grille Base,

Front

35 489238 Screw (6)

36 2000684 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

39 2003472 Cup, Wiring

40 2003474 Seal

41 2001377 Screw

42 2150347 Union

43 2001415 Screw (4)

44 489359 Screw

CABINET TRIM PARTS

For Model: KSSS42QDX03

4394438

Illus. Part

No. No. DESCRIPTION

1 2003643 Cabinet, Trim (2)

2 2003857 Screw

3 2001297 Screw

4 2003591 Cabinet, Trim

(Bottom)

5 488649 Screw

6 2003646 Cabinet, Trim Top

8 487944 Washer (2)

FREEZER LINER PARTS

For Model: KSSS42QDX03

4394438

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 1113649 Bracket, Light

3 1113650 Lens

4 1112613 Light, Socket

5 548049 Light, Bulb

6 538533 Support Clip,

Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw

12 486194 Screw

13 1112591 Spacer, Control

Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support,

Evaporator

17 2004068 Stud, Shelf (20)

18 487559 Screw

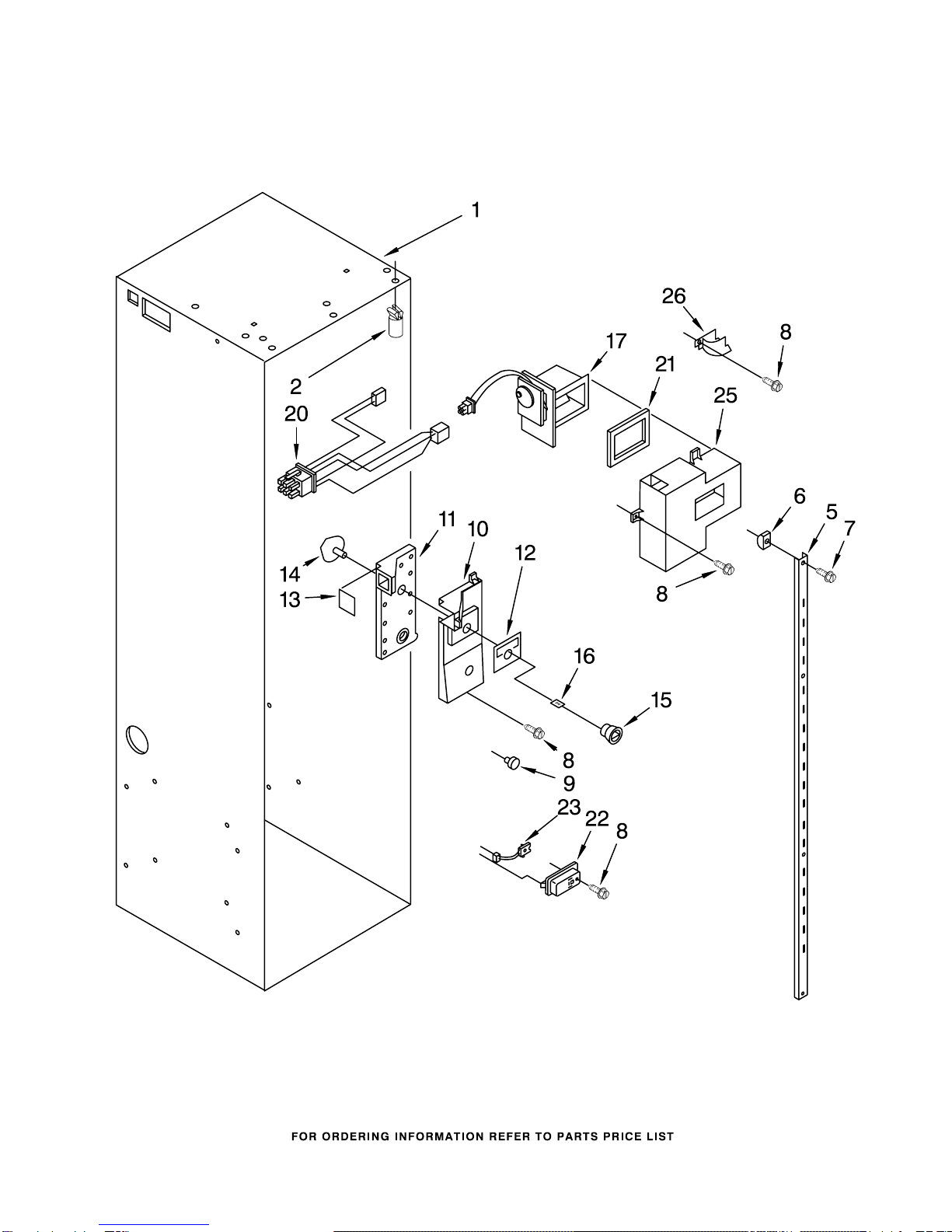

REFRIGERATOR LINER PARTS

For Model: KSSS42QDX03

4394438

REFRIGERATOR LINER PARTS

For Model: KSSS42QDX03

4394438

Illus. Part

No. No. DESCRIPTION

1 LINER (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2003579 Meat Pan, Air

Duct Cover

11 2000337 Meat Pan, Air Duct

12 2003299 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2003811 Control Knob,

Meat Pan

16 837444 Retainer, Knob

17 2000343 Air Baffle

Assembly

20 2001073 Wiring Harness,

Air Baffle

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2003578 Air Baffle Cover

26 2000527 Guard, Air Return

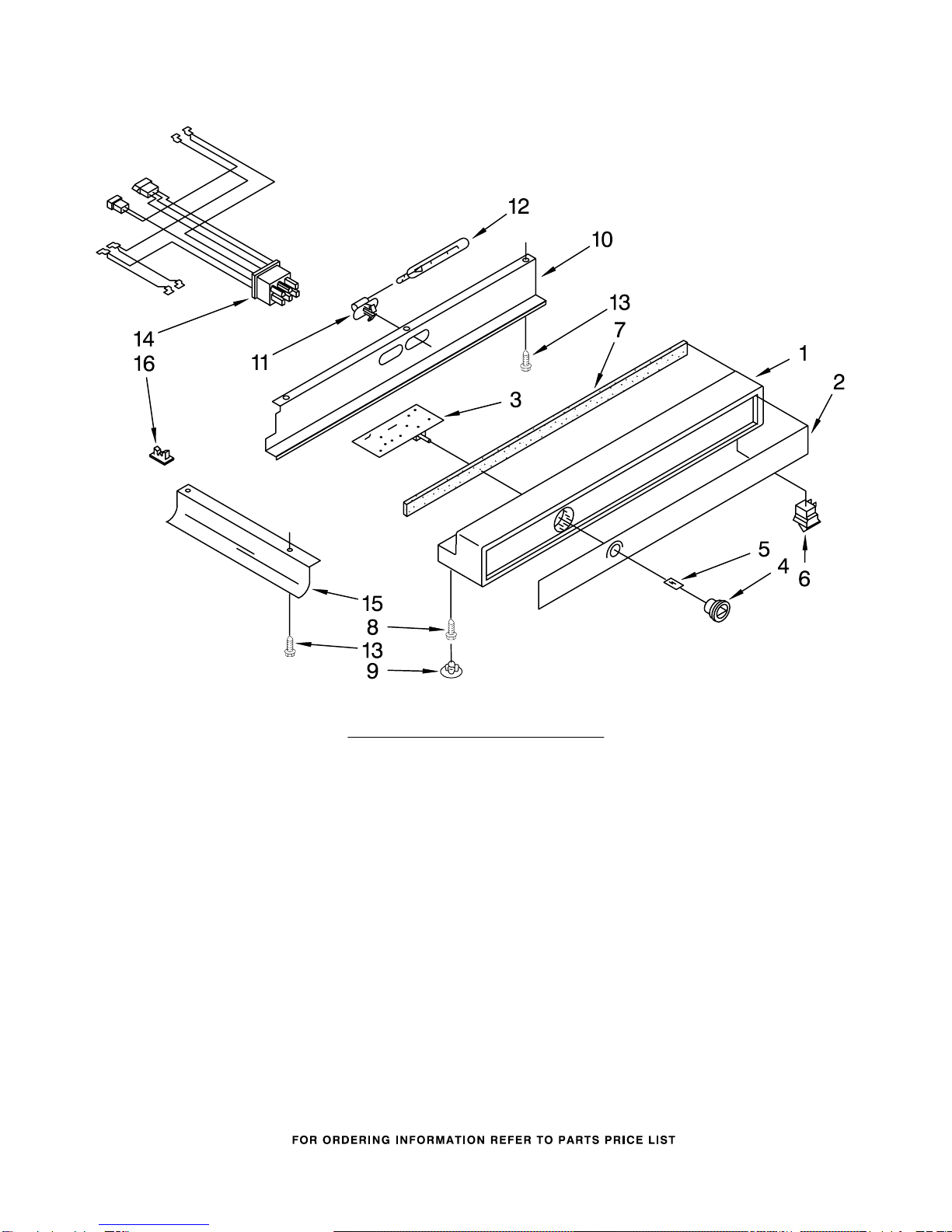

REFRIGERATOR CONTROL PANEL PARTS

For Model: KSSS42QDX03

4394438

Illus. Part

No. No. DESCRIPTION

1 1112641 Control Panel

2 2003302 Inlay, Control

Panel

3 2000789 Circuit Board

4 2182110 Control Knob

5 837444 Retainer, Knob

6 1118894 Switch, Rocker Arm

7 1113135 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113774 Shield, Control

Panel

11 1112613 Socket, Light (2)

12 548049 Light Bulb (2)

13 486194 Screw

14 2001074 Control, Harness

15 2001141 Channel, Wiring

16 1115375 Clip, Wiring (2)

FREEZER CONTROL PANEL PARTS

For Model: KSSS42QDX03

4394438

Illus. Part

No. No. DESCRIPTION

1 1113626 Control Panel

2 2003308 Inlay, Control

Panel

3 1113466 Thermostat &

Barrier Assembly

4 488974 Screw (2)

5 1115373 Switch, Rocker Arm

6 1113134 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113768 Shield, Control

Panel

11 1112613 Socket, Light

12 486194 Screw

13 548049 Light Bulb

14 2001973 Channel, Wiring

16 2182112 Knob, Thermostat

17 1115375 Clip, Wiring

REFRIGERATOR SHELF PARTS

For Model: KSSS42QDX03

4394438

REFRIGERATOR SHELF PARTS

For Model: KSSS42QDX03

4394438

Illus. Part

No. No. DESCRIPTION

1 2174403 Frame, Shelf

2 2003376 Glass, Shelf

3 1113547 Reflector, Shelf

4 1113791 Gasket, Glass

5 2179375 Rack, Wine

6 2169933 Egg Bin

7 2003326 Frame, Assembly

Meat Pan

8 2164373 Egg Carrier

9 1113894 Cover, Crisper

10 2003379 Glass, Crisper

(Includes #9)

11 2000742 Meat Pan,

Connector

12 2169935 Cover

14 2003316 Crisper Pan (2)

15 2174388 Roller

16 2174478 Eyelet, Roller

17 489211 Screw

20 2003321 Meat Pan

23 2002181 Retainer, Glass

25 2003411 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 2003410 Crisper Spacer,

Left Side (2)

29 486194 Screw
