KitchenAid KSSS48MAX03 Manuale utente

CABINET PARTS REFRIGERATOR

For Model: KSSS48MAX03

Part No. 4379181

9−93 Litho In U.S.A.

CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KSSS48MAX03

4379181

1 Cabinet (Not A

Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front &

Rear (4)

5 1112695 Leveler,

Adjustable (2)

6 2000670 Adjusting Rod (2)

7 1113250 Sleeve,

Retainer (2)

8 1112937 Bushing, Rod (2)

9 489359 Screw

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

13 1113122 Grommet, Wiring

14 2000835 Wiring Harness,

Cabinet

15 1112848 Drain Fitting

16 Gap, Cover

Assembly (Top)

2000305 Left Side

2000304 Right Side

17 2001295 Shoulder Screw

18 Hinge (Top)

2000306 Left Side

2000307 Right Side

19 2000770 Shim, Hinge

Top

20 1112805 Guard, Wiring

21 487534 Screw (2)

23 1112992 Door Closer

Assembly (2)

24 2000333 Bracket, Door

Closer

25 486194 Screw, 8 x 1/2

26 1112973 Tap Plate,

Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover

Assembly (Bottom)

2001200 Left Side

2001199 Right Side

29 Hinge (Bottom)

2001733 Left Side

2001732 Right Side

30 1112942 Shim, Hinge (1)

1112943 Shim, Hinge (2)

Bottom (4)

31 2000490 Screw,

1/4−28 x 3/4

33 2001266 Tube clamp

34 2001964 Grille Base,

Front

35 489238 Screw (6)

36 2000684 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

41 2001377 Screw

42 2000530 Grommet

43 2001415 Screw (4)

44 489359 Screw

CABINET TRIMS AND BREAKER TRIM PARTS

For Model: KSSS48MAX03

4379181

CABINET TRIMS AND BREAKER TRIM PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSS48MAX03

4379181

1 2001764 Breaker Trim &

Retainer Assembly

5 1112682 Magnet, Side (4)

6 1112679 Magnet,

Freezer (2)

7 1112681 Magnet,

Refrigerator (2)

9 2000321 Cabinet, Trim R.S

10 2000322 Cabinet, Trim L.S

11 2001297 Screw

12 1112802 Cabinet, Trim

(Bottom)

13 488649 Screw,

8−32 x 1/2 (8)

14 2001311 Cabinet, Trim Top

15 2000007 Retainer, Unit

Base (2)

16 487944 Washer (2)

REFRIGERATOR LINER PARTS

4379181

For Model: KSSS48MAX03

REFRIGERATOR LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSS48MAX03

4379181

1 LINER (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw,

8 x 1−1/4 (8)

8 486194 Screw, 8 x 1/2

9 1112257 Hole Plug

10 2000740 Meat Pan, Air

Duct Cover

(Also Order 12)

11 2000337 Meat Pan, Air Duct

12 2001302 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2001735 Control Knob,

Meat Pan

16 837444 Retainer, Knob

17 2000343 Air Baffle

Assembly

20 2001073 Wiring Harness,

Air Baffle

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2000736 Air Baffle Cover

26 2000527 Guard, Air Return

FREEZER LINER PARTS

Illus. Part

No. No. DESCRIPTION

4379181

For Model: KSSS48MAX03

1 Liner (Not A

Serviceable Part)

2 1113649 Bracket

3 1113650 Light Lens

4 1112613 Light Socket

5 547225 Light Bulb

6 538533 Support Clip,

Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw,

10−12 x 3/8 (2)

12 486194 Screw, 8 x 1/2

13 1112591 Spacer, Control

Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support,

Evaporator

17 658944 Stud, Shelf (8)

18 487559 Screw,

8−15 x 1−1/4 (8)

Illus. Part

No. No. DESCRIPTION

TOP GRILLE AND UNIT COVER PARTS

84379181

For Model: KSSS48MAX03

1 2001317 Decorative

Panel Assembly

2 1113356 Back Up Panel

3 2001579 Top Grille

Assembly

4 2001088 Cover, Unit

5 486194 Screw

6 1113300 Cover, Component

Assembly

7 1113317 Brace

REFRIGERATOR SHELF PARTS

For Model: KSSS48MAX03

4379181

REFRIGERATOR SHELF PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

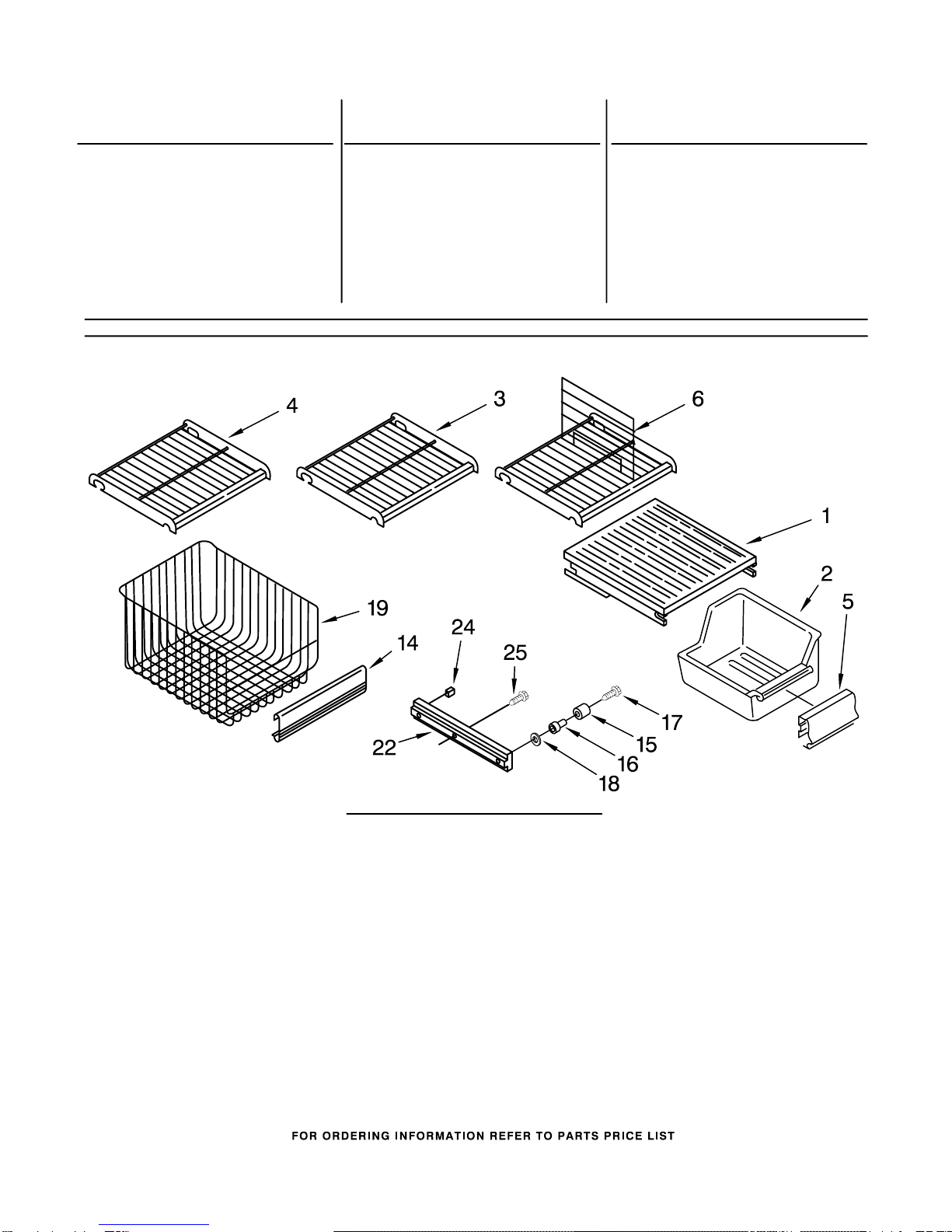

FREEZER SHELF PARTS

For Model: KSSS48MAX03

4379181

1 1112004 Frame, Shelf

2 1113956 Glass, Shelf

3 1112006 Reflector, Shelf

4 1113792 Gasket, Glass (2)

5 1125913 Rack, Wine

6 1112324 Retainer Glass

7 1112014 Frame Assembly

9 1112247 Cover, Crisper

10 1113238 Glass, Crisper

11 2000742 Meat, Pan

Connector

14 2000554 Crisper Pan

15 1113870 Roller

16 1113871 Eyelet, Roller

17 489211 Screw, 10−16 x 3/4

18 488307 Washer

19 2000557 Utility Pan

20 2000817 Meat Pan

25 1112165 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 1113890 Crisper Spacer,

Left Side (2)

29 486194 Screw, 8 x 1/2

1 1113630 Solid Shelf

2 837141 Ice Cube Pan

3 1112052 Shelf, Fixed

4 1113638 Shelf, Fixed (2)

(Large)

5 1122530 Trim

6 1113635 Shelf

14 1113644 Trim, Basket

15 1113870 Roller

16 1113871 Eyelet, Roller

17 489211 Screw, 10−16 x 3/4

18 488307 Washer

19 2001626 Basket

22 2000061 Slide, Basket R.S.

2000062 Slide, Basket L.S.

24 1113169 Stop, Roller

25 486194 Screw, 8 x 1/2
