KitchenAid KSSS48MWX01 Manuale utente

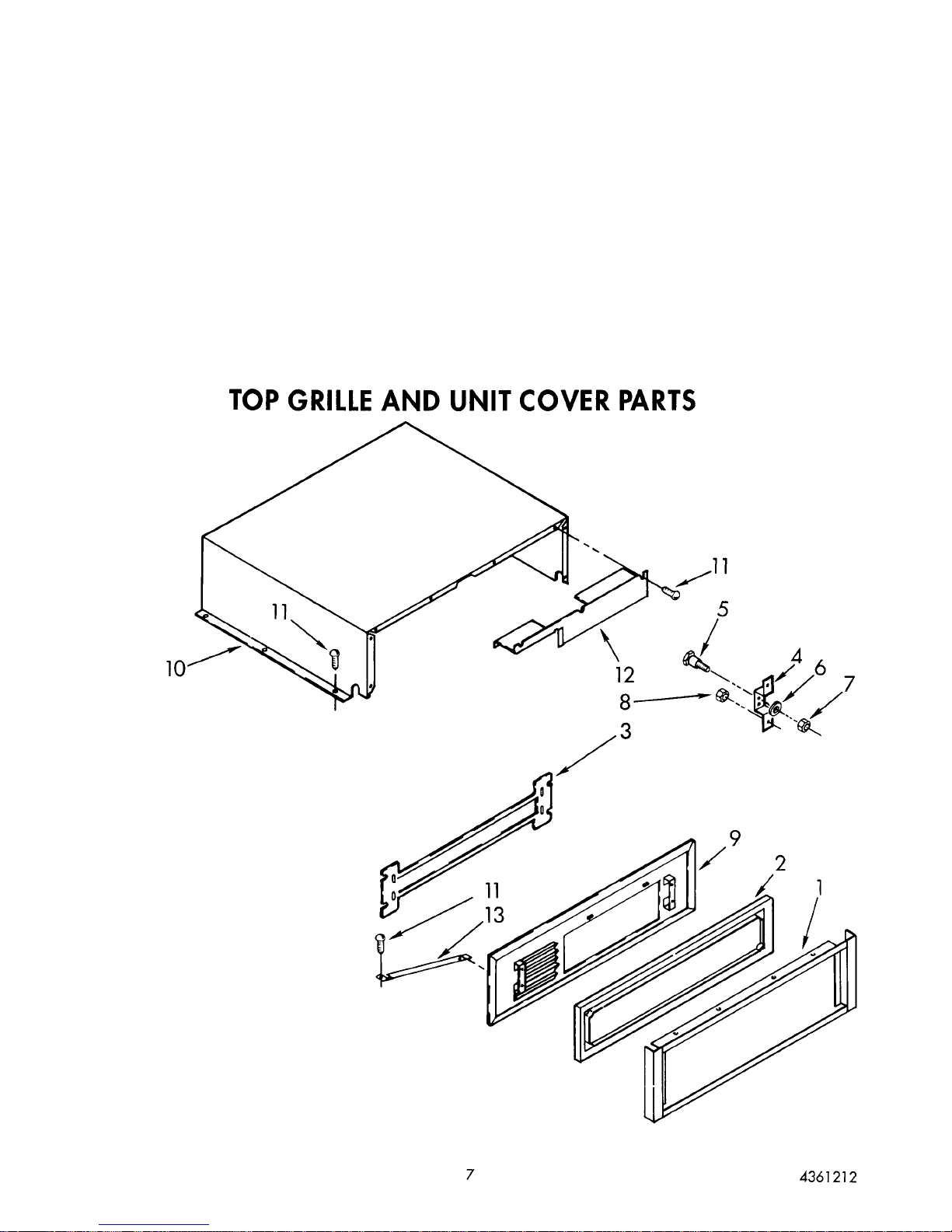

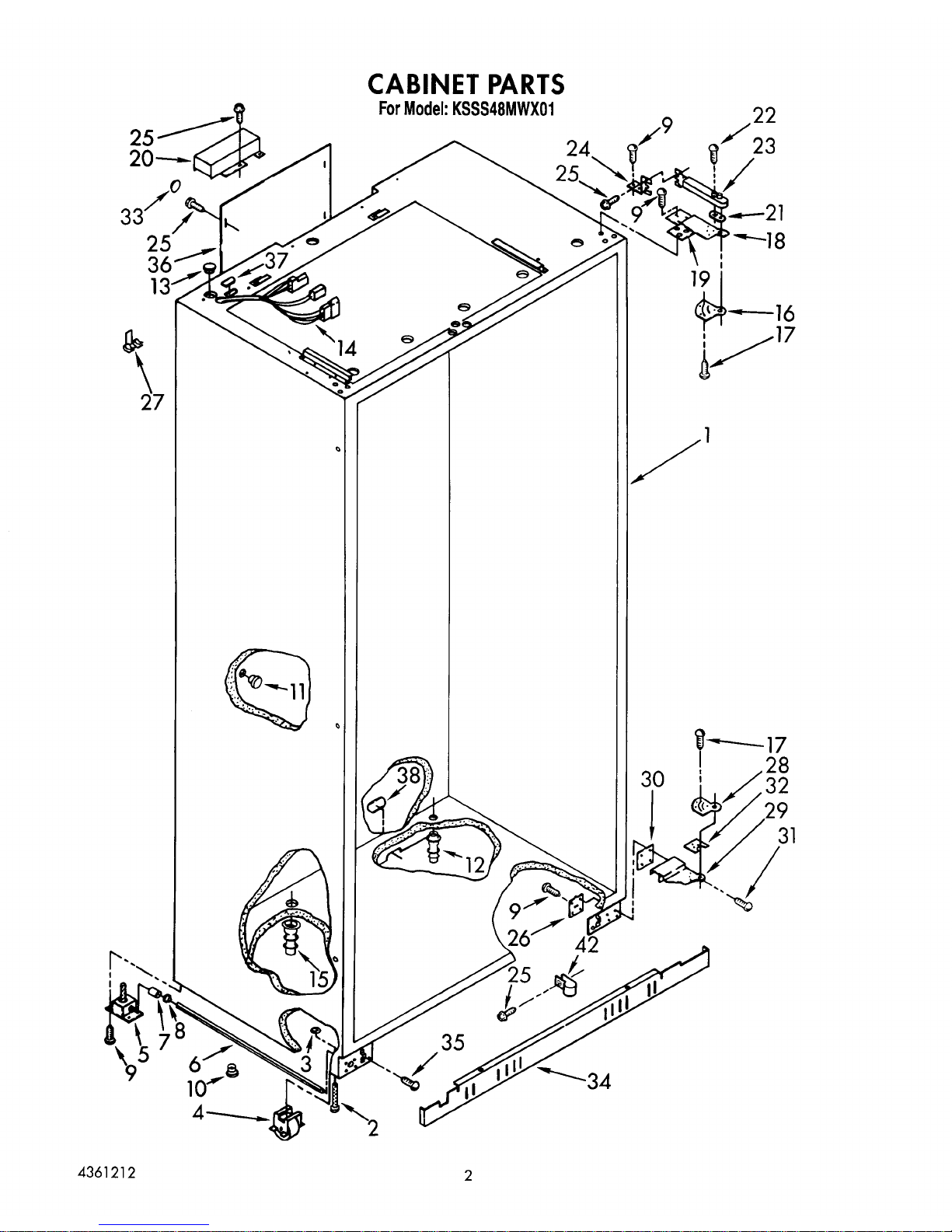

1 Cabinet (Not A Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front & Rear (4)

5 1112695 Leveler, Adjustable (2)

6 1112936 Adjusting Rod (2)

7 1113250 Sleeve, Retainer (2)

8 1112937 Bushing, Rod (2)

9 2000489 Screw, 10-32 x 5/8

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

12 1112970 Grommet, Water Tube

13 1113122 Grommet, Wiring

14 2000617 Wiring Harness, Cabinet

15 1112848 Drain Fitting

16 Gap, Cover Assembly (Top)

2001199 Left Side

2001200 Right Side

17 1112906 Shoulder Screw

18 Hinge (Top)

1112901 Left Side

1112912 Right Side

19 1112988 Shim, Hinge Top (4)

20 1112805 Guard, Wiring

21 1112907 Door Closer, Fixed Cam

22 487818 Screw, 8-32 x 5/16

23 1112992 Door Closer Assembly (2)

24 Bracket, Door Closer

1112947 Left Side

1112948 Right Side

25 486194 Screw,8x1/2

26 1112973 Tap Plate, Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover Assembly (Bottom)

2001200 Left Side

2001199 Right Side

29 Hinge (Bottom)

1112919 Left Side

1112923 Right Side

30 Shim, Hinge

1112942 1 Each

1112943 2 Each

31 2000490 Screw,

32 1113809 Spacer Lower Door Hinge

33 1105408 Hole Seal

34 1112139 Grille Base, Front

35 489238 Screw (6)

36 1112835 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

42 1113067 Clamp, Tube

1 1112667 Breaker Trim, (One Piece)

2 1113277 Retainer Side (4)

3 1112754 Retainer Trim Freezer (2)

4 1112687 Retainer Trim Refrigerator (2)

5 1112682 Magnet, Side (4)

6 1112679 Magnet, Freezer (2)

7 1112681 Magnet, Refrigerator (2)

8 1112712 Heater, Mullion

9 1113836 Trim (R.S.)

10 1113835 Trim (L.S.)

11 489238 Screw (12)

487246 Screw (Repair)

12 1112802 Trim (Bottom)

13 488649 Screw, 8-32 x 1/2 (8)

14 1113844 Spacer Trim, Grille

15 1113604 Retainer, Unit Base (2)

16 487944 Washer (2)

1 Liner (Not A Serviceable Part)

2 1113649 Bracket, Light

3 1113650 Lens, Light Lower

4 1112613 Socket, Light

5 547225 Bulb, Light

6 538533 Support Clip, Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw, 10-12 x 3/8 (2)

9 487294 Screw

11 Rail, Evaporator Cover

2000956 Left Side

2000957 Right Side

12 486194 Screw,8x1/2

13 1112591 Spacer, Control Panel (3)

14 842534 Clip, Air Duct (4)

15 842339 Grommet (15)

16 1112260 Support, Evaporator

17 658944 Stud, Shelf (8)

18 487559 Screw, 8-15 x 1-1/4 (8)

19 1112843 Gasket, Evaporator Cover (2)

1 945523 Fan Motor

2 992953 Compression Ring

3 992920 Fan Blade

4 548263 Bracket (Double)

5 938224 Bracket (Single)

6 548268 Grommet

7 486194 Screw,8x1/2

8 538449 Grommet, Screw

9 488500 Screw, Ground

12 1112707 Channel, Wiring

13 2000618 Wiring Harness, Fan Motor

14 1111212 Scroll, Fan (Also Order Item 15)

15 1112976 Shield, Electric

16 488772 Screw,8x1/2

17 2000060 Assembly, Air Duct

18 2000048 Air Deflector, Icemaker

19 1112529 Baffle, Evap. Cover

22 1112869 Gasket, Air Baffle

23 1113942 Cover, Air Outlet

24 488748 Screw, 8-32 x 1-1/2

25 2000487 Cover, Evaporator

26 1112565 Connector, Meat Pan Duct

27 487539 Screw,8x1/2

28 1112840 Baffle, Evaporator

29 1112853 Diffuser, Air Duct

35 1113590 Assembly, Air Baffle

38 1113940 Cover, Air Diffuser

39 489174 Screw,8x2

41 1112265 Tube, Meat Pan
