KitchenAid KTRC22KBAL00 Manuale utente

CABINET PARTS

Part No. 4379209

12−93 Litho In U.S.A.

REFRIGERATOR

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

CABINET PARTS

4379209

1 Cabinet (Not A

Serviceable Part)

2 2152011 Roller, Front

3 489393 Screw,

5/16−24 x 1−1/4

4 981122 Roller, Rear (2)

5 489339 Screw

6 489242 Screw

7 Hole Plug

2151652 White

2151653 Almond

8 489385 Clamp, Tube

9 1126276 Control, Front

Cover

10 2157307 Heater, Mullion

11 1129018 Clip, Center

Rail (4)

12 2149077 Spacer (3)

13 2172705 Center Rail

14 489367 Screw

17 2157593 Hinge, Top

18 2157269 Shim, Hinge Top

19 Hinge Cover

2160403 White

2160404 Almond

20 489105 Screw

21 2147335 Hinge, Center

22 836155 Shim, Hinge

Center

23 2154070 Fitting−Water Tube

24 487802 Washer, 11/64

26 2157300 Hinge Butt,

Bottom

31 2172744 Spacer

32 2155013 Clip, Grille

33 Corner Filler,

Grille

1125665 White

1125670 Almond

34 Filler, Wrap

Corner

1118058 White

1118059 Almond

35 Grille

1125663 White

1125667 Almond

36 1129062 Hole Plug

37 2153994 Wiring Assy.

Intermediate

38 489048 Screw, 8−32 x 1/2

39 487996 Cap

40 1106508 Gasket

41 488725 Screw

44 937360 Cord, Service

48 2160490 Cover, Unit

53 489084 Screw

59 488725 Screw,

8 x 13/16

60 489174 Screw

61 2157315 Tap−Plate,

Bottom Hinge

68 549193 Clamp

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

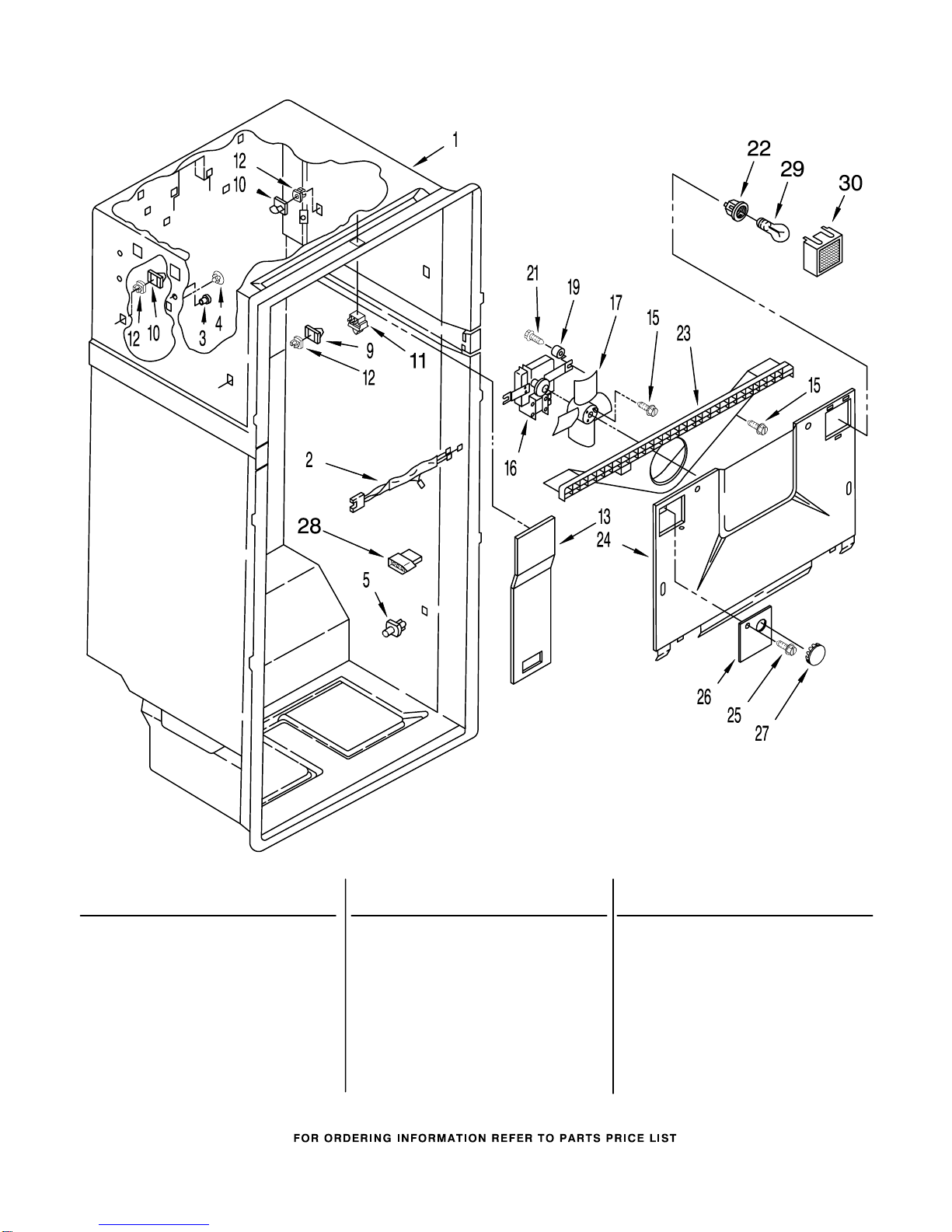

LINER PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

4379209

1 Liner (Not A

Serviceable Part)

2 1127626 Wiring, Fan Motor

3 1110779 Grommet (4)

4 941839 Hole Plug

5 1106612 Stud (2)

9 946356 Stud (2)

10 946357 Saddle Stud, R.S.

946358 Saddle Stud, L.S.

11 1108112 Rocker Arm Switch

12 946355 Support, Stud (6)

13 2157411 Cover, Air Duct

15 489242 Screw

16 2169116 Motor, Fan

17 2162448 Blade, Fan

19 531933 Grommet (2)

21 489168 Screw

22 2155597 Socket, Light

23 2160644 Scroll, Fan

24 2157427 Evaporator Cover

25 489196 Screw

26 944759 Hole Cover,

Evaporator

27 1103725 Hole Plug

28 934326 Housing Plug

29 946059 Light Bulb

30 981365 Light Lens

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

COMPARTMENT SEPARATOR PARTS

Illus. Part

No. No. DESCRIPTION

1 1125507 Bottom,

Compartment

Separator

2 1125510 Box, Control

3 2149705 Switch, Light

4 2162044 Timer, Defrost

(10 Hour)

5 488693 Screw

6 1125964 Switch, Toggle

7 2162085 Socket (2)

8 946059 Bulb, Light (2)

9 940014 Hole Plug

10 2159753 Thermostat

11 489214 Screw

12 1125511 Light Pipe (R.S.)

13 1128288 Tube Barrier,

Thermostat

14 1125512 Light Pipe (L.S.)

15 1125515 Connecting Rod,

Short

16 1125514 Rod, Connecting

17 2157252 Air Diffuser

Assembly

18 2157255 Gasket, Air

Diffuser

19 1108176 Cover, Air

Diffuser

20 1125581 Pivot Arm

21 2154921 Wire Assembly

22 2153995 Wiring Assembly,

Control Box

23 2159684 Gasket, Bottom

Separator

24 489048 Screw,

8−32 x 1/2

26 1108196 Insulation, Filler

27 1105464 Insulation,

Compartment

Separator

28 1125513 Slide, Thermostat

29 1125578 Slide, Air Control

30 1125579 Window, Air

Control

31 1125580 Window,

Thermostat

33 2151663 Separator,

Compartment (Top)

34 937065 Cup, Drain

36 489242 Screw

4379209

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

SHELF PARTS

4379209

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

SHELF PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

4379209

Parts Not Illustrated and

Optional Parts (Not Included)

Miscellaneous

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

503695 Cork Sealer

(1/4 Pound)

2172757 Door Reversal

Instructions

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350941 Leveler, Enamel

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Caution: The Spray Paint Is Not

To Be Used Where The Paint

May Make Contact With The

Door Gaskets

LITERATURE PARTS

LIT2168826 Energy Guide

LIT1126426 Care & Use Guide

LIT2169124 Service & Wiring

Sheet

FIELD INSTALLABLE

ICE MAKER

KIMS8

Part No. 1129318

TORX SCREW WRENCH

1117510 Torx Key

1 1114466 Shelf, Ladder (2)

2 1114465 Shelf, Ladder

Center

3 520965 Screw, Support (4)

5 489345 Screw

6 488163 Screw,

8 x 1−1/4

7 1125520 Shelf,

Cantilever

8 1125782 Gasket (Front)

9 1126311 Pan Cover Assembly

10 1116512 Gasket, Pan Cover

(Front) (2)

11 1126310 Glass, Pan Cover

12 1126267 Pan Shelf,

Cantilever

13 1105653 Gasket, Pan Cover

(Rear) (2)

14 2161264 Container

15 2172748 Crisper, Support

16 1125521 Glass, Shelf

17 1125540 Shelf, Freezer

19 2168880 Pan, Crisper

20 2168881 Pan, Meat

21 1125561 Ice Cube Pan

22 841180 Ice Tray (4)

23 1110744 Retainer, Shelf

24 1125523 Shelf, Full

Cantilever

25 1125783 Gasket (Front)

26 1125524 Glass, Full Shelf

27 1125525 Retainer, Shelf

30 1125542 Divider

31 1125543 Shelf, Ice Tray

36 1125913 Wine & Egg Rack

37 2172711 Trim, Crisper

38 2168723 Front, Crisper

39 1125853 Slide, Front

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

UNIT PARTS

4379209

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

UNIT PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

84379209

1 486692 Speed Nut

2 851732 Fan, Blade

3 2154010 Condenser

Assembly

5 548745 Clip, Wire (2)

6 489019 Screw,

8−32 x 3/8

7 2153974 Drain Pan &

Heat Shield

11 Strap

2165001 Production

938384 Service

12 Cover

2162358 Production

1108115 Service

13 Overload

2159596 Production

(Includes Relay)

2154760 Service

(Includes Relay)

15 Relay

(See Overload)

16 1118850 Housing Plug

17 2154565 Capacitor

18 2172811 Drain Fitting

19 509812 Grommet, Screw

22 2153978 Evaporator

23 2154109 Tube, Process

24 2154735 Fan, Motor

25 2154114 Tray, Evaporator

26 2162475 Tube, Discharge

27 2164409 Drier

28 2162354 Compressor

(Includes Items

11, 12, 13, 15,

27 & 38)

(Also Order

876765 Tube Kit)

29 2149120 Support−Heater

30 2160500 Unit Mounting

Frame

31 2155774 Strap

32 2162062 Fan, Motor Bracket

33 2162019 Heater−Defrost

34 2154032 Tube, Condenser

To Heat Loop

35 2149643 Bi−Metal, Defrost

36 2162472 Tube, Suction

37 489373 Screw, 1/4−28 x 1

38 1127675 Wire Asm. Service

39 1100826 Grommet (4)

40 489340 Screw

41 2162457 Air Baffle

42 488687 Screw, 8 x 5/8

43 2162499 Sleeve

48 2149717 Unit Mounting

Rail

49 489337 Screw

50 1105612 Guard, Fan

51 2154119 Drain Extension

53 488454 Screw,

1/4−28 x 1/2

54 Support−Evaporator

1118805 R.S.

2159708 L.S.

57 2160505 Cover−Unit Btm.

58 489396 Clip

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

5.5 Ozs.

REFRIGERANT CHARGE

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

REFRIGERATOR DOOR PARTS

4379209

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

REFRIGERATOR DOOR PARTS

Illus. Part

No. No. DESCRIPTION

10 4379209

1 Panel, Refrigerator

Door

1122549 White

1122658 Almond

(Also Order

Item 27)

2 1125936 Butter Tray

3 943185 Plate, Tap (4)

4 944036 Bracket, Door

Stop

5 488921 Screw, 8 x 1/2

6 489028 Screw, 8−15 x 1/2

7 Hole Plug

844478 White

989196 Almond

8 2148565 Door Gasket,

Magnetic

9 Screw

489101 7 x 1/2 (20)

489287 (8)

489084 (Repair)

10 1107209 Retainer, Insert

11 1107236 End Cap, Handle

12 2161508 Handle

13 2151813 Shim, End Cap

15 2151669 Screw Anchor (2)

16 489006 Screw, 8 x 5/8

17 487909 Screw, 8 x 1/2

18 1107650 Spacer, Handle

19 1126203 Interior Door

Panel

20 Insert, Handle

2161513 White

2161514 Almond

21 1125695 Gasket, Door Util.

22 1125733 Utility Door

23 1126206 Shelf Bin (Wide)

24 Hole Plug, Handle

1122653 White

1122654 Almond

26 1125676 Shelf Bin (2)

27 876029 Foam Insulation

(Required When

Replacing Exterior

Door Panel)

28 1122551 Retainer, Gasket

29 1125557 Trim, Door Shelf

30 1122552 Retainer, Gasket

33 1126497 Trim, Door Shelf

(White) (Almond)

For Model: KTRC22KBWH00, KTRC22KBAL00

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KitchenAid Frigorifero

KitchenAid

KitchenAid KBFN402ESS Manuale utente

KitchenAid

KitchenAid KBLC36FTS - 36" Bottom-Freezer Refrigerator Manuale utente

KitchenAid

KitchenAid 2317086 Manuale utente

KitchenAid

KitchenAid KBFS20EVBL - 19.7 cu. Ft. Bottom Mount... Manuale utente

KitchenAid

KitchenAid KSRS25RS Manuale utente

KitchenAid

KitchenAid KSCS25MVMK00 Manuale utente

KitchenAid

KitchenAid KSRS25FGSS13 Guida alla risoluzione dei problemi

KitchenAid

KitchenAid KSRS25QDAL01 Manuale utente

KitchenAid

KitchenAid W10417002A Manuale utente

KitchenAid

KitchenAid FOR THE WAY IT'S MADE KSSS42MDX02 Manuale utente

KitchenAid

KitchenAid KBRC36FMS00 Manuale utente

KitchenAid

KitchenAid KSSP48QJS00 Manuale utente

KitchenAid

KitchenAid KSSS48QJB00 Manuale utente

KitchenAid

KitchenAid KBLS22KTSS - 21.9 Bottom-Freezer... Guida alla risoluzione dei problemi

KitchenAid

KitchenAid KBLS22KVSS1 Manuale utente

KitchenAid

KitchenAid KSBP25IVSS Manuale utente

KitchenAid

KitchenAid KSRS25ILBL13 Guida alla risoluzione dei problemi

KitchenAid

KitchenAid KSSS48DAW01 Manuale utente

KitchenAid

KitchenAid KSSO36QMB01 Manuale utente

KitchenAid

KitchenAid KSSS48QHX00 Manuale utente

KitchenAid

KitchenAid KSCS25FSBL00 Manuale utente

KitchenAid

KitchenAid KFIS29BBBL Manuale utente

KitchenAid

KitchenAid KSSS42DWW01 Manuale utente

KitchenAid

KitchenAid KBLS20EVMS00 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente

Teledyne

Teledyne 6712FR and Istruzioni operative
