INSTRUCTION MANUAL

ENGLISH

MM700

1000V

10A

40M

• DATA & RANGE HOLD

• LOW IMPEDANCE

• AUDIBLE CONTINUITY

• MIN / MAX / RELATIVE

• TEMPERATURE

• DIODE TEST

• CAPACITANCE &

FREQUENCY

Auto-Ranging

Digital Multimeter

True RMS

Measurement

Technology

GENERAL SPECIFICATIONS

Klein Tools MM700 is an automatically ranging true root mean square

(TRMS) digital multimeter that measures AC/DC voltage, AC/DC current,

and resistance. It can also measure temperature, capacitance, frequency,

duty-cycle, test diodes and continuity.

• Operating Altitude: 6562 ft. (2000m)

• Relative Humidity: <90% non-condensing

• Operating Temp: 14°F to 122°F (-10°C to 50°C)

• Storage Temp: -4°F to 140°F (-30°C to 60°C)

• Accuracy: Values stated at 65°F to 83°F (18°C to 28°C)

• Temp Coefcient: 0.1 x (Quoted Accuracy) per °C above

28°C or below 18°C, corrections are required when ambient

working temp is outside of Accuracy Temp range

• Dimensions: 7.02" x 3.54" x 2.10" (178.3 x 89.9 x 53.3 mm)

• Weight: 14.6 oz. (414 g)

• Calibration: Accurate for one year

• Standards: Conforms to: UL STD 61010-1, 61010-2-030,

61010-2-033.

Certified to: CSA STD C22 2 # 61010-1,

61010-2-030, 61010-2-033.

IEC EN 61010-1, 61010-2-030,

61010-2-033, 61326-1.

• Pollution degree: 2

• Accuracy: ± (% of reading + # of least significant digits)

• Drop Protection: 6.6 ft. (2m)

• Ingress Protection: IP42 (except test lead jacks, see WARNINGS)

• Safety Rating:

CAT IV 600V, CAT III 1000V, Class 2,

Double insulation

CAT III: Measurement category III is applicable to test and

measuring circuits connected to the distribution part of the

building’s low-voltage MAINS installation.

CAT IV: Measurement category IV is applicable to test and

measuring circuits connected at the source of the building’s

low-voltage MAINS installation.

• Electromagnetic Environment: IEC EN 61326-1. This

equipment meets requirements for use in basic and controlled

electromagnetic environments like residential properties,

business premises, and light-industrial locations.

Specifications subject to change.

ENGLISH

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

ELECTRICAL SPECIFICATIONS

VOLTAGE (AUTO-RANGING)

Function Range Resolution Accuracy (

50–60 Hz

)

AC Voltage

(V AC)

4.000V 1mV ±(1.0% + 5 digits)

40.00V 10mV ±(1.2% + 5 digits)

400.0V 100mV ±(1.5% + 5 digits)

1000V 1V

DC Voltage

(V DC)

400.0mV 0.1mV ±(1.0% + 8 digits)

4.000V 1mV

±(1.0% + 3 digits)40.00V 10mV

400.0V 100mV

1000V 1V ±(1.2% + 3 digits)

Input Impedance: 10MΩ

Frequency Range: 50 to 400Hz

Maximum Input: 1000V AC RMS or 1000V DC

CURRENT (AUTO-RANGING)

AC Current

(μA and mA)

400.0μA 0.1μA

±(1.5% + 3 digits)

4000μA 1μA

40.00mA 10μA

400.0mA 100μA

10.00A 0.01A ±(2.0% + 5 digits)

DC Current

(μA and mA)

400.0μA 0.1μA

±(1.0% + 3 digits)

4000μA 1μA

40.00mA 10μA

400.0mA 100μA

10.00A 0.01A ±(1.5% + 3 digits)

Overload Protection: 500mA / 1000V and 10A / 1000V Fuses

Frequency Range: 50 to 400Hz

Maximum Input: µA/mA setting: 400mA AC RMS / DC

10A setting: 10A AC RMS / DC

RESISTANCE (AUTO-RANGING)

Function Resolution Accuracy

400.0Ω 0.1Ω

±(1.5% + 5 digits)

4.000kΩ 1Ω

40.00kΩ 10Ω

400.0kΩ 100Ω

4.000MΩ 1kΩ ±(2.0% + 10 digits)

40.00MΩ 10kΩ

Maximum Input: 600V DC or 600V AC RMS

ELECTRICAL SPECIFICATIONS

CAPACITANCE (AUTO-RANGING)

Range Resolution Accuracy

40.00nF 10pF ±(5.0% + 35 digits)

400.0nF 0.1nF

±(3.0% + 5 digits)

4.000μF 1nF

40.00μF 10nF

400.0μF 100nF

4000μF 1μF ±(5.0% + 5 digits)

Maximum Input: 600V DC or 600V AC RMS

FREQUENCY (AUTO-RANGING)

9.999Hz 0.001Hz

±(1.0% + 5 digits)

99.99Hz 0.01Hz

999.9Hz 0.1Hz

9.999kHz 1Hz

99.99kHz 10Hz

500.0kHz 100Hz

Sensitivity: >8V RMS

Maximum Input: 600V DC or 600V AC RMS

DUTY CYCLE

1% to 99.9%

0.1% ±(1.2% + 2 digits)

Pulse width: 0.1 – 100ms

Frequency width: 5Hz to 10kHz

Sensitivity: >8V RMS

Maximum Input: 600V DC or 600V AC RMS

TEMPERATURE

0°to 1500°F 0.1°F / 1°F ±(2.0% + 9°F)

-18° to 816°C 0.1°C / 1°C ±(2.0% + 5°C)

ENGLISH

ELECTRICAL SPECIFICATIONS

OTHER MEASUREMENT APPLICATIONS

Maximum Input: 100V RMS in Voltage setting,

600V DC or 600V AC RMS in all other settings

• Diode Test: 1.5 mA max, open circuit voltage 3.0V DC

• Continuity Check: Audible signal when resistance <50Ω,

max test current 0.35mA

• Low Impedence (Low Z): Input impedence >3kΩ

Max input 600V RMS

• Auto Power off: After ~30 minutes of inactivity

• Sampling Frequency: 3 samples per second

• Bar Graph: 41 segment, 10-15 samples per second

• Overload: "OL" indicated on display, 1000V RMS in voltage

settings, 600V RMS in all other settings

• Polarity: "-" on display indicates negative polarity

• Display: 3 ¾ digit, 4000 Count LCD, TRMS technology

WARNINGS

To ensure safe operation and service of the meter, follow these

instructions. Failure to observe these warnings can result in

severe injury or death.

• Before each use verify meter operation by measuring a known

voltage or current.

• Never use the meter on a circuit with voltages that exceed the

category based rating of this meter.

• Do not use the meter during electrical storms or in wet weather.

• Do not use the meter or test leads if they appear to be damaged.

• Use only with CAT IV rated test leads.

• Ensure meter leads are fully seated, and keep fingers away

from the metal probe contacts when making measurements.

• Do not open the meter to replace batteries while the probes

are connected.

• Use caution when working with voltages above 25V AC RMS

or 60V DC. Such voltages pose a shock hazard.

• To avoid false readings that can lead to electrical shock,

replace batteries when a low battery indicator appears.

• Do not attempt to measure resistance or continuity on a live

circuit.

• Always adhere to local and national safety codes. Use personal

protective equipment to prevent shock and arc blast injury

where hazardous live conductors are exposed.

• Meter is IP42 dust & water resistant. Following any contact

with water, thoroughly dry meter and test lead jacks prior to

subsequent use.

SYMBOLS ON METER

AC/DC Voltage or Current Resistance (in Ohms)

Audible Continuity Diode

Capacitance

Frequency

Duty-cycle Double Insulated Class II

Temperature (Fahrenheit / Celsius) Ground

Fuse (with rating below symbol) Low Impedence

Warning or Caution

To ensure safe operation and service of this meter, follow all warnings

and instructions detailed in this manual.

Risk of Electrical Shock

Improper use of this meter can lead to risk of electrical shock. Follow

all warnings and instructions detailed in this manual.

ENGLISH

SYMBOLS ON LCD

Data Hold Audible Continuity

Diode Auto Ranging

AC (Alternating Current) DC (Direct Current)

Low Battery Auto Power Off

MAX

Maximum Value

MIN

Minimum Value

°F

Degrees Fahrenheit

°C

Degrees Celsius

Mega (value x 10

)

kilo (value x 10

)

mili (value x 10

-3

)

micro (value x 10

-6

)

nano (value x 10

-9

)

Volts

Amps

Farads

Ohms

Hertz (Frequency)

Duty-Cycle

REL

Relative Mode

Bar Graph

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

FEATURE DETAILS

7 9

3 5

NOTE: There are no user-serviceable parts inside meter.

1. 4000 count LCD display 7. "RANGE" button

2. Function selector switch 8. "REL" (Relative) button

3. "10A" jack 9. "MAX/MIN" button

4. "COM" jack 10. "HOLD" button

5. "VΩ" jack 11. "SEL" (Select) button

6. mA / µA jack

FUNCTION BUTTONS

ON/OFF

To Power ON the meter rotate the Function Selector switch

from

the OFF setting to any measurement setting. To Power OFF the meter

rotate the Function Selector switch

to the OFF setting. By default

the meter will automatically Power OFF after 30 minutes of inactivity.

Reactivate meter by pressing any button. To deactivate the automatic

Power OFF feature, power the meter ON with the SEL button

depressed. When automatic Power OFF is deactivated, the

symbol will not be visible in the display.

When the Function Selector switch is rotated to a measurement

setting, "LEAD" flashes on the display as a reminder to check that test

leads are inserted into the appropriate jacks.

"SEL" (SELECT) BUTTON (FOR SECONDARY FUNCTIONS)

The "SEL" button

activates the secondary functions for each

setting accessible by the Function Selector switch

. For Current,

Voltage and Low Z, it toggles between AC and DC. For the other

functions, it switches between °F and °C, between Hz and %

Duty-cycle, and between Continuity, Resistance, and Diode-test.

The default function for each application is printed on the meter in

white; the secondary functions are printed on the meter in orange.

"HOLD" (DATA HOLD / BACKLIGHT) BUTTON

Press HOLD

to hold the measurement on the display. Press

again to release the display to return to live measuring.

Press and hold the "HOLD" button

for more than one second to

turn on or off the backlight. The backlight will automatically Power

OFF following three minutes of inactivity to conserve battery life.

"RANGE" BUTTON

The meter defaults to auto-ranging measurement mode . This

automatically determines the most appropriate measurement range

for the testing that is being conducted. To manually force the meter

to measure in a different range, use the "RANGE" button

1. Press the "RANGE" button

to manually select measurement

range ( is deactivated on the LCD). Repeatedly press

the "RANGE" button

to cycle through the available ranges,

stopping once the desired range is reached.

2. To return to auto-ranging mode, press and hold the "RANGE"

button

for more than one second ( is reactivated).

ENGLISH

FUNCTION BUTTONS

"REL" (RELATIVE) BUTTON

Relative measurements are available for Voltage, Current,

Resistance, Temperature and Capacitance.

1. Perform first measurement.

2. With test leads connected, press REL

to set frame of reference.

3. Perform second measurement. The value displayed is the

difference between first and second measurements.

"MAX/MIN" BUTTON

When the "MAX/MIN" button

is pressed, the meter keeps track

of the minimum and maximum value of the measurement as the

meter continues to take samples.

1. When measuring, press MAX/MIN

and the meter displays the

maximum value. If a new maximum occurs, the display updates

with that new value. Pressing again reveals the minimum value.

If a new minimum occurs, the display updates with the new

value.

2. Press MAX/MIN

and hold for more than one second to return

to normal measuring mode.

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

ENGLISH

OPERATING INSTRUCTIONS

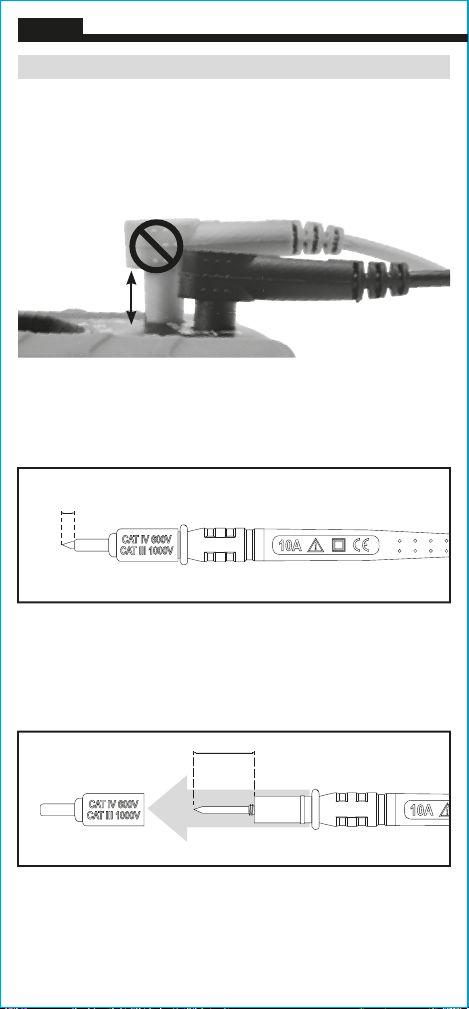

CONNECTING TEST LEADS

Do not test if leads are improperly seated. Results could cause

intermittent display readings. To ensure proper connection, firmly

press leads into the input jack completely.

TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS

Ensure the test lead shield is pressed firmly in place. Failure to use

the CAT III / CAT IV shield increases arc-flash risk.

TESTING IN CAT II MEASUREMENT LOCATIONS

CAT III / CAT IV shields may be removed for CAT II locations. This

will allow testing on recessed conductors such as standard wall

outlets. Take care not to lose the shields.

5/32"

(4 mm)

.7" (18 mm)

INCORRECT

CORRECT

Altri manuali per MM700

Indice

Altri manuali Klein Tools Multimetro

Klein Tools

Klein Tools MM300 Manuale utente

Klein Tools

Klein Tools MM200 Manuale utente

Klein Tools

Klein Tools MM400 Manuale utente

Klein Tools

Klein Tools MM325 Manuale utente

Klein Tools

Klein Tools 69149P Manuale utente

Klein Tools

Klein Tools CL200 Manuale utente

Klein Tools

Klein Tools CAT III Manuale utente

Klein Tools

Klein Tools MM500 Manuale utente

Klein Tools

Klein Tools MM2000 Manuale utente

Klein Tools

Klein Tools CL1000 Manuale utente

Klein Tools

Klein Tools MM500 Manuale utente

Klein Tools

Klein Tools MM1000 Manuale utente

Klein Tools

Klein Tools MM450 Manuale utente

Klein Tools

Klein Tools CL1000 Manuale utente

Klein Tools

Klein Tools CL3100 Manuale utente

Klein Tools

Klein Tools MM720 Manuale utente

Klein Tools

Klein Tools MM300 Manuale utente

Klein Tools

Klein Tools MM420 Manuale utente

Klein Tools

Klein Tools CL100 Manuale utente

Klein Tools

Klein Tools 69193 Manuale per l'uso e la cura

Klein Tools

Klein Tools MM1000 Manuale utente

Klein Tools

Klein Tools MM100 Manuale utente

Klein Tools

Klein Tools MM400 Manuale utente

Klein Tools

Klein Tools MM500A Manuale utente

Manuali Multimetro popolari di altre marche

Agilent Technologies

Agilent Technologies 34420A Manuale utente

Fluke

Fluke 83 Manuale utente

Hameg

Hameg HM 8012 Manuale utente

Mastech

Mastech MY70 Manuale utente

Steren

Steren MUL-300 Manuale utente

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuale utente

PeakTech

PeakTech 4000 Manuale per l'uso e la cura

YOKOGAWA

YOKOGAWA 90050B Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuale utente

Fluke

Fluke 8846A Manuale operativo e di manutenzione

Tempo Communications

Tempo Communications MM200 Manuale utente

Elenco Electronics

Elenco Electronics CM-1555 Manuale utente

Mastech

Mastech MS8238C Manuale utente

SDAR

SDAR 830A, 830B, 830D, 830C Manuale utente

RS PRO

RS PRO RS-9519BT Manuale utente

BGS technic

BGS technic 8890 Manuale utente

Amprobe

Amprobe Hexagon 60 Manuale utente
