KLR 950 Manuale utente

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

Contents

0.0: REVISIONS NOTICES ............................................................................................................................... 3

1.0: SAFETY PRECAUTIONS ............................................................................................................................ 4

2.0: IDENTIFICATION ..................................................................................................................................... 6

2.1: The product brand and type designation .......................................................................................... 6

2.2: Version of product ............................................................................................................................. 6

2.3: Manufacturer contact ........................................................................................................................ 6

3.0: PRODUCT SPECIFICATION ...................................................................................................................... 7

3.1: Range of applications intended use and general functions ............................................................... 7

3.2: Dimensions (for transport) ................................................................................................................ 7

3.3: Specification for electricity and air .................................................................................................... 7

4.0: INSTALLATION ........................................................................................................................................ 8

4.1: Mounted directly on a conveyor........................................................................................................ 8

4.2: Bolt pattern ........................................................................................................................................ 8

4.3: Assembling the clips holder ............................................................................................................... 9

4.4: Minimal space required ................................................................................................................... 10

4.4.1: Stand alone ............................................................................................................................... 10

4.4.2: Minimum space required when installed on a conveyor ......................................................... 11

5.0: OPERATION .......................................................................................................................................... 13

5.1: ON/OFF and emergency stop........................................................................................................... 13

5.2: Main screen ..................................................................................................................................... 14

5.2.1: Unlock advanced parameters ................................................................................................... 14

5.2.2: Interlock mod ............................................................................................................................ 15

5.2.3: Information screen ................................................................................................................... 15

5.2.4: Troubleshooting page ............................................................................................................... 16

5.3: Load and unload clips ...................................................................................................................... 16

5.3.1: Clips run out .............................................................................................................................. 18

5.4: Ink jet printer configuration ............................................................................................................. 18

5.4: Turn ON the machine ....................................................................................................................... 18

5.5: Advanced parameters ...................................................................................................................... 18

5.6 : Configurations ................................................................................................................................. 21

5.7: Interlock ........................................................................................................................................... 23

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

5.7.1: Interlock configuration ............................................................................................................. 23

5.7.2: Interlock to bagger wiring ......................................................................................................... 25

5.7.3: Bypass interlock effect .............................................................................................................. 26

5.8: Miscellaneous configuration ............................................................................................................ 26

5.9: Hardware configuration ................................................................................................................... 26

6.0: MAINTENANCE AND CLEANING ........................................................................................................... 27

6.1: Preventive maintenance schedule ................................................................................................... 27

6.2: Maintenance steps ........................................................................................................................... 28

6.2.1: Changing belts ........................................................................................................................... 28

6.2.2: Stepper motor drive .................................................................................................................. 37

6.2.3: Disassemble half of top belt holder .......................................................................................... 39

6.2.4: Feeder motors ........................................................................................................................... 40

6.2.5: Replacing the jewelry saw ........................................................................................................ 41

6.2.6: Replacing the feeding sensor .................................................................................................... 43

6.2.7: Replacing the finger sensor....................................................................................................... 44

6.2.8: 24 volts power supply ............................................................................................................... 45

6.2.9: Cleaning..................................................................................................................................... 46

7.0: MAINTENANCE AND REPARATIONS BY TECHNICIANS FROM KLR SYSTEMS INC. ................................ 46

7.1: Contact information for service technicians .................................................................................... 46

7.2: Contact information for technical support ...................................................................................... 46

8.0: LISTS OF SPARE PARTS AND CONSUMABLES ....................................................................................... 56

8.1: Spare parts list KLR.950 BREAKER LEFT............................................................................................ 56

8.2: Spare parts list KLR.950 BREAKER RIGHT ......................................................................................... 57

8.3: Spare parts list KLR.950 SHEAR (LEFT AND RIGHT) .......................................................................... 58

9.0: CHECK LIST ........................................................................................................................................... 60

10.0: DECOMMISSIONING OF THE PRODUCT ............................................................................................. 60

11.0: EXPLODED VIEWS ............................................................................................................................... 61

11.1: KLR.950-L........................................................................................................................................ 61

11.2: Upper and lower belts assembly ................................................................................................... 62

11.3: Mechanic box ................................................................................................................................. 63

11.4: Mechanic box left side ................................................................................................................... 64

11.5: Mechanic box right side ................................................................................................................. 65

11.6: Terminals........................................................................................................................................ 66

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

11.7: Mechanic box motor ...................................................................................................................... 67

11.8: Lower belt ...................................................................................................................................... 68

11.9: Upper belt ...................................................................................................................................... 69

11.10: Front plate ................................................................................................................................... 70

11.11: Base plate ..................................................................................................................................... 71

11.12: Input terminal .............................................................................................................................. 72

12.0: KLR.950 OPTIONS ............................................................................................................................... 73

12.1: KLR.950-SHEAR (Shear option) ...................................................................................................... 74

12.2: KLR.950-BREAK-L (Break option).................................................................................................... 75

12.3: KLR.937 Break option (ink jet printer) ........................................................................................... 76

12.3.1: KR-937-BULK-KIT (Bulk ink option) ......................................................................................... 77

12.4: KLR.950-SHORT and KLR.950-LONG (Support options) ................................................................. 78

12.5: KLR.6250 Clip spool assembly ........................................................................................................ 79

12.6: KR-950-HMI-6200 .......................................................................................................................... 80

12.7: KR-950-HMI-735 ............................................................................................................................ 81

12.8: KR-950-VAC .................................................................................................................................... 82

13.0: ANNEXES DOCUMENTS ...................................................................................................................... 83

13.1: Obsolete lower drive belts assembly ............................................................................................. 83

13.1.1:Revision before 2023-09-15 ..................................................................................................... 83

13.1.2:Revision 2022-08-30 ................................................................................................................ 84

13.1.3: Revision 2021-04-19 ............................................................................................................... 85

13.1.4: Revision before 2021-04-19 .................................................................................................... 86

13.2: Obsolete upper drives belt assembly ............................................................................................ 87

13.2.1: Revision before 2023-09-15 .................................................................................................... 87

13.2.2: Revision 2022-08-30 ............................................................................................................... 88

13.2.3: Revision before 2022-08-30 .................................................................................................... 89

13.2.2: Revision 2022-08-30 ............................................................................................................... 90

13.3: Obsolete Shear and break options ................................................................................................ 91

14:0 ELECTRICAL PLAN ................................................................................................................................ 92

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

0.0: REVISIONS NOTICES

2023-10-06: Completely redone the exploded view 11.0.

2023-07-17: Updating suggested maintenance preventive schedule 6.1

2023-02-09: Updated the stepper motor for driving belt 6.2.2 including the difference between

UIM240xx and UIM340xx and procedure CUR adjustment added a powercycle.

2022-08-30:

1. Correction of the Electrical plan 14.0

2. Lower drives belts assembly updated version (angle) 11.10

3. Upper drives belts assembly updated version (angle with M8 connector) 11.11

2022-08-26: Correction of the interlock wiring (from KLR.950 to bagger) 5.7.2

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

1.0: SAFETY PRECAUTIONS

CAUTION

 The equipment described in this manual is covered with fix panel (only opened with a tool) that

provide protection from electrical components and most of mechanical motions. However,

there is four (4) belts that can be exposed to the user. ALWAYS turn OFF the machine before

approaching hands from every motion part to remove a jam, service or clean the machine. Go

against this notice can result in a severe injury or death;

 Special attention made to ensure that the operation of the machine is safe and convenient

without compromising the efficiency. Keeps hands away from the mechanism that break the

clips apart. Keeps hands and clothes away from the working area of the machine;

 Keep hands away from the working machine. Do not force through remaining gaps;

 If the system is linked to another machine or install onto another machine. Lock the electrical

box of the other machines before performing any maintenance on this equipment. Please refer

to the local regulations and laws on locking out machinery. Go against this notice can result in

a severe injury or death;

 When working on the electrical components. Disconnect the equipment at the source and use

a lockout device to avoid any risk of danger. Make sure you also have the space required to

complete the work to avoid any risk of danger.

 Any modifications with any aspect of the mechanical, safety, electrical design, design, or any

parts connected with the equipment will void the warranty and liability of KLR Systems. If a

change is required, contact KLR Systems for approval. All technical handling must be done by a

qualified technician or by KLR Systems;

 KLR is not responsible for any abuse, mishandling, misuse, improper maintenance and repair

by owners and users;

 Equipment must be supervised when operating;

Continue the next page…

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

CAUTION

 Safety switches: DO NOT bypass any safety components for any reason. Violation will void all

warranties and responsibility from KLR Systems. If a safety component is broken, it must be

replaced before starting the machine;

 Safety panel (fix panel) or safety doors: As a safety, component does not try to remove or

unscrew them unless it is necessary for a maintenance operation. If it is the only option, use a

lockout device during this procedure and reassemble every single piece as it was when finished;

 When the machine is set to interlock mod, that means the KLR.950 run command and speed is

controlled by another equipment. Careful when handling the equipment because it may start

when you do not expect it. ALWAYS keep hand away from belts and mechanisms even when

the machine is stopped.

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

2.0: IDENTIFICATION

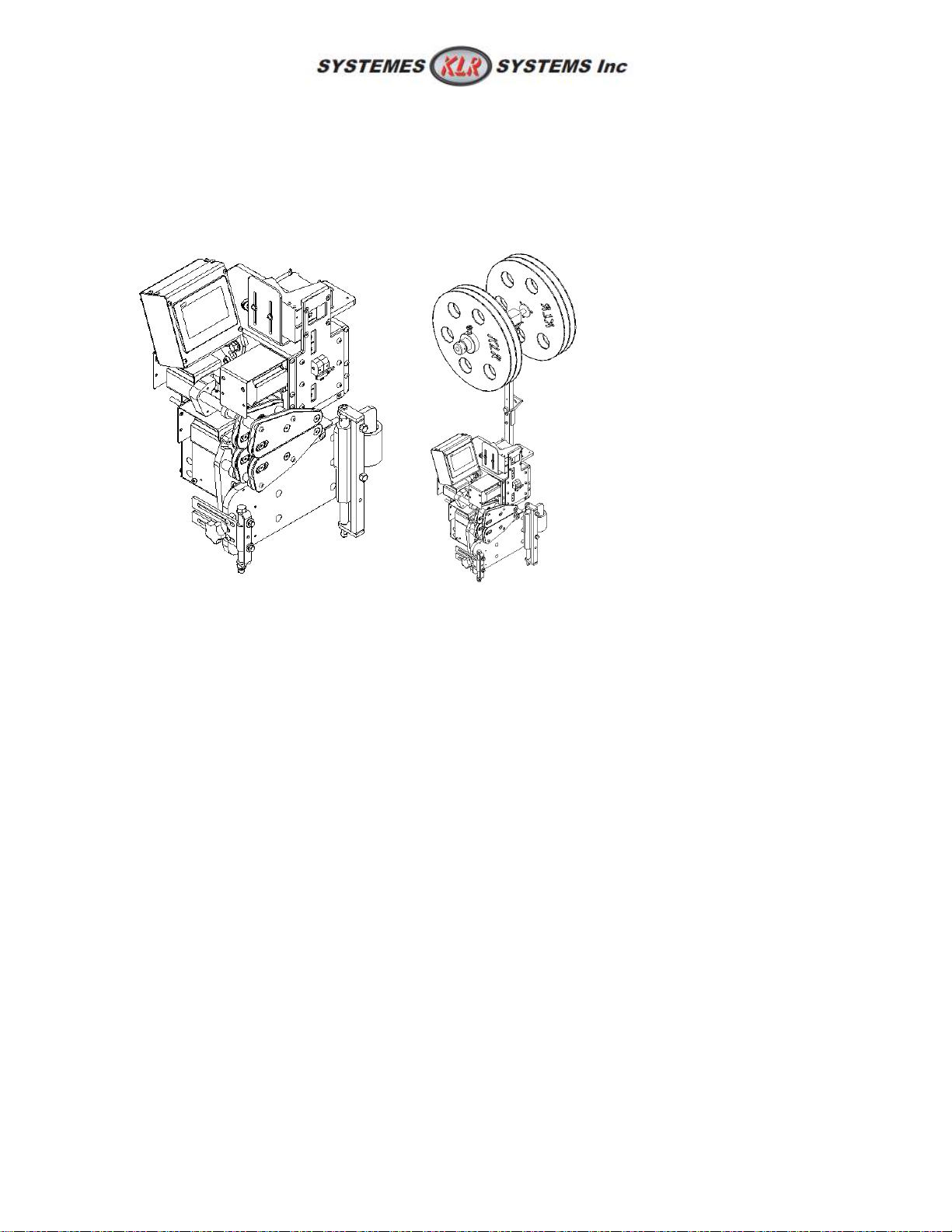

2.1: The product brand and type designation

KLR.950

Bag closer

*The machine in the picture is a left version

2.2: Version of product

Serial number: located on underneath the power supply plug.

2.3: Manufacturer contact

KLR SYSTEMS INC. Packaging equipment manufacturer

Address: 944 rue des Hérons,

City, province, country: Saint-Pie, Québec, Canada

Zip code: J0H 1W0

Phone number: 450-388-0404

Web site: http://klrsystems.com/

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

3.0: PRODUCT SPECIFICATION

3.1: Range of applications intended use and general functions

The bag closer KLR.950 is designed to close bag tail with plastic clip. The machine tells the user

whenever clip is running out. These following values are in the prototype version and are subject to

change:

 Speed in between 50 and 60 package a minute.

 Uses a convenient touch screen (HMI).

 Uses a recipe and ingredient method, can be finetuned according to the product easily.

 A KLR 930 Air printer or an ink jet printer can be installed on the equipment.

 Made of stainless steel 304 and anodize aluminum.

 Equipped with an Ethernet communication device.

 Easy clip loading and does print automatically when loading (if set in the parameters).

 Ambidextrous machine (left or right).

3.2: Dimensions (for transport)

The clips holder can be disassembled from the body of the machine to save space.

Height: 24 inches; Length: 16 inches; Width: 15 inches

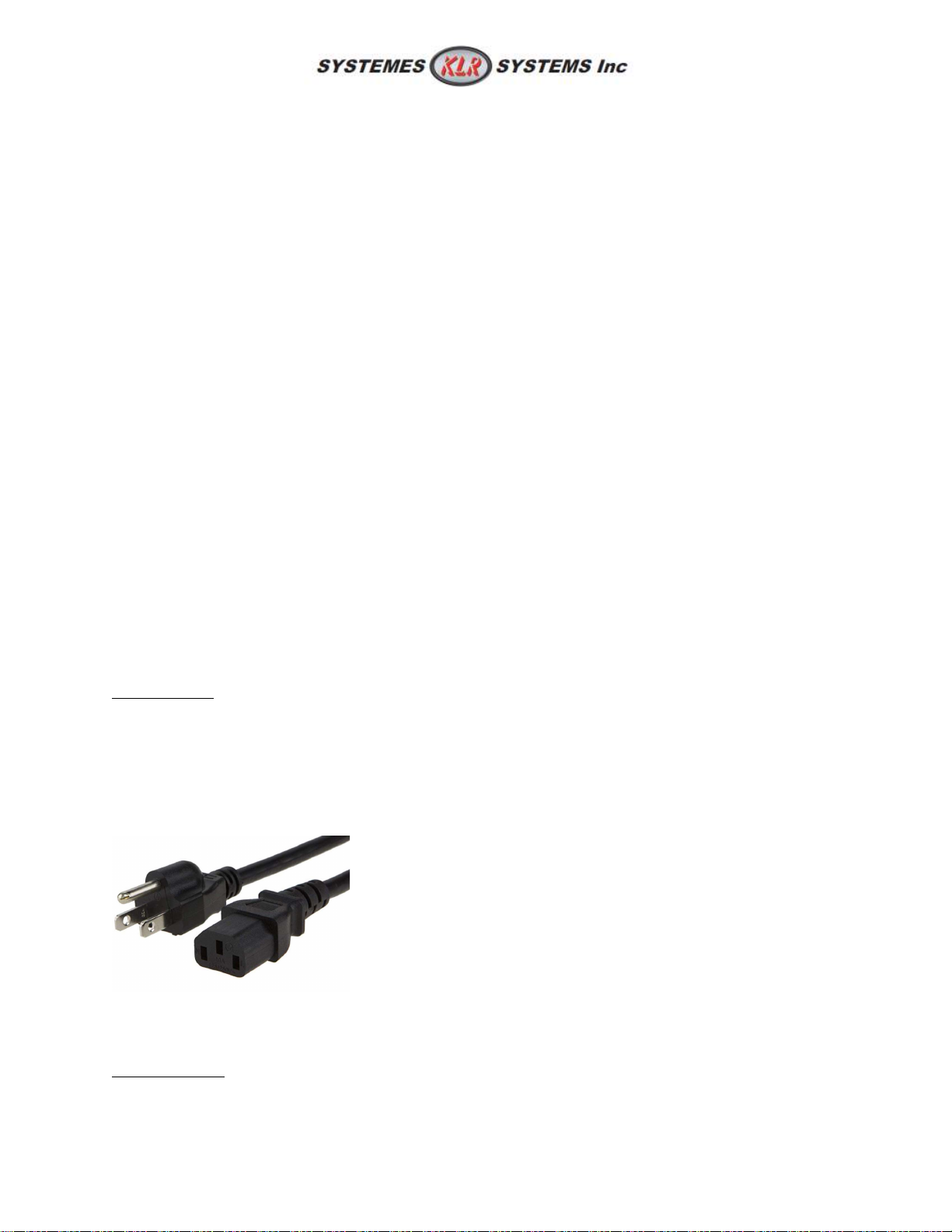

3.3: Specification for electricity and air

This machine is intended to use these 4 possible specifications:

Electrical need: Access within 5 feet from the machine

 120 Volts – 5 Amps – 1 Phase – 50 / 60 Hertz

 220 Volts – 5 Amps – 1 Phase – 50 / 60 Hertz

Need a 3 pins female jack power cord adapter 18AWG. Provided in the packaging with the machine:

120v = PE-01531-15-5P-6 220v = Contact service for part number

In case of loss, order from KLR to get a new one and be sure to have the cord as per requirement for

your machine.

Pneumatic need: None. Air printer is sold separately (see air printer manual if needed)

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

4.0: INSTALLATION

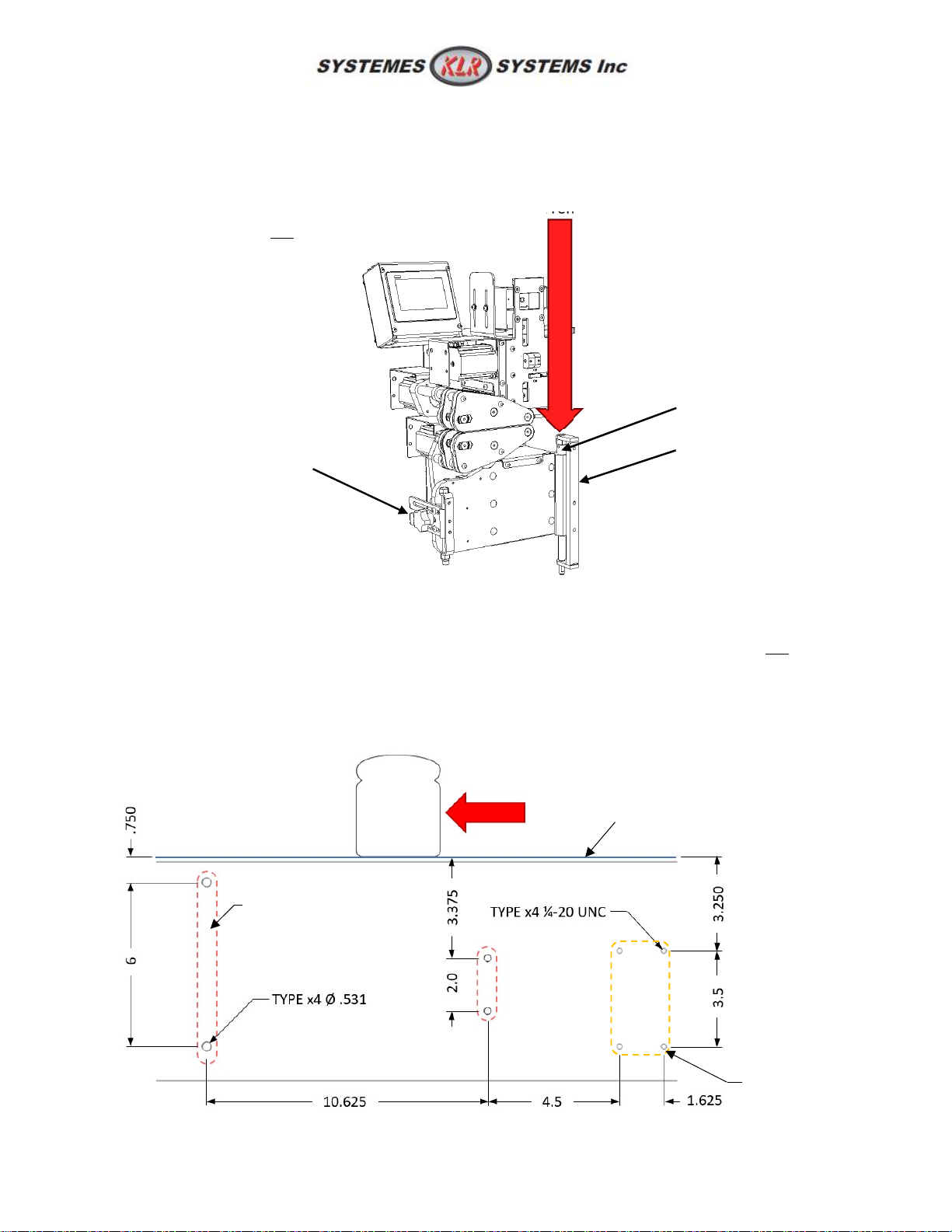

4.1: Mounted directly on a conveyor

Of course, the KLR.950 is designed to be installed on KLR equipments, such as conveyors. The brackets

are attached to the side frame of the conveyor and has a quick removal functionality. Take note this

following machine is a left version:

4.2: Bolt pattern

Follow these instructions in case of preparation before the arrival of the machine. This is for a left setup.

Right setup would be mirror of this picture. See Flow diagram (right or left) to know what side is to be

prepared

Pivot

bracket (hold weight)

(exist two different types)

Adjustable bracket (adjust the angle)

Adjustable rod (height)

Push the plunger to release

Flow

KLR.950

L bolt pattern

(bag closer)

Measure from the top of the belt

Conveyor side

LEFT SETUP

KLR.970

L bolt

pattern (bag

tensioner)

KLR.950 Revision: 2023-10-06

Serial numbers: 3008 – beyond

KLR.00001 – beyond

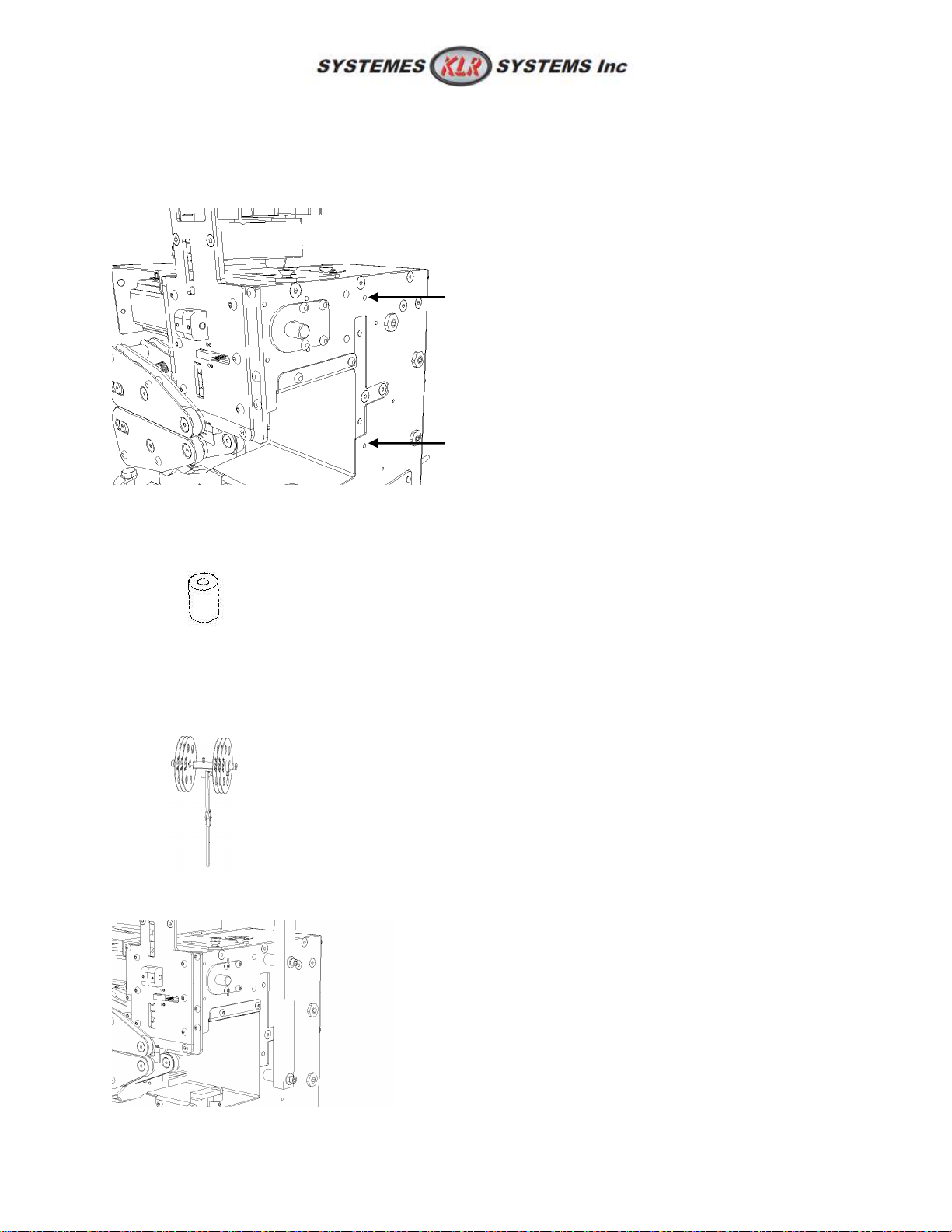

4.3: Assembling the clips holder

The clips holder is attached with these threaded 1/4-20 holes:

To install it, it is needed:

 Two (2) PM-00278;

 Two (2) 1/4-20 socket head 2 ¼ inches long;

 Two (2) 1/4 washer;

 Two (2) 1/4 lock washer;

 Clips holder.

Final result:

Altri manuali per 950

Indice

Altri manuali KLR Attrezzature industriali

KLR

KLR 5050-16 Manuale utente

KLR

KLR 950 Manuale utente

Manuali Attrezzature industriali popolari di altre marche

ABB

ABB Unifix AD Manuale

Mark 7

Mark 7 Evolution Manuale utente

Husky

Husky HyPET Manuale utente

bora

bora PM-1800 Manuale utente

Grizzly

Grizzly T32428 Manuale utente

Siemens

Siemens 8MF1 Series Manuale utente

ABB

ABB HT610965 Manuale utente

ABB

ABB SafeLink Manuale utente

Phoenix

Phoenix PHX-150 Manuale utente

ABB

ABB A165-L32 Manuale utente

ABB

ABB HT842936 Manuale utente

Rioned

Rioned UrbanJet Manuale utente

Hermetica

Hermetica 10 Series Manuale utente

HORNER

HORNER OEE Solution Manuale utente

Hammerhead

Hammerhead HG375 Manuale utente

SCHUNK

SCHUNK VERO-S NSE-A3 138 Istruzioni utente

ABB

ABB HT566657 Manuale utente

Webasto

Webasto GSE CAN Manuale utente
