KOBE Brand Range Hood

Model No.: CH0030SQB (30'')

CH0036SQB (36'')

CH0042SQB (42'')

CH0048SQB (48'')

CH-100 SERIES – 18

HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

{THIS PAGE LEFT PURPOSELY BLANK}

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 4

COMPONENTS OF PACKAGE ................................................................................................. 3

INSTALLATION ......................................................................................................................... 4

UNDER

THE

CABINET

INSTALLATION.................................................................................6

STAND

ALONE

INSTALLATION.............................................................................................9

OPERATING INSTRUCTIONS ................................................................................................ 12

MAINTENANCE....................................................................................................................... 13

SPECIFICATIONS................................................................................................................... 15

MEASUREMENTS & DIAGRAMS............................................................................................ 16

PARTS LIST............................................................................................................................ 22

CIRCUIT DIAGRAM................................................................................................................. 26

DISCLAIMER........................................................................................................................... 28

WARRANTY............................................................................................................................ 29

PRODUCT REGISTRATION.................................................................................................... 30

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

AL L W IRING MUST B E DONE BY A PR OF ES S IONA L A ND IN

ACCORDA NCE W ITH NATIONA L A ND LO CA L ELECT RICA L CO DE S.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces

or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if

unit is damaged due to misuse, poor installation, improper use,

mistreatment, negligence or any other circumstances beyond the

control of KOBE RANGE HOODS authorized agents. Any repair

carried out without the supervision of KOBE RANGE HOODS

authorized agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily injuries

whether caused directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking at high heat.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

- Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UPA BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

•

Extinguish any open flame.

•

Do not try to turn on the lights or any type of appliance.

•

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company

and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD

–

Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If

equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

OPTIONAL RECIRCULATING KIT ALSO AVAILABLE.

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE

WWW.KOBERANGEHOODS.COM OR CONTACT KOBE RANGE HOODS AT (626) 350-1355.

RANGE HOOD BOX



KOBE Range Hood – 1



Warranty Registration Card –1



Instructions Manual – 1



Baffle Filter

-2 (30”, 36”, 42”)

-3 (48”)



Stainless Steel Spacer

-2 (30”)

-2 (36”)

-3 (42”)

-2 (48”)



Oil Tunnel – 1



Ducting Transition – 1



Screw Package for Transition – 1



Hood-Mounting Bracket-2



Screw Package for Hood-Mounting Bracket w/

Rubber Stand –1



















DUCT COVER KIT (Sold Separately)

Option Of:

Model No. CH0030DC-12 for 30'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

Model No. CH0036DC-12 for 36'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

Model No. CH0042DC-12 for 42'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

Model No. CH0048DC-12 for 48'' hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

3/16" X 3/8" (8 pc)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTION BEFORE PROCEEDING

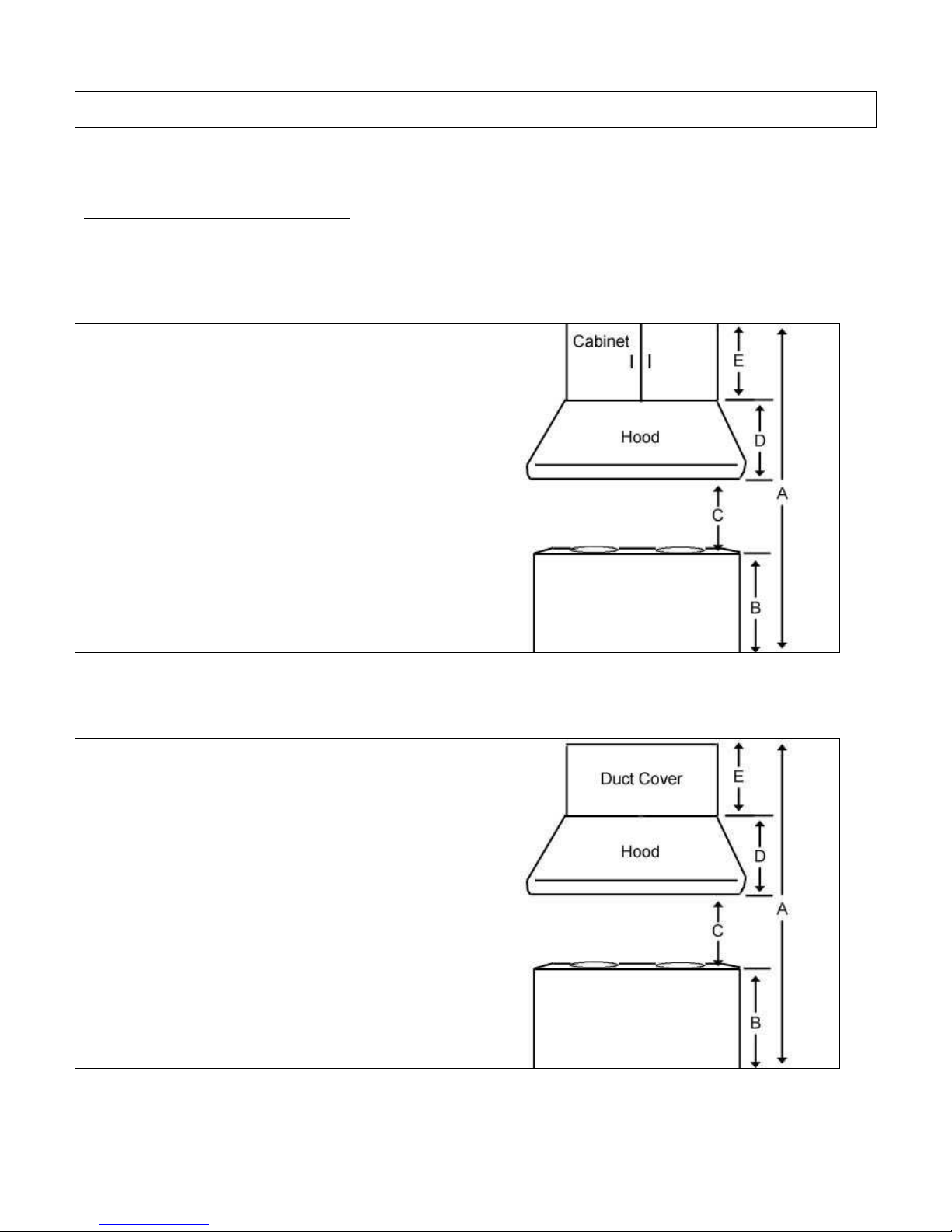

Calculation before Installation

To calculate installation, please refer to Table 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Height of Counter Top to Hood Bottom

(Recommended 27'' to 30'')

[(A – B) – (D + E)]

D = Height of Hood

E = Height of the Cabinet

- FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Height of Counter Top to Hood Bottom

(Recommended 27'' to 30'')

D = Height of Hood

E - Height of Duct Cover

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: USING ELECTRICAL SCREWDRIVERS MAY CAUSE DAMAGE TO THE HOOD.

Installation Table of Contents

UNDER

THE

CABINET

INSTALLATION................................................................................6

Preparation Before Installation................................................................................................6

Hood Installation ........................................................................................................................6

Ductwork Installation.................................................................................................................7

Wiring to Power Supply.............................................................................................................7

Final Assembly ...........................................................................................................................7

STAND

ALONE

INSTALLATION ...........................................................................................9

Preparation Before Installation................................................................................................9

Hood Preparation Before Installation.....................................................................................9

Hood Installation ........................................................................................................................9

Wiring to Power Supply...........................................................................................................10

Duct Cover Installation............................................................................................................11

Final Assembly .........................................................................................................................11

UNDER THE CABINET INSTALLATION

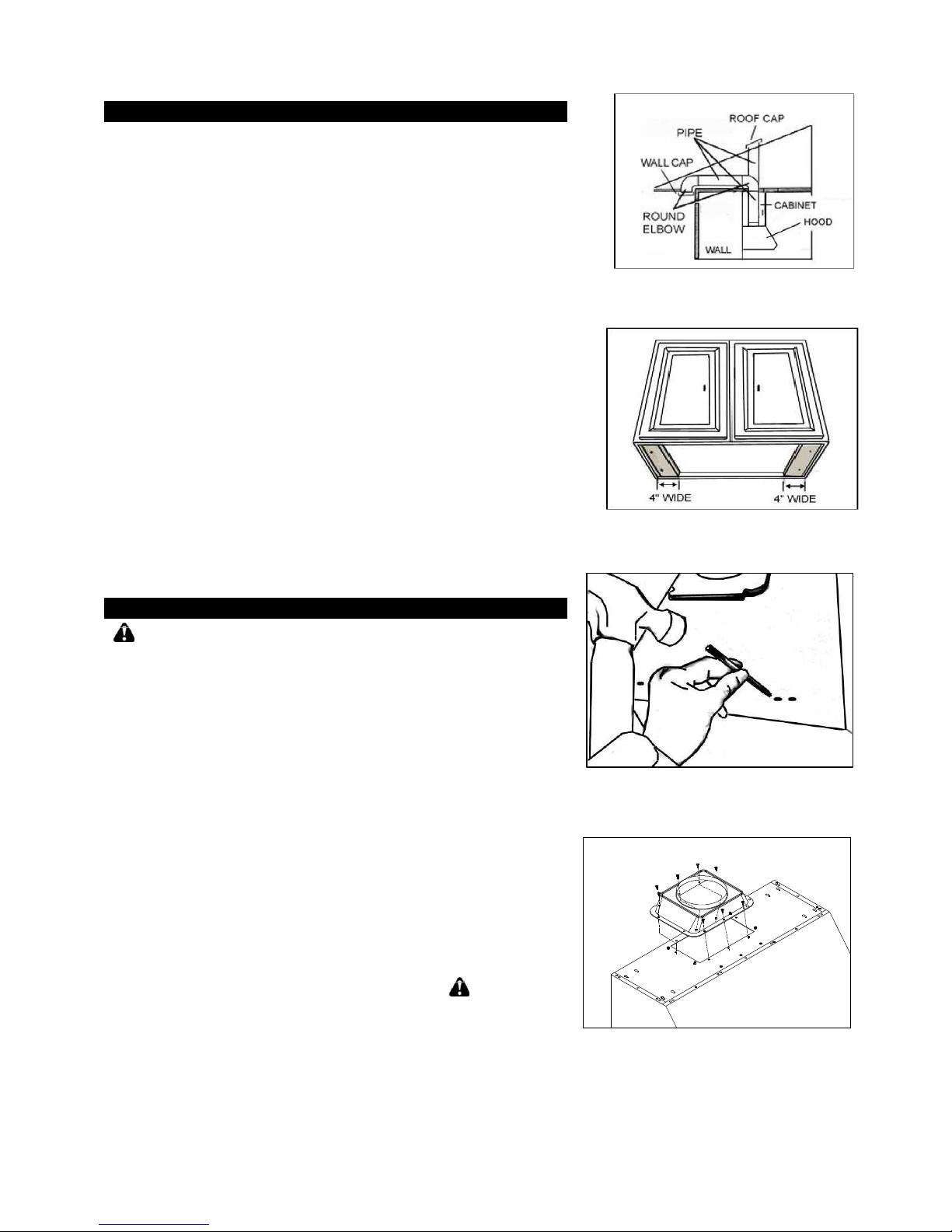

Preparation Before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT OPENING.

•

Decide the location of the venting pipe from the hood

to the outside. Refer to Figure 1.

•

A straight, short vent run will allow the hood to

perform more efficiently.

•

Try to avoid as many transitions, elbows, and long

run as possible. This may reduce the performance

of the hood.

•

Temporarily wire the hood to test for proper operation

before installing.

•

Important: Peel protective film off the hood, if

any.

•

Use duct tape to seal joints between pipe sections.

•

For installing under the cabinet with recessed

bottom, attach 4-inch wide wood filler strips (not

included) on each side. Refer to Figure 2.

•

Using references in TABLE 1 on page 4 and

Measurements and Diagrams on page 18, create

access opening for electrical wires and hood exhaust

under the cabinet.

Hood Installation

CAUTION: If moving the cooking range is necessary

to install the hood, turn off the power on an electric

range at the main electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

1. Puncture the knockout holes (for mounting under the

cabinet) on the hood as shown in Figure 3.

2. Attach ducting transition to hood exhaust with ten

(3/16” x 3/8”) screws (included). Shown in Figure 4.

3. If necessary, attach two rubber stands (included) with

adhesive tape (included) to the back corners of the

hood.

4. Draw electrical wires through cabinet access opening.

5. Center the hood beneath the cabinet and flush with the

front of the cabinet.

6. From inside of the hood, place screw (not included)

into the center of each knockout hole and secure to

cabinet bottom. Once all mounting screws are in place,

finish tightening screws until secure. CAUTION:

MAKE SURE HOOD IS SECURE BEFORE

RELEASING.

7. For safety purpose, pre-drilled mounting holes are

provided through the back of the hood. For a more

secure installation, use as many mounting holes as

needed to secure from the inside of hood (screws not

included).

Figure 1

Figure 2

Figure 3

Figure 4

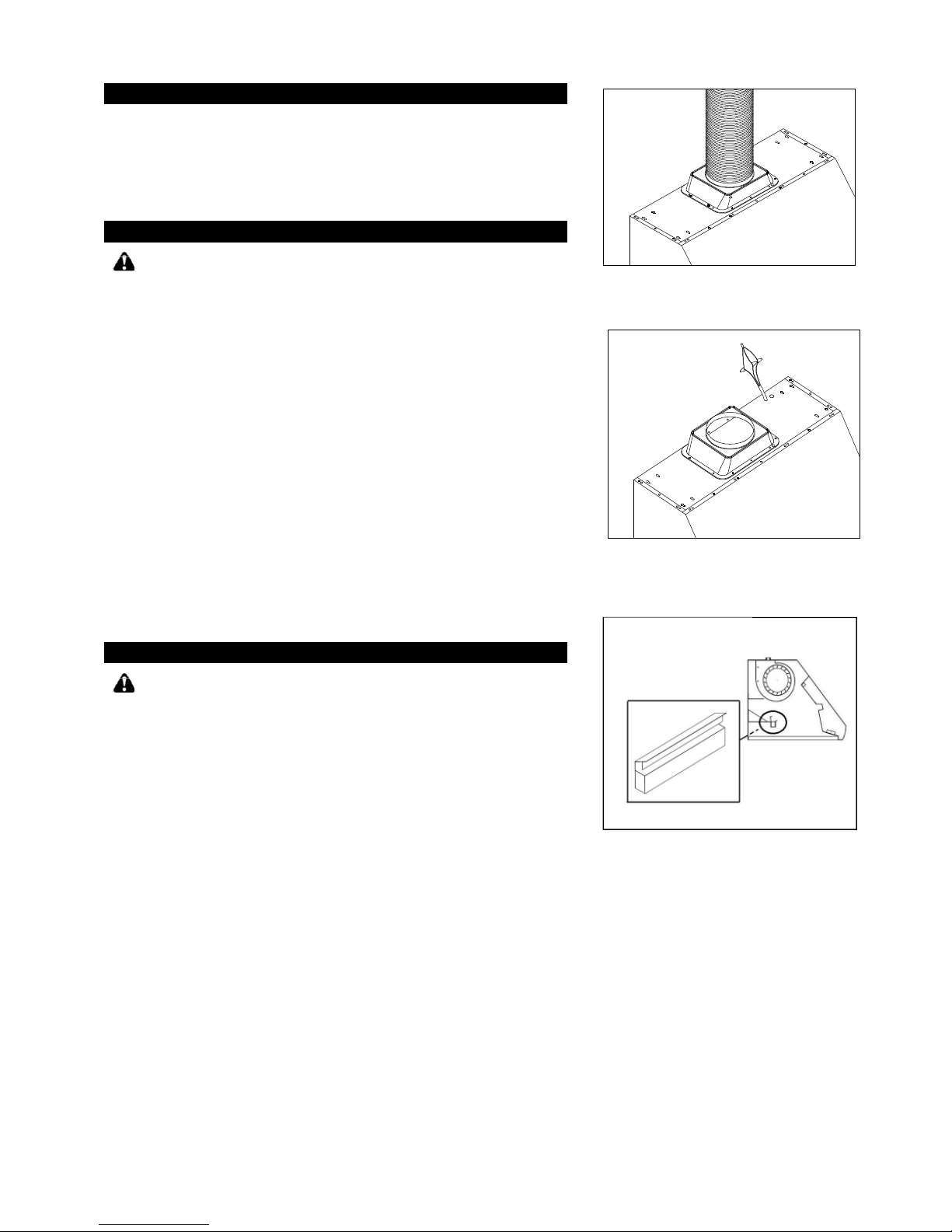

Ductwork Installation

8. Use 8” round steel pipe (follow building codes in your

area) to connect the ducting transition on the hood to

the ductwork above. Use duct tape to make all joints

secure and air tight. Refer to Figure 5.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD

MUST BE PROPERLY GROUNDED. MAKE SURE THIS

IS DONE BY QUALIFIED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE NATIONAL

AND LOCAL ELECTRICAL CODES.

BEFORE CONNECTING WIRES, SWITCH POWER OFF

AT SERVICE PANEL TO PREVENT POWER FROM

BEING SWITCHED ON ACCIDENTALLY.

9. Connect electrical wires.

- Connect three wires (black, white and green) to

house wires and cap with wire connectors.

Connect wires according to their colors (i.e. black to

black, white to white, and green to green). See

Figure 6.

- Store wires in the wiring box.

Final Assembly

CAUTION: Install heating lamps last.

10. Drop oil tunnel into recess support near rear of hood.

Refer to Figure 7.

11. Install baffle filters and stainless spacer(s). Refer to

Measurements and Diagrams on page 21 for baffle

filter and stainless spacer placement. Angle baffle filter

toward back of hood . Push baffle filter up until

almost level . Slide forward into recess behind the

front of hood . Lower baffle filter . Slide back until

it fits into resting position . Refer to Figure 8.

12. Repeat for all baffle filters and spacers.

13. Install heating lamps (not included), 120 Volts 175

Watts max. each.

Figure 5

Figure 6

Figure 7

Altri manuali per CH0036SQB

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE RA92 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE CHX-30 Series(400 CFM-LED) Guida alla risoluzione dei problemi

KOBE

KOBE RA-094 Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE IS2236SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CHX30 Series Guida alla risoluzione dei problemi

KOBE

KOBE BRILLIA SERIES INX-026OVS-INX2630SQB-600-40 Guida alla risoluzione dei problemi

KOBE

KOBE CH7730SQ Guida alla risoluzione dei problemi

KOBE

KOBE Premium Series Guida alla risoluzione dei problemi

KOBE

KOBE CH8136SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA9230SQB-1 Manuale per l'uso e la cura

KOBE

KOBE RA3830SQD Guida alla risoluzione dei problemi

KOBE

KOBE CH0030SQB Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX9130SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE RA0230SQB Guida alla risoluzione dei problemi

KOBE

KOBE INX28 SQ-700-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN28 SQP Series Guida alla risoluzione dei problemi

KOBE

KOBE CH7730SQB Guida alla risoluzione dei problemi

KOBE

KOBE CH2730SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA9230SQB Guida alla risoluzione dei problemi

KOBE

KOBE IS2436GSF-1 Guida alla risoluzione dei problemi

KOBE

KOBE IS2036GS Guida alla risoluzione dei problemi

KOBE

KOBE CHX9136SQB-1 Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
