KOBE Brand Range Hood

Model No.: IN2636SQB

IN-026 SERIES

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ........................................................................1

COMPONENTS OF PACKAGE ......................................................................................3

INSTALLATION...............................................................................................................4

OPERATING INSTRUCTIONS .......................................................................................8

MAINTENANCE............................................................................................................11

SPECIFICATIONS ........................................................................................................12

MEASUREMENTS & DIAGRAMS.................................................................................13

PARTS LIST..................................................................................................................15

CIRCUIT DIAGRAM......................................................................................................17

TROUBLE SHOOTING.................................................................................................18

DISCLAIMER ................................................................................................................19

WARRANTY..................................................................................................................20

PRODUCT REGISTRATION.........................................................................................22

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W IRING MU S T BE DON E B Y A PRO FESSIO NAL AND IN

ACCO RDANCE W ITH NA TIO NAL AND LO CAL ELE C TRICAL CO DES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

WARNINGWARNING

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

- Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD

–

Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If

equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

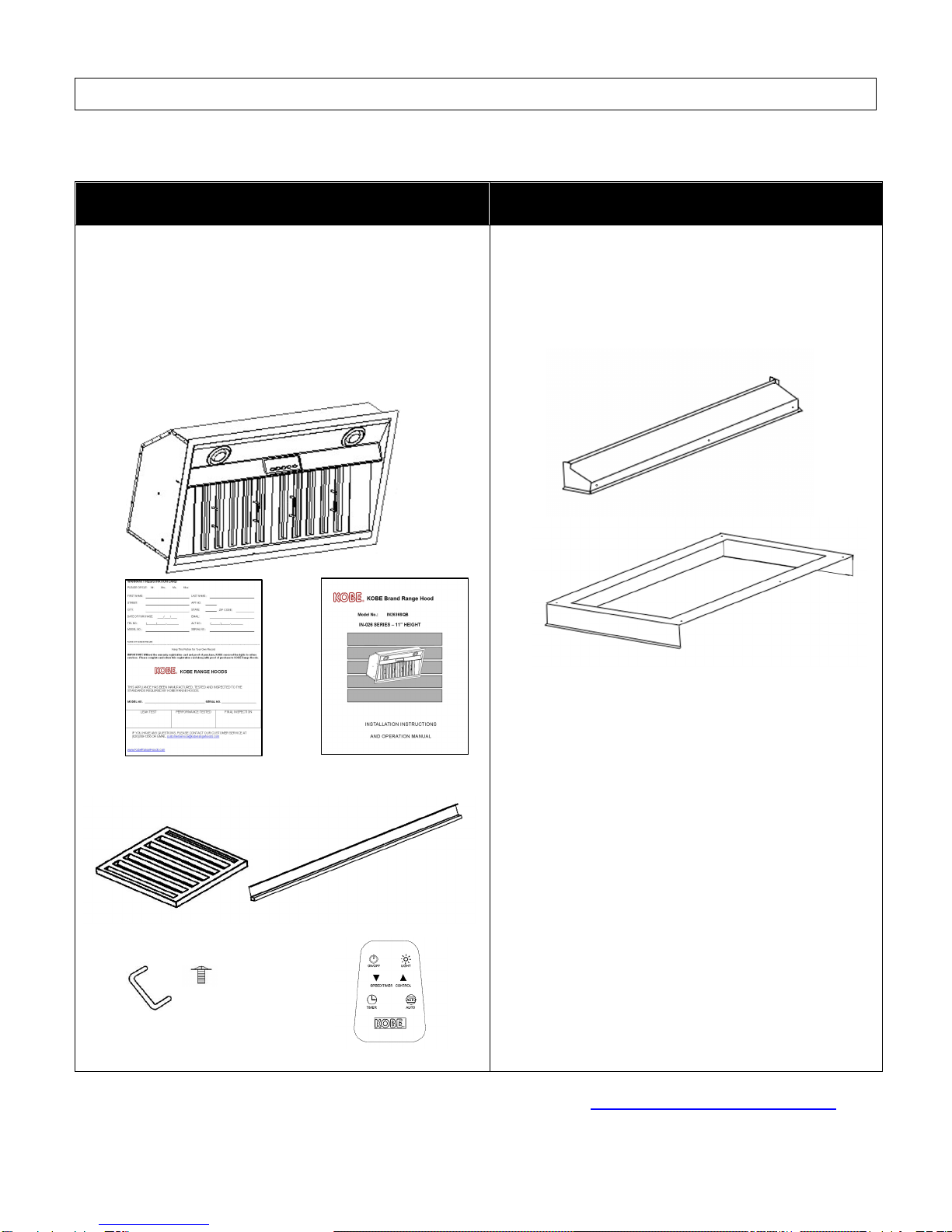

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)



FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT 1-877-BUY-KOBE (1-877-289-5623)

Range Hood Box Liner (Sold Separately)

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instruction Manual

{D} Baffle Filter – 2

{E} Oil Tunnel – 1

{F} Handle & Screws Package – 1

{G} Wireless Control – 1

{A}

{B} {C}

{D} {E}

{F} {G}

{H} Front Section of Liner

{I} Rear Section of Liner

{H}

{I}

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Height of Counter Top to Wood Frame

Bottom (Recommended 27"to 30")

D = Height of Wood Frame

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

For Insert Installation

Preparation Before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT OPENING.

•

Decide the location of the venting pipe from the hood to

the outside. Refer to Figure 1.

•

A straight, short vent run will allow the hood to perform

more efficiently.

•

Try to avoid as many transitions, elbows, and long run as

possible. This may reduce the performance of the hood.

•

Temporarily wire the hood to test for proper operation

before installing.

•

Important: Peel protective film off the hood, if any.

•

Use duct tape to seal joints between pipe sections.

CAUTION

: If moving the cooking range is

necessary to install the hood, turn off the power in an

electric range at the main electrical box. SHUT OFF

THE GAS BEFORE MOVING A GAS RANGE. And use a

protective covering to protect cooktop and/or

countertop from damage.

Custom Hood Preparation

1. The custom hood frame must be sized to the shape and

weight of the insert. Refer to Measurements and

Diagrams on Page 13.

2. It must have a sturdy base (3/4 inch thick plywood

recommended) to sustain the weight of insert.

3. If an optional liner will be installed, the side of the wood

frame must be sturdy (3/4 inch thick plywood

recommended).

4. It is recommended to install rear & front stud support

(not included). Refer to Figure 2. The rear and front

stud support is located 1-1/2” up from the base of the

wood frame. For safety purposes, extra installation

holes on the side of the insert are provided. Prepare

the side stud support if needed.

Liner Installation

5. The custom wood frame must have a sturdy base to

accommodate the cut-out for the inset. The base must be

recessed to accommodate the height of the liner (See

liner dimension on Page 14)

6. Secure the liner to the bottom of the base using screws

(not included) appropriate for the size and material of your

wood frame.

7. Liner is made up of two sections: a large, rear section with

pre-cut for insert and a front section for a total adjustable

depth between 23” and 25-3/4”.

8. Position the rear section of the liner so that it aligns with

Figure 1

Figure 2

Figure 3

Figure 4

the back edge of the custom wood frame. Use a pen to

trace the outline of the pre-cut area. Remove the liner

and proceed to Hood Preparation Before Installation.

9. Install the rear section of the liner with 6 screws (not

included).

10. Install the front section of the liner with 3 screws (not

included)

11. Proceed to Hood Installation on Page 7.

Wiring to Power Supply

SAFETY WARNING

SAFETY WARNINGSAFETY WARNING

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST

BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE

BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES, SWITCH POWER

OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

12. Temporarily wire the hood to test for proper operation

before installing. If the insert does not operate, check

the circuit breaker or house fuse. If the insert is still not

working, disconnect the power supply and check the

continuity of all wiring connections.

13. Connect electrical wires.

14. Connect three wires (black, white and green) to house

wires and cap with wire connectors. Connect wires

according to their colors (i.e. black to black, white to

white, and green to green). See Figure 3.

15. Store wires in the wiring box.

Note: Connect all electrical wires before installing insert.

DO NOT turn on the power until installation is complete.

Duct Work Installation

16. Use 7” steel pipe (follow building codes in your area) to

connect the ducting on the hood to

the ductwork above.

Use duct tape to seal and secure joints as shown in

Figure 4.

17. Please refer to local codes for the usage of the damper

(not included).

Hood Preparation Before Installation

CAUTION

: If moving the cooking range is

necessary to install the hood, turn off the power in

an electric range at the main electrical box. SHUT

OFF THE GAS BEFORE MOVING A GAS RANGE.

18. Determine and mark the centerlines on the base of the

wood frame where the insert will be installed.

19. Determine and make all necessary cuts in the wall or

ceiling for the ductwork. Note: Install the ductwork

Figure 5

Figure 6

Figure 7

Figure 8

before installing the insert.

20. Determine the proper location for the Power Supply

Cable. Make a wiring access hole

using a drill bit.

Install the wire cable and seal the gap around hole.

21. Cut out the opening where the insert will be installed.

(Figure 5)

Hood Installation

NOTE: USE HAND TOOLS ONLY. DO NOT OVER

TIGHTEN SCREWS. IT MIGHT CAUSED DAMAGED TO

THE HOOD.

22. Remove 4 screws located at the bottom of the insert.

(Fig. 6). Slowly remove the light support panel and

unplug all the connections as shown in Fig. 7.

23. Install the hood casing support (provided in the screw

package). Adjust the level of the locking mechanism

according to the thickness of the base (3/4 thickness

plywood recommended). Tighten the screws (included)

to secure as shown in Fig. 8.

24. Install the insert inside the custom wood frame.

25. Install the insert using the rear and front mounting holes

which are located at 1-1/2” (38mm) up from the insert

base (Screws not included).

26. For a more secure installation, use the mounting holes

located on the side of the insert

27. Make sure insert is secure before releasing.

28. Re-install the light support panel. (Do not over tighten

screws.)

CAUTION

: MAKE SURE HOOD IS SECURE

BEFORE RELEASING.

Final Assembly

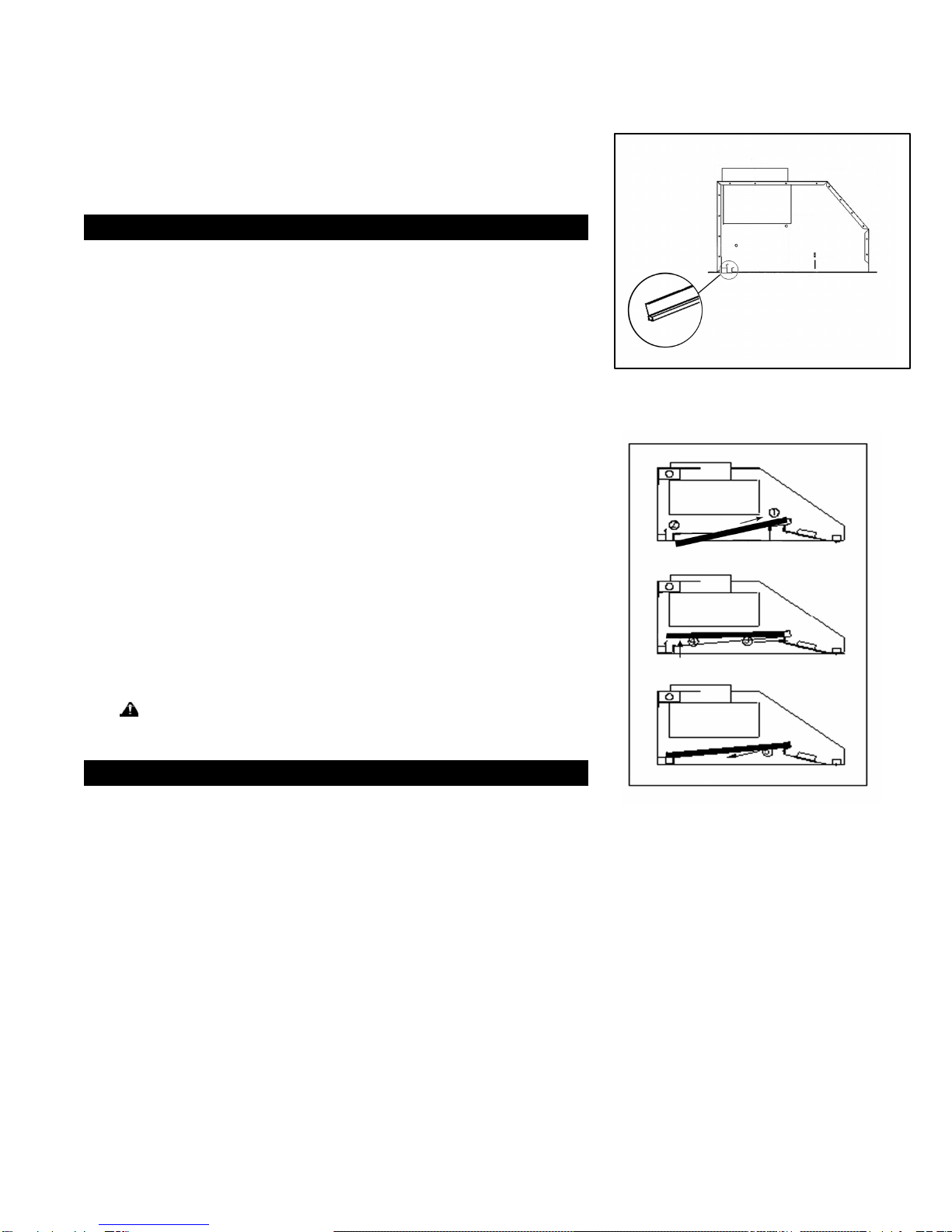

29. Install the oil tunnel into recess support near rear of

hood. Refer to Figure 9.

30. Install Baffle filters. Angle baffle filter toward back of

hood ①. Push baffle filter up until almost level ②.

Slide forward into recess behind the front of hood ③.

Lower baffle filter ④. Slide back until it fits into resting

position ⑤. Refer to Figure 10.

Figure 9

Figure 10

OPERATING INSTRUCTIONS

ThisKOBE hood is equipped with five electronicpush buttons with LED array, six electronicbutton wireless

control, twin vertical centrifugal squirrel cage fan with stainless steel baffle filter, ISC (Integrated Sensor

Control), two bright 120-volt 40-watt socket (light bulbs not included),and one oiltunnel.

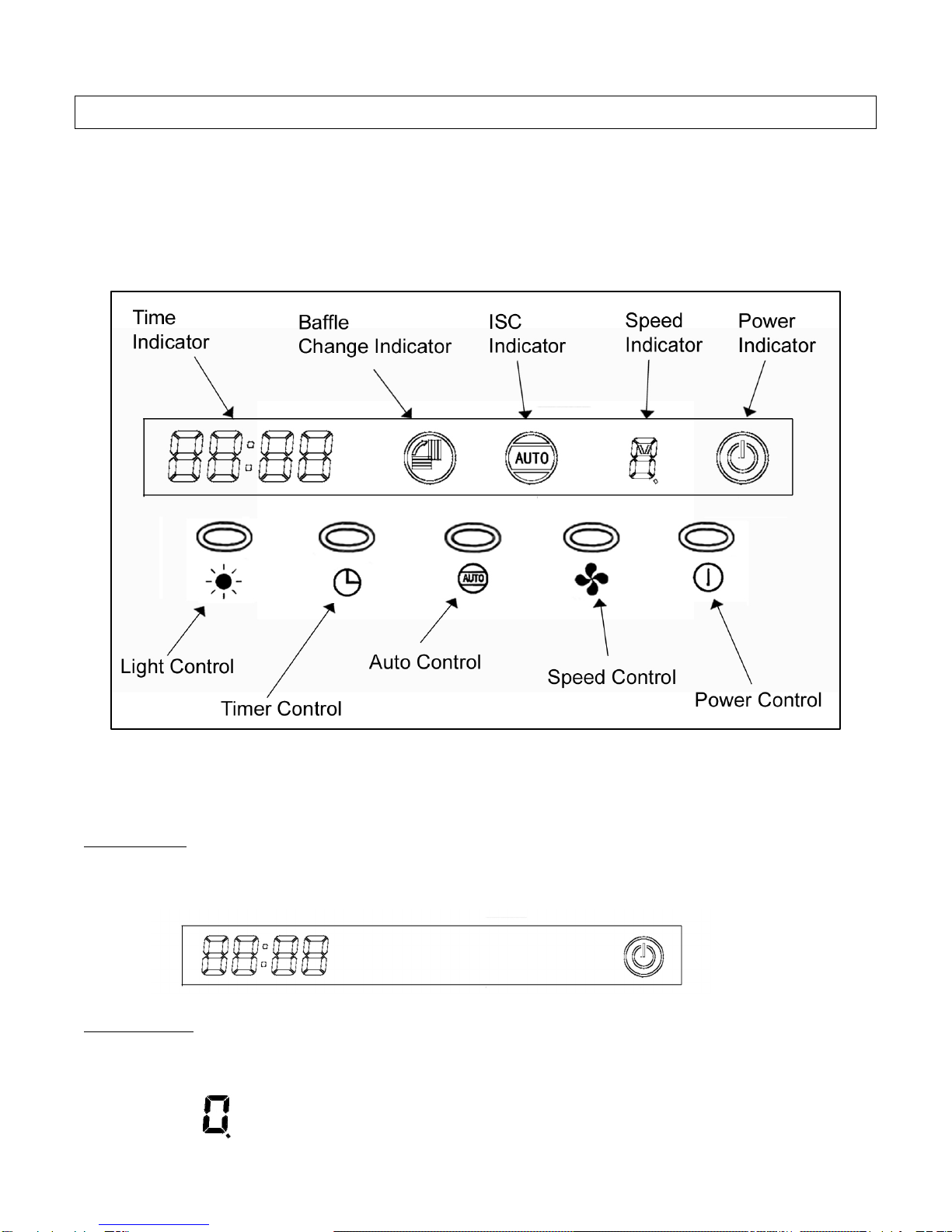

The five control buttons are Power Control (On/Off), Speed Control (High, Medium, Low & QuietMode™),

Auto Control, TimerControl and Light Control. Referto Figure 11.

Fig. 11

Note: For best results, turn hood to QuietMode™ prior to any preparation or cooking. Adjust speed as

needed.

PowerControl

Press Power Control to turn On/Off the hood.

Output Display:

Speed Control

(Each press of speed button will cycle the fan through High, Medium, Low, and QuietMode™.)

Output Display will indicate:

= QuietMode™ Speed

Altri manuali per IN2636SQB

Indice

Lingue:

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE Brillia INX27 SQB-700-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH77 SQB-1 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-650-5A Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-700 Guida alla risoluzione dei problemi

KOBE

KOBE CH77 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-700-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH9130SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CHX8136SF Guida alla risoluzione dei problemi

KOBE

KOBE CH2730SQ3 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH00 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH0030SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia CHX7930SQB-WM-1 Manuale operativo e di manutenzione

KOBE

KOBE Brillia CHX9130SQB-2 Guida alla risoluzione dei problemi

KOBE

KOBE CH0036SQB Manuale utente

KOBE

KOBE CH00 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE RA02 SQB-1 Manuale per l'uso e la cura

KOBE

KOBE Deluxe Series Guida alla risoluzione dei problemi

KOBE

KOBE Premium Series Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE RA9236SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH0030SQB Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX2030SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE RA9230SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA-092 SERIES Manuale utente

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
