KOBE CX1830GS-8 Guida alla risoluzione dei problemi

KOBE Brand Range Hood

Model No. CX1830GS-8 (30”)

CX1836GS-8 (36”)

CX1842GS-8 (42”)

CX-183 SERIES – 4” HEIGHT STAND ALONE

“GLASS CANOPY WITH LED SCREEN”

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................................1

COMPONENTS OF PACKAGE.................................................................................................................3

INSTALLATION........................................................................................................................................5

Preparations before Installation ...............................................................................................................5

Hood Installation.....................................................................................................................................6

Wiring to Power Supply..........................................................................................................................8

Recirculating Conversion ........................................................................................................................8

Ductwork Installation..............................................................................................................................9

Duct Cover Installation............................................................................................................................9

Final Assembly........................................................................................................................................9

OPERATING INSTRUCTION.................................................................................................................10

MAINTENANCE .....................................................................................................................................12

SPECIFICATIONS...................................................................................................................................14

MEASUREMENTS & DIAGRAMS.........................................................................................................15

PARTS LIST.............................................................................................................................................16

CIRCUIT DIAGRAM...............................................................................................................................18

DISCLAIMER..........................................................................................................................................19

WARRANTY ...........................................................................................................................................20

PRODUCT REGISTRATION...................................................................................................................22

READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N

A C C O R D A N C E W I T H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S .

V e r . 0 3 2 1 0 6

IMPORTANT SAFETY INSTRUCTIONS

-PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in

accordance with all applicable codes and standards, including fire-rated

construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical

wiring or other hidden utilities.

3) Ducted hood must be vented to the outside.

a) Before servicing or cleaning unit, SWITCH POWER OFF AT SERVICE PANEL.

b) Clean fan, filter, if any, and grease laden surfaces frequently. To reduce the risk

of fire and properly disperse air, make sure to vent air outside. DO NOT vent exhaust

air into wall spaces, attics, crawl spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor installation,

improper use, mistreatment, negligence or any other

circumstances beyond the control of KOBE RANGE

HOODS authorized agents. Any repair carried out without

the supervision of KOBE RANGE HOODS authorized

agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily

injuries whether caused directly or indirectly by the range

hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

•Keep fan, filter, if any, and grease-laden surfaces clean.

•Alwaysturn hood ON when cooking at high heat.

•Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to

mediumsetting.

•Do not leave cooking range unattended when cooking.

•Always use cookware and utensils appropriatefor the type and amount of food prepared.

•Use this unit only in the manner intended by the manufacturer.

•Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from switching on accidentally.

•Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

What to Do In The Event Of a Range Top Grease Fire

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the

flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

- NEVER PICK UP A BURNING PAN – You may get burned.

- DO NOT USE WATER, including wet dishclothsor towels – a violent steamblast will result.

- Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas

Company and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials

and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper

combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to

prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

4) published by the National Fire Protection Association (NFPA), and the American Society for

5) Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

6) Two installers are recommended because of the large size and weight of this hood.

7) Activating any switch may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or

death. Disconnect appliance from electric power before servicing. If

equipped, the fluorescent light bulb contains small amounts of mercury,

which must be recycled or disposed of according to Local, State, and

Federal Codes.

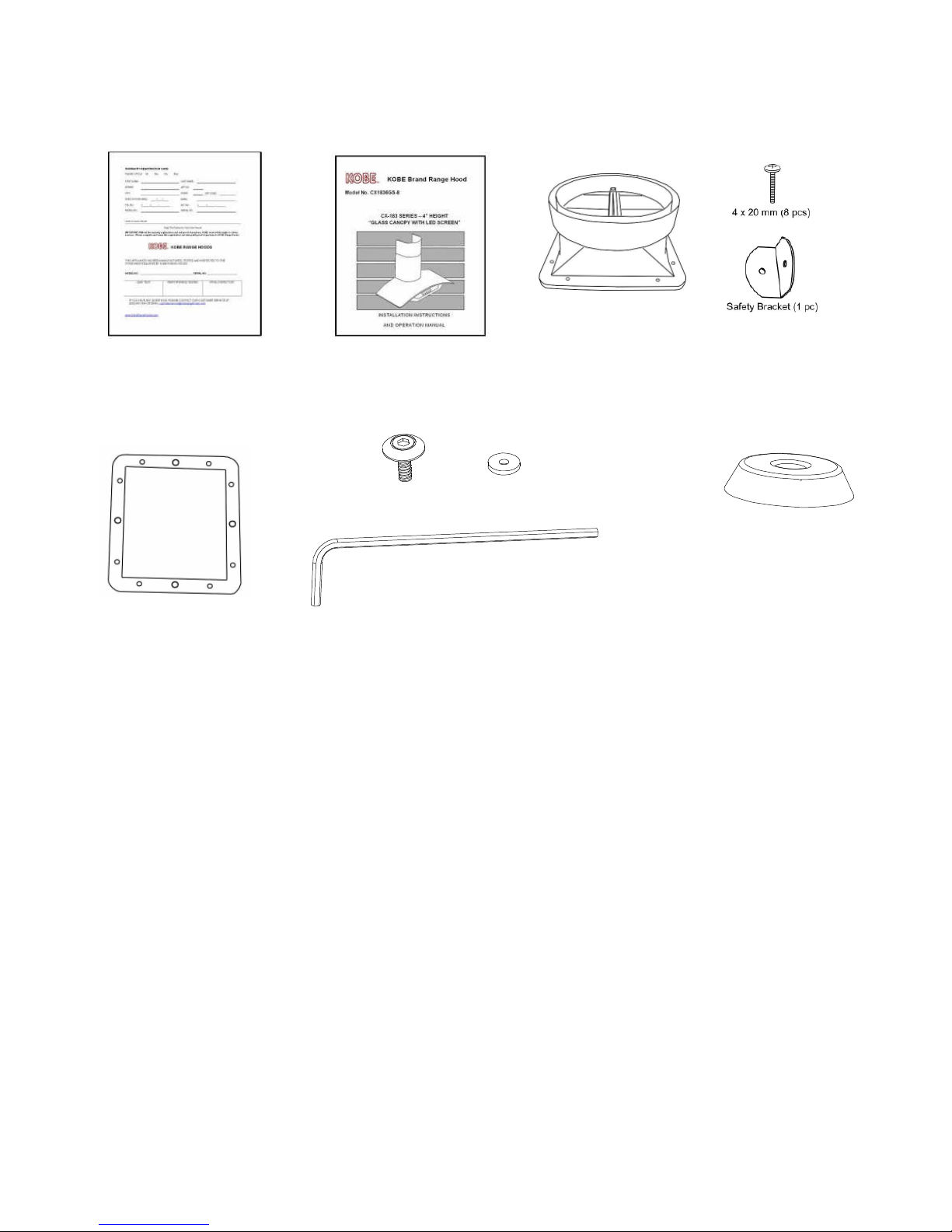

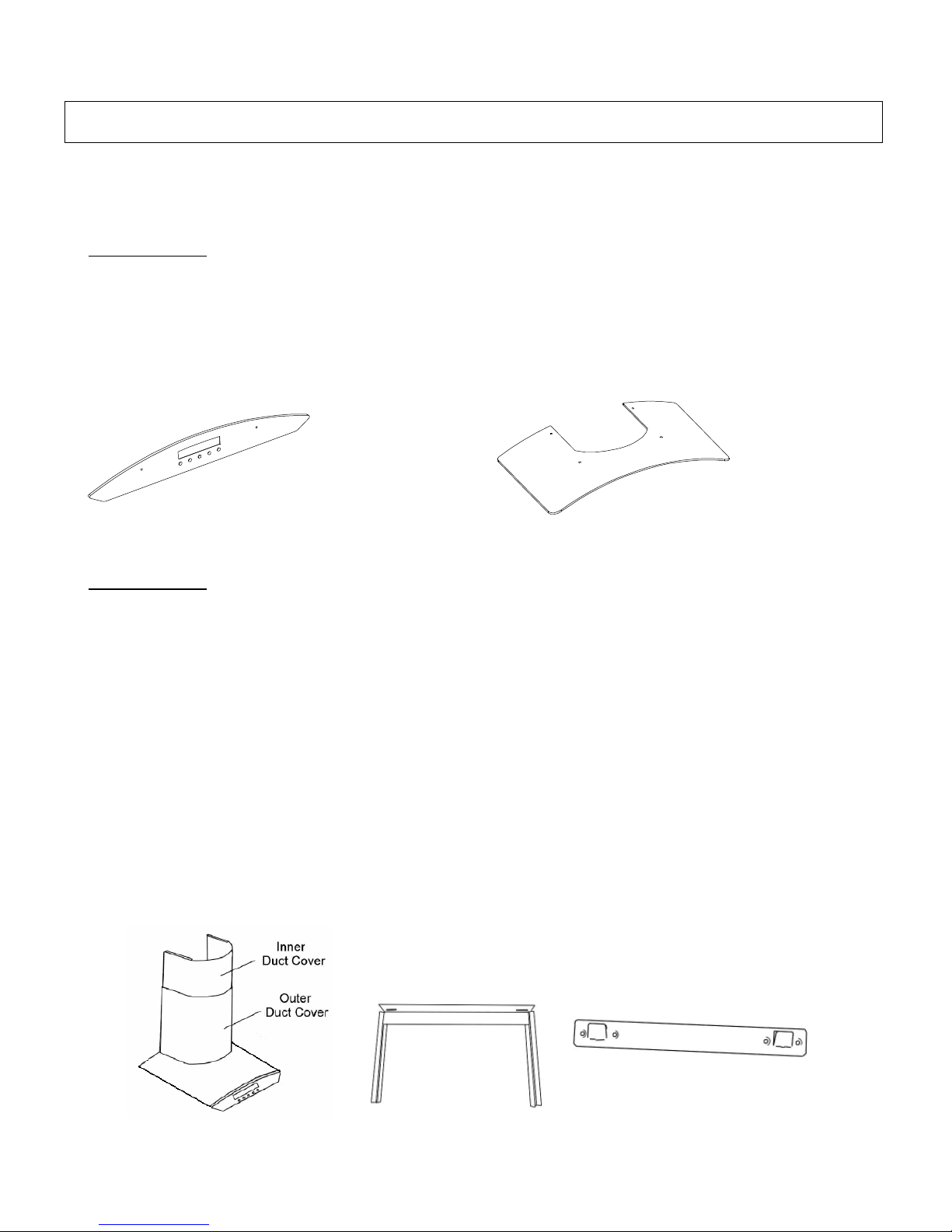

COMPONENTS OF PACKAGE

( M u s t k e e p a l l m a t e r i a l f o r r e t u r n s o r r e f u n d s )

Box 1 Of 2

{A} LED Screen And Control Panel

{B} Glass Canopy

{A} {B}

Box 2 Of 2

{A}

KOBE Range Hood with Two-Piece Duct Cover

{B}

Duct Cover-Mounting Bracket

{C}

Hood-Mounting Bracket

{D}

Warranty Registration Card

{E}

Instructions Manual

{F}

Plastic Damper

{G}

Screws Package

{H}

Rubber Seal

{ }

Glass Canopy Screws Set

{J}

Oil Container

{A} {B} {C}

{D} {E} {F} {G}

{H} { } {J}

Hexagon screws (6 pc) Spacer (6 pc)

Hexagon wrench (1 pc)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to Table 1. (All calculation in inches.)

Preparations before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.

- Decide the location of the venting pipe from the hood to the outside. Refer to Figure

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as many transitions, elbows, and long run as possible. This may reduce

the performance of the hood.

- Use duct tape to seal the joints between pipe sections.

- If necessary, prepare back wall frame with cross framing lumber for secure installation.

Using references in Table 1 and measurements on page 15, decide the level of the

lumber. Refer to Figure 2.

- Important: peel protective film off the duct cover and the hood (if any).

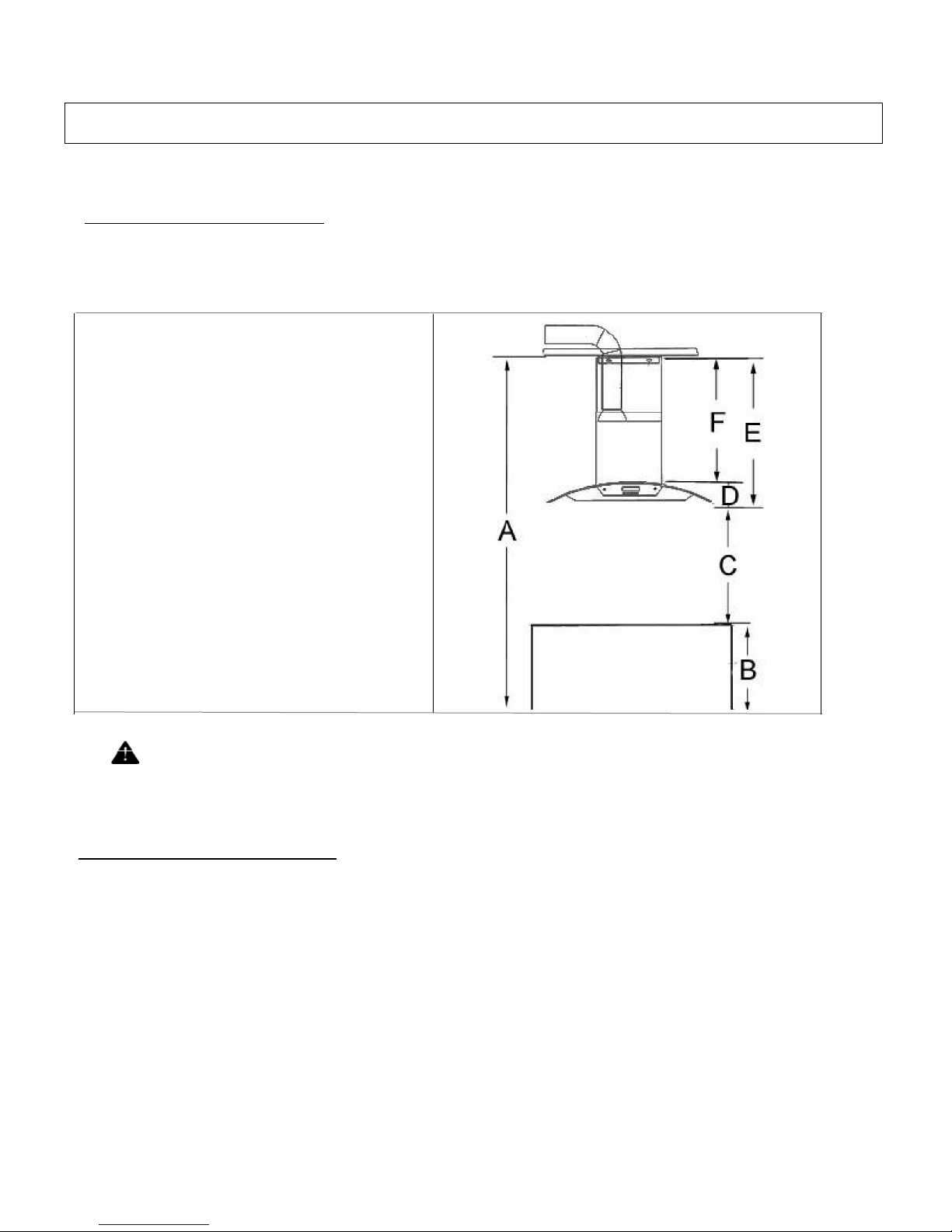

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter

Top (Standard: 36”)

C = Preferred Height of Counter Top to

Hood Bottom (Recommended 27”

to 30”)

D = Height of Hood

E = Height of the Hood

Installation [A – (B + C)]

F = Height of Duct Cover [E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

Hood Installation

CAUTION: If required to move the cooking range to install the hood, turn off the power in an

electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Peel protective film off duct cover and hood, if any. Pull out

duct cover (inner and outer) from range hood.

Shown in Figure 3

Figure 3

2. Align glass canopy to hood body. Shown in Figure 4. Attach the glass canopy to body

with four hexagon screws and four spacers (provided). Tighten with hexagon wrench

(provided). Shown in Figure 5

Figure 4 Figure 5

3. Attach the LED screen and control panel with two hexagon

screws and two spacers (provided). Tighten with hexagon

wrench (provided).

Shown in Figure 6

Figure 6

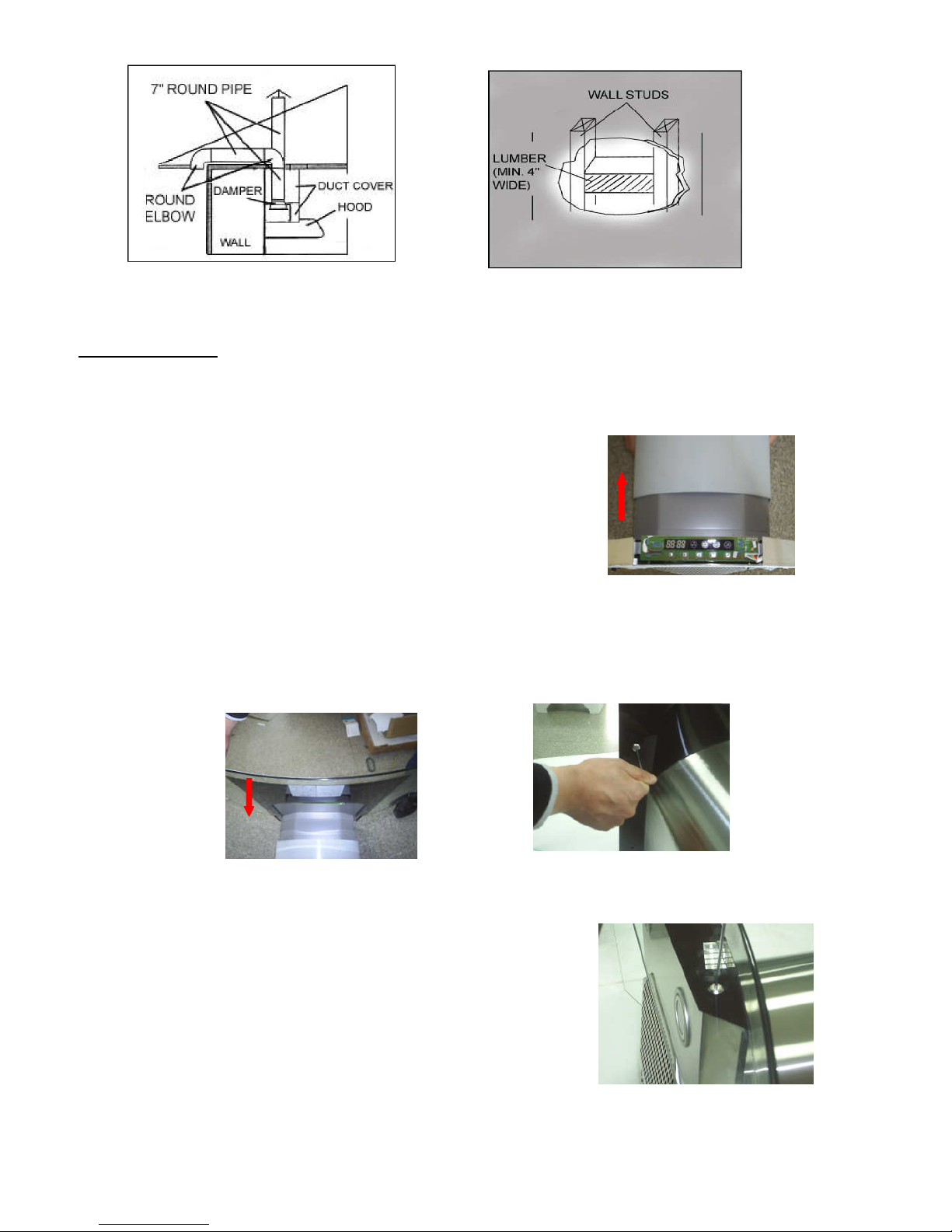

Figure 1

Figure 2

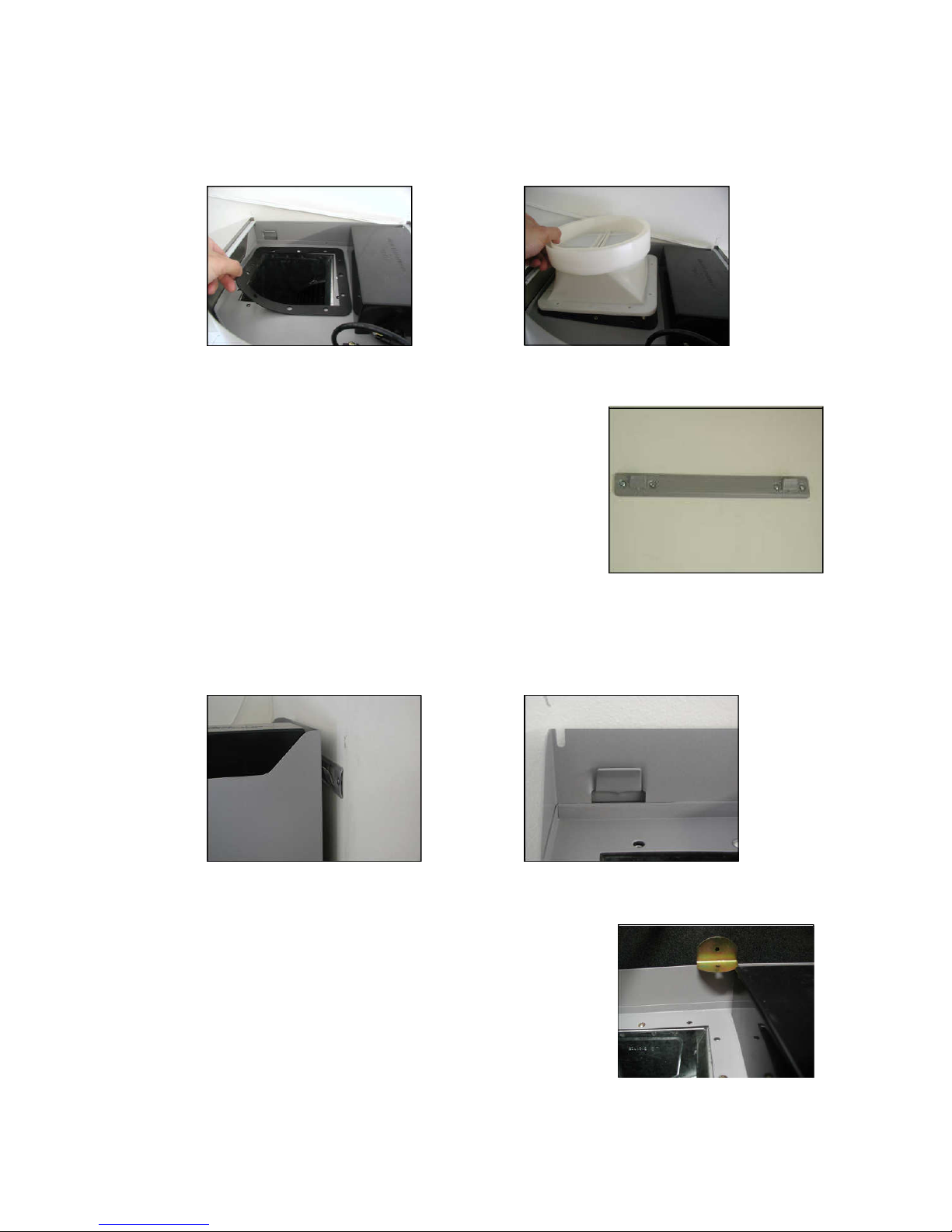

4. Place rubber seal on hood venting area; make sure the openings on rubber seal are aligned

with openings in vent area. Shown in Figure 7. Align plastic damper on rubber seal and

attach to hood using eight 4x20 mm screws (provided). Refer to Figure 8

Figure 7 Figure 8

5. If necessary, remove the two rubber stands at the back of the

hood. For a more secure installation, KOBE recommends

not removing the rubber stands.

6. Using references in Table 1 and Measurement & Diagrams on

page15, mark the leveling line for hood-mounting bracket.

Secure hood-mounting bracket to wall with screws (not

provided). Refer to Figure 9.

Figure 9

7. Align hood to the hood-mounting bracket on the wall and hook hood into place as shown in

Figure 10 & 11. CAUTION: MAKE SURE THE HOOD IS SECURE BEFORE RELEASING.

Figure 10 Figure 11

8. For safety purposes, install the safety bracket (provided) with one

screw (not provided) to the wall as shown in Figure 12.

Figure 12

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

9. Connect three wires (black, white and green) to house wires.

10. Connect according to color: black to black, white to white, and green to green and cap with

wire connectors.

11. Test the operation of the hood before moving on to the next step. Make sure power is supplied

to the hood.

12. If venting outside, skip to Step 19, Ductwork Installation.

Recirculating Conversion

Requires Purchase of Recirculating Kit Model No. RD-0183.

13. For the recirculating installation, replace the duct cover-mounting

bracket with the T-Box. Using references in Table 1 and

Measurement & Diagrams on page 15 to mark the leveling line for

the T-Box. Secure the T-Box with 3 screws (not provided) to the

wall. Use duct tape to seal joints from plastic damper to T-Box.

(Recirculating Duct Cover will hook onto T-Box.)

Refer to Figure 13.

14. Measure the distance from the top of the plastic damper to the ceiling and prepare a 7” round

metal duct pipe with 4” shorter than measured distance.

15. Use the prepared 7” round metal duct pipe to connect the T-Box to the plastic damper. Use

duct tape to make all joints secure and air tight. Make sure pipe is in the groove of the plastic

damper. Refer to Figure 14

16. Remove stainless steel filters and install the carbon filters. (Refer to Figure 20)

17. Re-attach the stainless steel filters.

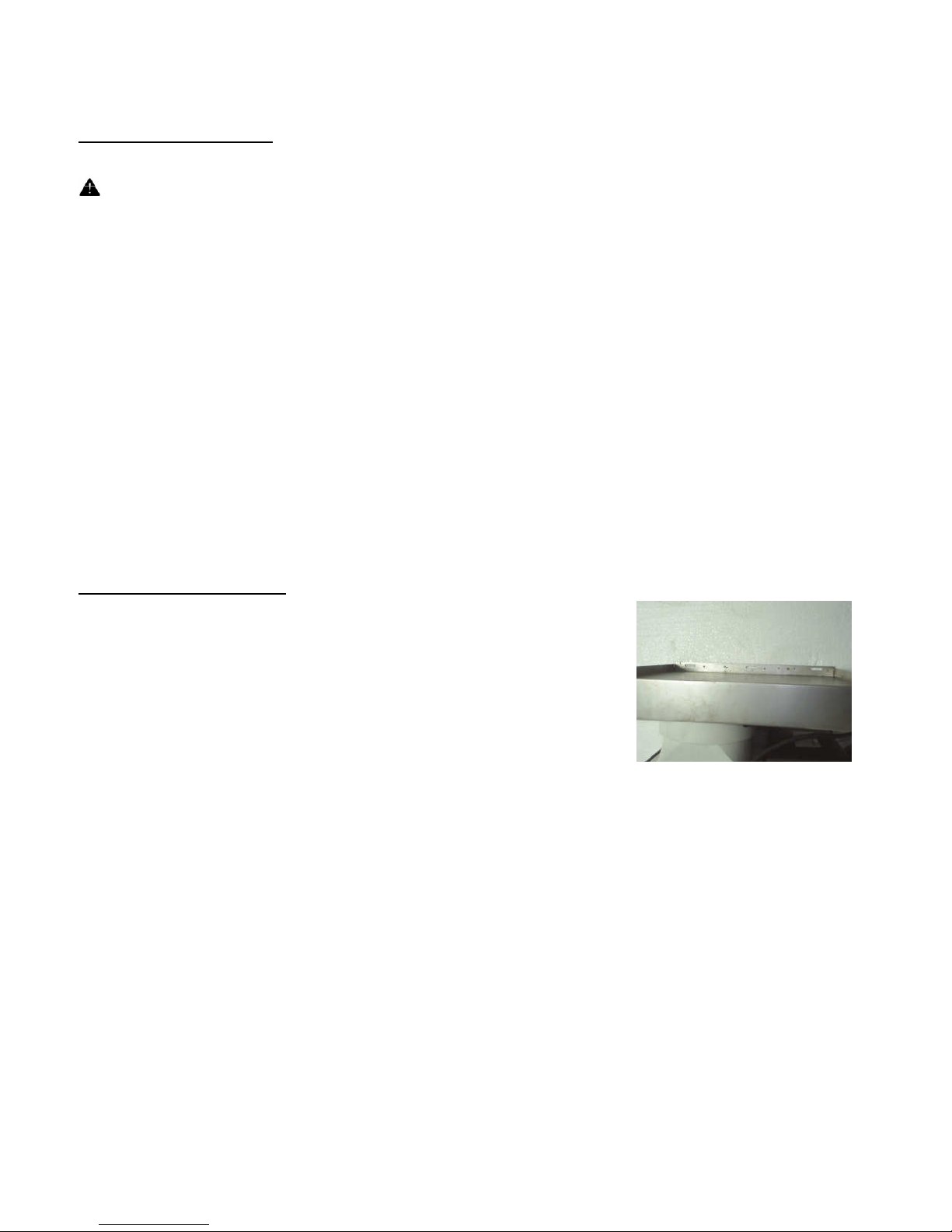

18. Skip to Step 21, Duct Cover Installation

Figure 13

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE OVS-CHX9130SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia INX27 SQB-700-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH8136SQ Guida alla risoluzione dei problemi

KOBE

KOBE IS2236SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH9130SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH00 SQB-1 Manuale utente

KOBE

KOBE RA38 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH8136SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA-092 SERIES Manuale utente

KOBE

KOBE Brillia RAX2130SQB-1 (30") Guida alla risoluzione dei problemi

KOBE

KOBE IN26 SQB-650-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQD Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE CHX81 SQB-1 Manuale utente

KOBE

KOBE IS2236SQB-DC16-1 Guida alla risoluzione dei problemi

KOBE

KOBE CHX38 Manuale utente

KOBE

KOBE CH77 SQB-1 Series Guida alla risoluzione dei problemi

KOBE

KOBE CHX30 Series Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE CHX-30 Series(400 CFM-LED) Guida alla risoluzione dei problemi

KOBE

KOBE OVS-ISX2130SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE RA9230SQB Guida alla risoluzione dei problemi

KOBE

KOBE CHX3830SQBD-3 Guida alla risoluzione dei problemi

KOBE

KOBE RA-094 Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
