KOBE Brand Range Hood

Model No. / N

de modèles / Modelo No.

IS2336SQ

IS2342SQ

IS-123 SERIES – 7” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

MANUEL D'INSTALLATION

ET MODE D'EMPLOI

INSTRUCCIONES DE INSTALACIÓN

Y MANUAL DE OPERACIÓN

[ENGLISH]................................................................................................................................. 1

[FRENCH]................................................................................................................................ 24

[SPANISH]............................................................................................................................... 47

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 2

COMPONENTS OF PACKAGE.................................................................................................. 4

INSTALLATION.......................................................................................................................... 5

OPERATING INSTRUCTION..................................................................................................... 9

MAINTENANCE....................................................................................................................... 10

SPECIFICATIONS ................................................................................................................... 12

MEASUREMENTS & DIAGRAMS............................................................................................ 13

PARTS LIST............................................................................................................................. 15

CIRCUIT DIAGRAM.................................................................................................................18

TROUBLE SHOOTING............................................................................................................ 19

DISCLAIMER........................................................................................................................... 20

WARRANTY ............................................................................................................................ 21

PRODUCT REGISTRATION.................................................................................................... 23

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE -

This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box (Box 1 of 2)

{A} KOBE Range Hood

{B} Mounting Template

{C} Warranty Registration Card

{D} Instructions Manual

{A} {B}

{C} {D}

Duct Cover Box (Sold Separately) Box 2 of 2

ORIGINAL KIT

BOX 2 (SOLD SEPARATELY):

{E} Telescopic Stack

{F} Two-Piece Duct Cover

{G} Screws Package

{H} Filter Set

(Model No. IS123F)

- Mesh Filter x 2

- Safety Screen x 2

- Oil Container (Round) x 2

- Screw x 2

{G}

{E} {F}

{H}

Duct Cover Box (Sold Separately) Box 2 of 2

RECIRCULATING KIT

BOX 2 (SOLD SEPARATELY):

{E} Telescopic Stack

{F} Two-Piece Duct Cover

{G} Screws Package

{H} Charcoal Filter Set

(Model No. RH-CH01)

- Charcoal Filter x 2

- Mesh Filter x 2

- Safety Screen x 2

- Oil Container (Round) x 2

- Screw x 2

{G}

{E} {F}

{H}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparations of Ductwork and Location

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as many transitions, elbows, and long run as possible. This may reduce the

performance of the hood.

Use duct tape to seal the joints between pipe sections.

Figure 1

Telescopic Stack Installation

Note: Duct cover with telescopic stack sold separately.

1. Mark centerlines of cook top or range on ceiling above. Use centerlines marked on ceiling

to position the mounting template as shown in Figure 2.

2. Remove and save template. Cut and remove ceiling drywall. Install 2” x 4” cross framing

lumber (not provided) between ceiling joists. Refer to Figure 3. Consult a professional if

you have difficulty or your installation is unique.

3. Finish the ceiling surface. Be sure to mark the location of the ceiling joists and cross

framing, or replace the mounting template in the position of the ceiling joists & cross

framing.

4. Attach the telescopic stack to the ceiling and securely fasten to the joists and cross framing

with eight screws (not provided) as shown in Figure 3. Make sure screws are driven into

center of joists and cross framing for maximum support.

5. Adjust the telescopic stack using reference Fcalculated in Table 1 and measurements on

page 12. Tighten from the side with eight (4x8 mm) screws (provided) as shown in Figure

Figure 2

Figure 3

Figure 4

Duct Cover Installation

6. Slide the duct cover up and secure the inner duct cover to the telescopic stack with four

(4x8 mm) screws (provided). Refer to Figure 5.

Hood Installation

7. Place temporary screws to hold the duct cover up. Install the hood as shown in Figure 6.

8. Use eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack. Make sure

to tighten screws securely. Refer to Figure 6.

Figure 6

Figure 5

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

9. Remove the wiring box cover as shown in Figure 7. Remove the knockout from the wiring

box.

10. Connect three wires (black, white and green) to house wires and cap with wire connectors

11. Connect according to color. Black to black, white to white, and green to green.

12. Close the wiring box cover and make sure that wires are not pinched between cover and

box.

13. Test the operation of the hood before moving on to next step. Make sure power is supplied

to the hood.

Ductwork Installation

Note: Skip this step if installing recirculating kit.

14. Use 6” round pipe to connect the plastic exhaust on the hood to the ductwork above.

15. Use duct tape to make all joints secure and air tight.

Final Assembly

16. Remove the temporary screws and slide the outer duct cover downward so that it sits

properly on the hood.

17. NOTE: Be careful when using electrical screwdriver, damage to the hood may occur.

Secure the duct cover to hood with four (4x8 mm) screws (provided) as shown in Figure 8.

18. Turn power ON in control panel. Check all lights and fan operation.

19. Make sure to leave this manual for the homeowner.

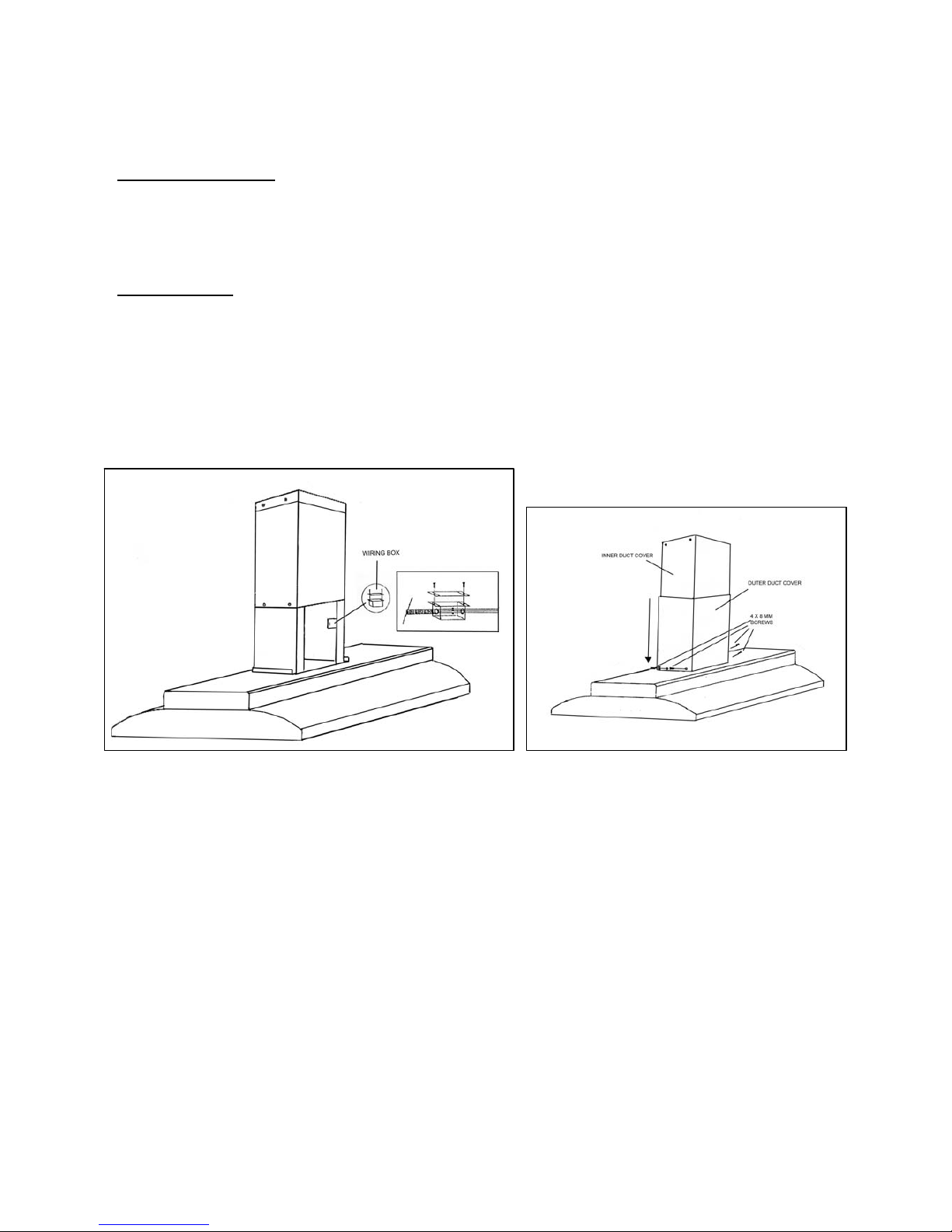

Figure 7 Figure 8

Altri manuali per IS2336SQ

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE CH7930SQ Guida alla risoluzione dei problemi

KOBE

KOBE IS2436GSB Manuale utente

KOBE

KOBE CXX8130QF-GBK-1 Manuale utente

KOBE

KOBE CHX91 SQB-1 Manuale utente

KOBE

KOBE IN28 SQB Series Guida alla risoluzione dei problemi

KOBE

KOBE Premium Series Guida alla risoluzione dei problemi

KOBE

KOBE RA0230SQB-DC-5 Guida alla risoluzione dei problemi

KOBE

KOBE IN-027 Series Guida alla risoluzione dei problemi

KOBE

KOBE RA38 Series Guida alla risoluzione dei problemi

KOBE

KOBE Brillia INX27 SQB-700-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH0030SQB Guida alla risoluzione dei problemi

KOBE

KOBE IN28 SQP Series Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH-101 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH2730SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE RAX9430SQB-2 Guida alla risoluzione dei problemi

KOBE

KOBE AMZ-CHX2030SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE INX28 SQ-700-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH0042SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH3830SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH7730SQB Guida alla risoluzione dei problemi

KOBE

KOBE INX26 SQB-700-3 Series Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX9130SQB-40 Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
