KOBE Brand Range Hoods

Model No. IS2436GSB

IS2442GSB

IS-124 SERIES – 5” HEIGHT

“ISLAND GLASS CANOPY WITH LCD SCREEN”

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS...........................................................................1



COMPONENTS OF PACKAGE..........................................................................................3



INSTALLATION ....................................................................................................................4



OPERATION INSTRUCTIONS...........................................................................................8



MAINTENANCE................................................................................................................ 11



SPECIFICATIONS ............................................................................................................ 13



MEASUREMENTS & DIAGRAMS .................................................................................. 14



PARTS LIST ......................................................................................................................15



CIRCUIT DIAGRAM ......................................................................................................... 17



TROUBLE SHOOTING .................................................................................................... 18



DISCLAIMER .................................................................................................................... 19



WARRANTY ...................................................................................................................... 20



PRODUCT REGISTRATION ........................................................................................... 22



- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

•

SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

•

NEVER PICK UP A BURNING PAN – You May Get Burned.

•

DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

•

Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or

death. Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to

Local, State, and Federal Codes.

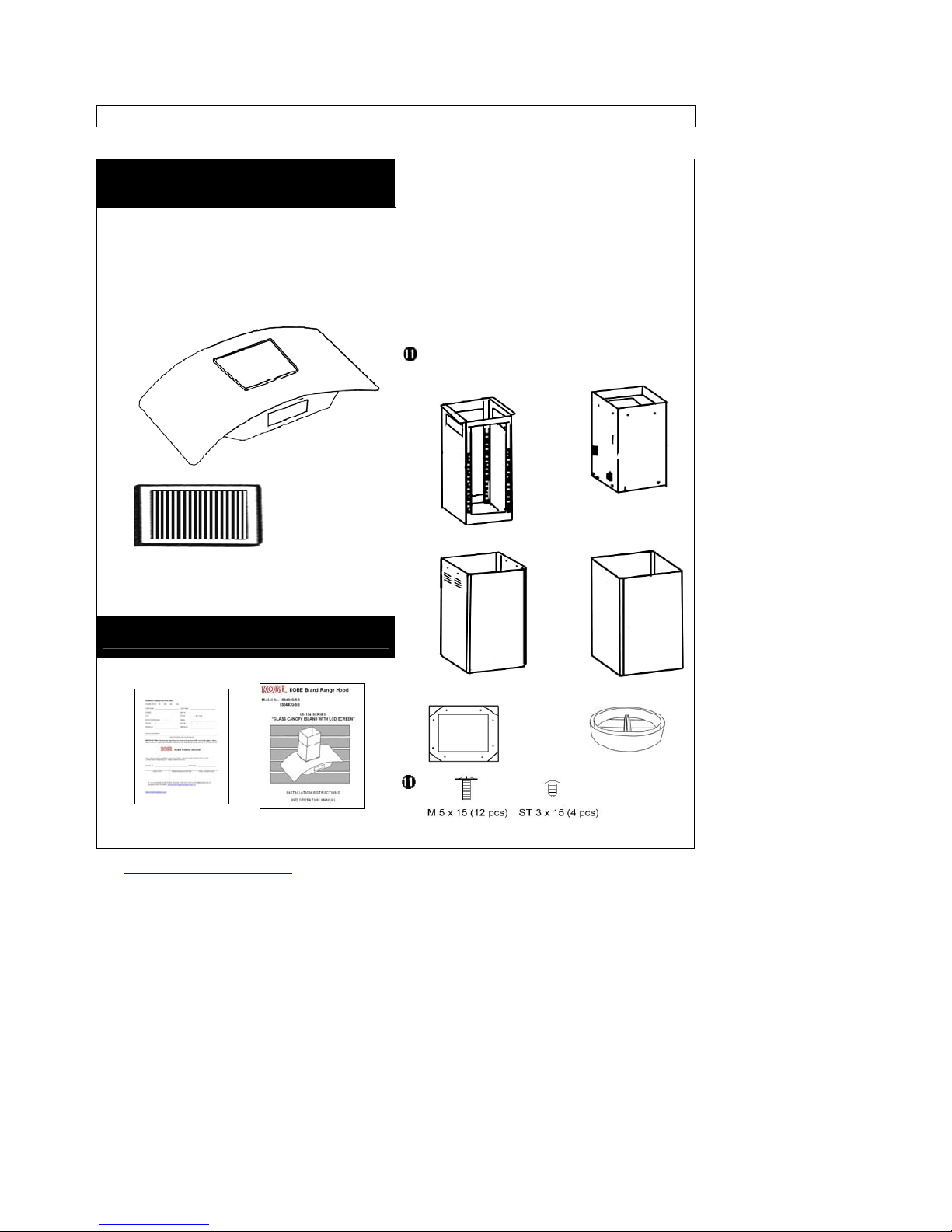

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

BOX 1 OF 2

MODEL NO. IS2436GSB

MODEL NO. IS2442GSB



Glass Canopy w/ LCD Screen – 1



Baffle Filter – 2



Warranty Registration Card – 1



Instructions Manual – 1





* Attached to Hood

BOX 2 OF 2

MODEL NO. IS124DC





Telescopic Stack – 1



Blower Unit - 1



Inner Duct Cover – 1



Outer Duct Cover – 1



Mounting Template – 1



7” Round Damper – 1

Screws Package







* Attached to Blower Unit

* Attached to the Unit

OPTIONAL RECIRCULATING KIT AVAILABLE. FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE

WWW.KOBERangeHoods.comOR CONTACT KOBE RANGE HOODS AT (626) 775-8880.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

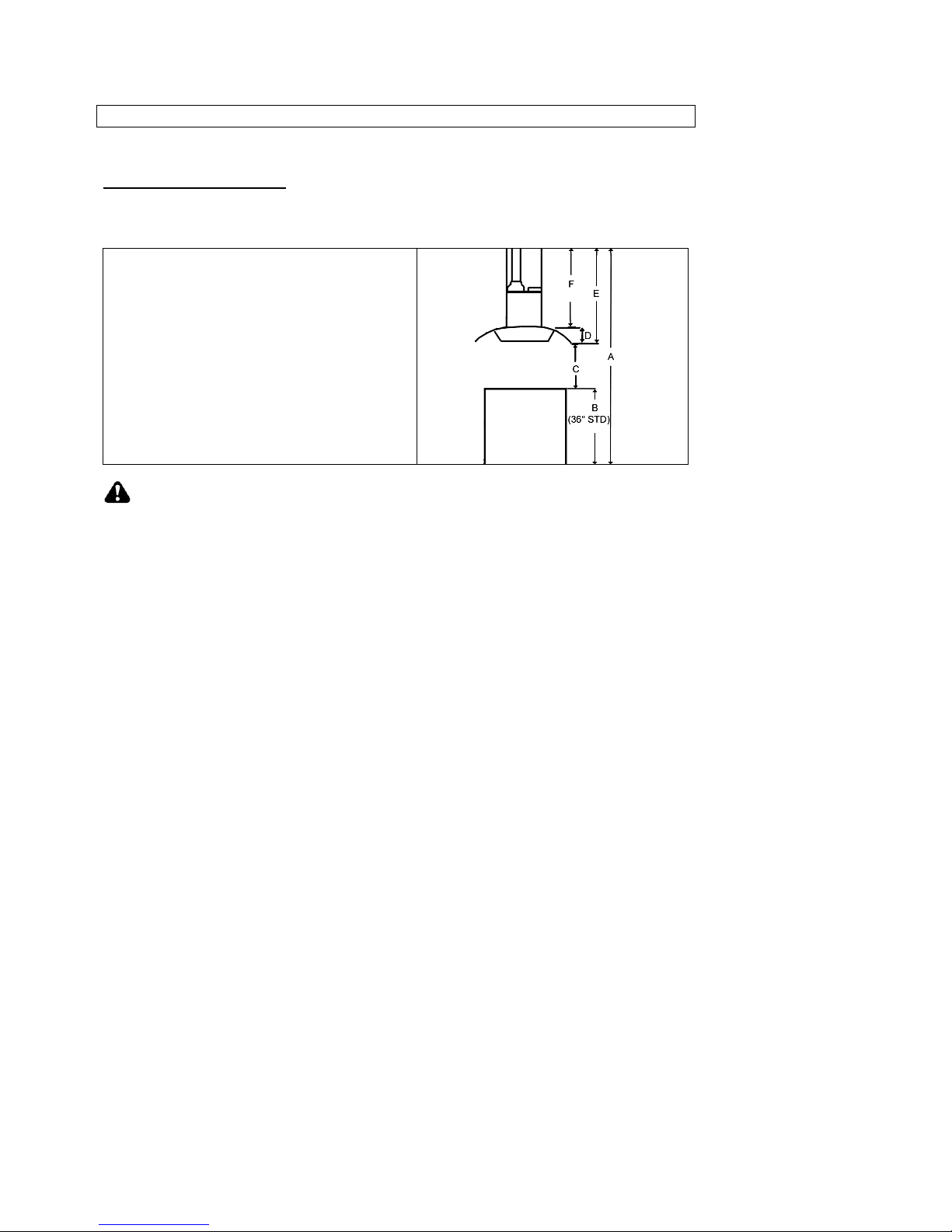

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.

•

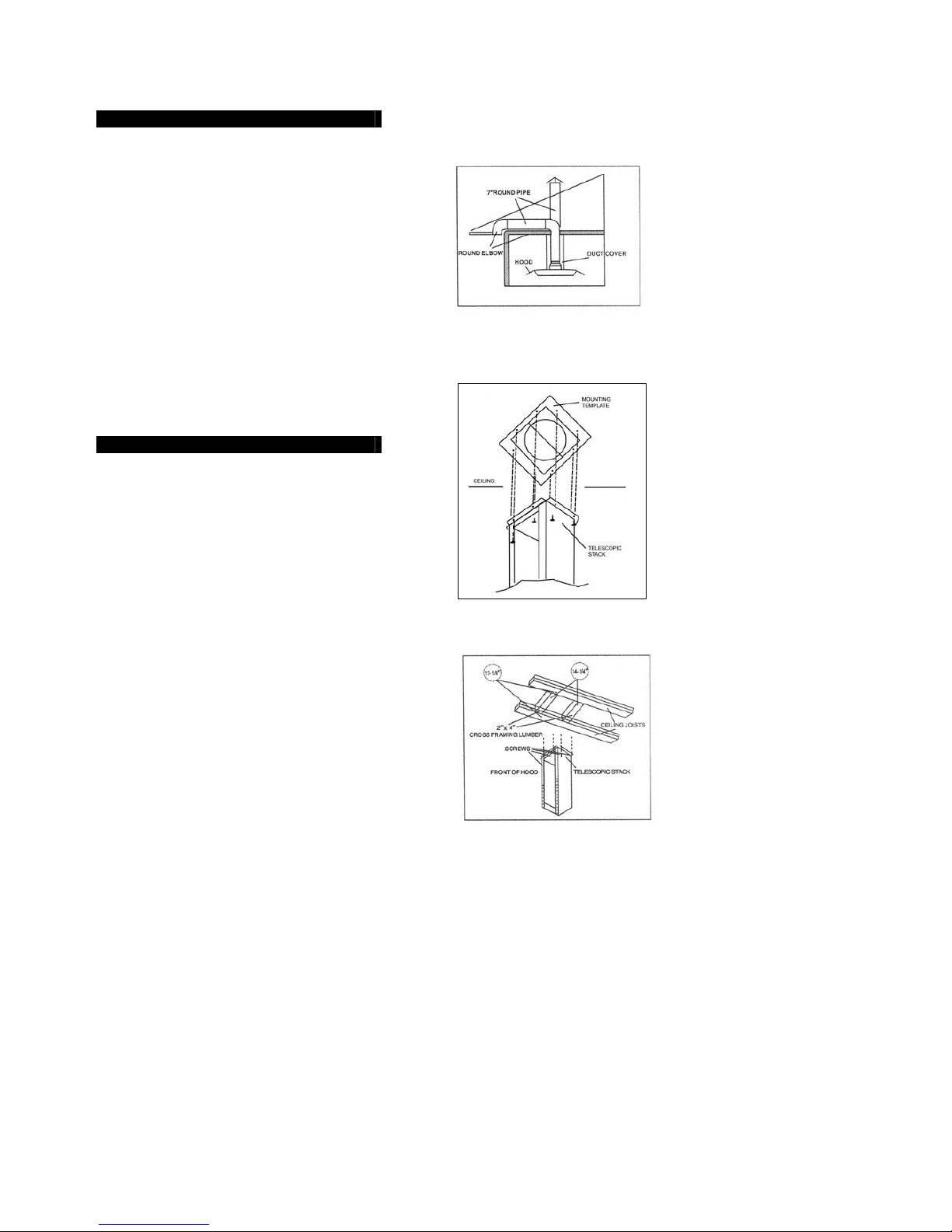

Decide the location of the venting pipe

from the hood to the outside. (Figure 1)

•

A straight, short vent run will allow the hood

to perform more efficiently.

•

Try to avoid as many transitions, elbows,

and long run as possible. This may reduce

the performance of the hood.

•

Temporarily wire the hood to test for proper

operation before installing. Refer to figure 5

on page 6.

•

Important: Peel protective film off the

hood and duct covers, if any.

•

Use duct tape to seal the joints between

pipe sections.

Advance Planning

1. Mark centerlines of cook top or range on

ceiling. Use centerlines marked on ceiling

to position the mounting template as shown

in Figure 2.

2. Remove and save template. Cut and

remove ceiling drywall. Install 2” x 4” cross

framing lumber (not provided) between

ceiling joists.

3. The framing should be spaced 12-1/8” at

the front centerline and 14-1/4” on the sides

to accept the mounting screw in the

telescopic stack. Refer to

MEASUREMENTS & DIAGRAMS on pages

14. Shown in Figure 3.

4. Finish the ceiling surface. Be sure to mark

the location of the ceiling joists and cross

framing lumber.

5. Align the mounting template to the ceiling

marks and tape in place. Cut the 7-1/4”

duct open and approximately 1” wire access

hole. Drill holes for the 8 mounting screws

as indicated on the template.

Figure 1

Figure 2

Figure 3

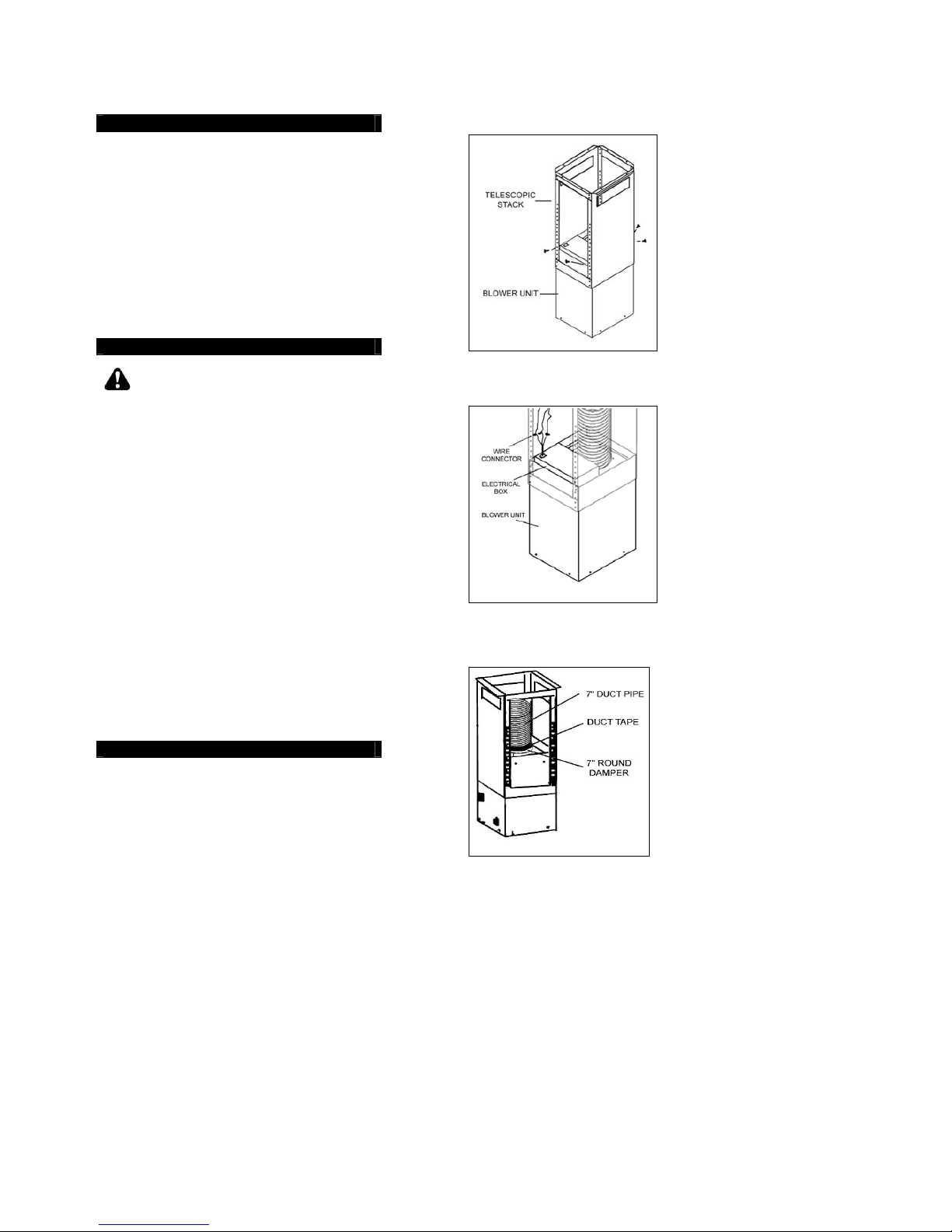

6. Align the telescopic stack to the pre-drill

holes on the ceiling and securely fasten to

the joists and cross framing lumber with

eight screws (not provided). Make sure

screws are driven into center of joists and

cross framing lumber for maximum support.

7. Adjust the blower unit to the telescopic

stack using reference Fcalculated in

TABLE 1 on page 4 and measurements on

pages 14. Tighten blower unit to the

telescopic stack with four (M5 x 15) screws

(provided) as shown in Figure 4.

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY QUALIFIED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

8. Route house wiring into the ceiling as close

to the installation location as possible.

Allow additional length to drop down from

the ceiling to the electric box.

9. Connect the electrical wires according to

color (green to green, white to white, and

green to green) and cap with wire

connectors as shown in Figure 5. Green

wire must be grounded to reduce risk of

electric shock.

Ductwork Installation

10. Use 7” round aluminum or steel pipe (not

provided) to connect the 7” round damper

on the hood to the ductwork above. NOTE:

Place 7” round duct pipe over the damper.

Seal with duct tape to make all joints secure

and air tight. NOTE: MAKE SURE FLAPS

ON DAMPER CAN OPEN & CLOSE

FREELY. (Figure 6)

Figure 4

Figure 5

Figure 6

Telescopic Stack Installation

Wiring to Power Supply

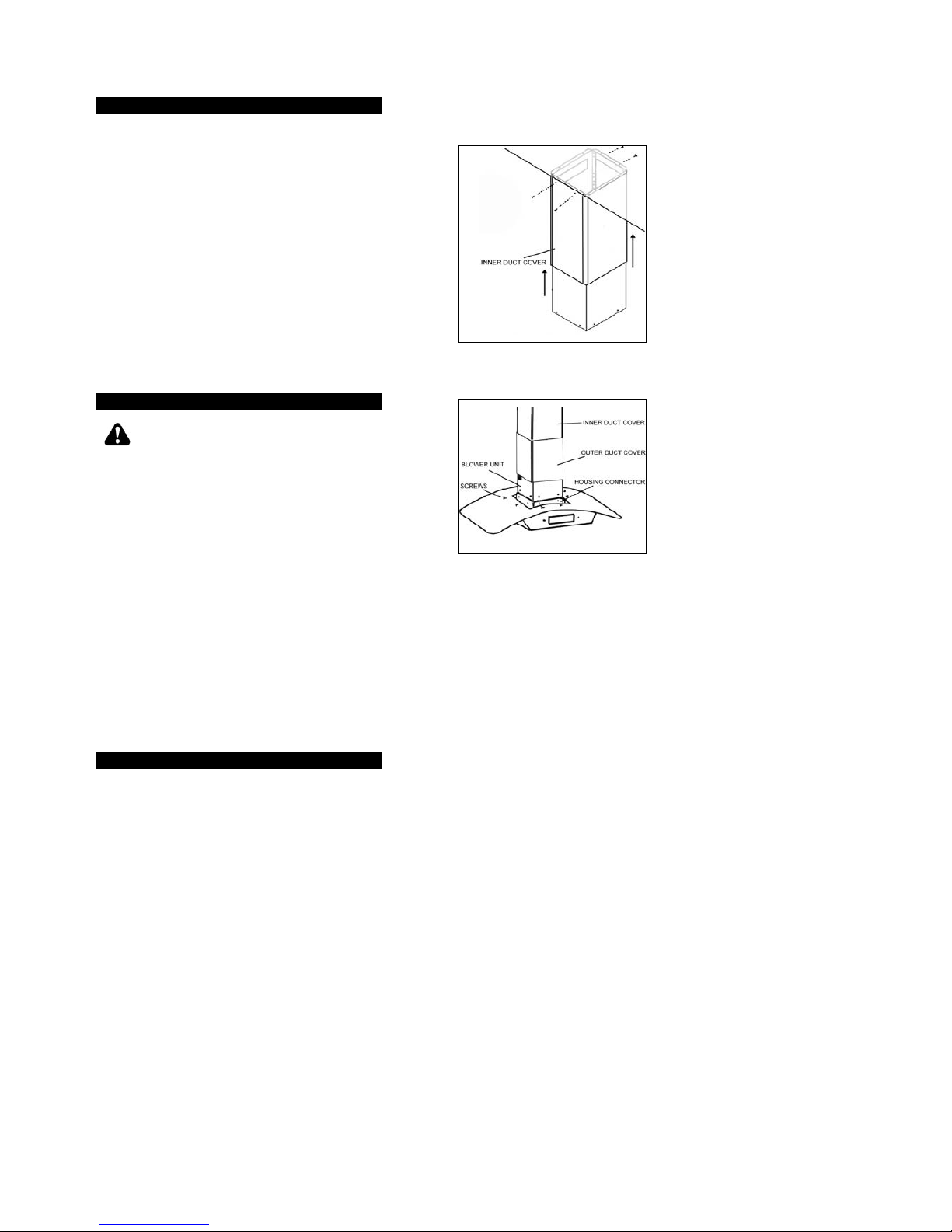

11. Slide the inner duct cover up and secure to

the telescopic stack with four (ST 3 x 15)

screws (provided). Refer to Figure 7.

12. With assistance, slide the outer duct cover

to the blower unit and ask assistant to hold

steady until step 15 is completed.

13. Attach glass canopy with LCD screen

underneath the blower unit. Make sure

blower unit is inside the housing connector.

Refer to the PARTS LIST on pages 14.

14. Secure the housing connector to the blower

unit with eight (M5 x 15) screws (provided)

as shown in Figure 8.

15. Ask assistant to slide outer duct cover

downward so it rest within the grooves of

the glass canopy.

Connection to LCD Screen

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY QUALIFIED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

16. Remove front baffle filter (directly behind

LCD screen). When facing the LCD screen,

turn knobs slightly to left to release baffle

filter. CAUTION: DO NOT OVERTURN

KNOBS.

17. Connect the wires according to connector

color to the blower unit.

18. Place baffle filters back in place.

Final Assembly

19. Turn power ON in control panel. Check all

lights and fan operation.

20. Make sure to leave this manual for the

homeowner.

Figure 7

Figure 8

Duct Cover Installation

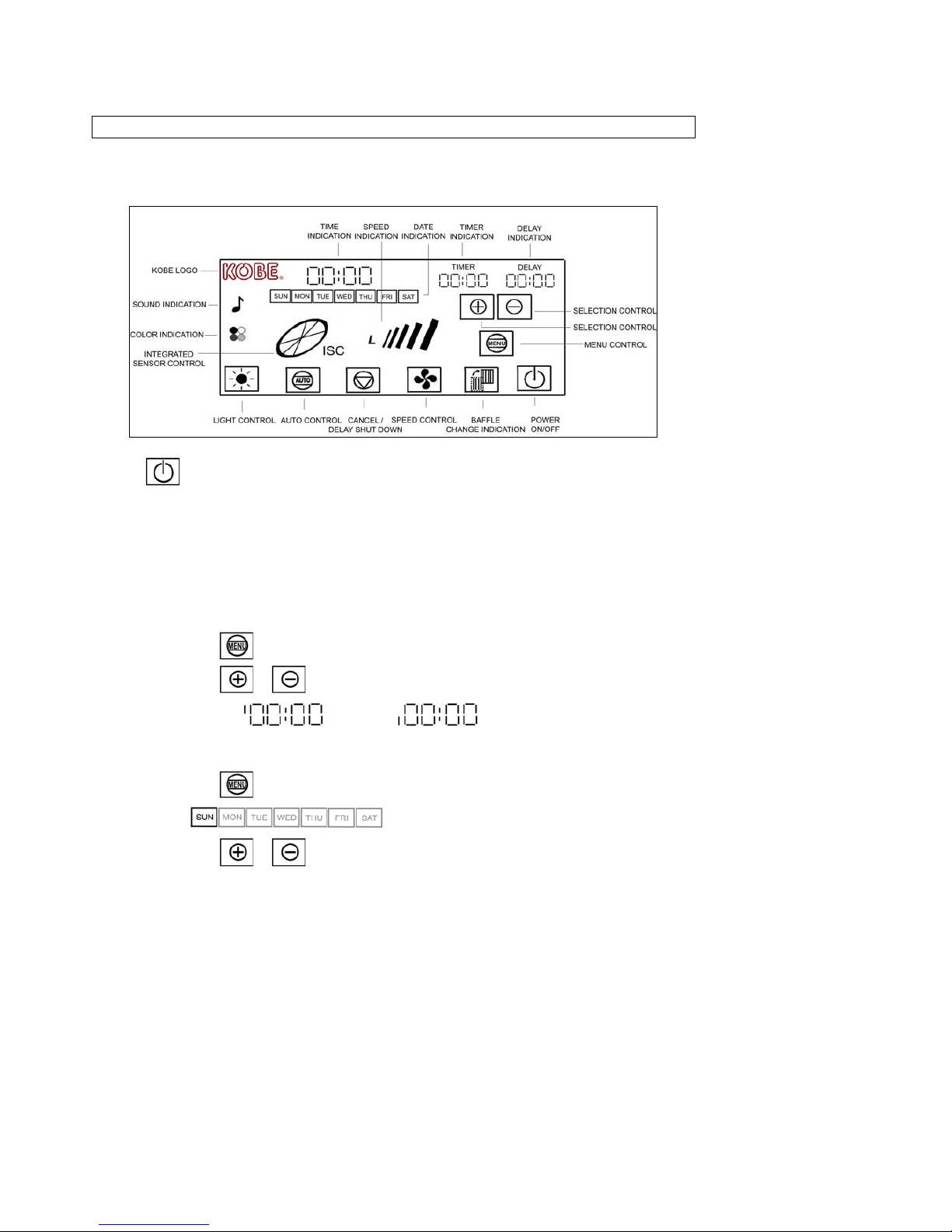

OPERATION INSTRUCTIONS

Figure 9

LCD DISPLAY:

PRESS TO TURN ON/OFF THE LCD SCREEN

(When power is turned on, LCD screen will light up & remain lit until turn off. When power is turned off,

LCD screen will remain lit for several seconds before turning off.)

GENERAL SETUP

(During menu option, if a function is not chosen within 10 seconds, the icon will stop flashing & menu

option will end.



Setting Time

1. Press until time icon flashes.

2. Press or to select current time by hh:mm.

(Choose for A.M. or for P.M.)



Setting Date

1. Press until date section flashes.

()

2. Press or to select current date.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE CH0030SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia CHX81 SQB-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE Brillia INX27 SQB-700-3 Series Guida alla risoluzione dei problemi

KOBE

KOBE CHX22 SQB-1 Manuale per l'uso e la cura

KOBE

KOBE OVS-CHX2030SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE CH9136SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQ Guida alla risoluzione dei problemi

KOBE

KOBE RA02 SQB-1 Manuale per l'uso e la cura

KOBE

KOBE IS2136SQB Guida alla risoluzione dei problemi

KOBE

KOBE CHX30 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH0036SQB Guida alla risoluzione dei problemi

KOBE

KOBE CH0130SQB (30") Manuale utente

KOBE

KOBE CH7730SQ Guida alla risoluzione dei problemi

KOBE

KOBE CHX20 SQB-1 Manuale per l'uso e la cura

KOBE

KOBE Deluxe Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH0036SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH27 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-700 Manuale utente

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE Brillia Series Guida alla risoluzione dei problemi

KOBE

KOBE INX2930SQBF-500-1 Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
