KOBE RA2830SB Guida alla risoluzione dei problemi

KOBE Brand Range Hood

Model No. RA2830SB

RA2836SB

RA-028 SERIES – 2” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

Important Safety Instructions................................................................................................. 1

Components Of Package...................................................................................................... 3

Installation............................................................................................................................. 4

Operating Instructions........................................................................................................... 8

Maintenance ......................................................................................................................... 9

Specifications...................................................................................................................... 10

Measurements & Diagrams................................................................................................. 11

Parts List............................................................................................................................. 12

Circuit Diagram................................................................................................................... 13

Disclaimer........................................................................................................................... 14

Warranty............................................................................................................................. 15

Product Registration............................................................................................................ 17

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W IRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

kv.060105

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean fan, baffles/filters and grease laden surfaces frequently. To reduce the risk of fire and to

disperse air properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces,

attics, crawl spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence or any

other circumstances beyond the control of KOBE RANGE

HOODS authorized agents. Any repair carried out without

the supervision of KOBE RANGE HOODS authorized agents

will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily

injuries whether caused directly or indirectly by the range

hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1) Keep fan, baffle/filter, if any, and grease-laden surfaces clean.

2) Always turn hood ON when cooking at high heat.

3) Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to medium

setting.

4) Do not leave cooking range unattended when cooking.

5) Always use cookware and utensils appropriate for the type and amount of food prepared.

6) Use this unit only in the manner intended by the manufacturer.

7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan and baffles.

What to Do In The Event Of a Range Top Grease Fire

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the

flames do not go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT

or 911.

NEVER PICK UP A BURNING PAN – You May Get Burned.

DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company

and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities. Activating

any switch on may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of mercury,

which must be recycled or disposed of according to Local, State, and

Federal Codes.

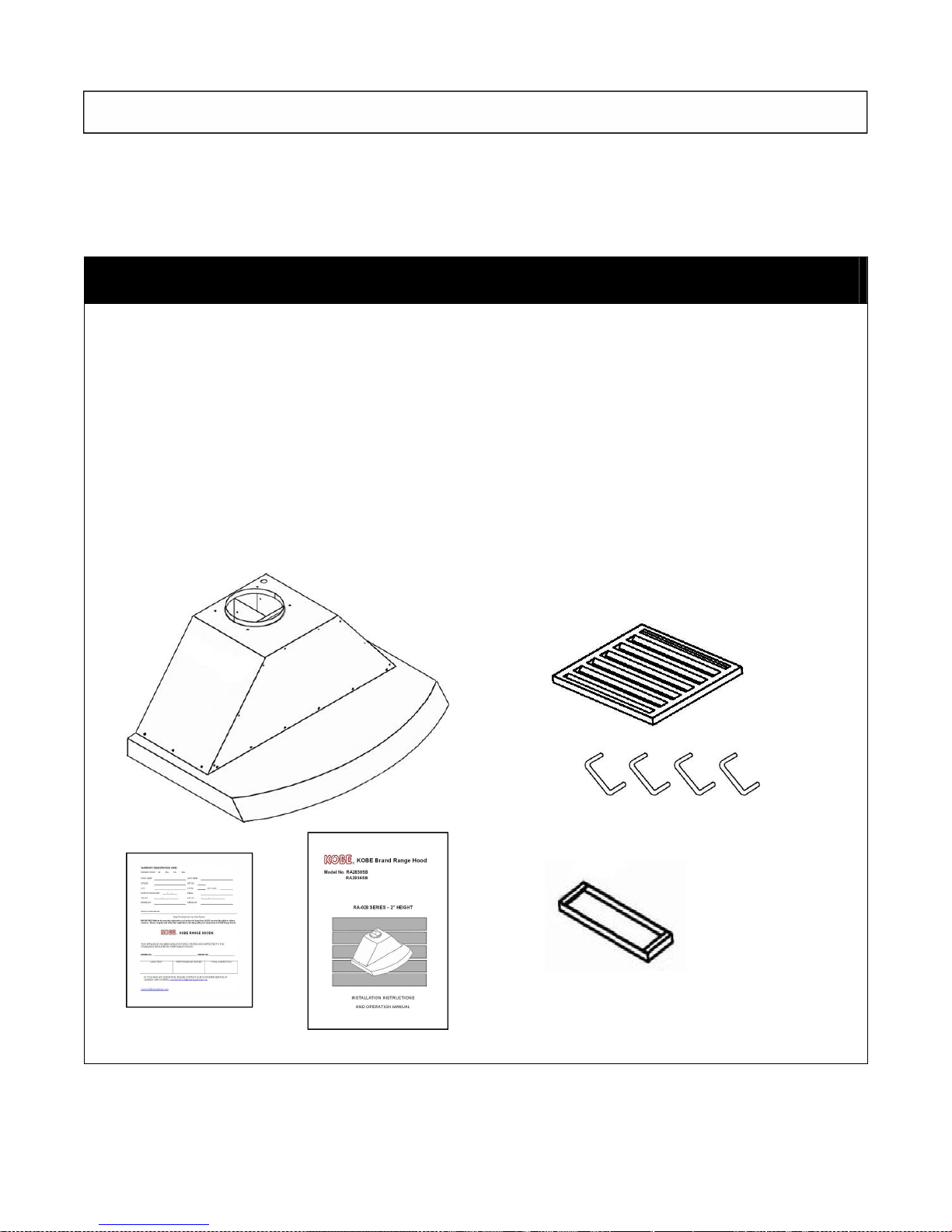

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

RANGE HOOD BOX

KOBE Range Hood – 1

Warranty Registration Card – 1

Instructions Manual – 1

Baffle Filters - 2

Bottom Casing - 1





INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of the Cabinet

SAFETY W ARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS

NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

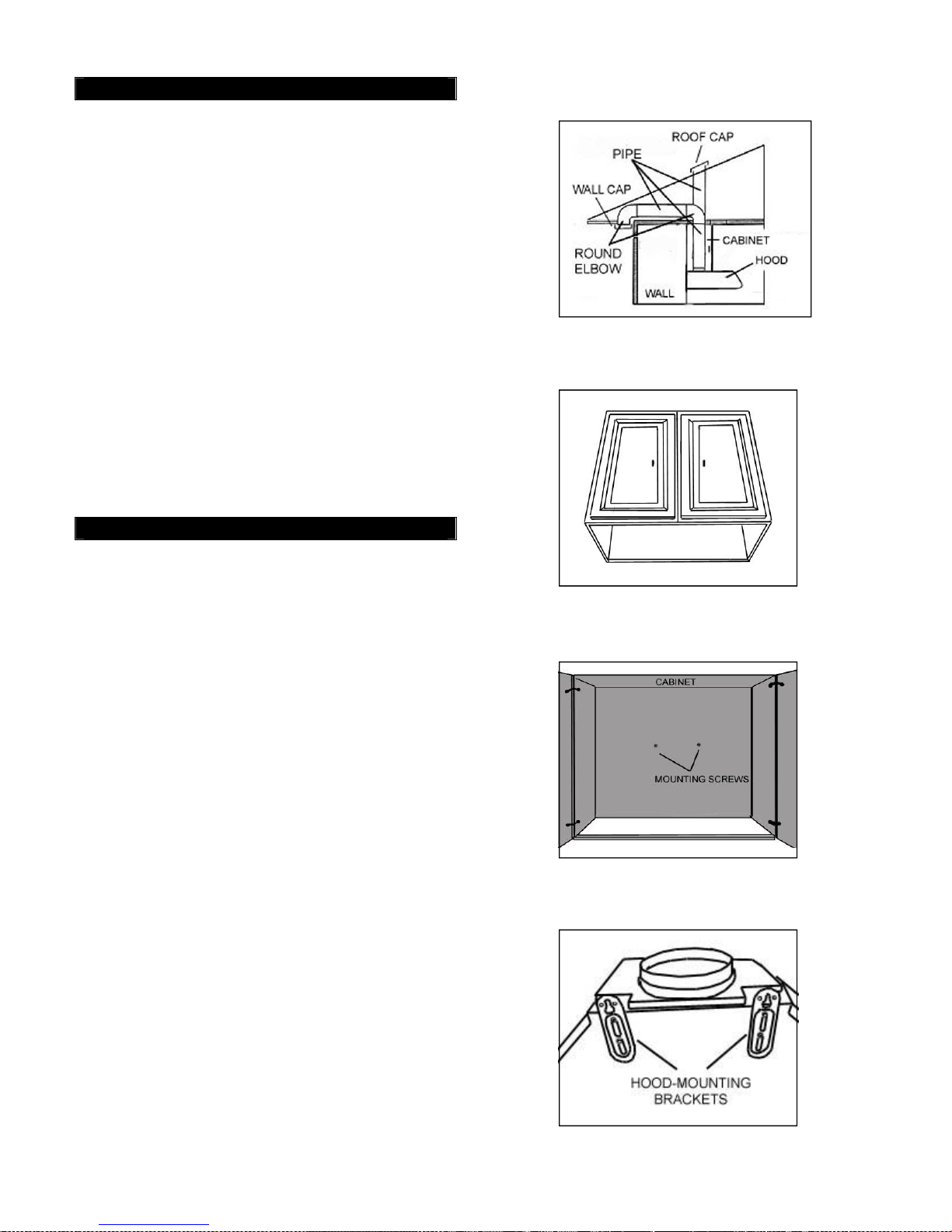

Decide the location of the venting pipe

from the hood to the outside. Refer to

Figure 1.

A straight, short venting run will allow

the hood to perform more efficiently.

Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

Temporarily wire the hood to test for

proper operation before installing.

Peel protective film off the hood (if any).

Make sure the cabinet has full access

opening for the hood as shown on

Figure 2.

Hood Installation

CAUTION: If required to move the cooking

range to install the hood, turn off the power

on an electric range at the main electrical

box. SHUT OFF THE GAS BEFORE MOVING

A GAS RANGE.

1. Using references on Table 1 and

measurements on page 11 mark the

leveling point for hood-mounting bracket

inside the cabinet.

2. Secure two hood mounting screws (not

provided) inside the cabinet leaving 1/8”

away from the cabinet as shown on Figure

3. Loosen hood-mounting brackets at the

back of the hood, adjust brackets and

tighten screws as shown in Figure 4.

4. Refer to Figure 5. Align hood-mounting

bracket to the mounting screws inside the

cabinet and hook hood into place. Secure

and tighten the mounting screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Figure 1

Figure 2

Figure 3

Figure 4

Ductwork Installation

5. Use aluminum or steel pipe to connect the

6” round plastic exhaust on the hood to

the ductwork above. Use duct tape to

make all joints secure and air tight. Refer

to Figure 6.

Wiring to Power Supply

SAFETY W ARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

7. Connect the electrical wires.

- Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green

to green as shown on Figure 7.

- If necessary to hide the electrical wire

connections, push wires back into the

wiring box. Access the wire connections

underneath the hood. Make sure wires

do not slip between motor or any

moving parts to prevent any damage.

Install Accessories

8. Refer to Figure 8. Slide the baffle filter

into the hood. Push the baffle filter

upward. Slide forward. Pull

downward. Fit into place.

9. For bottom casing, repeat above steps.

Refer to Figure 9.

Figure 5

Figure 6

Figure 7

Final Assembly

10. Turn power ON in control panel. Check

all lights and fan operation.

11. Make sure to leave this manual for the

homeowner.

Figure 8

Figure 9

OPERATION INSTRUCTIONS

This KOBE hood is equipped with three-switch control, one powerful centrifugal squirrel cage with baffle

filters, and two bright 12-volt 20-watt halogen lights.

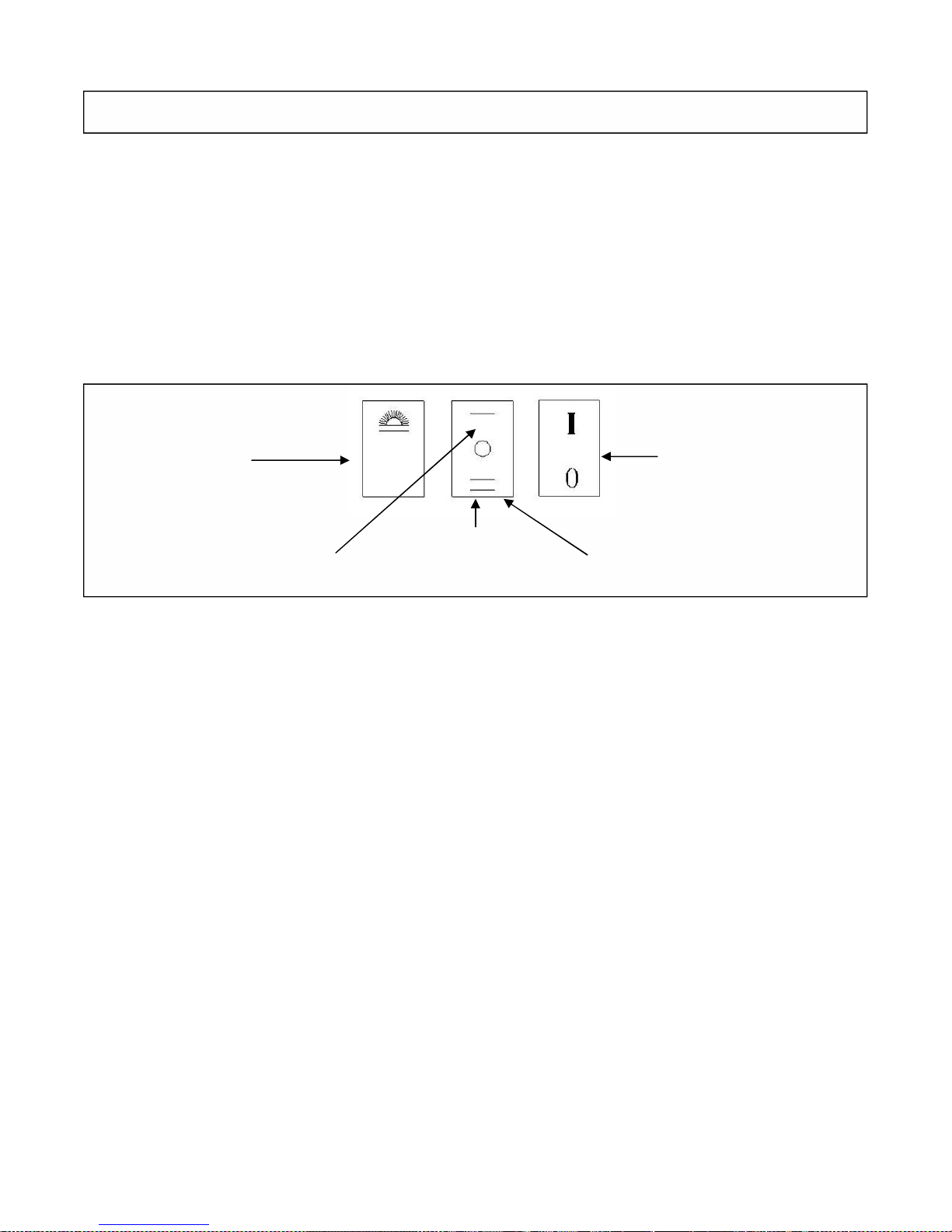

The three control switches are Light Control, Speed Control, and the Power Control (On/Off). Refer to

Figure 10.

Figure 10

Light Control Power Control

Speed Control

Low High

Turn On:

- Press Power Control switch to turn on the power.

- Press the Speed Control (Low, Off, High) to select the desired speed. Once the

Power Control is turned on, the prior switch selections will turned on.

- Press Light Control switch to turn halogen lights on.

Turn Off:

- Press the Power Control switch to turn off all power. Note: The Power Control

switch is the main power controller.
