KOBE IS2036GS Guida alla risoluzione dei problemi

KOBE Brand Range Hood

Model No. IS2036GS

IS2042GS

IS-20 SERIES

“ISLAND GLASS CANOPY”

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS......................................................................... 1



COMPONENTS OF PACKAGE....................................................................................... 3



INSTALLATION ............................................................................................................... 4



OPERATION INSTRUCTIONS........................................................................................ 8



MAINTENANCE .............................................................................................................. 9



SPECIFICATIONS......................................................................................................... 11



MEASUREMENTS & DIAGRAMS................................................................................. 12



PARTS LIST .................................................................................................................. 13



CIRCUIT DIAGRAM ...................................................................................................... 15



TROUBLE SHOOTING ................................................................................................. 16



DISCLAIMER ................................................................................................................ 17



WARRANTY.................................................................................................................. 18



PRODUCT REGISTRATION......................................................................................... 20



- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE TOP

GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

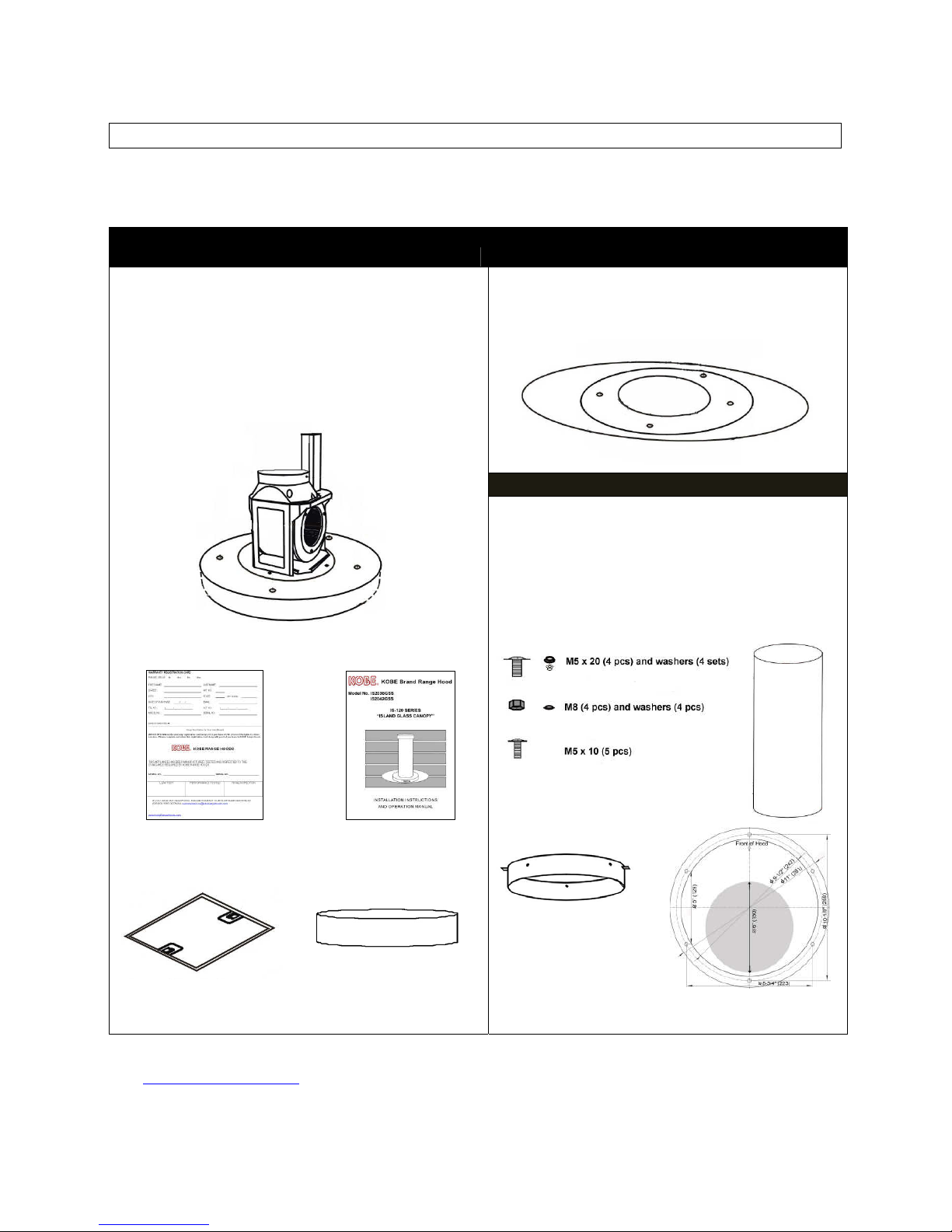

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

OPTIONAL RECIRCULATING KIT AVAILABLE. FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE

:::.2%(5DQJH+RRGV&20 OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.

Box 1 of 3 Box 2 of 3

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instruction Manual

{D} Stainless Filter – 1

{E} Stainless Steel Collar– 1

{A}

{B} {C}

{D} {E}

{F} Glass Canopy – 1

Box 3 of 3

{G}Screws Package – 1

{H} One Piece Duct Cover – 1

{I} Mounting Bracket – 1

{J} Mounting Template

{G}

All screws attached to units

{H}

{I} {J}

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

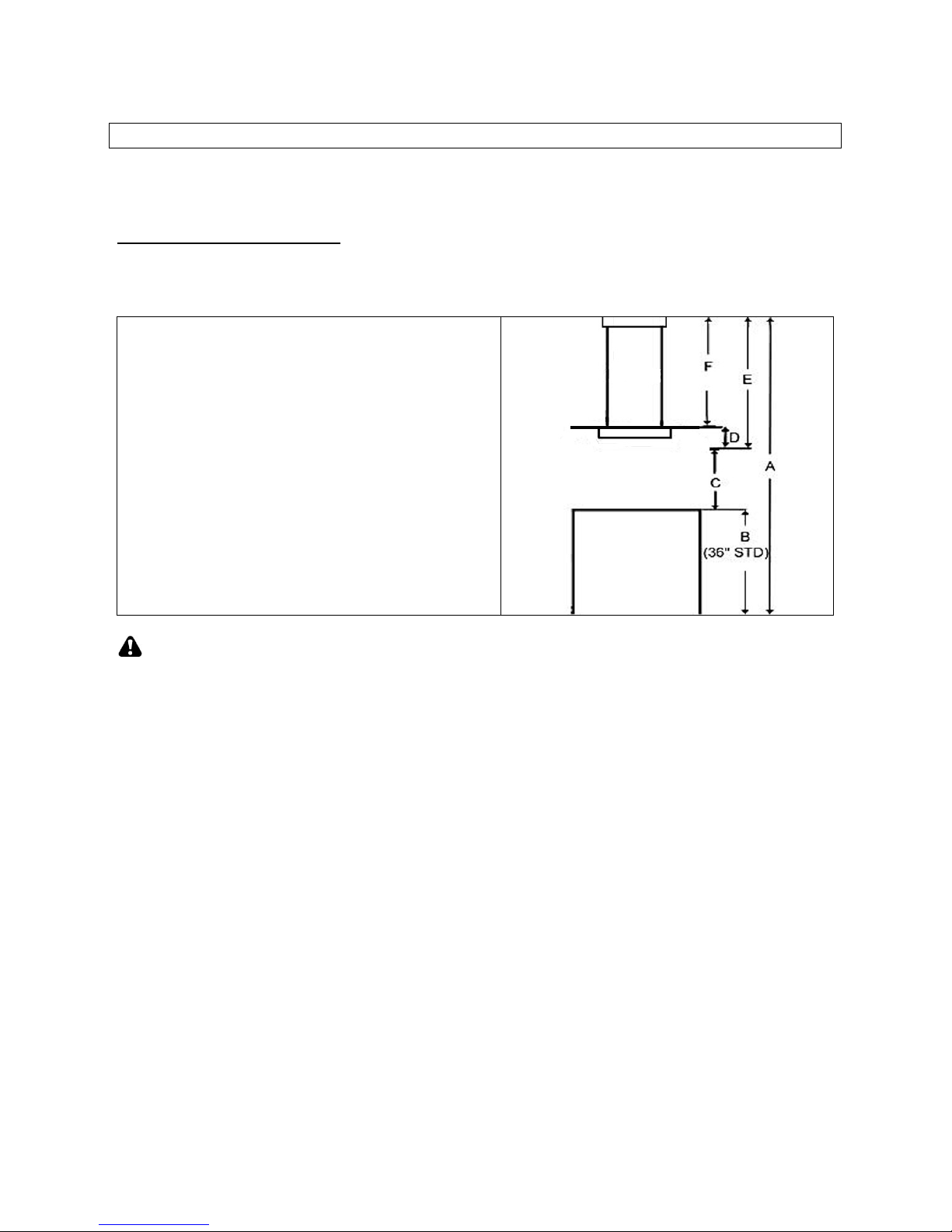

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 30"to 36")

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.



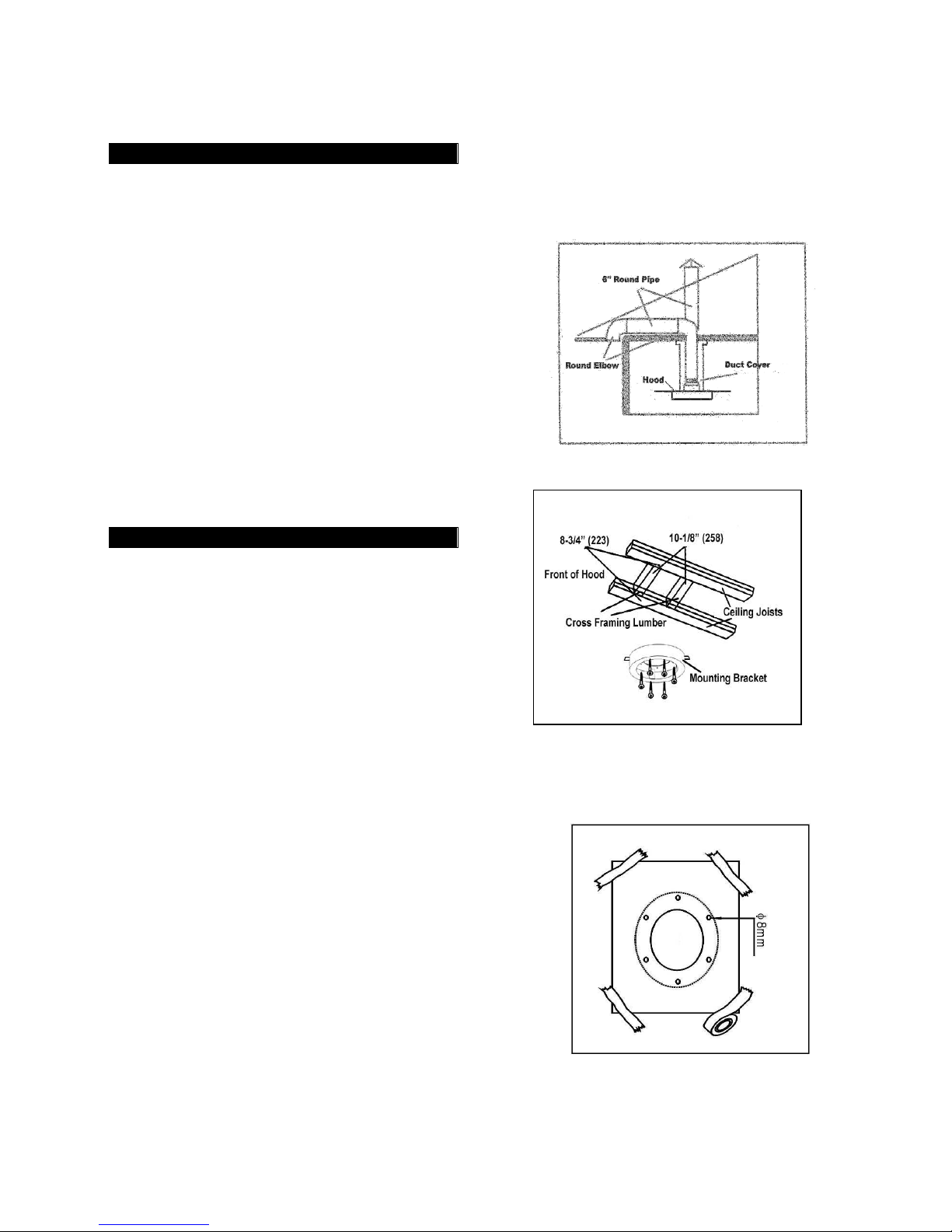

Decide the location of the venting pipe

from the hood to the outside. (Figure 1)



A straight, short vent run will allow the

hood to perform more efficiently.



Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.



Temporarily wire the hood to test for

proper operation before installing.



Important: Peel protective film off

the hood and duct covers, if any.



Use duct tape to seal the joints between

pipe sections.

Advance Planning

1. Mark centerlines of cook top or range on

ceiling. Use centerlines marked on ceiling

to position the mounting template as shown

in Figure 2 and 3.

2. Remove and save template. Cut and

remove ceiling drywall. Install 2” x 4” cross

framing lumbers (not provided) between

ceiling joists.

3. The framing should be spaced 10-1/8” at

the front centerline and 8-3/4” on the sides

to accept the mounting screw in mounting

bracket. Refer to MEASUREMENTS &

DIAGRAMS on pages 12.

4. Finish the ceiling surface. Be sure to mark

the location of the ceiling joists and cross

framing lumber.

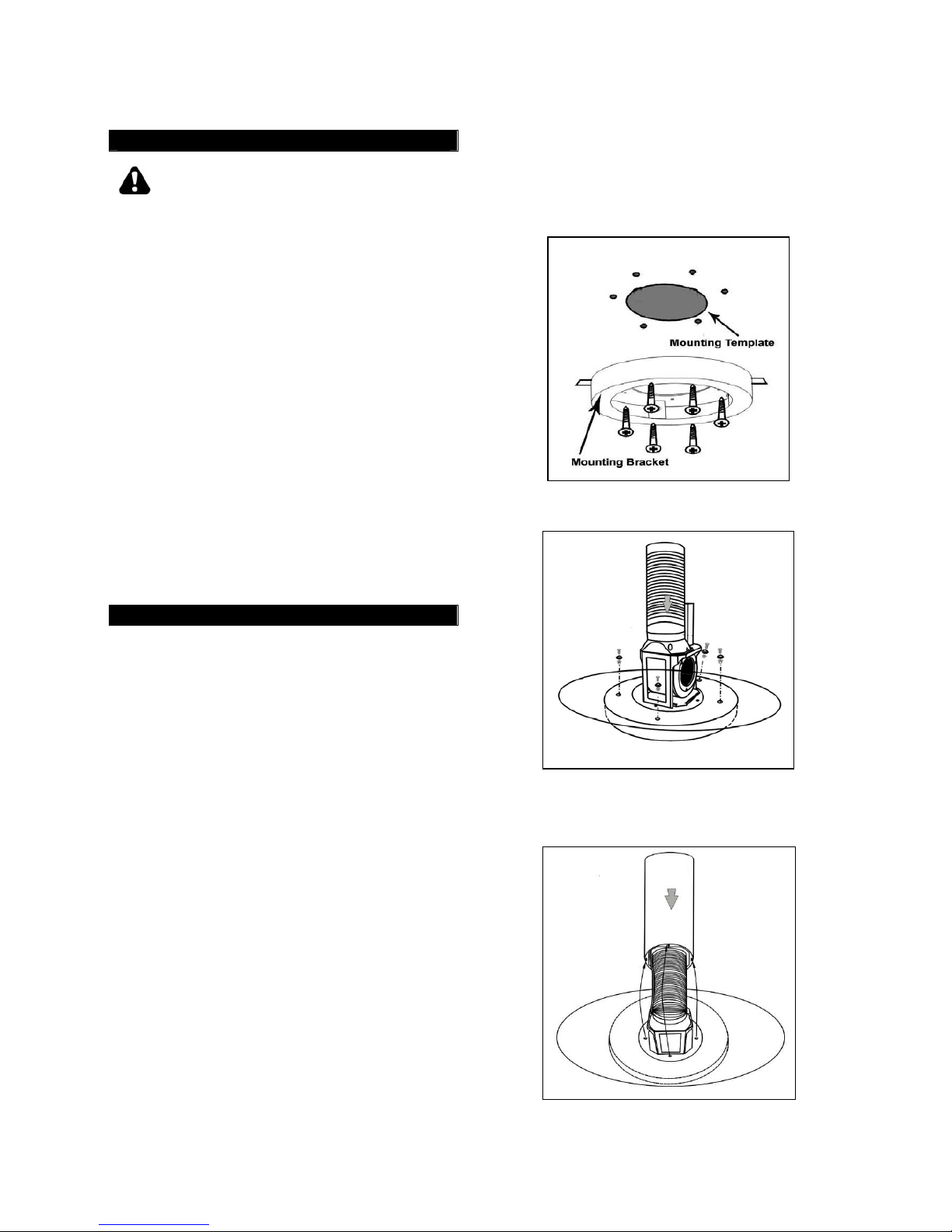

5. Align the mounting template to the ceiling

marks and tape in place. Cut the 6-1/4”

duct open and an approximately 1” wire

access hole. Drill holes for the 6 mounting

screws as indicated on the template.

6. Align the mounting bracket to the pre-drilled

holes on the ceiling and securely fasten to

the joists and cross framing lumber with 6

screws (not provided). Make sure screws

are driven into the center of joists and cross

framing lumber for maximum support.

Figure 1

Figure 2

Figure 3

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY QUALIFIED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

7. Route house wiring into the ceiling as close

to the installation location as possible.

Allow additional length to drop down from

the ceiling to the electrical box.

8. Connect the electrical wires according to

color (black to black, white to white, and

green to green) and cap with wire

connectors. Green wire must be grounded

to reduce risk of electrical shock.

Ductwork Installation

9. Use 6” round aluminum or steel pipe (not

provided) to connect the 6” round damper

on the hood to the ductwork above. NOTE:

Place 6” round duct pipe over the damper.

Seal with duct tape to make all joints secure

and tight. NOTE: MAKE SURE FLAPS ON

DAMPER CAN OPEN & CLOSE FREELY.

(Figure 6)

Figure 4

Figure 5

Figure 6

Wiring to Power Supply

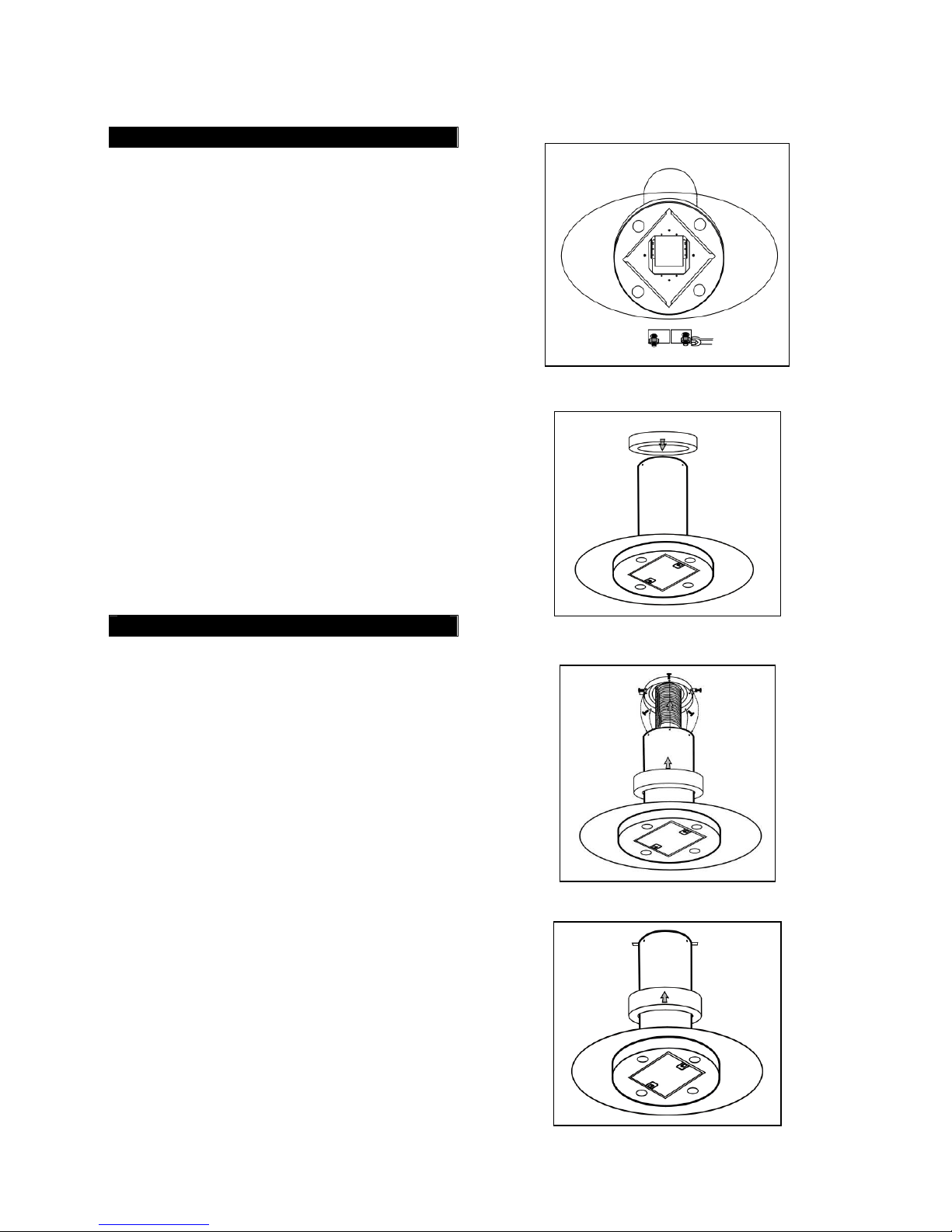

10. Slide glass canopy onto the blower system.

Secure glass on the top of range hood with

4 (M5 x 20) screws and 4 washers

(provided). (Figure 5)

11. Slide duct cover onto the blower unit,

secure underneath the blower unit with 4

(M8) nuts and 4 washers (provided). Refer

to Figure 6 and 7.

12. Carefully slide stainless steel collar through

duct cover to the top of glass carefully.

Refer to Figure 8.

13. With assistance, align the duct cover to the

mounting bracket and secure with 5 (M5 x

10) screws (provided). Refer to Figure 9.

Important: Make sure the hood

orientation is correct before securing the

hood.

14. Slide stainless steel collar towards the top

of the duct cover. Refer to Figure 10.

15. Lock stainless steel collar to left or right to

secure the stainless steel collar.

16. Peel protective film off the stainless steel

collar.

17. Place stainless steel filter in place.

Final Assembly

18. Turn power ON and check all lights and fan

operation.

19. Make sure to leave this manual for the

homeowner.

Figure 7

Figure 8

Figure 9

Figure 10

Duct Cover Installation

OPERATION INSTRUCTIONS

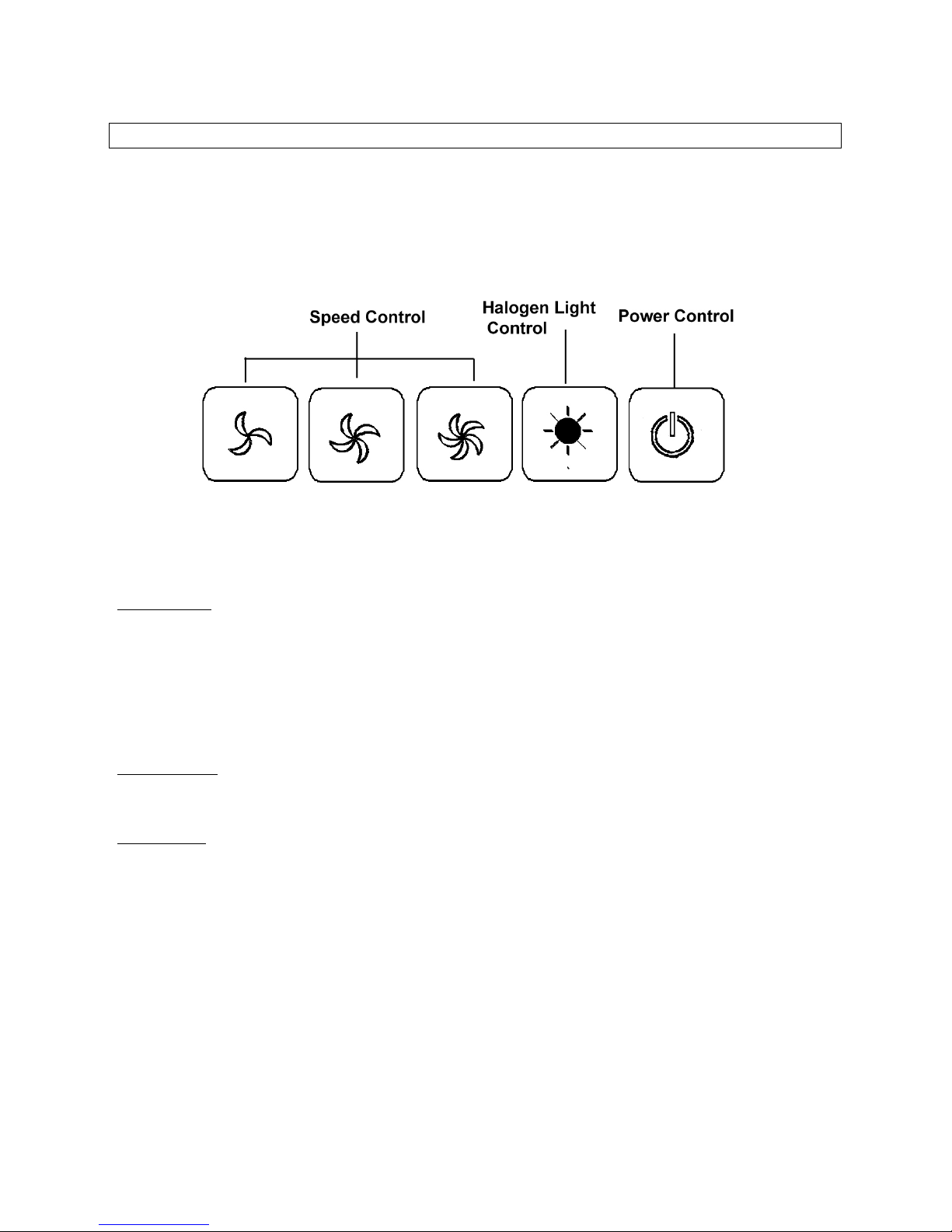

This KOBE hood is equipped with five touch buttons, double horizontal squirrel cages with stainless steel

filter, and four bright 12-volt /20-watt halogen lights.

The five touch buttons are Power Control (On/Off), Speed Control (High, Medium, & Low), and Light

Control.

Note: For best results, turn hood to low speed prior to any preparation or cooking. Adjust speed as

needed.

Power Control

Press Power Control to turn On/Off the hood.

This unit is equipped with 1-minute delay shutoff. To activate this feature, press Power

Control button once, panel lights will flash and power will be completely shut off after 1

minutes.

Press Power Control button twice, the fan will be shut off immediately.

Speed Control

Press Speed Control to activate Low, Medium, or High Speed.

Light Control

(Light control is separate from ON/OFF control. Turning power off will not turn lights off.)

Press Light control to turn lights ON or OFF.

Altri manuali per IS2036GS

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE BRILLIA SERIES INX-026OVS-INX2630SQB-600-40 Guida alla risoluzione dei problemi

KOBE

KOBE RA9230SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA0230SQB-DC48-1 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia INX27 SQB-700-3 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH2730SQB Guida alla risoluzione dei problemi

KOBE

KOBE CH0330SQB Guida alla risoluzione dei problemi

KOBE

KOBE IS2236SQB-DC16-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH0030SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX8130SQB-40 Istruzioni per l'installazione e il funzionamento

KOBE

KOBE RA92 SQB-1 Manuale utente

KOBE

KOBE CH91 SQB-1 Series Guida alla risoluzione dei problemi

KOBE

KOBE Premium Series Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH-20 Series Guida alla risoluzione dei problemi

KOBE

KOBE Premium Series Guida alla risoluzione dei problemi

KOBE

KOBE CH91 Manuale utente

KOBE

KOBE IN2636SQB-700 Manuale utente

KOBE

KOBE CH3830SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CX1836GS Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-700-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQD Guida alla risoluzione dei problemi

KOBE

KOBE CH7730SQB Guida alla risoluzione dei problemi

KOBE

KOBE IS22 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH8136SQ Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
