KOBE CH8136SQ Guida alla risoluzione dei problemi

KOBE Brand Range Hood

Model No. CH8136SQ

CH-181 SERIES – 11” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

Important Safety Instructions……………………………………………………………….

Components of Package………………………….………………………………………..

Installation……………………………………………………………………………………

Operating Instructions…………………………………...………………………………….

Maintenance………………………………………………………………………………….

Specifications…………………………………………………….……..……………………

Measurements & Diagrams…………………………………………………………...……

Parts List…………………………………………………………………..………………….

Circuit Diagram………………………………………………………………...…………….

Disclaimer…………………………………………………………………………………….

Warranty…………………………………………………………………...…………………

Product Registration………………………………………………………...………………

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance

with all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or

other hidden utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT

SERVICE PANEL.

b) Clean fan, optional filter and grease laden surfaces frequently. To reduce the risk of fire

and to disperse air properly, make sure to vent air outside. DO NOT vent exhaust air

into wall spaces, attics, crawl spaces or garages.

NOTE

- This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence or

any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried

out without the supervision of KOBE RANGE HOODS

authorized agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for

any damages to personal property or real estate or any

bodily injuries whether caused directly or indirectly by

the range hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

Keep fan, filter, if any, and grease-laden surfaces clean.

Always turn hood ON when cooking at high heat.

Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to

medium setting.

Do not leave cooking range unattended when cooking.

Always use cookware and utensils appropriate for the type and amount of food prepared.

Use this unit only in the manner intended by the manufacturer.

Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from switching on accidentally.

Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan,

safety screens, and oil containers.

What to Do In The Event Of a Range Top Grease Fire

-SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If

the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

- NEVER PICK UP A BURNING PAN – You may get burned.

-DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

- Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire departments have called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas

Company and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials

and vapors.

2) To reduce the risk of fire, use only metal ductwork.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of mercury,

which must be recycled or disposed of according to Local, State, and

Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

{A} KOBE Range Hood with Two-Piece Duct Cover

{B} Warranty Registration Card

{C} Instructions Manual

{D} Duct Cover Bracket

{E} Hood-Mounting Bracket

{F} Oil Containers (Round)

{G} Oil Containers (Oval)

{H} Installation Template

{I} 7” Round Duct Adapter

{J} Screws Package

{A} {E} {H}

***Attached to Hood

{B} {C} {F} {I}

***Attached to Hood

{G} {J}

{D}

***Attached to Duct

Cover Position Plate

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before installation

To calculate the length of the installation, please refer to Table 1. (All calculation is measure in

inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

27” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT

IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR

SERVICING.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of venting pipe from the hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as many transitions, elbows, and long run as possible. This may reduce

the performance of the hood.

- Use duct tape to seal the joints between pipe sections.

- Temporarily wire the hood to test for proper operation before installing.

- If necessary, prepare back wall frame with cross framing lumber for secure installation.

Using references on Table 1 and the measurements on page 12, decide the level of the

lumber. Refer to Figure 2.

- Peel protective film off the duct cover and the hood (if any).

- Loosen hood-mounting brackets at the back of the hood, adjust brackets and tighten

screws as shown in Figure 3.

- If necessary to remove the rubber stand on the back of the hood, unscrew and discard.

Refer to Figure 4.

Figure 1 Figure 2

Figure 3 Figure 4

Hood Installation

CAUTION: If required to move the cooking range to install the hood, turn OFF the power on an

electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Using references on Table 1 and measurements on page 12, mark the leveling point for

hood-mounting bracket on the wall. If necessary, use installation template (provided).

2. Secure two mounting screws (not provided) on the wall leaving 1/8” away from the wall.

Refer to Figure 5.

3. Align hood-mounting bracket to the mounting screws on the wall and hook hood into

place.

4. Secure and tighten the mounting screws. CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Attached

Rubber Stand

Figure 5

Ductwork Installation

5. Use 6” round pipe to connect the plastic exhaust on the hood to the ductwork above. Use

duct tape to make all joints secure and air tight. Refer to Figure 6.

6. For 7” round ductwork, attach the 7” round duct adapter (provided) to the 6” round plastic

exhaust on the hood. Refer to Figure 7.

Figure 6 Figure 7

Wiring to Power Supply

SAFETY W ARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

7. Connect three wires (black, white and green) to house wires and cap with wire

connectors.

8. Connect according to color: black to black, white to white, and green to green.

9. Test the operation of the hood before moving on to the next step. Make sure power is

supplied to the hood.

Duct Cover Installation

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCUR.

Mounting

Screws

7” Round

Adapter

6” Round

Plastic Exhaust

10. Using reference Efrom Table 1 and measurements on page 12, mark the leveling point

for duct cover bracket.

11. Secure the duct cover bracket to the wall with two screws (not provided). Make sure all

screws are tightened. NOTE: Inner duct cover will cover the duct cover bracket.

12. Adjust the duct cover length and secure with two (4x8 mm) screws (provided) as shown in

Figure 8.

13. Remove the two (4x14 mm) screws (provided) on the duct cover position plate.

14. Slide the entire duct cover onto the hood. Refer to Figure 9.

Figure 8 Figure 9

15. Place the edge of the inner duct cover behind the duct cover bracket on the wall.

16. Secure the outer duct cover to the duct cover position plate with two (4x14 mm) screws

(provided).

Install Accessories

17. If oil container (round) is detached, place the oil container (round) into keyhole under

each safety screen. Turn clock-wise until firmly in place. Refer to Figure 10.

18. Slide oil container (oval) into plastic slot behind each safety screen as shown in Figure 11.

Figure 10 Figure 11

Final Assembly

19. Turn power ON in control panel. Check all lights and fan operation.

20. Make sure to leave this manual for the homeowner.

OPERATING INSTRUCTIONS

This KOBE hood is equipped with two-switch control panel, two powerful centrifugal turbine

impellers with safety screens, two bright 12-volt 20-watt halogen lights, and four oil containers.

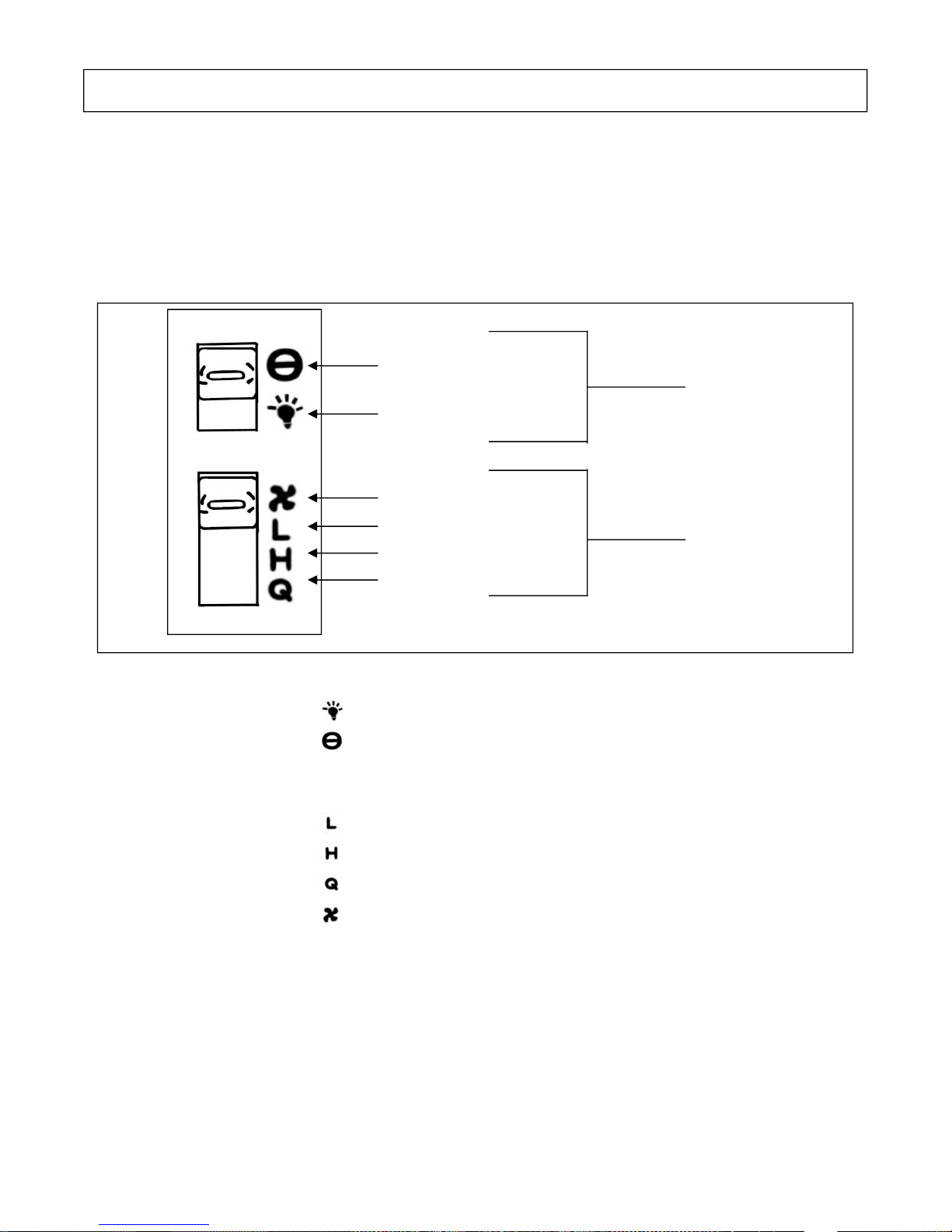

The two control switches are Light Control and Speed Control. The two control switches

operate independently of each other. Refer to Figure 12.

Figure 12

Light Off

Light Control

Light On

Fan Off

Low Speed

High Speed Speed Control

QuietMode™

Light Operation:

1. Slide switch to in the Light Control Panel to turn light on.

2. Slide switch to in the Light Control Panel to turn light off.

Fan Operation:

1. Slide switch to in the Speed Control panel for low speed.

2. Slide switch to in the Speed Control panel for high speed.

3. Slide switch to in the Speed Control panel for QuietMode™ speed.

4. Slide switch to in the Speed Control panel to turn off the fan.

Altri manuali per CH8136SQ

Indice

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE BRILLIA SERIES INX-026OVS-INX2630SQB-600-40 Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX9130SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE IS2036GS Guida alla risoluzione dei problemi

KOBE

KOBE PREMIUM IN2630SQB-700 Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-700 Manuale utente

KOBE

KOBE Brillia RAX2130SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-700-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH9136SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-700-1 Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-650-5A Guida alla risoluzione dei problemi

KOBE

KOBE RA-092 SERIES Manuale utente

KOBE

KOBE CH8136SQ Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE ISX2136SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE INX2930SQBF-500-1 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia CHX7930SQB-WM-1 Manuale operativo e di manutenzione

KOBE

KOBE CH0030SQB (30") Manuale utente

KOBE

KOBE RA0230SQB-DC-5 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia RAX2130SQB-1 (30") Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX8130SQB-40 Istruzioni per l'installazione e il funzionamento

KOBE

KOBE Premium Series Guida alla risoluzione dei problemi

KOBE

KOBE CH-20 Series Guida alla risoluzione dei problemi

KOBE

KOBE CH9130SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH0036SQB Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
