KOBE Brand Range Hood

Model No. RA9236SQ

RA-092 SERIES – 12” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

Important Safety Instructions……………………………………………………………….

Components of Package…………………………………………………………………..

Installation……………………………………………………………………………………

Operating Instructions…………………………………...………………………………….

Maintenance………………………………………………………………………………….

Specifications…………………………………………………….……..……………………

Measurements & Diagrams…………………………………………………………...……

Parts List…………………………………………………………………..………………….

Circuit Diagram………………………………………………………………...…………….

Disclaimer…………………………………………………………………………………….

Warranty…………………………………………………………………...…………………

Product Registration………………………………………………………...………………

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance

with all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or

other hidden utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT

SERVICE PANEL.

b) Clean fan, optional filter and grease laden surfaces frequently. To reduce the risk of fire

and to disperse air properly, make sure to vent air outside. DO NOT vent exhaust air

into wall spaces, attics, crawl spaces or garages.

NOTE

- This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence or

any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried

out without the supervision of KOBE RANGE HOODS

authorized agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for

any damages to personal property or real estate or any

bodily injuries whether caused directly or indirectly by

the range hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

Keep fan, filter, if any, and grease-laden surfaces clean.

Always turn hood ON when cooking at high heat.

Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to

medium setting.

Do not leave cooking range unattended when cooking.

Always use cookware and utensils appropriate for the type and amount of food prepared.

Use this unit only in the manner intended by the manufacturer.

Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from switching on accidentally.

Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan,

safety screens, and oil containers.

What to Do In The Event Of a Range Top Grease Fire

-SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If

the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

- NEVER PICK UP A BURNING PAN – You may get burned.

-DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

- Use an extinguisher ONLY if:

a) You have a Class A, B. C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas

Company and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials

and vapors.

2) To reduce the risk of fire, use only metal ductwork.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of mercury,

which must be recycled or disposed of according to Local, State, and

Federal Codes.

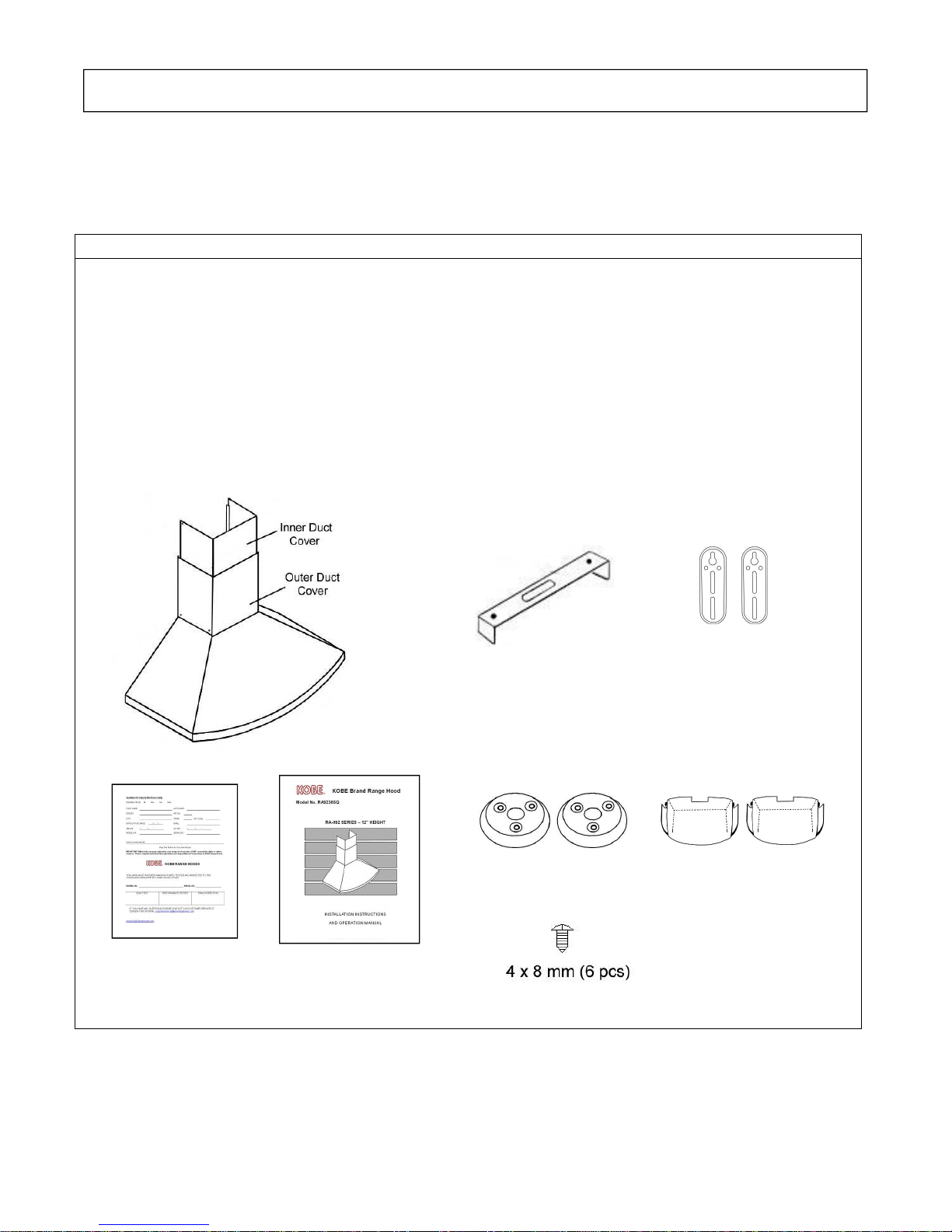

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

{A} KOBE Range Hood with Two-Piece Duct Cover

{B} Warranty Registration Card

{C} Instructions Manual

{D} Duct Cover-Mounting Bracket

{E} Hood-Mounting Bracket

{F} Oil Containers (Round)

{G} Oil Containers (Oval)

{H} Screws Package

{A} {D} {E}

***Attached to Hood

{B} {C} {F} {G}

{H}

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation Before Installation

To calculate the length of the installation, please refer to Table 1. (All calculation is measure in

inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

27” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT

IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR

SERVICING.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as many transitions, elbows, and long run as possible. This may reduce

the performance of the hood.

- Use duct tape to seal the joints between pipe sections.

- If necessary, prepare back wall frame with cross framing lumber for secure installation.

Using references on Table 1 and measurements on page 13, decide the level of the

lumber. Refer to Figure 2.

- Temporarily wire the hood to test for proper operation before installing.

- Peel protective film off the duct cover and the hood (if any).

- Loosen hood-mounting brackets at the back of the hood, adjust brackets and tighten

screws as shown in Figure 3.

- If necessary to remove the rubber stand on the back of the hood, unscrew and discard.

Refer to Figure 4.

Figure 1 Figure 2

Figure 3 Figure 4

Hood Installation

CAUTION: If required to move the cooking range to install the hood, turn OFF the power on an

electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Using references on Table 1 and measurements on page 13, mark the leveling point for

hood-mounting bracket on the wall.

2. Secure two mounting screws (not provided) on the wall leaving 1/8” away from the wall.

Refer to Figure 5.

3. Align hood-mounting bracket to the mounting screws on the wall and hook hood into

place.

4. Secure and tighten the mounting screws. CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Attached

Rubber Stand

Figure 5

Ductwork Installation

5. Use 6” round aluminum or steel pipe to connect the plastic exhaust on the hood to the

ductwork above. Use duct tape to make all joints secure and air tight. Refer to Figure 6.

Figure 6

Wiring to Power Supply

SAFETY W ARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

6. Connect three wires (black, white and green) to house wires and cap with wire

connectors.

7. Connect according to color: black to black, white to white, and green to green.

8. Test the operation of the hood before moving on to next step. Make sure power is

supplied to the hood.

Mounting

Screws

Duct Cover Installation

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCURS.

9. Using reference Efrom Table 1 and measurements on page 13, mark the leveling point

for duct cover-mounting bracket.

10. Secure the duct cover-mounting bracket to the wall with two screws (not provided). Refer

to Figure 7. Make sure all screws are tightened. NOTE: Inner duct cover will cover the

duct cover-mounting bracket.

11. Slide up inner duct cover up 2 inches before sliding entire duct cover onto the hood.

Refer to Figure 8.

Figure 7 Figure 8

12. Adjust the height of the inner duct cover to the duct cover-mounting bracket. Secure

inner duct cover with two (4x8 mm) screws (provided) as shown in Figure 9.

Figure 9

13. Fasten outer duct cover to plastic plate on the hood with four (4x8 mm) screws (provided).

Install Accessories

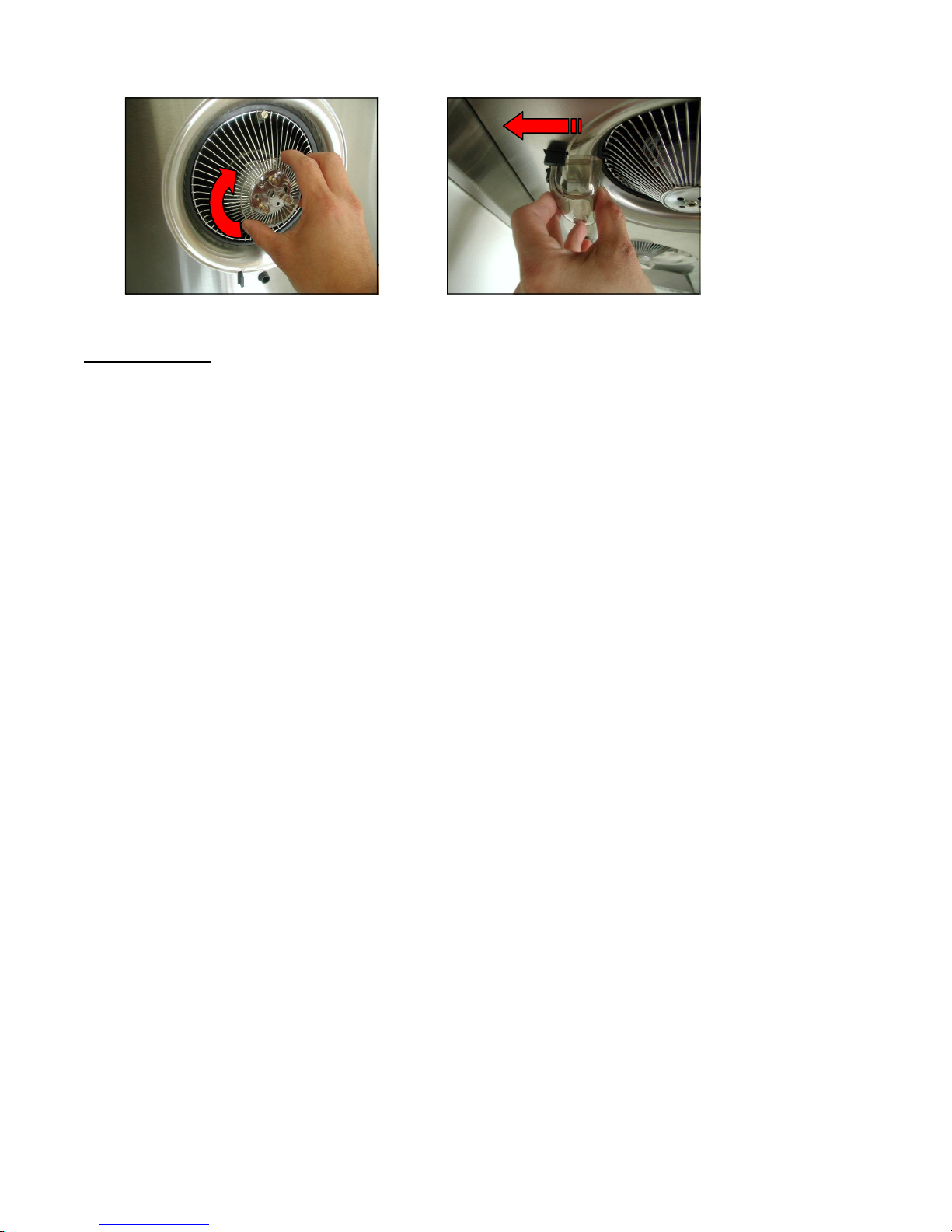

14. Place the oil container (round) into keyhole under each safety screen. Turn clock-wise

until firmly in place. Refer to Figure 10.

15. Slide oil container (oval) into plastic slot behind each safety screen as shown in Figure

11.

Attach Together

Figure 10 Figure 11

Final Assembly

16. Turn power ON in control panel. Check all lights and blower operation.

17. Make sure to leave this manual for the homeowner.
