LINKABLE MULTIPURPOSE

LED LIGHTS

LED UMBRELLA LIGHT

WITH SOLAR CHARGER

@KodaBuiltOfficial kodabuilt.com

info@kodabuilt.com

1-866-294-9244, Monday to Friday, 8am to 5pm Pacific Time

2975 Red Hill Ave., Suite 100, Costa Mesa, CA 92626, USA

IMPORTANT SAFETY INSTRUCTIONS:

Create your own lighting masterpiece with the Koda Linkable Multipurpose

LED Lights. This versatile light can be congured to t any room or application,

whether you’re looking for a square, straight line or your own custom shape. The

Koda Linkable Multipurpose LED Lights are capable of having up to 6 units linked

together on one plug, enabling a cleaner look and application without all the

messy cables.

You can ush mount Koda Linkable Multipurpose LED Lights on ceilings for your

most optimal lighting needs. When setup, you’ll be able to enjoy a bright 1300

lumens LED light (each linkable unit) that produces a 3500K color output with an

estimated 50,000* hour life on each LED.

Improve your interior lighting with the Koda Linkable Multipurpose LED Lights,

and embrace lighting the way you want it.

This product is suitable for use in home, ofce, warehouse, workshop, garage

and other indoor locations.

DANGER

- To reduce the risk of electric shock:

Always unplug this product from the electrical outlet before cleaning.

WARNING

- To reduce risk of re, electric shock, or injury to persons:

• Do not modify the power cord plug provided with the product.

• Do not use the light if the power cord or plug is damaged. If damaged, have it

repaired by a service facility before use. If the plug does not t the outlet, have a

proper outlet installed by a qualied electrician.

• Disconnect the power cord plug from the power source before making any

adjustment or changing accessories. Do not attempt to install the product while

plugged in.

• Do not abuse the power cord. Never use the power cord to carry the light or pull

the plug from an outlet. Keep the power cord away from heat, oil, sharp edges,

or moving parts.

• Not for use with dimmer packs, timing devices, motion detectors, or lighting

controllers other than supplied with this product.

• Store the product and remote out of reach of children.

• Only use product in its intended location.

• Close supervision is necessary when this product is used by or near children,

disabled or elderly persons.

• These lights have a polarized plug (one blade is wider than the other) as a

feature to reduce the risk of electric shock. This plug will t in a polarized outlet

only one way. If the plug does not t fully in the outlet, reverse the plug. If it

still does not t, contact a qualied electrician. Never use with an extension cord

unless plug can be fully inserted. Do not alter the plug.

• The receptacle is for connecting with the same model LM030007 only, and up

to maximum 6 units (including the rst one).

• Do not connect with other appliances, or connect more than 6 units of light

model LM030007.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT

SAVE THESE INSTRUCTIONS

WARNING:

• LED light output is strong enough to injure human eyes. Do not stare at the LED

light while it is illuminating.

• If the light is damaged, it shall be exclusively replaced by the manufacturer

or the service agent or qualied person in order to avoid a hazard.

• The warnings, precautions, and instructions discussed in this manual cannot

cover all possible conditions and situations that may occur. The operator must

understand that common sense and caution are factors which cannot be

built into this product, but must be supplied by the operator.

• Do not tamper with or attempt to repair the LED component or xture. The light

source is designed for this specic application and should not be serviced by

untrained personnel. Contact the customer service department if any servicing

is required.

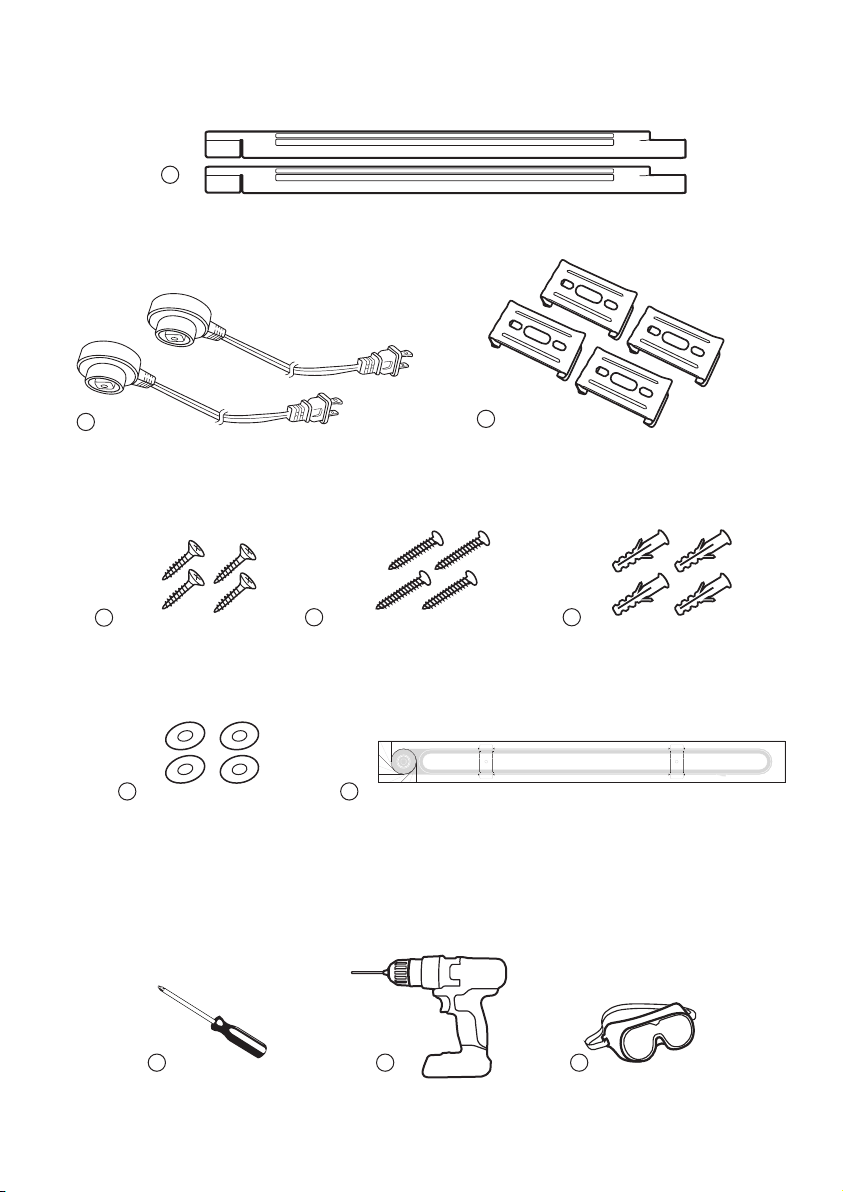

PACKAGE CONTENTS:

1 x Measuring Template

4 x Mounting Brackets

Tools Needed (not included)

#2 Phillips Head

Screwdriver

Safety GlassesDrill and 2 mm /

5/64 inch Drill Bit

2 x Linkable Multipurpose LED Lights

2 x Detachable Power Cord Sets

Please lay out all parts and read the instructions prior to installation.

4 x Plastic Anchors4 x Wood Screws

4 x Washers

4 x Drywall Screws

TA TB TC

Measuring template

90°

45°

0°

PRODUCT SPECIFICATIONS:

1. Operating Voltage: 120 Vac, 60 Hz

2. Wattage: 21 W

3. Light Output: 1300 lumens

4. Color Temperature: 3500 K

5. LED Life Cycles: up to 50,000 hours

6. Operating Temperature: 0°C to 40°C / 32°F to 104°F

INSTALLATION PROCEDURES:

NOTE: The light can be linked with the same model LM030007 only, and can be

linked up to maximum 6 units (including the rst one).

The on/off switch at the rst light would be served as the main switch. If you

turn off the on/off switch at the rst light, the light(s) linked together will also be

turned off.

CAUTION: Never remove the Outlet Protection Bracket

from the light unless you want to link up other lights.

This product is ETL/cETL Listed

WITH SINGLE LIGHT:

Final installed illustration

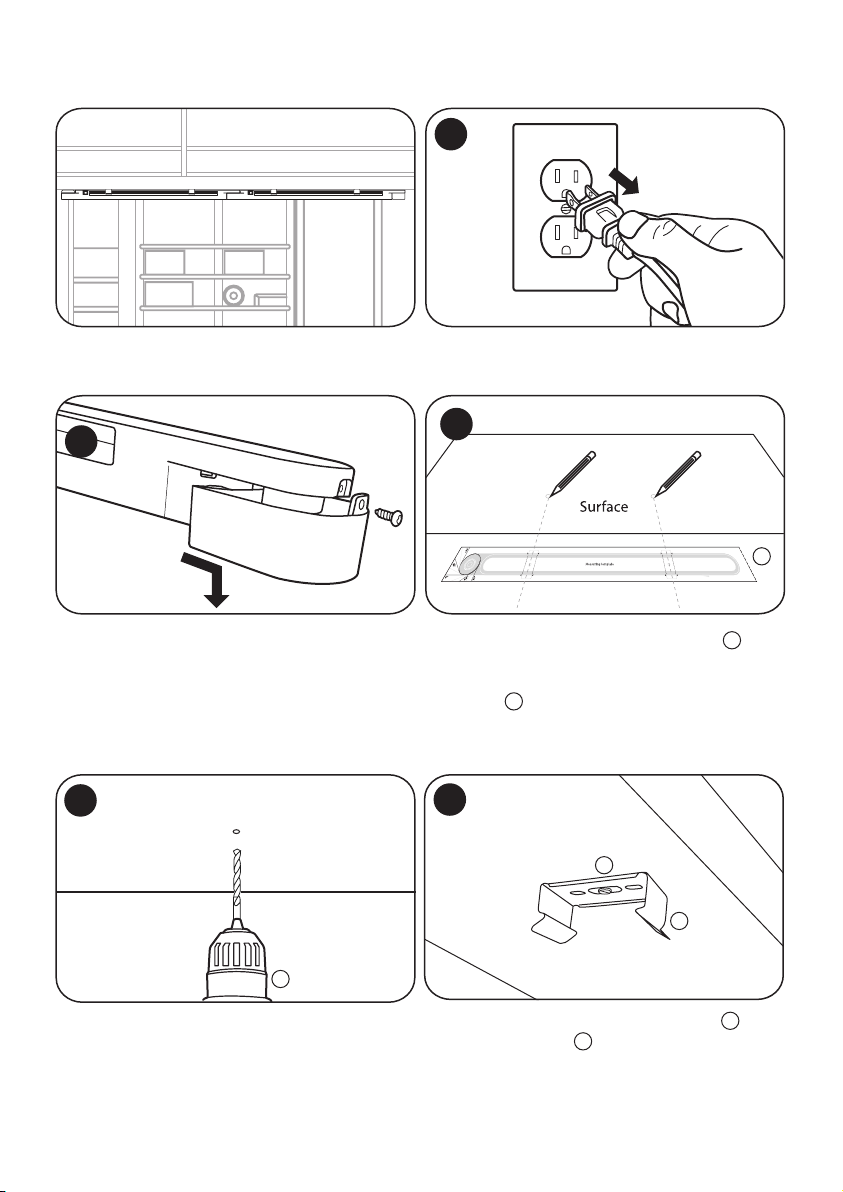

1. Select a mounting location and make

sure the wooden surface is suitable for

supporting the light. Use the measuring

template to mark the mounting

bracket locations on the mounting

surface, with each location being

15 in / 38 cm apart from each other.

2 in /

5 cm

30 in / 76.2 cm

1.6 in / 4 cm

Outlet

Protection

Bracket

Clip Clip

NOTE: The mounting brackets should be at least

15 in / 38 cm apart from each other.

2. Wear safety glasses and drill two

5/64 inch diameter pilot holes.

3. Screw the mounting bracket with

the wood screw provided. Repeat for

the second mounting bracket.

Note: For concrete or drywall, you may

use drywall screws along with plastic

anchors instead of wood screws.

CAUTION: Never plug in or turn on the light when

the Outlet Protection Bracket is missing.

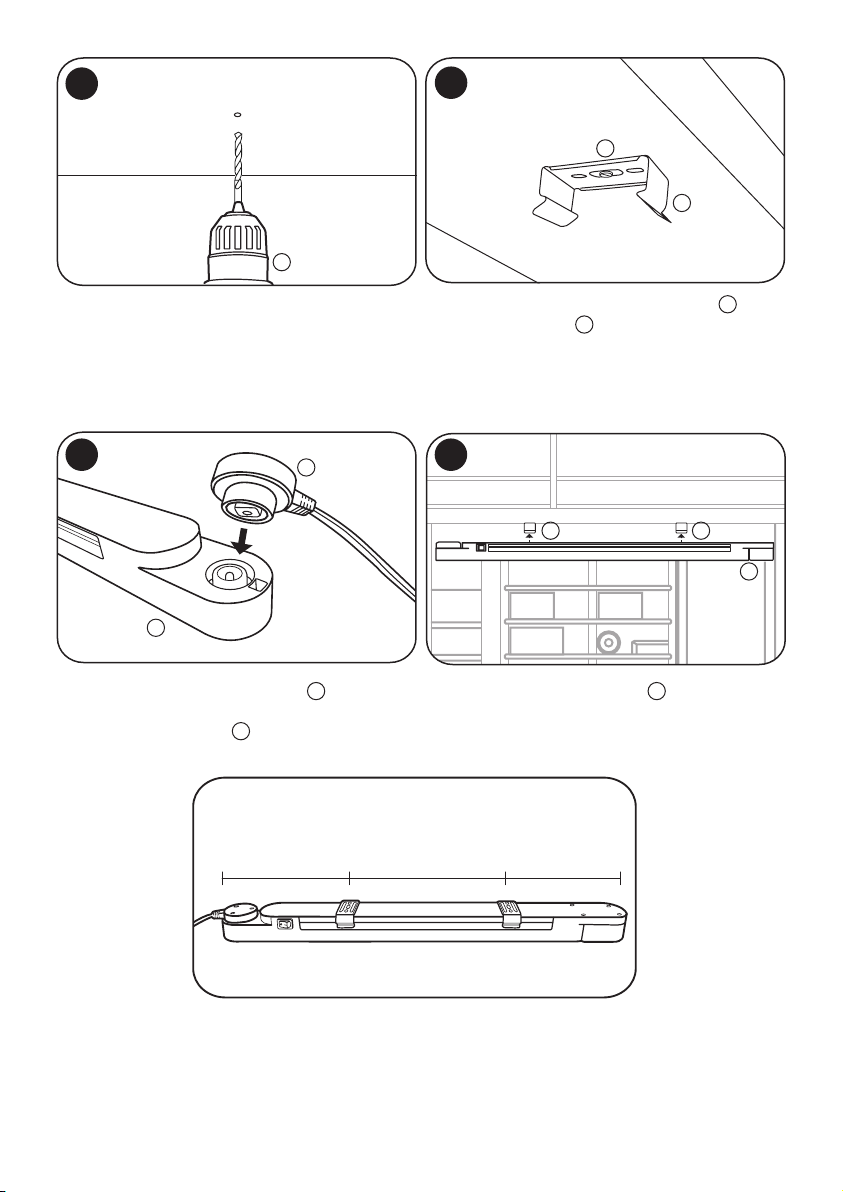

5. Clip mounting brackets onto the light.4. Ensure the power cord set is

installed properly by rmly pressing

into the light socket .

PCPB

Mounting Diagram

7.5 in / 19 cm 7.5 in / 19 cm15 in / 38 cm

4. Wear safety glasses and drill two

5/64 inch diameter pilot holes.

2. Unscrew and pull out the Outlet

Protection Bracket horizontally and

then downward from the rst light.

5. Screw the mounting bracket with

the wood screw provided. Repeat for

the second mounting bracket.

Note: For concrete or drywall, you may

use drywall screws along with plastic

anchors instead of wood screws.

5. Clip mounting brackets onto the light.

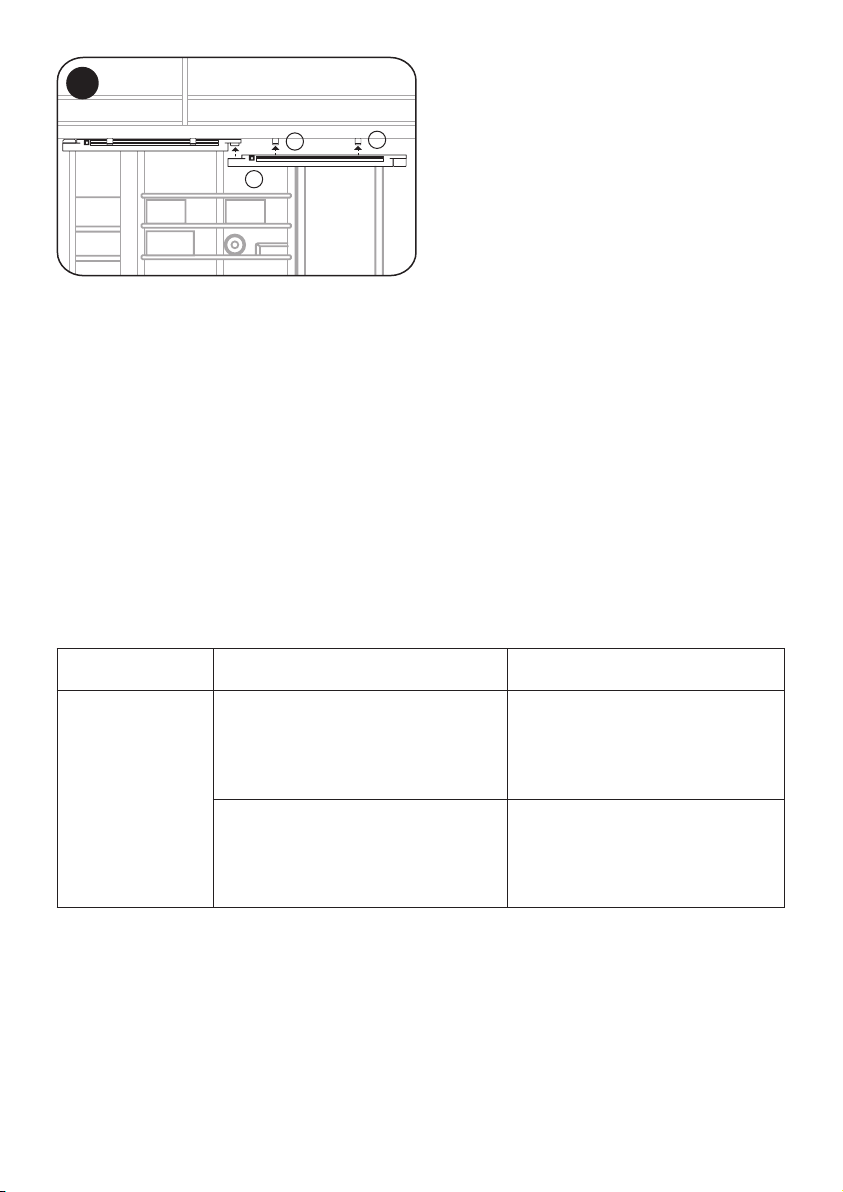

INSTALL ADDITIONAL LIGHT:

Final installed illustration 1. Unplug the rst light.

3. Use the measuring template , with

alignment of the light socket position of

rst light, to mark two more mounting

bracket locations next to the rst light,

with each location being 15 in / 38 cm

apart from each other.

Clip Clip

6. Connect the second light to the outlet

of the rst light, then clip mounting

brackets onto the second light.

MAINTENANCE:

CLEANING INSTRUCTIONS: When cleaning, make sure you have unplugged the

light and allow it to cool to room temperature. The light can be cleaned with a

feather duster or a soft damp cloth.

You should only plug in the light after it has been completely dried.

TROUBLESHOOTING:

PROBLEM POSSIBLE CAUSE SOLUTION

Light does not

illuminate.

Light does not turn

on.

The light is not plugged in or the main

switch is OFF. Plug in and turn on the main switch.

The light on/off switch is OFF.

Turn ON the light on/off switch. If

you turn off the on/off switch at the

rst light, the light being linked

together would be turned off along.

PC PC

WARRANTY:

KODA

This Koda product carries a 5-year warranty against defects in workmanship

and materials. This product is not guaranteed against wear or breakage due to

misuse and/or abuse.

NOTE: Warranty only applies for North American customers of purchases made

in North America.

CONDITIONS OF WARRANTY

If during the 5-year warranty period your new product is found to be defective,

Koda will repair such defect, or replace the product, without charge for parts or

labor subject to the following conditions:

• All repairs must be performed by Koda.

• All warranty claims must be accompanied by a copy of the sales receipt or bill

of sale.

• The equipment must not have been altered or damaged through negligence,

accident, improper operation, or failure to follow the product instructions for

installation, use, or care.

• The replacement of parts is excluded from the warranty when replacement is

necessary due to normal wear and tear.

• Repair or replacement parts supplied by Koda under this warranty are

protected only for the unexpired portion of the original warranty.

• This is a “repair or replace” warranty only, and does not cover the costs

incurred for the installation, removal or reinstallation of the product.

OWNER’S RESPONSIBILITIES: Koda will make every effort to provide warranty

service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS

ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING

SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS

HOURS MONDAY THROUGH FRIDAY 8:00AM TO 5:00PM PST.

NOTE: Toll-free number is for North American customers ONLY. See customer

service section for customer contact numbers for other regions/ofces.

For customer service and technical support, please call us at 1.866.294.9244 or

email us at info@kodabuilt.com. If at that time it is determined that a replacement

unit is needed, the support representative will issue a Return Authorization and

instruct on how to get a new unit.

Koda makes no other warranty of any kind aside from the limited express

warranty stated herein.

Linkable Multipurpose LED Lights

Model: LM030007

Responsible Party:

Koda

Address: 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA

Tel: 1-866-294-9244

This device complies with Part 15 of the FCC rules and Industry Canada.

Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Warning: Changes or modications to this unit not expressly approved by the

party responsible for compliance could void the user’s authority to operate the

equipment.

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modications or change to this equipment. Such modications or

change could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF MERCHANTABILITY

AND WARRANTY OF FITNESS FOR PARTICULAR PURPOSE: EXCEPT AS

SPECIFICALLY SET FORTH HEREIN, NO WARRANTY OR REPRESENTATION,

EXPRESS OR IMPLIED, IS MADE AS TO THE LINKABLE MULTIPURPOSE LED

LIGHTS. KODA AND/OR ITS AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT

LIMITATION, ANY STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES,

INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.

FCC / IC COMPLIANCE STATEMENT:

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KODA Attrezzatura di illuminazione

KODA

KODA LM030008 Guida

KODA

KODA LM030164 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
