Kodak WF238 Manuale utente

User Guide

用户指南

KODAK

17-Inch Wall Photo Frame

Wi-Fi Enabled

型号：WF173

User Guide

用户指南

KODAK

23-Inch Wall Photo Frame

Wi-Fi Enabled

型号：WF238

23-Inch Wall Photo Frame

Set up your wall frame

设置您的相框

Remote Control

遥控器

Content 目录

Inside the box

在包装内

Sensors

传感器

Download KODAK Wall Frame App

下载应用程式

Connect to your wall frame

连接到您的相框

注册您的帐户

Activate your account

启动您的帐户

Page 1

Page 2

Page 3

Page 46

Page 7

Page 89

Page 1011

Page 1214

Page 1516

Page 1920

Page 1718

KODAK Wall Frame App

应用程式

Create albums

建立相册

Create playlists

建立播放列表

Add playlists to the frame

加入播放列表到相框

Remote Control function - Display menu

遥控器按钮功能 - 主页面

Remote Control function - Display menu settings

遥控器按钮功能 - 主页面设置

Display menu settings

主页面设置

KODAK Wall Frame App - Edit/Upload Video

编辑/上传视频

KODAK Wall Frame App - Others

应用程式 - 其他

Page 21

Page 2224

Page 25

Page 2628

Page 2930

Page 3134

Content 目录

Inside the box 在包装内

Prolonged use of 3C products will cause harm to vision

使用过度恐伤害视力。

Please note

注意事项

1. Recommend to rest 10 minutes every half an hour of use.

2. Children under the age of 2 are not recommended for

usage. Children over the age of 2 are recommended to

use the frame for no longer than 1 hour per day.

1 使用30分钟请休息10分钟

2 未满2岁幼儿不看萤幕，2岁以上每天看萤幕不要超过1小时

NCC Warning Statement

NCC警语

Article 12

Without permission, any company, irm or user shall not alter the

frequency, increase the power, or change the characteristics and

functions of the original design of the certiied lower power

frequency electric machinery.

第12条

经型式认证合格之低功率射频电机，非经许可，公司、商号或使用者

均不得擅自变更频率、加大功率或变更原设计之特性及功能。

Article 14

The application of low power RF electric machinery shall not

aect the navigation safety nor interfere a legal communication, if an

interference is found, the service will be suspended until improve

ment is made and the interference no longer exists.

Legal communications mentioned above refers to radio communications

that operate in accordance with the provisions of the Telecommunications

Law. Low-power RF electric machinery must endure the interference of

legal communications or industrial, scientiic and medical

radio wave radiation electrical equipment.

第14条

低功率射频电机之使用不得影响飞航安全及干扰合法通信；经发现有干扰现象时，

应立即停用，并改善至无干扰时方得继续使用。

前项合法通信，指依电信法规定作业之无线电通信。

低功率射频电机须忍受合法通信或工业、科学及医疗用电波辐射性电机设备之干扰。

Power Adaptor

电源适配器 Metal Rack

金属挂架

KODAK Wall Frame

KODAK 挂壁式相框

User Guide

用戶指南

Remote Control

遙控器

10GB

Gift Card

兑换卡

Sensor 传感器

Infrared receiver

红外线传接收器

Infrared receiver receives signal from remote control

红外线传接收器接收来自遥控器的信号

Auto sleep when no movement is detected in front of the frame

for around 10 min.

Under auto sleep status, the frame will automatically switch on

when movement is detected in front of the frame.

在相框前面约10分钟无移动动作时, 相框自动休眠。

相框处于自动睡眠状态下，当感觉到相框前面有移动动作时，相框自动点亮。

Remote Control 遙控器

Instruction guide of your remote control

遙控器的使用说明 On / O Turn On/ O the wall frame

打开/关闭相框

Menu Go to menu

菜單转到菜单

Enter Select / Play / Pause

確定选择 / 播放 / 暂停

Left / Right Menu navigation / Video playback control

左 / 右菜单导航 / 图片播放控制

Up / Down Menu navigation / Quick picture browse

上 / 下菜单导航 / 快速浏览图片

Playlist Choose a dierent playlist

播放清單选择播放清单

Back Go back to the last step

返回退回上一步

Volume Increase/decrease volume

音量增加/减小音量

A B

KODAK Wall Frame

Please prepare for setting up the frame

在安装之前请准备好以下事项

- KODAK Wall Frame

- Remote Control

- A smart phone

- WiFi network which can access to the internet

- KODAK 相框

- 遥控器

- 智能电话

- 能连接互联网的 WiFi 网络

Choose your language

选择你的语言

Then choose your WiFi network

然后选择您当地的无线网络

Set Up Your Picture Frame 设置您的相框

KODAK Wall Frame

Select and conirm your WiFi network

确认您的网络

Then enter your password

然后输入您的密码

Kodak WiFi

Set Up Your Wall Frame 设置您的相框

KODAK Wall Frame

Set Up Your Wall Frame 设置您的相框

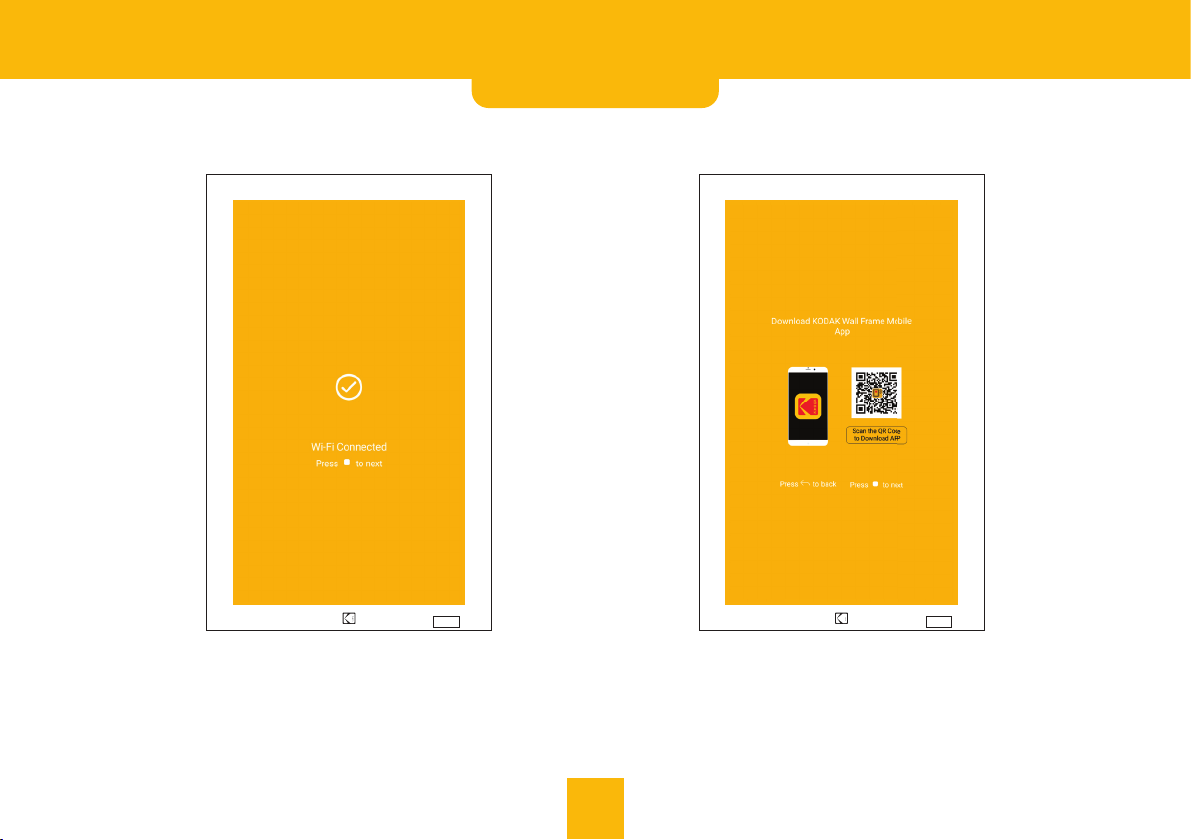

If the password is correct,

it will show "Wii Connected"

如果密码正确，

它将显示“已连接网络”

Select the QR code on your

KODAK Wall Frame to download the mobile app

（iOS / android）

在 KODAK 云端相框上掃描二维码下载应用程式

（iOS / android）
