Kodak 1400 Maintenance Tips

The Kodak Professional 1400 Digital Photo Printer requires very little maintenance to keep

producing high-quality prints. However, there are two items that do require some attention from

time to time. They are: cleaning the printhead, and cleaning the pick rollers.

Cleaning the Printhead

Occasionally, debris will collect on the printhead. This can cause scratching of the print surface.

To clean the printhead, you will need a soft, lint-free cloth and distilled water and/or isopropyl

(rubbing) alcohol. Dampen the cloth with distilled water and wipe the printhead Heater Line and

Ribbon Guide Bar, always wiping in the same direction, to prevent smearing of the debris. After

wiping the Heater Line and Guide Bar several times (using a different portion of the cloth every

time), if debris is still visible, use your fingernail to “scrape” off the debris. Do not bring any

metal object in contact with the printhead, as it will likely damage it. Wipe the printhead after

scraping off any debris. Please note that the cloth should be damp and not dripping.

If you have isopropyl alcohol available, lightly dampen a cloth with alcohol and wipe the

printhead using the same technique described above. This will remove any excess water from

the printhead. If you don’t have alcohol, wipe the head several times with a dry cloth to remove

any remaining moisture.

You can purchase a combination alcohol/water pad (70% alcohol, 30% water) directly from

Kodak Parts Services (1-800-431-7278 Option 3 in the US). The part numbers are shown below.

Part Number Type Quantity

2E5054 Alcohol/Water 10

1C8079 Alcohol/Water 50

A picture of the printhead, showing the bead and Ribbon Guide Bar, is shown in Figure 1.

Figure 1

Cleaning the Pick Rollers

The pick rollers are the rubber rollers that eject the paper from the paper tray. Over time, they

get dirty and begin to slip on the paper when attempting to eject it. This can result in the paper

entering the printer skewed and can also leave black marks on the paper where the rollers were

spinning on the paper.

To clean the pick rollers, remove the paper try from the printer. Using a soft, lint-free cloth,

dampen the cloth with isopropyl alcohol and wipe the outer circumference of the pick rollers.

The rollers turn freely in one direction, but not in the other, making it easy to rotate the roller,

wipe, rotate, wipe, etc.

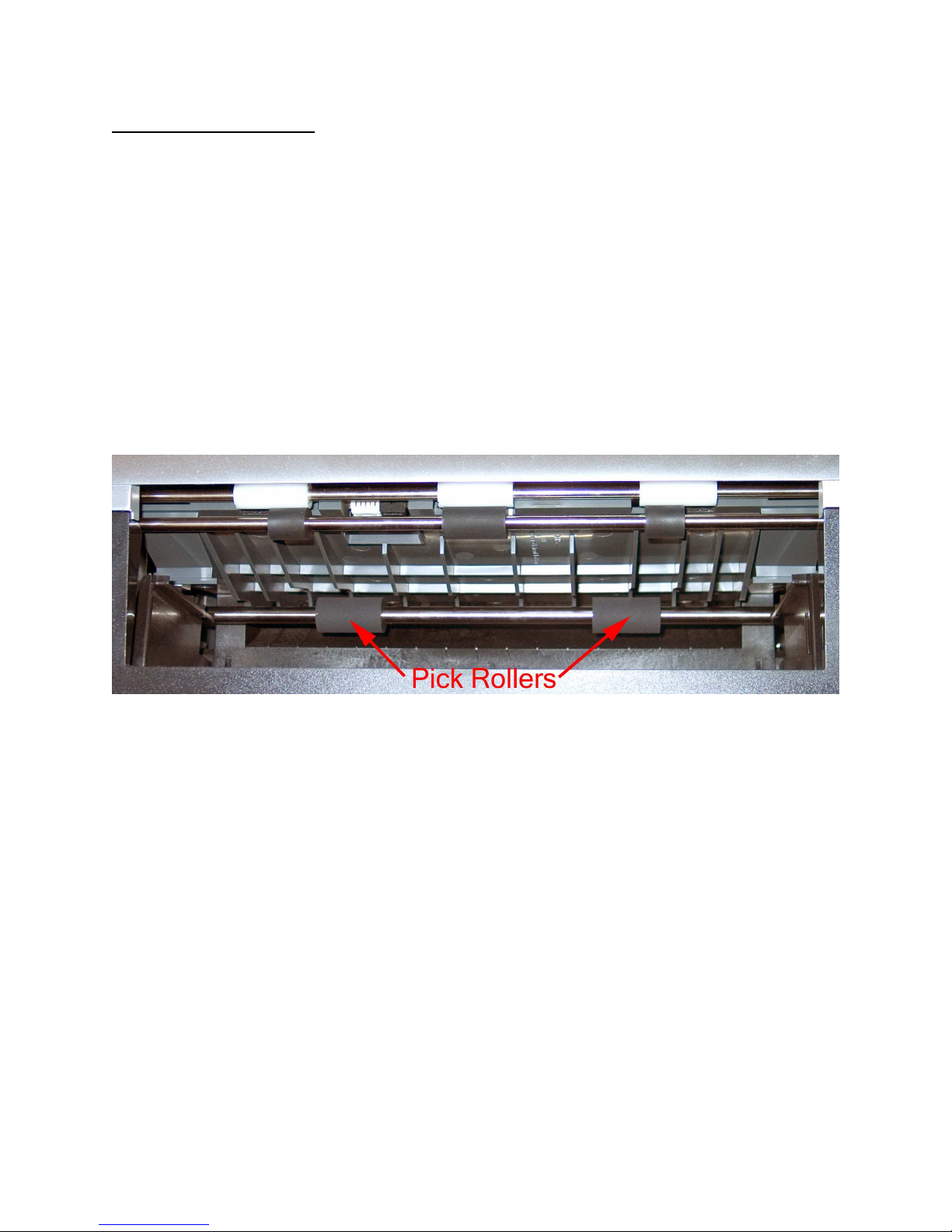

Figure 2 is a picture of the front of the printer with the paper try removed, showing the pick

rollers.

Figure 2
