Thank you for choosing the
KODAK DP850 ULTRA projector
The KODAK DP850 ULTRA will display high brightness
images with vivid colors, even under normal light
conditions.
Thanks to the unique KODAK Graphical User Interface,
the KODAK DP850 ULTRA offers true plug and play
operation from remote control, which by the way also
can control your computer.
1.1 Color coding for ease of use
All connectors, plugs and buttons on the product are
colored to make the connection and use as easy and
intuitive as possible. The following colors are used:
◆Computer - gray (PC) /black (MAC)
◆TV/channel - purple
◆Video (Composite) - yellow
◆S-video - dark blue
◆Stand by - red
◆Auto setup - green
◆Audio - red/white
Contents
2
1 Before you start
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 2
Contents
3
1.2 Accessories
Please take a few minutes to make sure that your
KODAK DP850 ULTRA contains all the necessary parts:
1.2.1 Computer accessories for
external PC/MAC
◆Computer cable Enhanced Video Connector (EVC),
male at both ends, 3 m/9.8 ft.
◆Cable for PC / MAC audio (Stereo jack, 0.3m/1 ft.)
◆PC adapter
◆RS-232 mouse cable for PC
◆PS/2 mouse cable for PC
◆MAC adapter
◆Apple Desktop Bus (ADB) mouse cable for MAC
1.2.2 Video accessories
◆Super-video cable
◆Composite video cable
◆Audio cable
1.2.3 Other cables/accessories
◆Dual soft bag
◆Power cable, 4m/12 ft.
◆Remote control including batteries
(type AAA/LR03
1.2.4 Optional cables and accessories
◆EVC cable, 10-15m
◆Ceiling mount kit
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 3
Contents
4
CHAN
FOCUS
ZOOM
S-V
V
TV
PC
Batteries
Softbag
Interactive
Remote
Control
EVC cable
Super-video cable
Composite video cable
Audio cable
Stereo jack cable
PC adapter
Mac adapter
PS/2 mouse for PC
RS232 mouse for PC
ADB mouse for Macintosh

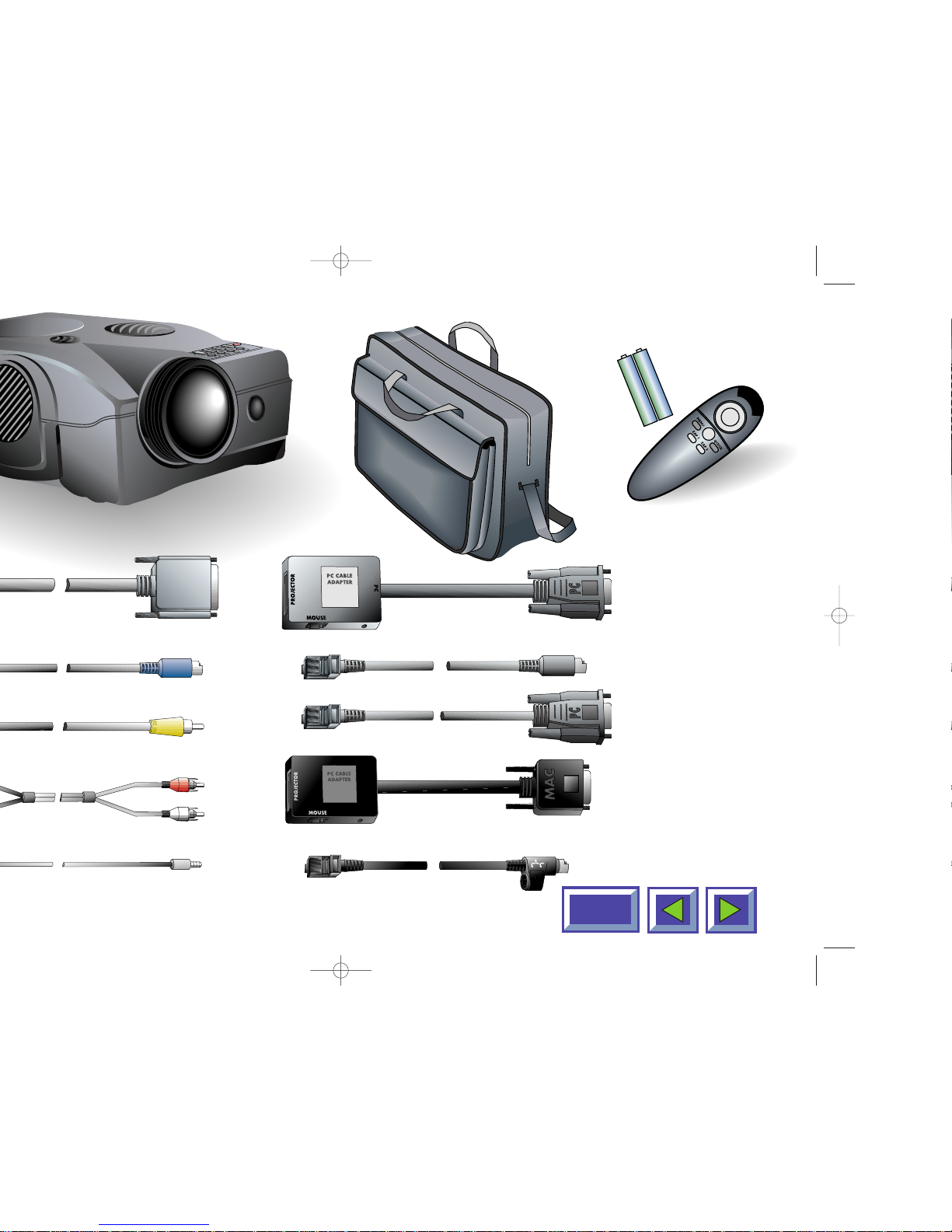

Figure 1: Product and accessories
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 4

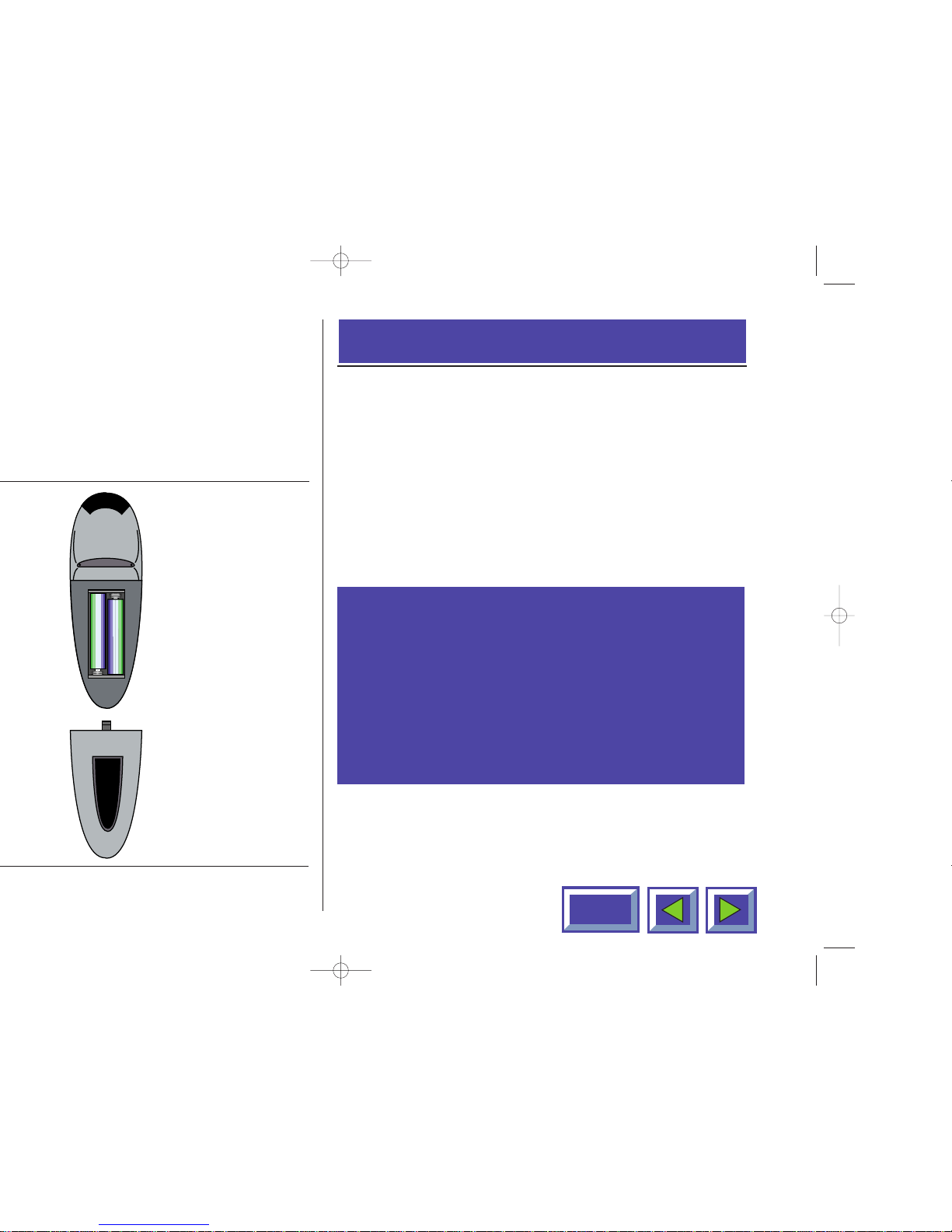

1.3 Insert batteries in the remote
control
Figure 2 shows the remote control with the battery
lid removed. Slide off the battery lid and insert the
batteries with the + and - poles correct. Slide the
battery lid back on again.
The warranty card or copy of invoice is your proof of
purchase. Please make sure that the warranty card is
returned in order to get the warranty service you are
entitled to.
Failure to return the warranty card may void your
warranty.
NOTE!
Please use caution when transporting the unit.
2. Important information
Contents
5
Figure 2: Inserting batteries in remote control
WARNING!
Tampering with or opening the
KODAK DP850 ULTRA can be dangerous.
For replacement of the lamp, see the instruc-
tions support with the replacement lamp.
Leave maintenance to authorized KODAK
service personnel. Please contact your local
dealer with any service or maintenance
questions you may have.
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 5
Contents
6
The procedure for connecting a
computer to the KODAK DP850 ULTRA
is the same for all types of computers.
1. Make sure the computer, monitor and KODAK
DP850 ULTRA are switched off.
2. Identify the RGB out connector on the back of your
computer (where you connect a monitor to the
computer).
3. Connect the computer to the KODAK DP850
ULTRA using the EVC cable and the adapter for
the computer you are using. See figures 3 and 4.
4. If you have a desktop computer and want to display
the image on your computer monitor, connect the
cable from your monitor to the adapter.
See figure 5 and 6.
5. If you want to use the remote control to control your
computer, connect the correct mouse cable from
the computer to the adapter box. See figures 7 and
8. When your computer is connected to the KODAK
DP850 ULTRA with the EVC cable (with EVC con-
nector on the computer), the remote mouse control
will automatically function as a regular mouse on
your PC or MAC.
6. If you want to use sound with your computer,
connect the stereo jack cable to the computer audio
connection and to the PC or MAC adapter box.
7. Turn on the KODAK DP850 ULTRA and then the
computer. The computer image should now be
projected from the KODAK DP850 ULTRA and the
remote control should now work as a regular
mouse. If the computer’s image is not displayed
simultaneously on the monitor, or the mouse is not
working, see the section ‘What do I do if’.
3. Connecting a computer to the KODAK DP850 ULTRA
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 6
Contents
7

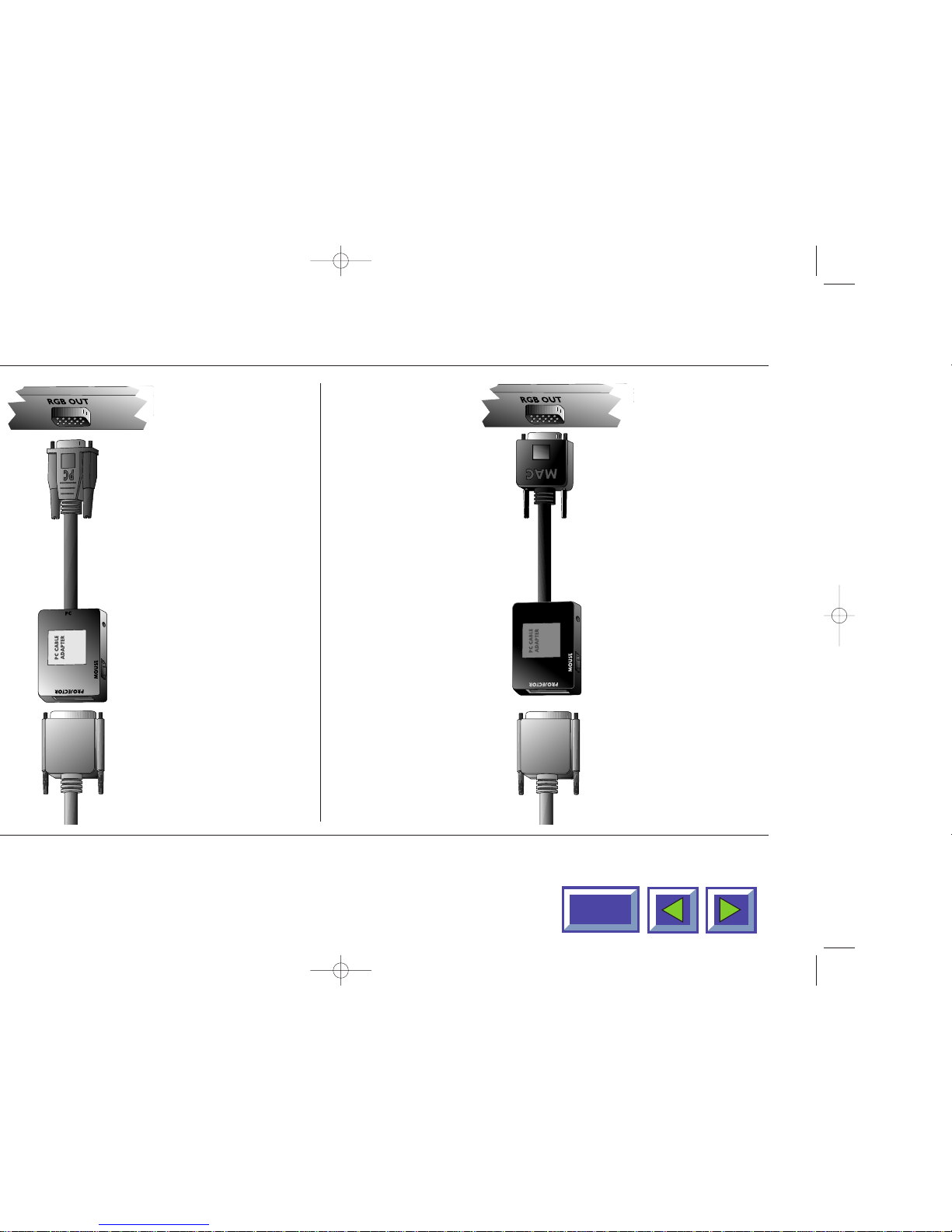

Connecting to a laptop, notebook
Figure 3: Connecting to a laptop, notebook
Connecting to an Apple PowerBook
Figure 4: Connecting to an Apple PowerBook
PC adapter
Back panel of
computer
EVC cable
MAC adapter
Back panel of
computer
EVC cable
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 7
Contents
8

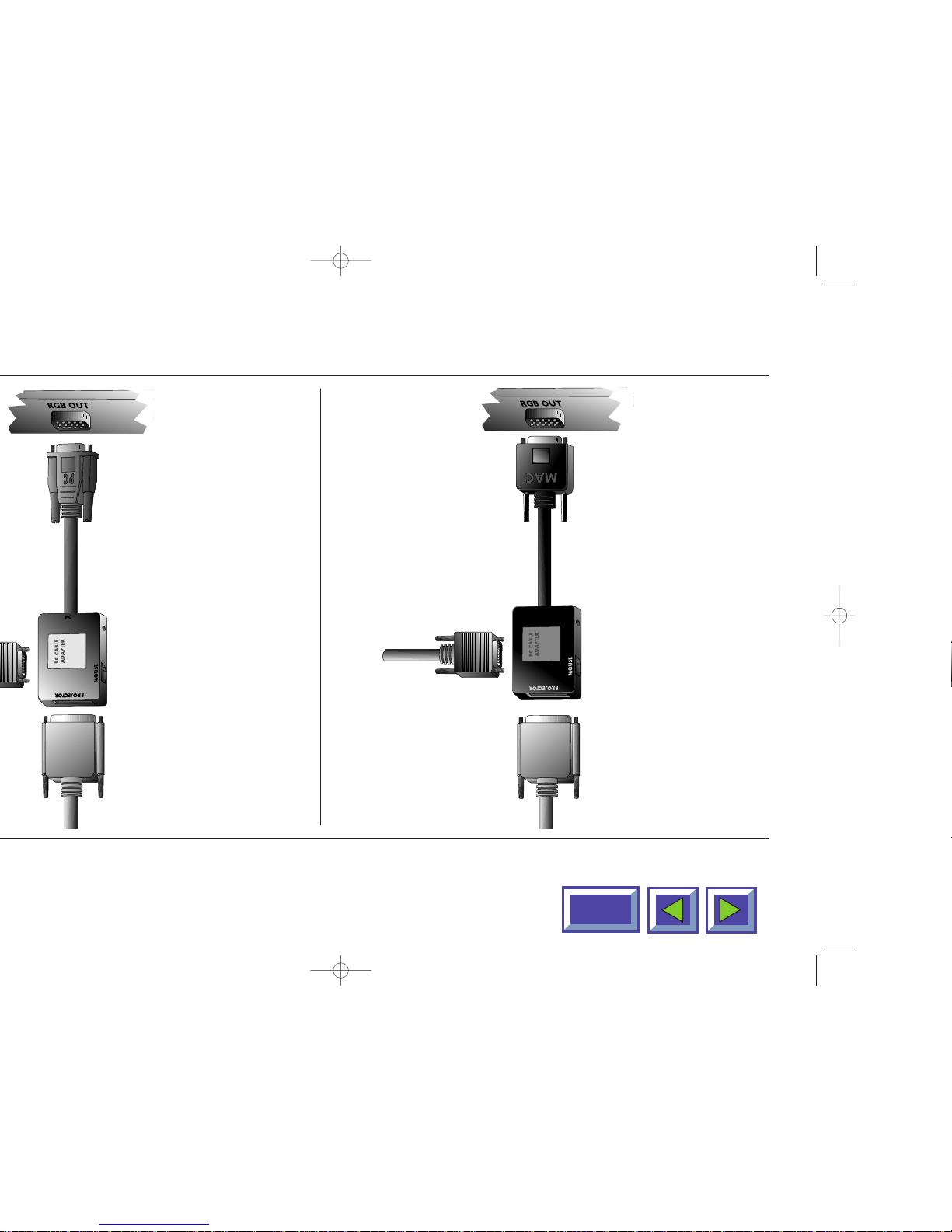

Connecting to a desktop PC
with standard RGB
Figure 5: Connecting to a desktop PC
with standard RGB
Connecting to an Apple Macintosh
desktop computer
Figure 6: Connecting to an Apple Macintosh
desktop computer
PC adapter
PC monitor PC monitor
Back panel of
computer
EVC cable
MAC adapter
Back panel of
computer
EVC cable
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 8
Contents
9

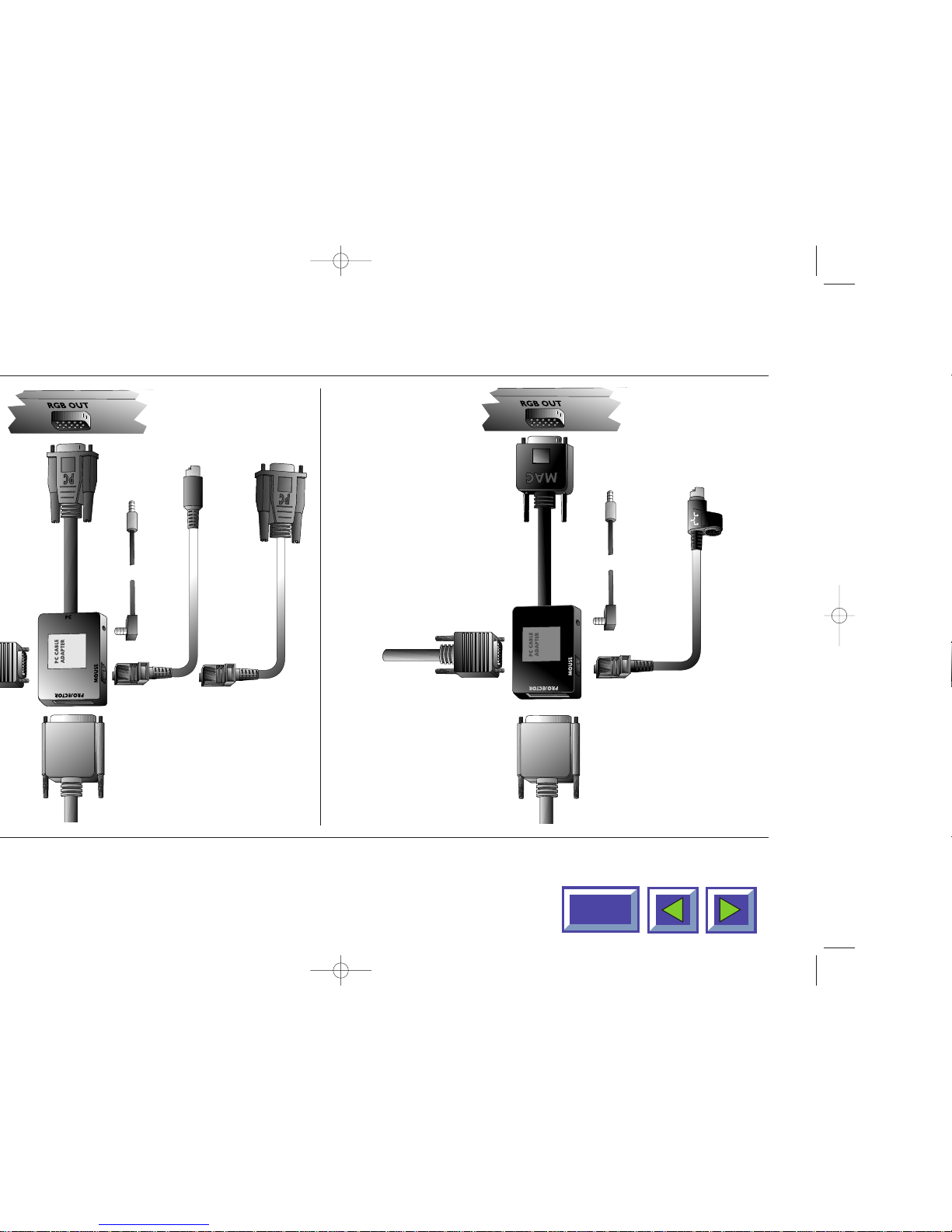

Connecting the mouse cable
and stereo jack (PC)
Figure 7: Connecting the mouse cable and
stereo jack (PC)
Connecting the mouse cable and
stereo jack (MAC)
Figure 8: Connecting the mouse cable and
stereo jack (MAC)
PC adapter
PC monitor PC monitor
Back panel of
computer
EVC cable
MAC adapter
Back panel of
computer
EVC cable
Stereo jack cable
PS/2 mouse for PC
RS232
mouse for PC
Stereo jack cable
ADB mouse for
Macintosh
1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 9
Contents
10
4. Connecting a video source to the KODAK DP850 ULTRA
The procedure for connecting a video
source to the KODAK DP850 ULTRA is
the same for S-video and Composite
video
SECAM, PAL N and PAL M modes are manually
selected by pressing the “Green Button“. If the right
format is not found the first time, press again. The
video format is stored separately for each connector.
1. Make sure that the video source and the
KODAK DP850 ULTRA are switched off.
2. Connect the video cable from the Video out
connector of the video source to the correct video
connector on the KODAK DP850 ULTRA plug panel.
3. Connect the audio cable from the Audio out
connectors of the video source to the Audio in
connectors on the KODAK DP850 ULTRA. Connect
the red plug to the red connector, and the other
plug to the white connector. Red is the right stereo
channel.
4. When all the connections are done and verified,
switch on the video source and the KODAK DP850
ULTRA.
5. The KODAK DP850 ULTRA will now automatically
display the pictures from the video source. If not,
see the section ‘What do I do if’.

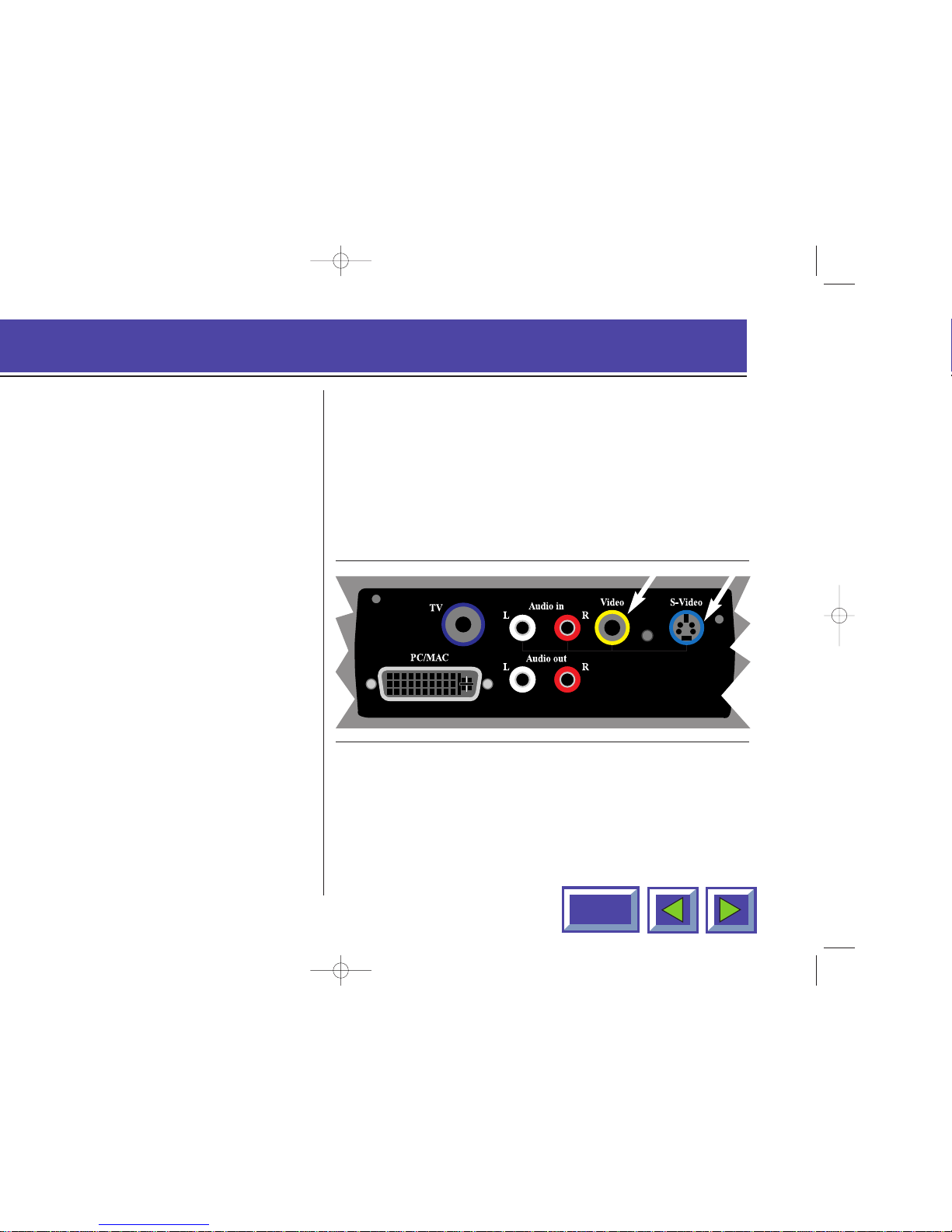

Figure 9: Connecting to video sources
