Kodak EKTAGRAPHIC Manuale utente

The Quick Reference - is designed to be your

ultimate source to all applications, technical

constellations, accessories etc. for Kodak

Ektagraphic Slide Projectors

Quick Reference

EKTAGRAPHIC

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 2

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

Accessories................................................................3

Remote Control

Cable ..................................................................4

Infrared...................................................5

IR + Extension Cable..........................................6

Parallel Projection

IR and 2 Receivers..............................................7

Endless Projection

Timer.................................................................8

Autofocus....................................................................9

Slide Recording..............................................................10

Lamps

General..............................................................11

Extra Bright Light Module

General..............................................................12

Lumen Output / Compatibility.............................13

Safety Precautions............................................14

Stackloader.................................................................15

External Control........................................................16

Addresses....................................................................17

Editorial......................................................................21

Content

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 3

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

Accessories

Product CAT NO

AV35 EKTAGRAPHIC IR Remote Control 109 8383

EC-1 Remote Control 131 7015

EC-2 Remote Control 131 7031

EC-3 Remote Control 131 7056

EC58 KODAK EC Remote Extension Cord 25-foot

(

7.6m

)

140 1363

SP Laser Remote 817 3338

SP Laser Remote with Receiver/IRRemote Control 830 0279

EKTALITE Extra Bright Lamp Module Complete 816 7181

EXRProjection Lamp - 35 h 145 2259

FHS Projection Lamp - 70 h 147 7678

EXY Projection Lamp - 200 h 145 2143

Lenses (see section "Lenses")

EC Dissolve Control 168 0297

SP Dissolve Control 102 9677

SP Programmable Dissolve Control 816 7199

EC Stack Loader 151 4249

EKTAPRO 80 Slide Tray 712 8580

CAROUSEL TRANSVUE140 Slide Tray 184 0768

Universal Slide Tra

Model AV780 144 3266

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 4

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

nGeneral

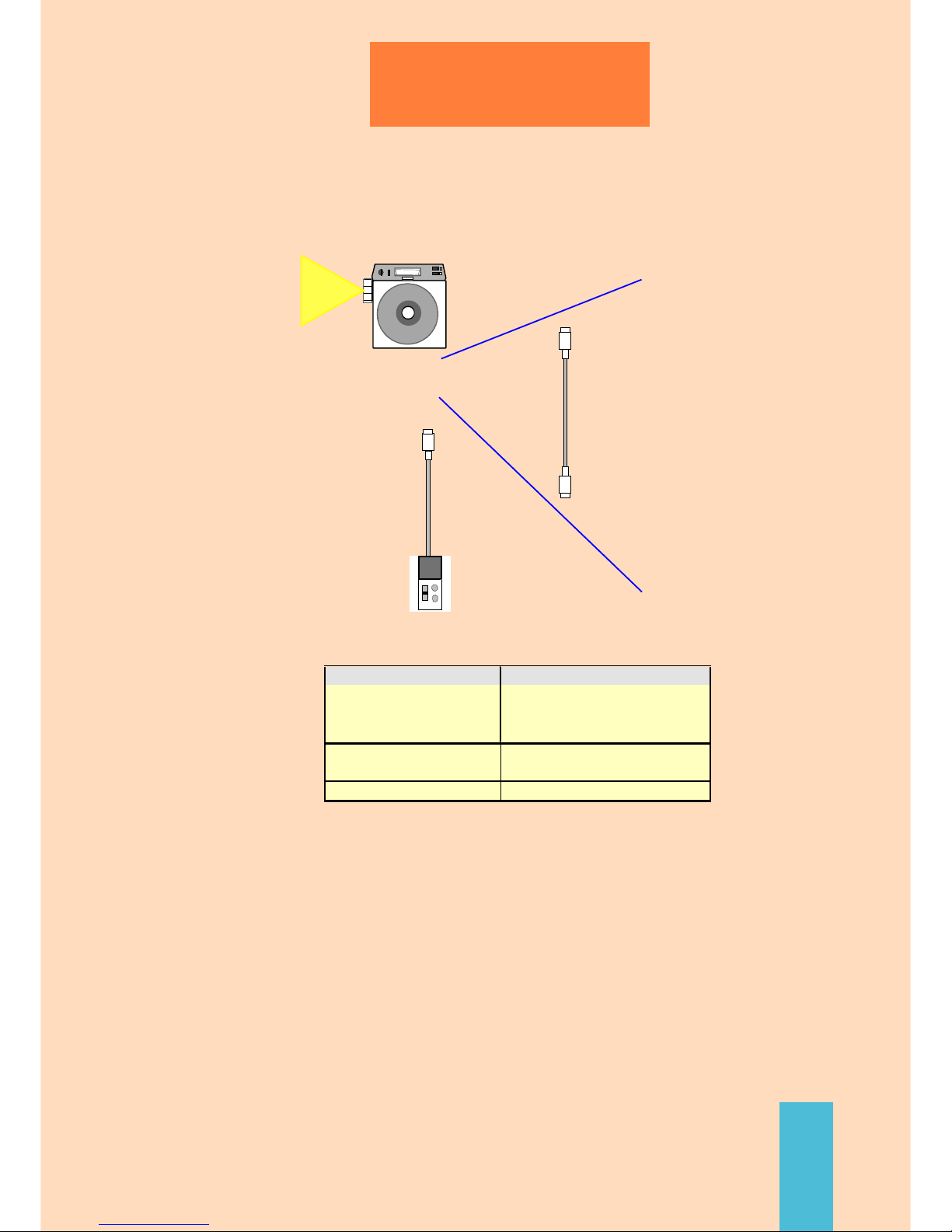

Remote Control

Cable

all models

Cable Remote

CAT 131 7015 -EC1

CAT 131 7031 -EC2

CAT 131 7056 -EC3

Extension Cable

CAT No 140 1363

7.6 m

Cable Remote 1 1 1 1

CAT 131 7015 -EC1

CAT 131 7031 -EC2

CAT 131 7056 -EC3

Extension Cable 8 m

CAT 140 1363 1 2 3

Total Cable Length 3.7 m

1.3

18.9 m 26.5 m

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 5

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

Remote Control

Infrared

Note

Individual control of two IR systems in one

room is not possible. Hand transmitter offers

only one channel for transmitting data.

nGeneral

Note

Dimmed fluorescent light (neon) may reduce

max. achievable IR distance!

An IR Control System always consists

of a transmitter and a receiver!

○○○○○○○○○

all models

SP Laser Remote

CAT No 830 0279

EKTAGRAPHIC IR Remote

Control CAT No 109 8383

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 6

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

Remote Control

IR + Extension Cable

○○○○○○○○○

n1 Ektalite Projector, IR Remote Control and 7.6 m Extension

Cable for optimal placement of IR Receiver

SP Laser Remote

CAT No 830 0279

EKTAGRAPHIC IR Remote

Control CAT No 109 8383

all models

Extension Cable

CAT No 140 1363

7.6 m

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 7

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

Parallel Projection

IR and 2 Receivers

○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○

nIR Remote System and a second receiver

Note

Parallel projection (side by side projection,

projection in harmony is only possible with a

second IR receiver. Unfortunately this item is

not available as an accessory. So a second IR

remote system is necessary.

SP Laser Remote

CAT No 830 0279

EKTAGRAPHIC IR Remote

Control CAT No 109 8383

EKTAGRAPHIC

500, 1500 and

2000

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 8

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

Endless Projection

Timer

Setting : 3 - 22 sec

EKTAGRAPHIC

ATS, AMT, ABR

Timer

nIntegrated Timer

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 9

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

nImportant Note for use of Autofocus

Autofocus

Important

Use either glass or glassless (cardboards)

mounted slides! Never mix up!

EKTAGRAPHIC

A, ATS, AMT, ABR

Quick Reference -- The ultimate reference for Kodak EKTAGRAPHIC Slide Projectors 10

 by Kodak AG Stuttgart CMS edition 6/98 -QR-Ekta.pm65

Slide Recording

nCreating 35 mm slides with film recorders

Computer

Filmrecorder ( Addresses

page 20)
